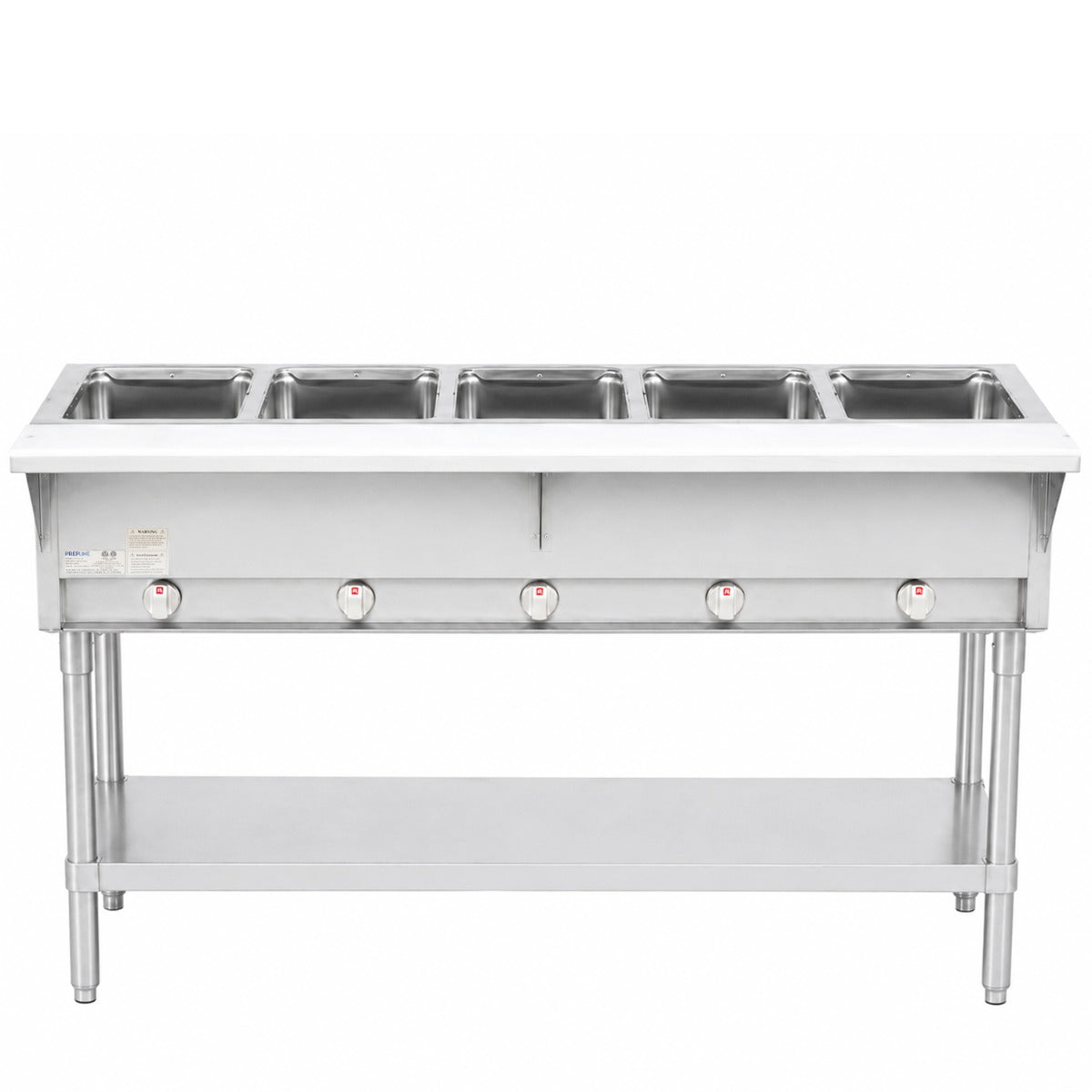

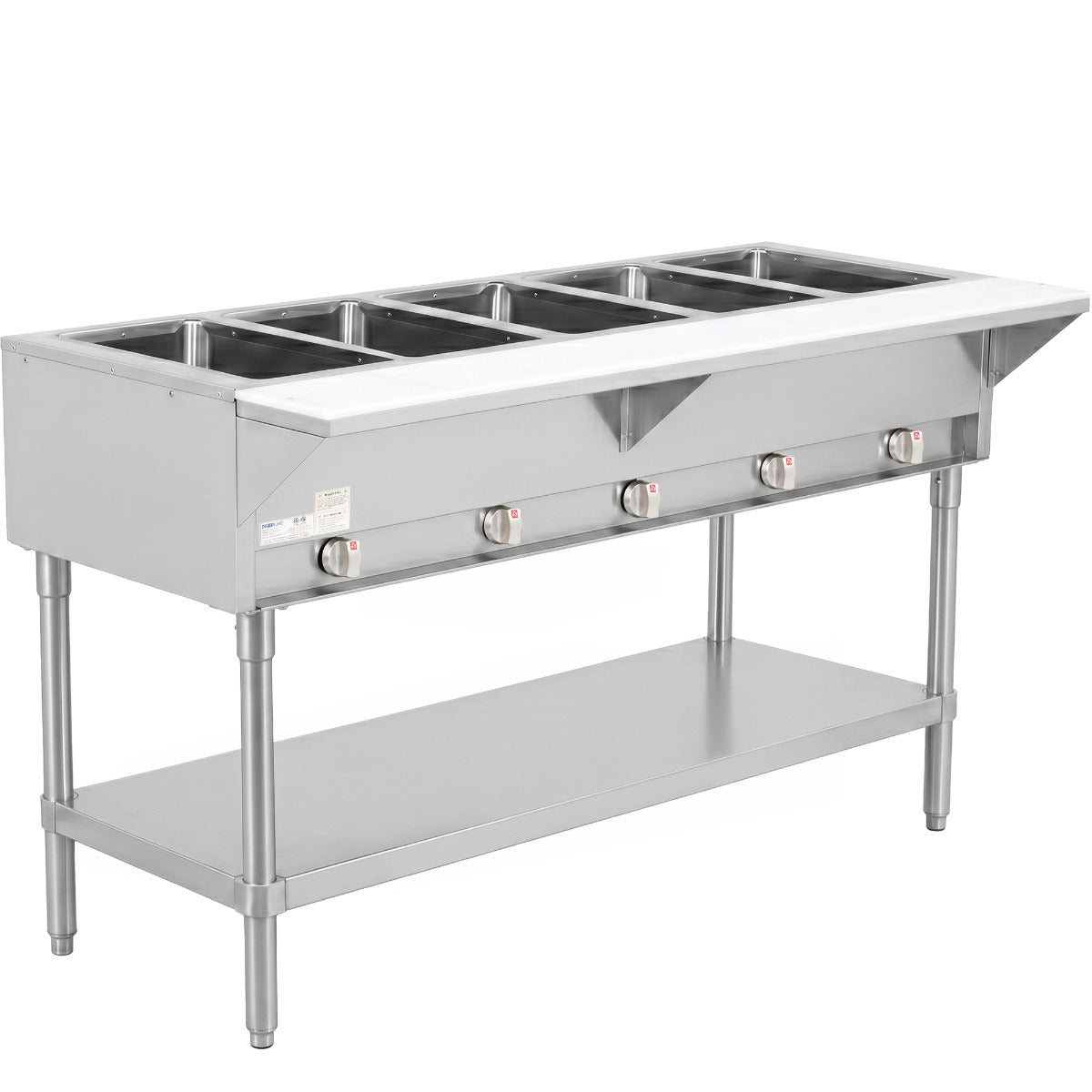

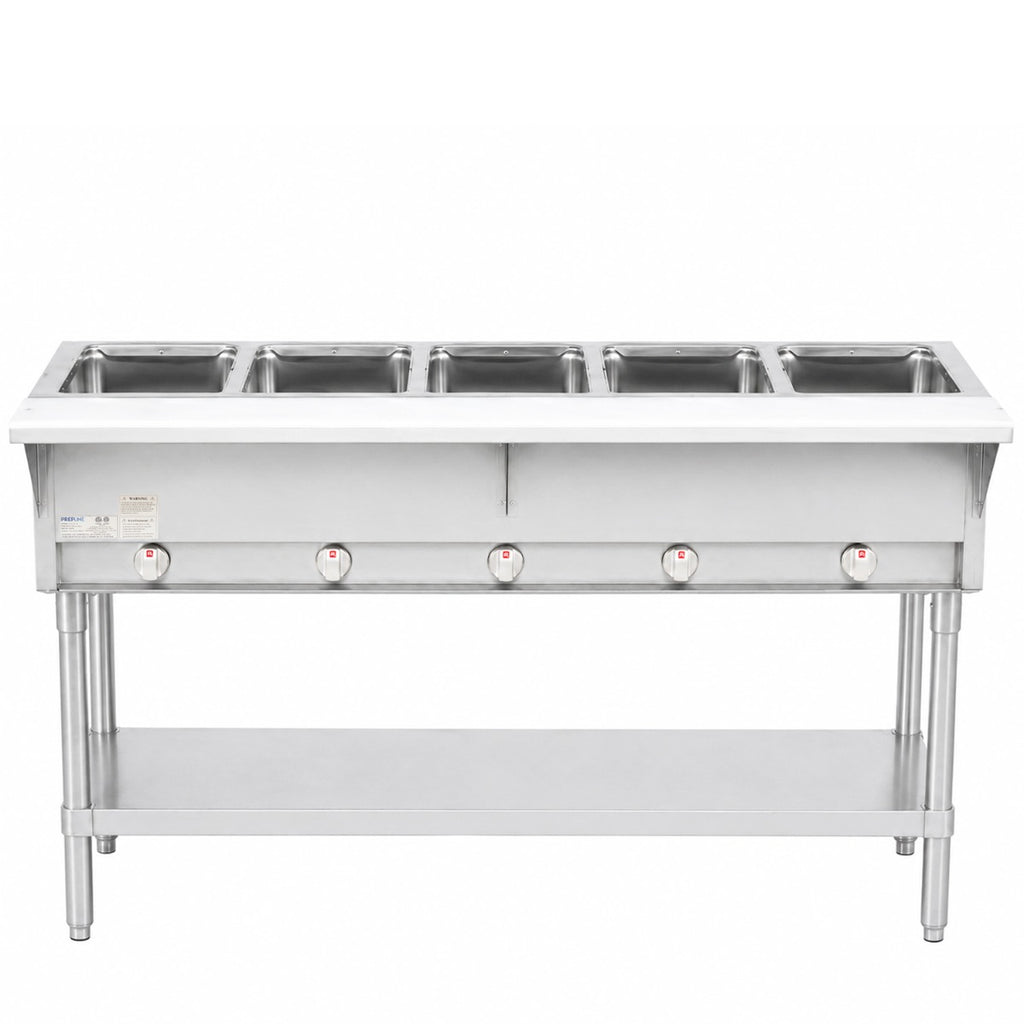

Prepline GST74-5O 74" 5-Well Open Gas Steam Table with Undershelf, 17,500 BTU
A 74" 5-well gas steam table that holds hot food wet or dry on the serving line, with an undershelf for storage.
The Prepline GST74-5O gives cafeterias, caterers, buffets and serving lines 5 open 12" × 20" wells heated by 5 jet burners of 3,500 BTU each, with independent controls and no electrical hookup for the table itself. The wells run dry, or wet with spillage pans (sold separately), and need no plumbing or drain. A removable 1/2" poly cutting board runs along the front, and the stainless steel undershelf holds pans, plates and lids. Pans are sold separately.
The base ships for assembly on site; measure the spot on the line, including the 8" cutting board at the front.

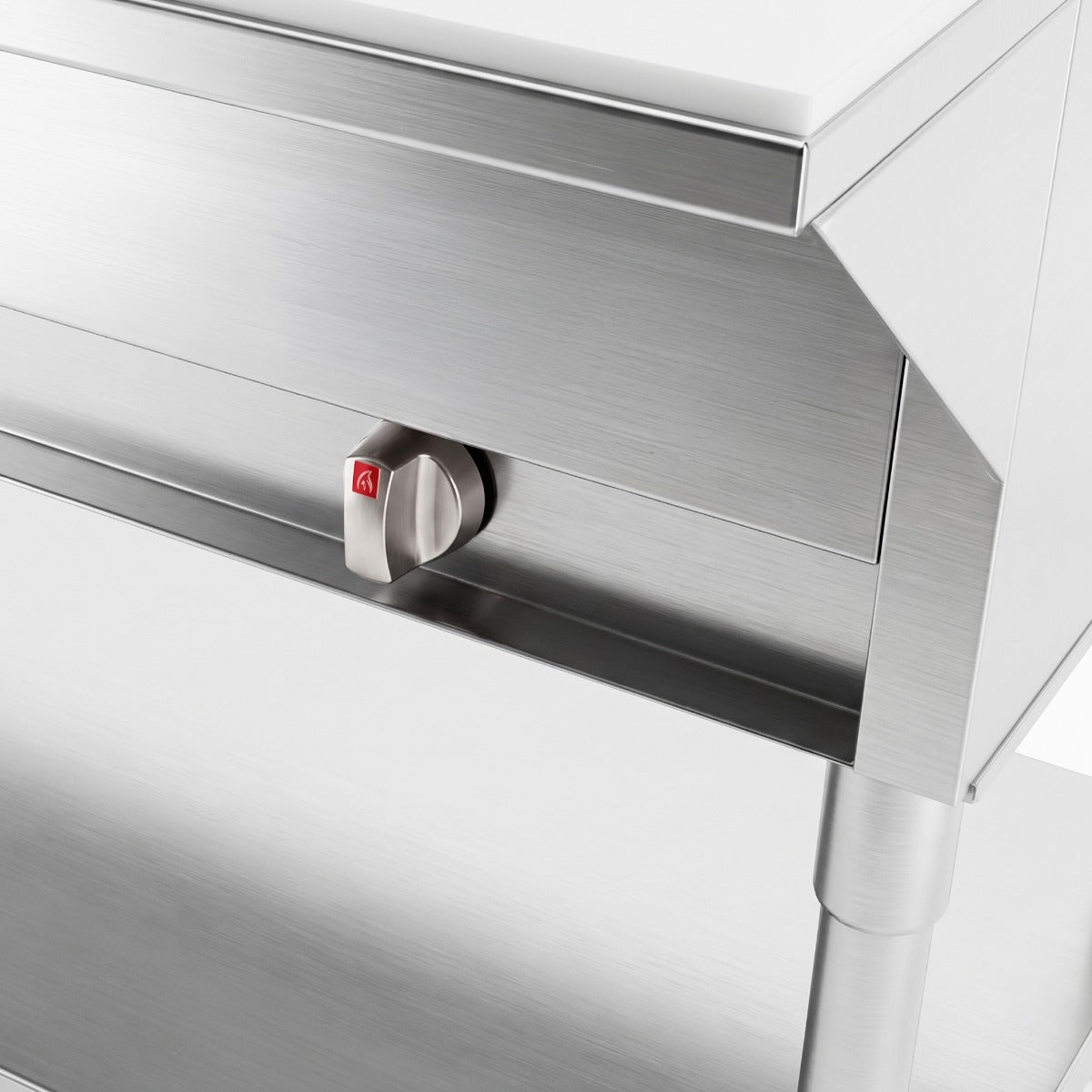

5 jet burners at 3,500 BTU each, each well with its own control.
Run the open wells dry, or add spillage pans with water; no plumbing needed.
A removable 1/2"-thick poly board along the front for plating and serving.
A stainless steel undershelf keeps pans, plates and lids within reach.
The spec sheet does not state natural gas or LP. The GST manual describes the included regulator as factory set for natural gas and convertible to LP by qualified personnel, but its conversion section is inconsistent, so call us to confirm the gas type and any conversion parts before ordering.
The burners total 17,500 BTU/H. A gas regulator with 1/2" NPT inlet and outlet is included; the manual says a manual shut-off valve (supplied by the user) must be installed in the supply line. Have a qualified installer connect it to local code.
Both. The open wells work with dry heat, or with water in spillage pans, which are sold separately. No plumbing or drain is needed.
No, food pans and spillage pans are sold separately. Each of the 5 wells is 12" × 20" and 6.5" deep.
No. The manual says the steam table is not intended to cook raw food; it holds food that is already cooked.
It is 73.8" wide, 30.6" deep with the 8" cutting board and 34.4" high on 6" legs. The manual lists 2" of clearance at the sides and rear, approves combustible or non-combustible floors, and asks for at least 4" of air space between items on the undershelf and the burners.
USR Brands covers Prepline GST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Gas connections must be made by a qualified installer. Food truck and farm installs are parts only, residential use is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | GST74-5O |
| Quantity | 1/Each |
| Width | 73.8 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Leg Height | 6 Inches |
| Total BTU | 17,500 BTU/H |
| Burners | 5 Jet Burners, 3,500 BTU/H Each |
| Gas Regulator | Included, 1/2" NPT Inlet and Outlet |
| Ignition | Standing Pilot (Match Lit) |
| Capacity | 5 Wells, 12" x 20" Each |
| Well Depth | 6.5 Inches |
| Well Type | Open Well (Dry, or Wet with Spillage Pans) |
| Drain | None (No Plumbing Needed) |
| Controls | Independent Heat Controls |
| Insulation | Fiberglass Between Wells |
| Cutting Board | Removable 1/2" Thick Polyethylene, 8" Deep |
| Base | Stainless Steel Undershelf |
| Construction | Stainless Steel |
| Legs | 6" Legs, 1 5/8" Diameter |
| Casters | Optional |
| Pans | Sold Separately |
| Sneeze Guard | Optional, Sold Separately |
| Assembly | Cabinet Assembly Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
