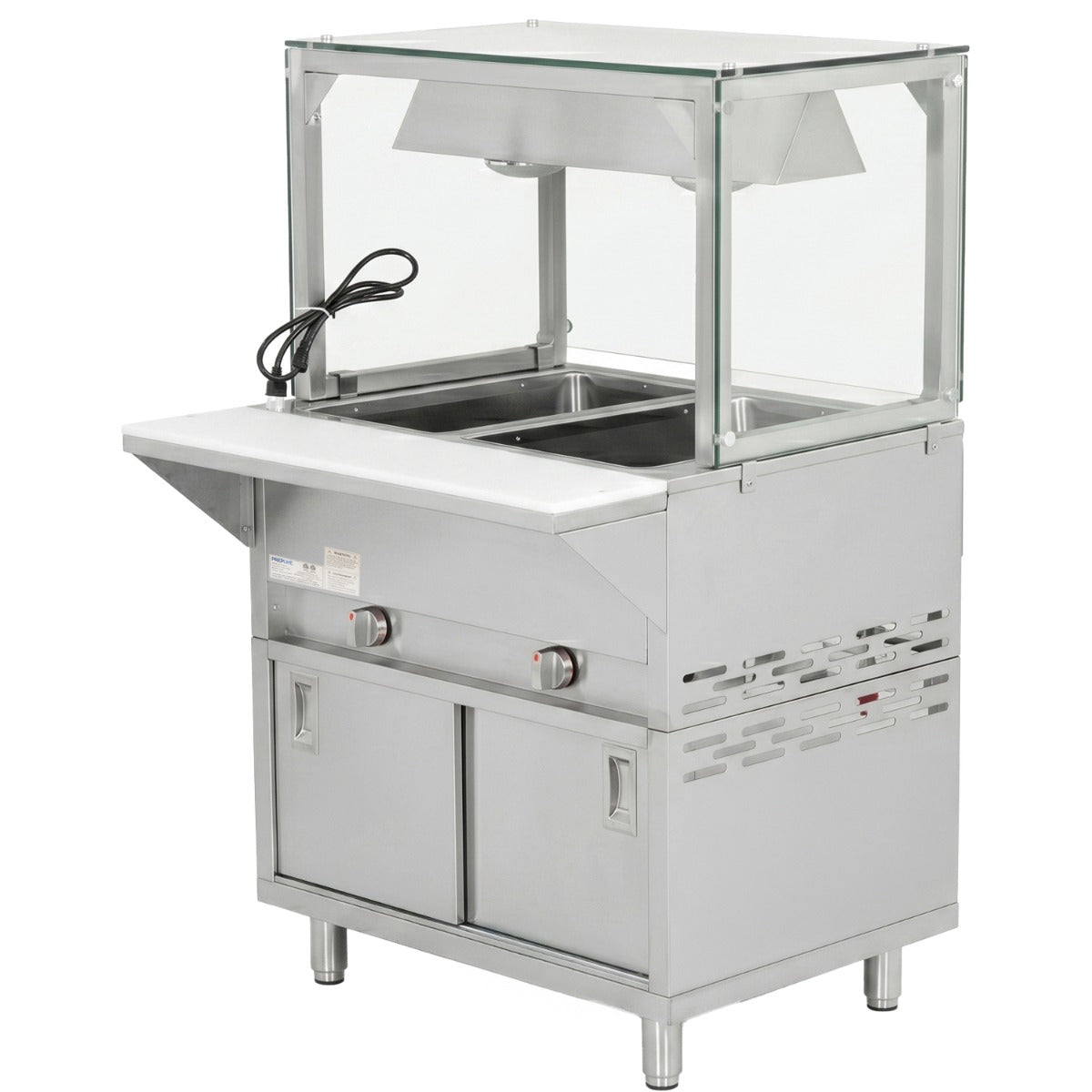

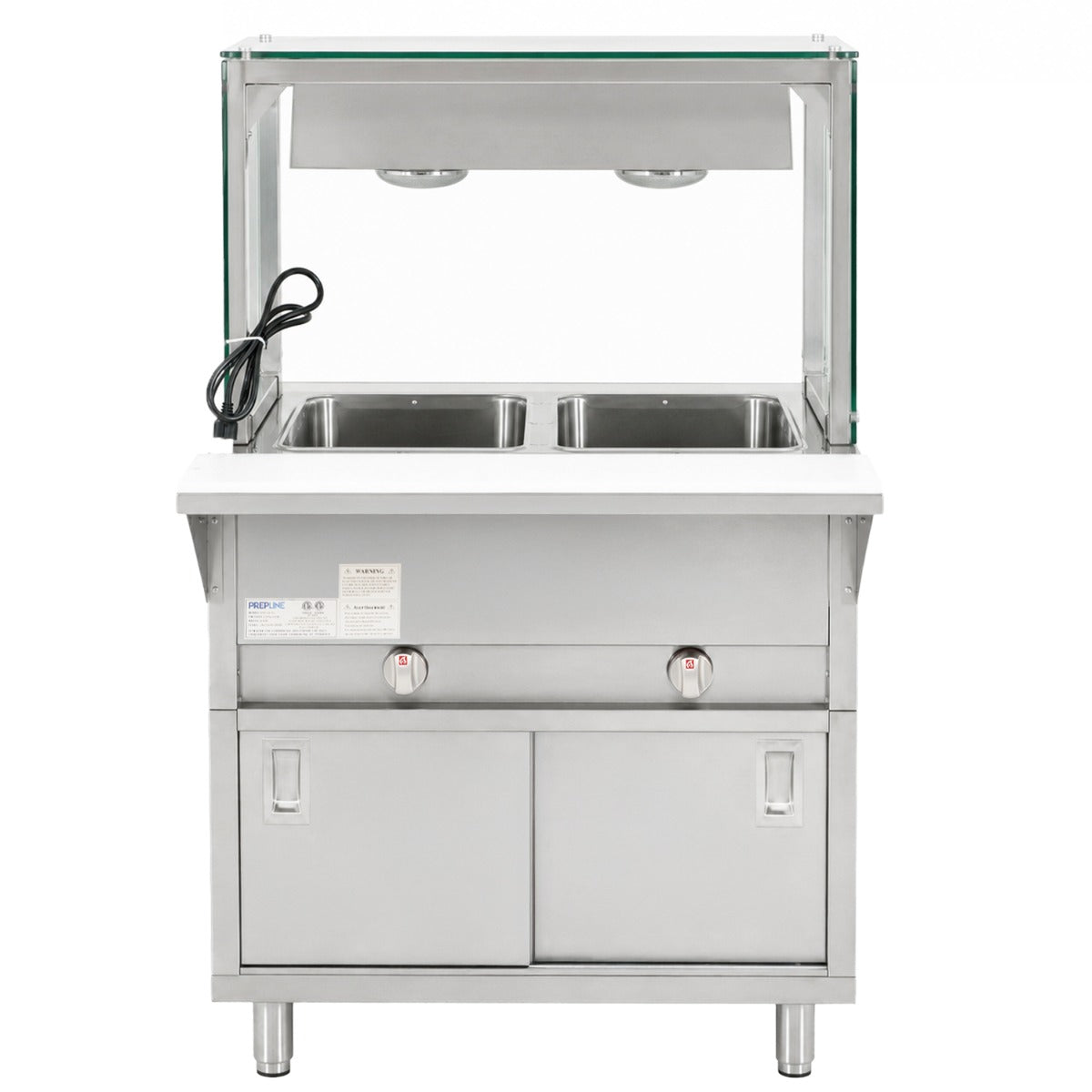

Prepline GSTC30-2S-LT 32" 2-Well Sealed Gas Steam Table with Lighted Sneeze Guard, Enclosed Base and Sliding Doors, 7,000 BTU
A 32" 2-well gas steam table that holds hot food on the line without an electrical hookup for the wells, with a sneeze guard to protect it.
The Prepline GSTC30-2S-LT gives cafeterias, caterers and serving lines 2 sealed 12" × 20" wells heated by 2 jet burners of 3,500 BTU each, with independent controls and no electrical hookup for the table itself. The sealed wells hold water for even heat and drain through a built-in drain. A removable 1/2" polyethylene cutting board runs along the front, and the enclosed base with sliding doors stores pans and lids. This package adds a PSG-LT-30 lighted sneeze guard with four-side tempered glass and 2 heat lamp bulbs that light and warm the food from above; it plugs into a 120V outlet. Pans are sold separately.
The cabinet ships for assembly on site; measure the spot on the line, including the cutting board at the front.
2 jet burners at 3,500 BTU each, each well with its own control.

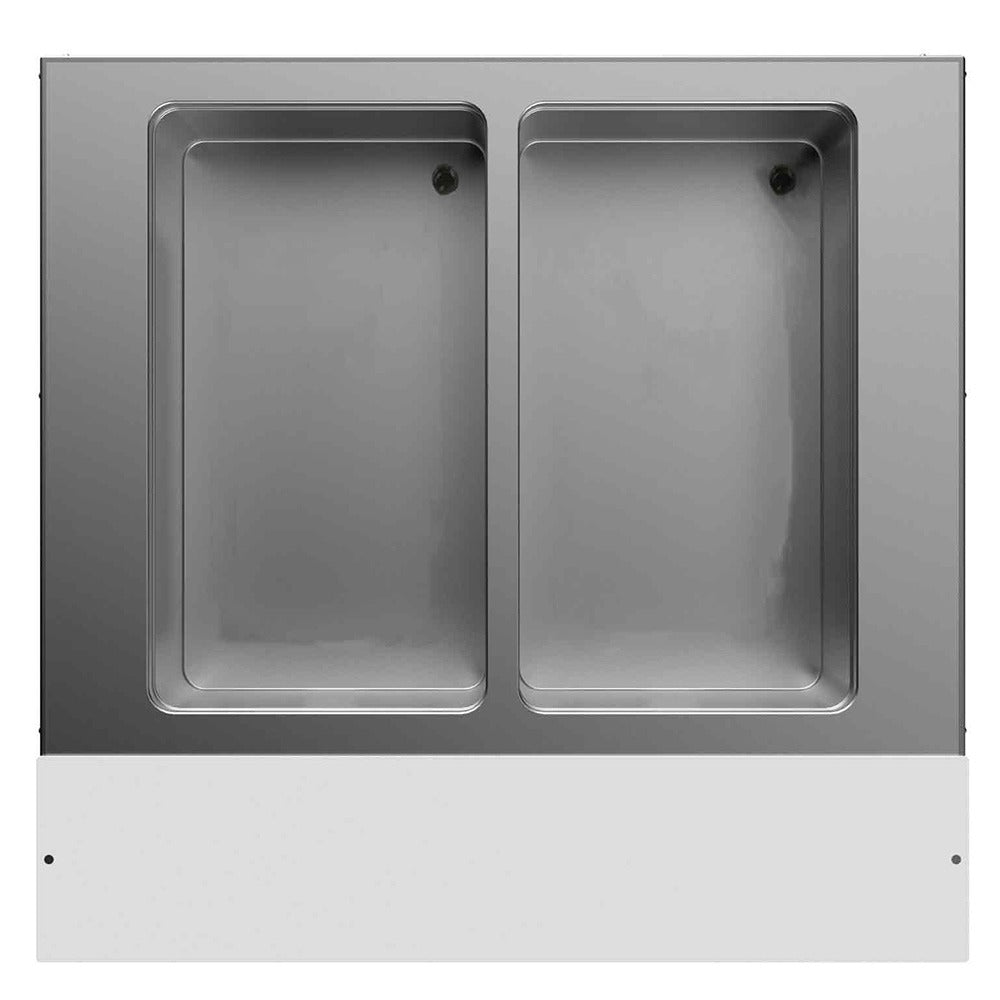

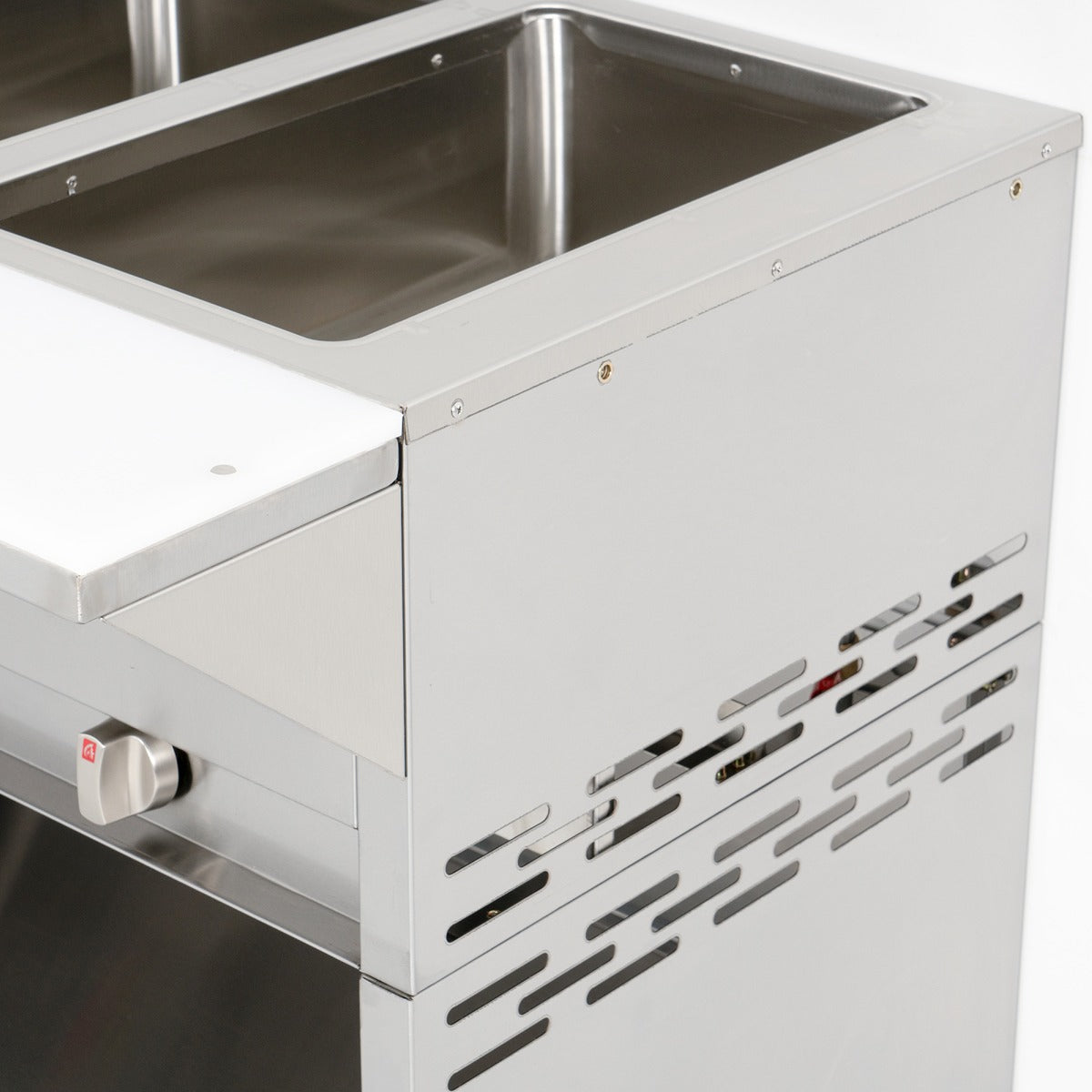

Sealed wells hold water for even heat and empty through a built-in drain.

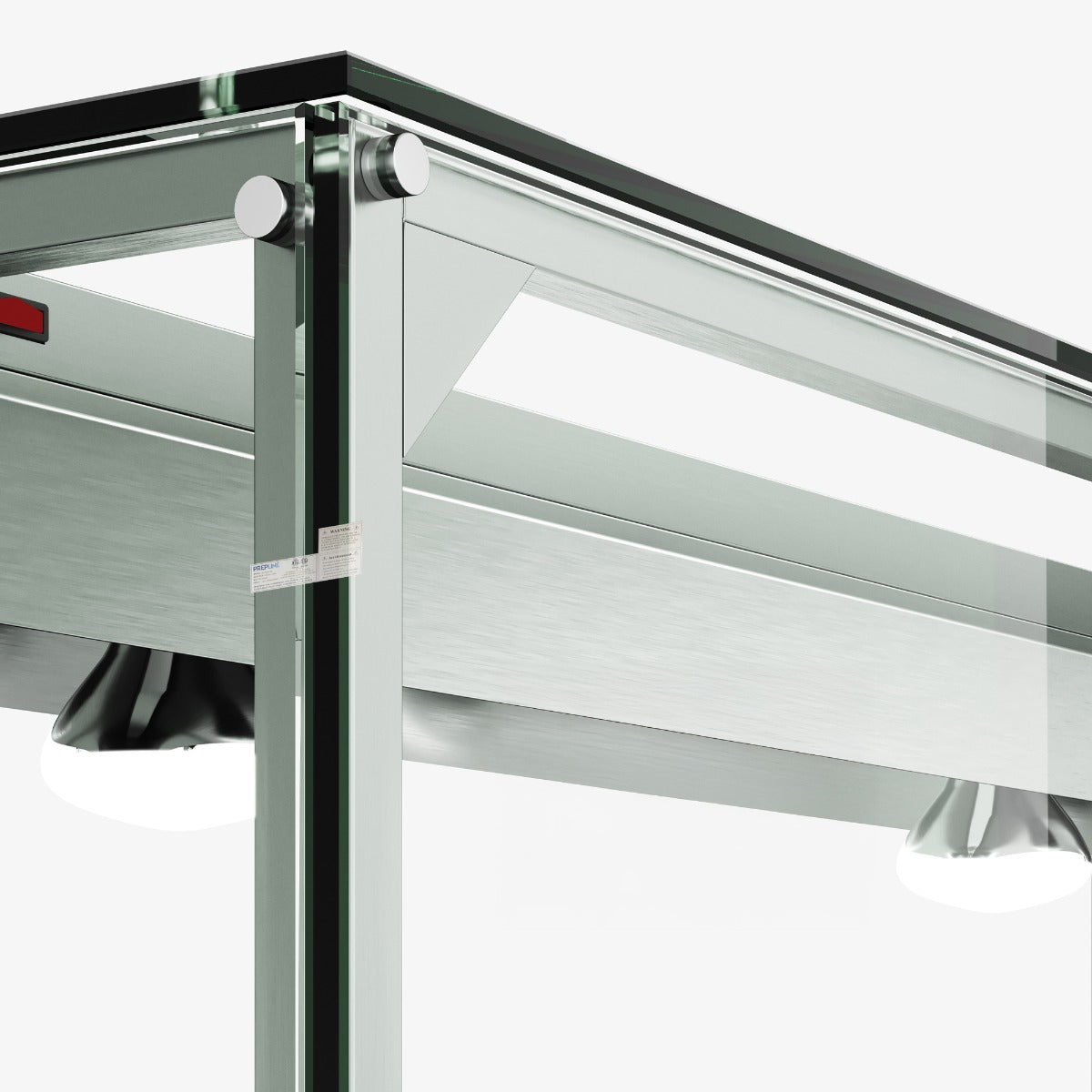

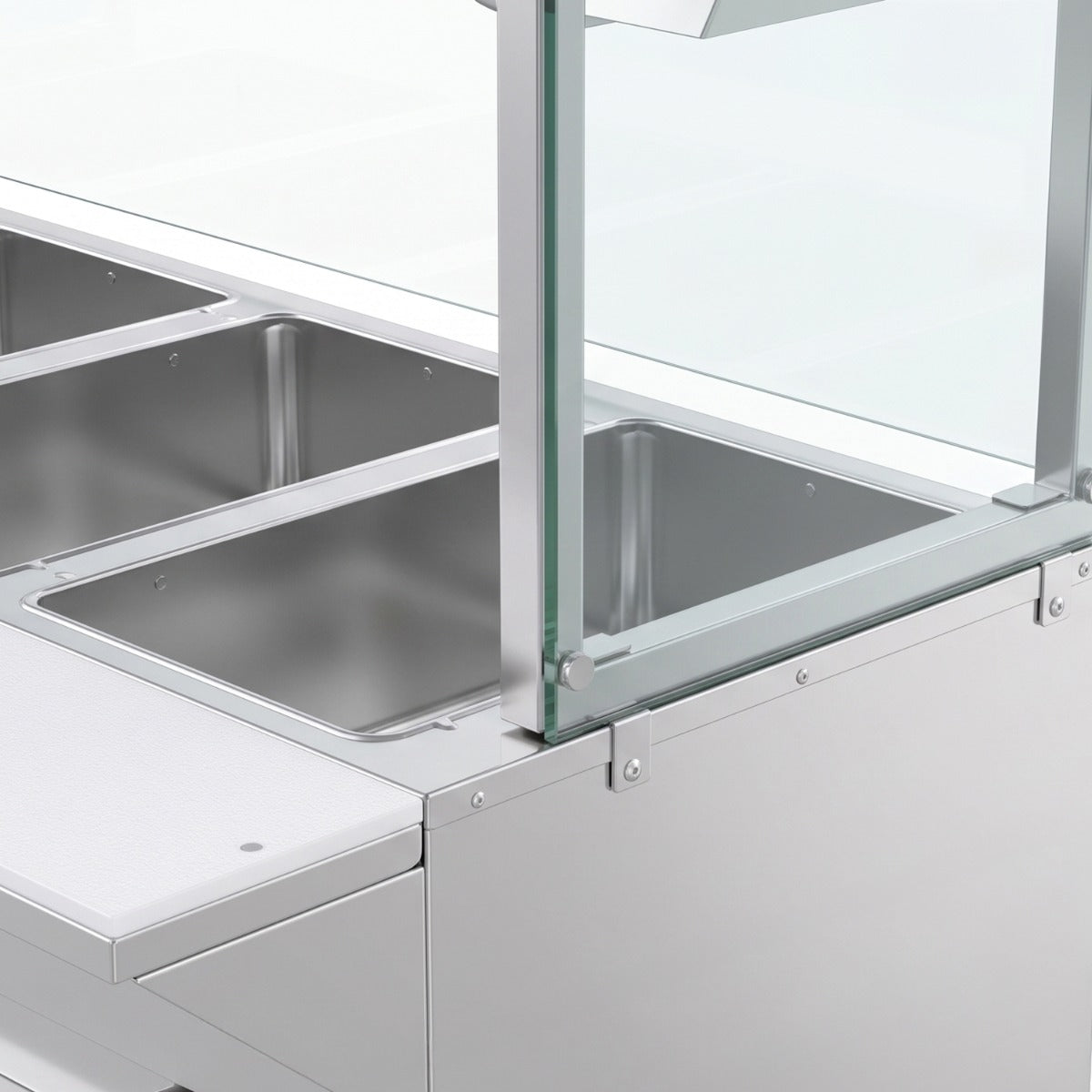

Tempered glass on four sides with 2 heat lamp bulbs that add top-down heat.
A removable 1/2"-thick polyethylene board along the front for plating.
Sliding doors keep pans, lids and utensils under the wells.
The spec sheet does not state natural gas or LP. The GST manual describes the included regulator as adaptable to natural gas and LP with conversion by qualified personnel, but its conversion section is inconsistent, so call us to confirm the gas type and any conversion parts before ordering.
The burners total 7,000 BTU/H. A gas regulator with 1/2" NPT inlet and outlet is included; the manual says a manual shut-off valve must be installed in the supply line and is not included. Have a qualified installer connect it to local code.
Yes. The 2 sealed wells hold water for even heat (the manual says up to 2" of hot water) and empty through the built-in drain. Preheat with the wells covered for about 15 to 30 minutes before adding food.
No, pans are sold separately. Each well is 12" × 20" and 7.5" deep.
No. Prepline steam tables are designed to hold food that is already cooked, not to cook raw food.
It is 31.8" wide, 30.6" deep with the cutting board and 34.4" high on 6" legs. The manual lists 2" of clearance at the sides and rear, and it may stand on combustible or non-combustible floors. Keep the area around the burners clear for air flow.
Yes. The PSG-LT-30 lighted guard runs its 2 heat lamp bulbs on 120V (500W) with a NEMA 5-15P plug, so plan a standard outlet near the table. The steam table itself is gas heated.
USR Brands covers Prepline GST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Gas connections must be made by a qualified installer. Food truck and farm installs are parts only, residential use is not covered, and glass is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | GSTC30-2S-LT |
| Quantity | 1/Each |
| Includes | GSTC30-2S Gas Steam TablePSG-LT-30 Lighted Sneeze Guard |
| Width | 31.8 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Leg Height | 6 Inches |
| Total BTU | 7,000 BTU/H |
| Burners | 2 Jet Burners, 3,500 BTU/H Each |
| Gas Regulator | Included, 1/2" NPT Inlet and Outlet |
| Ignition | Standing Pilot (Match Lit) |
| Voltage | 120 Volts |
| Wattage | 500W |
| Hertz | 60 |
| Plug Type | NEMA 5-15P |
| Electrical | Sneeze Guard Heat Lamps Only |
| Capacity | 2 Wells, 12" x 20" Each |
| Well Depth | 7.5 Inches |
| Well Type | Sealed Well (Water Heat) |
| Drain | Built-In Water Drain |
| Controls | Independent Heat Controls |
| Insulation | Fiberglass Between Wells |
| Cutting Board | Removable 1/2" Thick Polyethylene, 8" Deep |
| Base | Enclosed Cabinet with Sliding Doors and Handles |
| Construction | Stainless Steel Cabinet Body |
| Legs | 6" LegsAdjustable Stainless Steel Feet |
| Casters | Optional |
| Pans | Sold Separately |
| Sneeze Guard | PSG-LT-30, 31.8" L x 19" D x 20" H |
| Sneeze Guard Glass | Four-Side Tempered Glass |
| Heat Lamp Bulbs | 2, Included |
| Sneeze Guard Frame | Stainless Steel |
| Assembly | Cabinet Assembly RequiredSneeze Guard Installation Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
