Prepline HFW1 16.5" One Pan Insulated Electric Drop-In Hot Food Well, Sealed Well with Drain, 1100W, 120V
A 1-pan electric drop-in well that keeps hot food in pans at the serving counter.
The Prepline HFW1 drops into a serving counter or buffet line to keep one full size 12" x 20" pan or equivalent fractional pans hot. The sealed well has an 18 ga. 304 stainless steel liner, fiberglass insulation and a built-in water drain. It fits a 23-1/2" x 15-5/8" cut-out and runs on 120V (1,100 W) with a NEMA 5-15P plug on a dedicated 15 A circuit.
Check the space under the counter: the well body is 10" high, and the drain valve and control box hang below the top (Prepline drawing).
12" x 20" x 6.5" deep well for a full size pan or fractional pans, with a built-in water drain.
An infinite control knob with an indicator light sets the heat of the 1,100 W element.
18 ga. 304 stainless steel top and well, fiberglass insulation, 20 ga. 430 stainless apron and back.

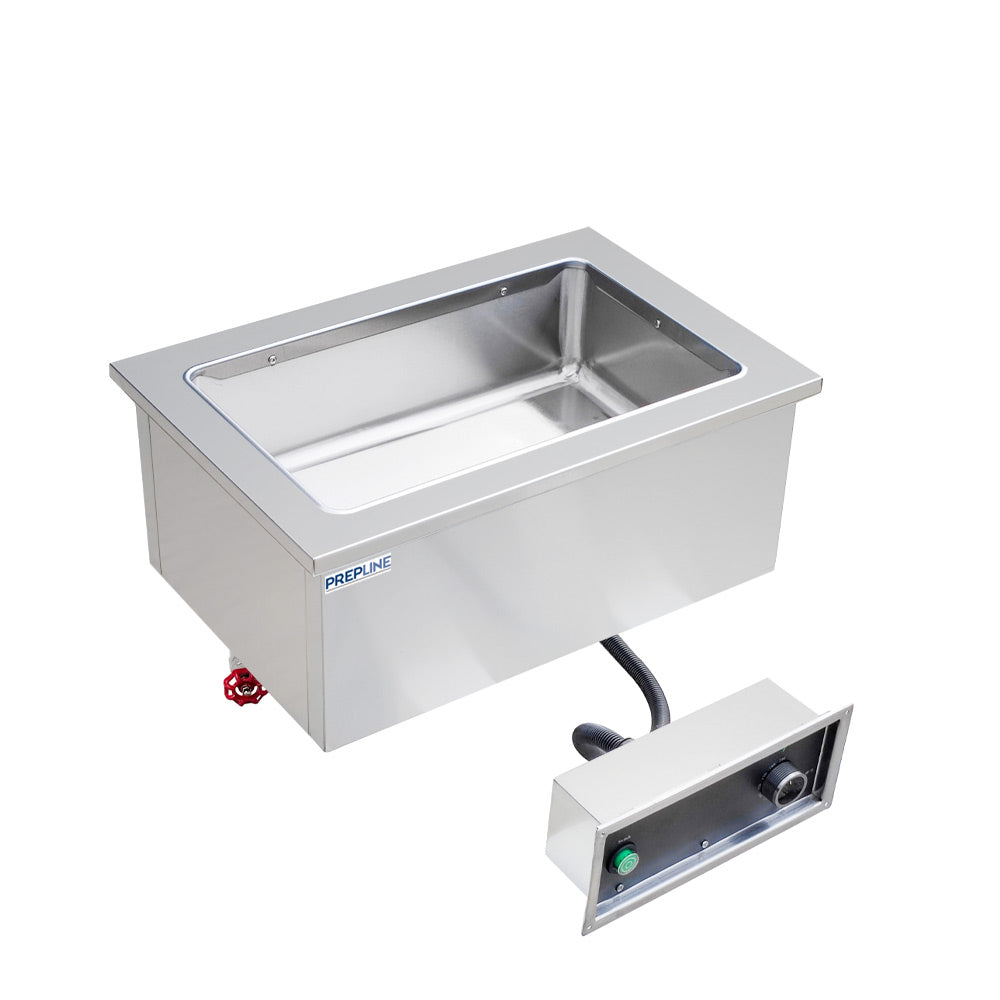

The knob and indicator light sit in a separate control box on a lead (Prepline drawing).
USR Brands specifies a 23-1/2" x 15-5/8" cut-out. The top flange measures 16.5" x 24.72", and the well body is 10" high, so check the depth under your counter. Measure before you cut.
A grounded 120V outlet for its NEMA 5-15P plug on a 72" cord. It is rated 1,100 W, and USR Brands requires a dedicated 15 A circuit installed by a licensed electrician.
Each sealed well is 12" x 20" x 6.5" deep and holds a full size pan or equivalent fractional pans. Pans are not included.

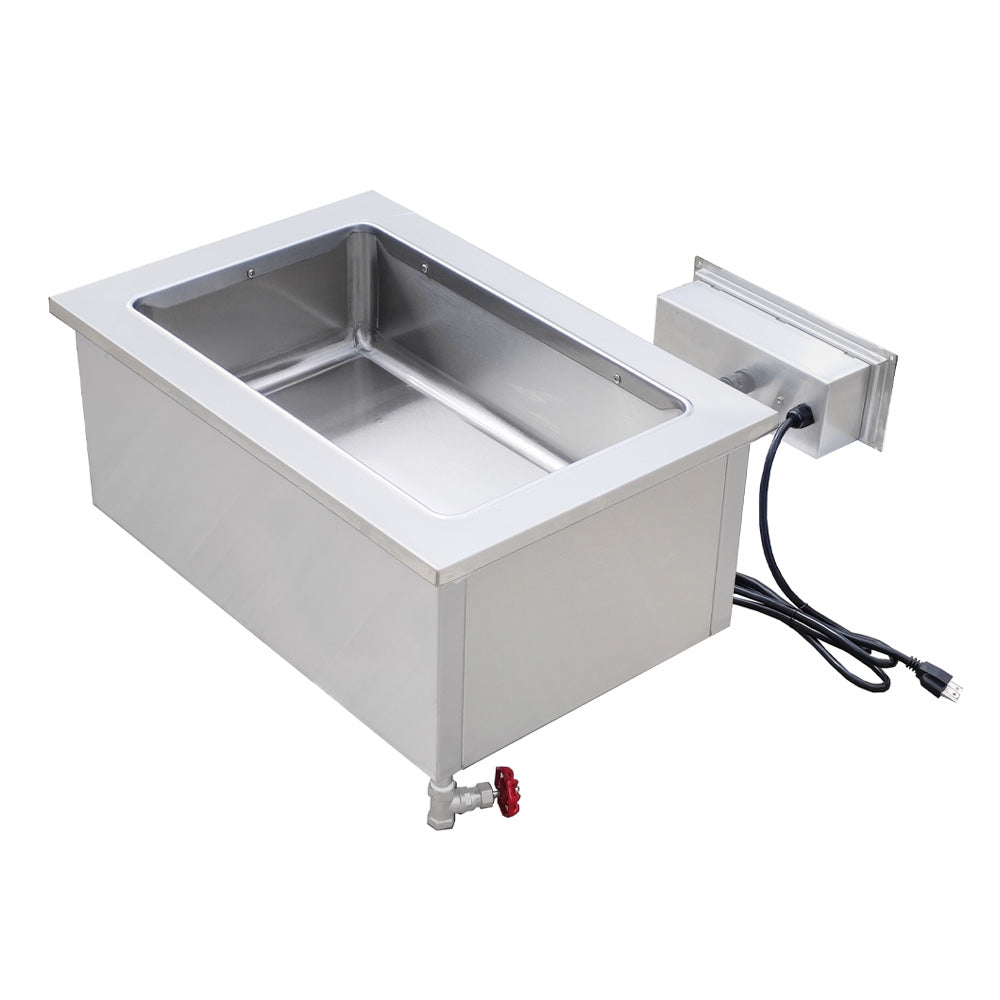

Each well is sealed and has a built-in water drain (1" corner drain per USR Brands). Plan where the drain line will run under the counter.
USR Brands covers Prepline HFW-series food warmers for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered, and labor to remove or reinstall the unit is excluded.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | HFW1 |
| Quantity | 1/Each |
| Shipping Weight | 51 lb. |
| Width | 16.5 Inches |
| Depth | 24.72 Inches |
| Height | 10 Inches |
| Cut-Out Size | 23.5" x 15.63" |
| Shipping Dimensions | 18.7" x 27" x 22" |
| Voltage | 120 Volts |
| Wattage | 1,100 Watts |
| Hertz | 60 |
| Plug Type | NEMA 5-15P |
| Power Cord | 72 Inches |
| Circuit | Dedicated 15 Amp Circuit |
| Capacity | 1 Full Size Pan (12" x 20") or Fractional Equivalent |
| Wells | 1 Sealed, 12" x 20" x 6.5" Deep |
| Drain | Built-In Water Drain (1" Corner Drain) |
| Controls | Infinite Control Knob with Indicator Light |
| Heating Element | 1,100 Watts |
| Insulation | Fiberglass |
| Top and Wells | 18 ga. 304 Stainless Steel |
| Apron and Back | 20 ga. 430 Stainless Steel |
| Installation | Drop-In |
| Warranty | 1 Year Parts & Labor |
