Prepline HFW2 30.5" Two Pan Insulated Electric Drop-In Hot Food Well, Sealed Wells with Drain, 2200W, 120V
A 2-pan electric drop-in well that keeps hot food in pans at the serving counter.
The Prepline HFW2 drops into a serving counter or buffet line to keep 2 full size 12" x 20" pans or equivalent fractional pans hot. Each of the 2 sealed wells has its own control and an 18 ga. 304 stainless steel liner, fiberglass insulation and a built-in water drain. It fits a 23-1/2" x 29-5/8" cut-out and runs on 120V (2,200 W) with a NEMA 5-30P plug on a dedicated 30 A circuit.

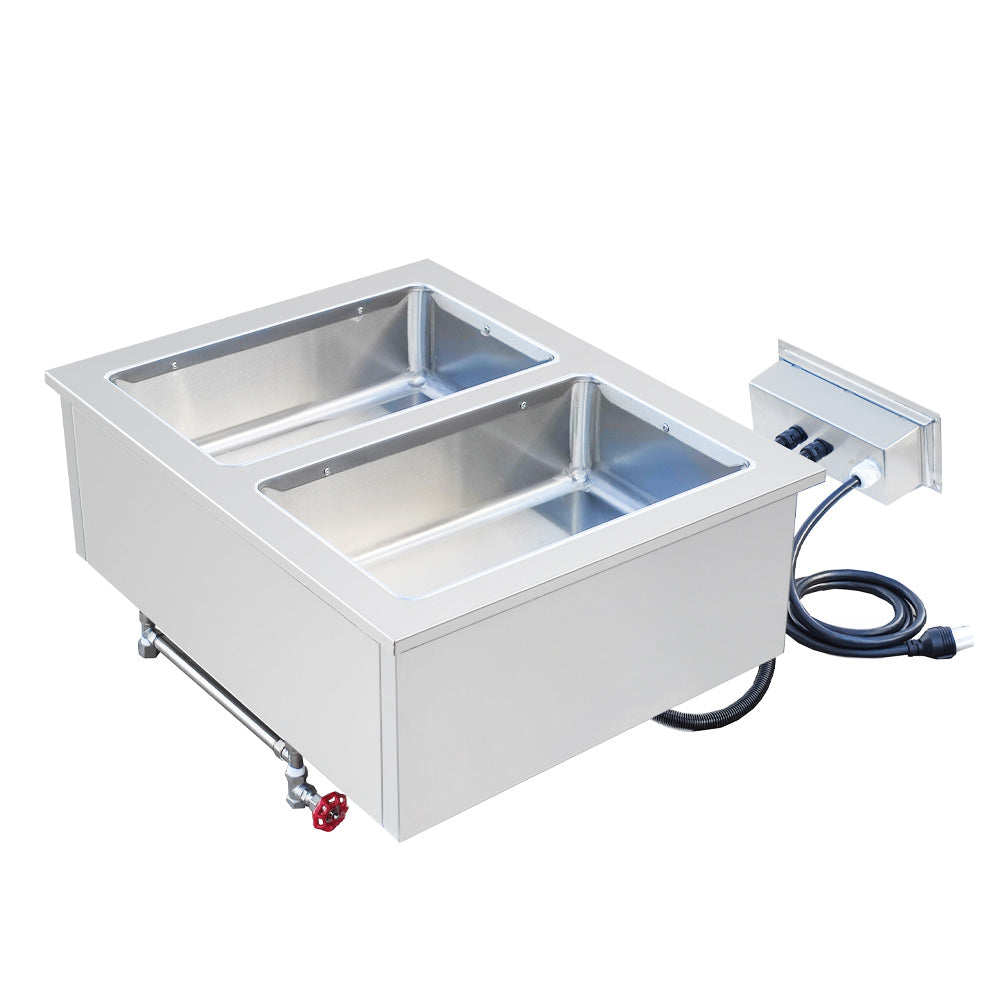

Check the space under the counter: the well body is 10" high, and the drain valve and control box hang below the top (Prepline drawing).
12" x 20" x 6.5" deep wells for a full size pan or fractional pans, with a built-in water drain.
Each well has its own infinite control knob, indicator light and 1,100 W element, so you can run only the wells you need.
18 ga. 304 stainless steel top and well, fiberglass insulation, 20 ga. 430 stainless apron and back.

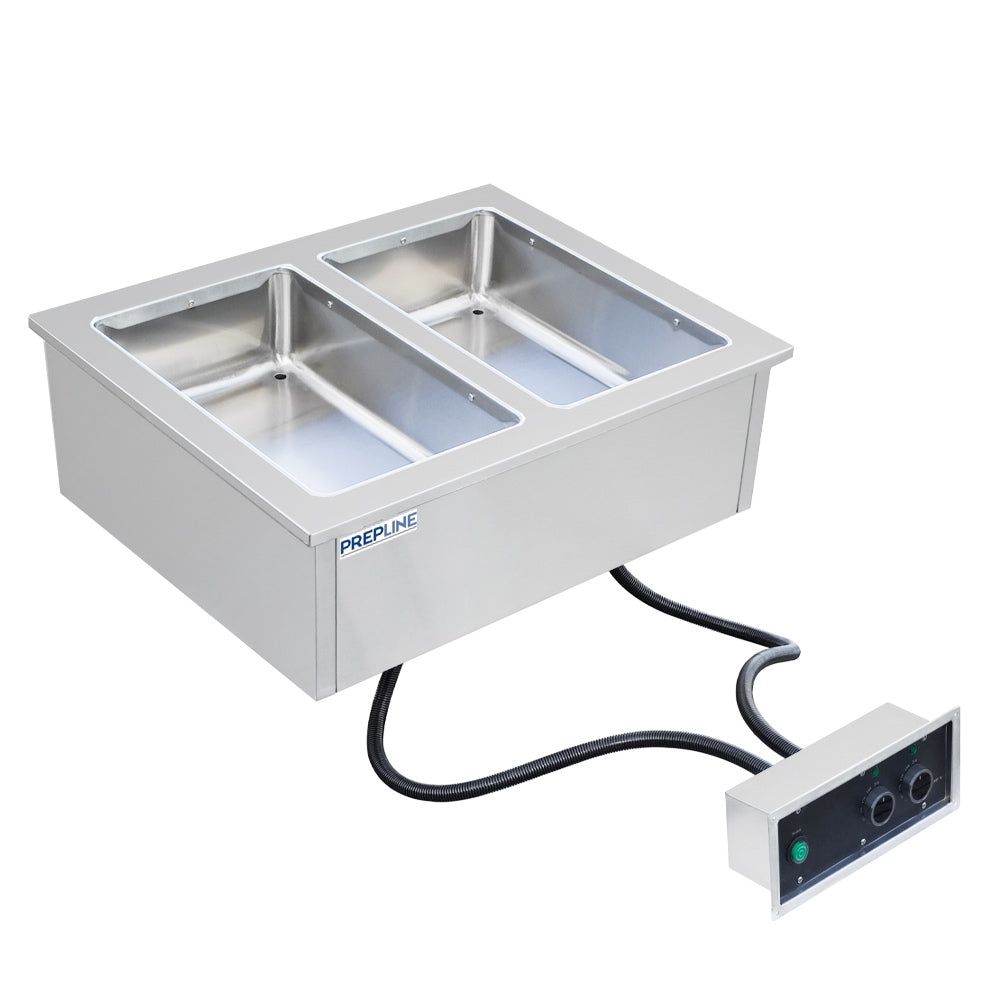

The knobs and indicator lights sit in a separate control box on a lead (Prepline drawing).
USR Brands specifies a 23-1/2" x 29-5/8" cut-out. The top flange measures 30.5" x 24.52", and the well body is 10" high, so check the depth under your counter. Measure before you cut.
A grounded 120V outlet for its NEMA 5-30P plug on a 72" cord. It is rated 2,200 W, and USR Brands requires a dedicated 30 A circuit installed by a licensed electrician.
Each sealed well is 12" x 20" x 6.5" deep and holds a full size pan or equivalent fractional pans. Pans are not included.
Each well is sealed and has a built-in water drain (1" corner drain per USR Brands). Plan where the drain line will run under the counter.
USR Brands covers Prepline HFW-series food warmers for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered, and labor to remove or reinstall the unit is excluded.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | HFW2 |
| Quantity | 1/Each |
| Shipping Weight | 79 lb. |
| Width | 30.5 Inches |
| Depth | 24.52 Inches |
| Height | 10 Inches |
| Cut-Out Size | 23.5" x 29.63" |
| Shipping Dimensions | 33" x 27" x 22" |
| Voltage | 120 Volts |
| Wattage | 2,200 Watts |
| Hertz | 60 |
| Plug Type | NEMA 5-30P |
| Power Cord | 72 Inches |
| Circuit | Dedicated 30 Amp Circuit |
| Capacity | 2 Full Size Pans (12" x 20") |
| Wells | 2 Sealed, 12" x 20" x 6.5" Deep |
| Drain | Built-In Water Drain (1" Corner Drain) |
| Controls | Independent Infinite Control per Well with Indicator Light |
| Heating Element | 1,100 Watts per Well |
| Insulation | Fiberglass |
| Top and Wells | 18 ga. 304 Stainless Steel |
| Apron and Back | 20 ga. 430 Stainless Steel |
| Installation | Drop-In |
| Warranty | 1 Year Parts & Labor |
