Prepline PIB182412L 18" x 24" Stainless Steel Underbar Ice Bin with Bottle Holders and Sliding Lid, 77 lb. Ice Capacity, 12" Deep Bowl, 3" Backsplash
A 24" stainless underbar ice bin that keeps ice within reach behind the bar.

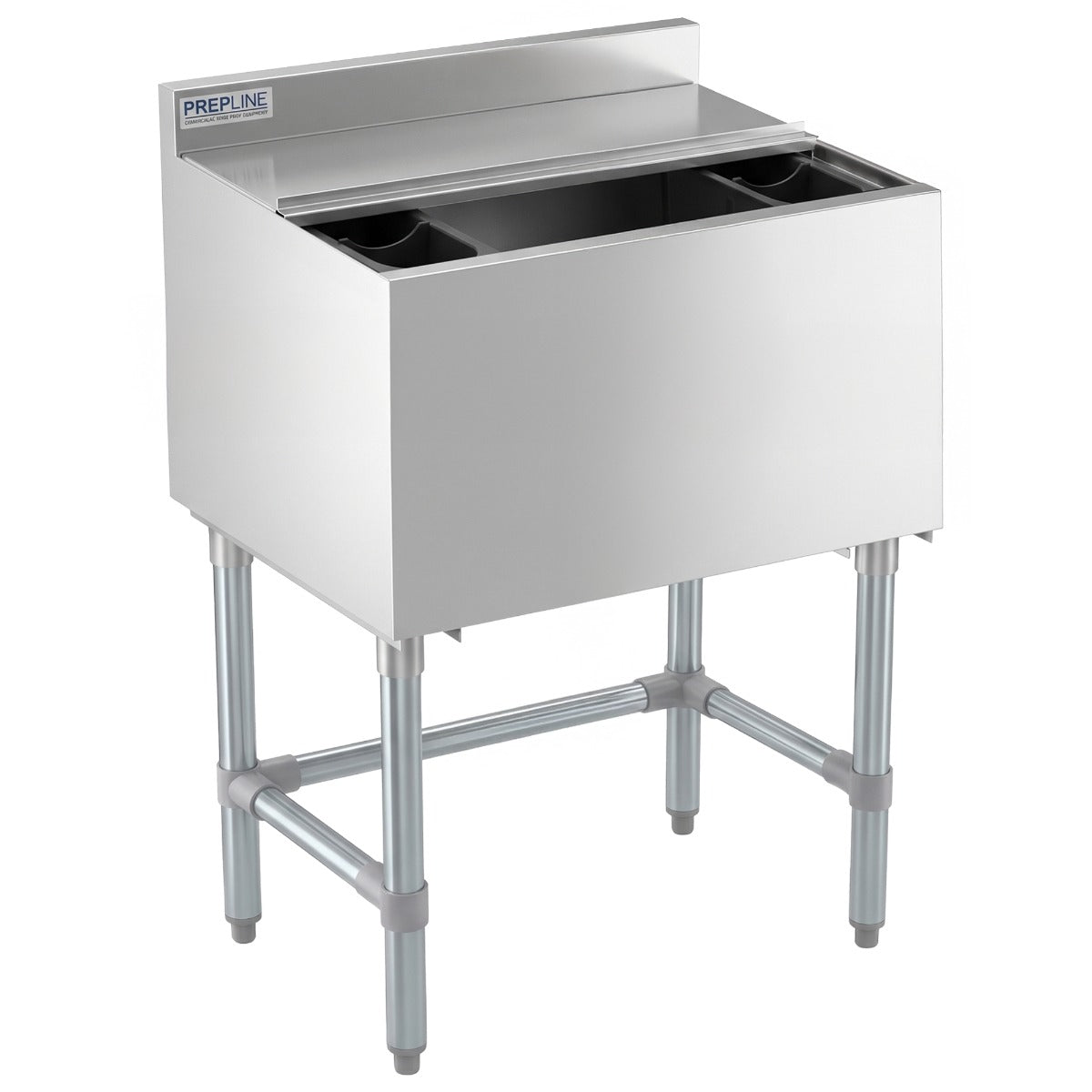

The Prepline PIB182412L is a freestanding 24" underbar ice bin for bars and restaurants. It holds about 77 lb. of ice in a 12" deep stainless bowl, with plastic bottle holders, a 3" backsplash and a 1" drain plus a sliding stainless steel lid. 18 and 20 gauge 304 stainless steel, NSF listed.
Measure the underbar space and the delivery path first.
It is 24" wide, 18 1/8" deep and 33 1/8" high to the top of the 3" backsplash (30" to the top of the bin). Measure the space under the bar top, including the backsplash.

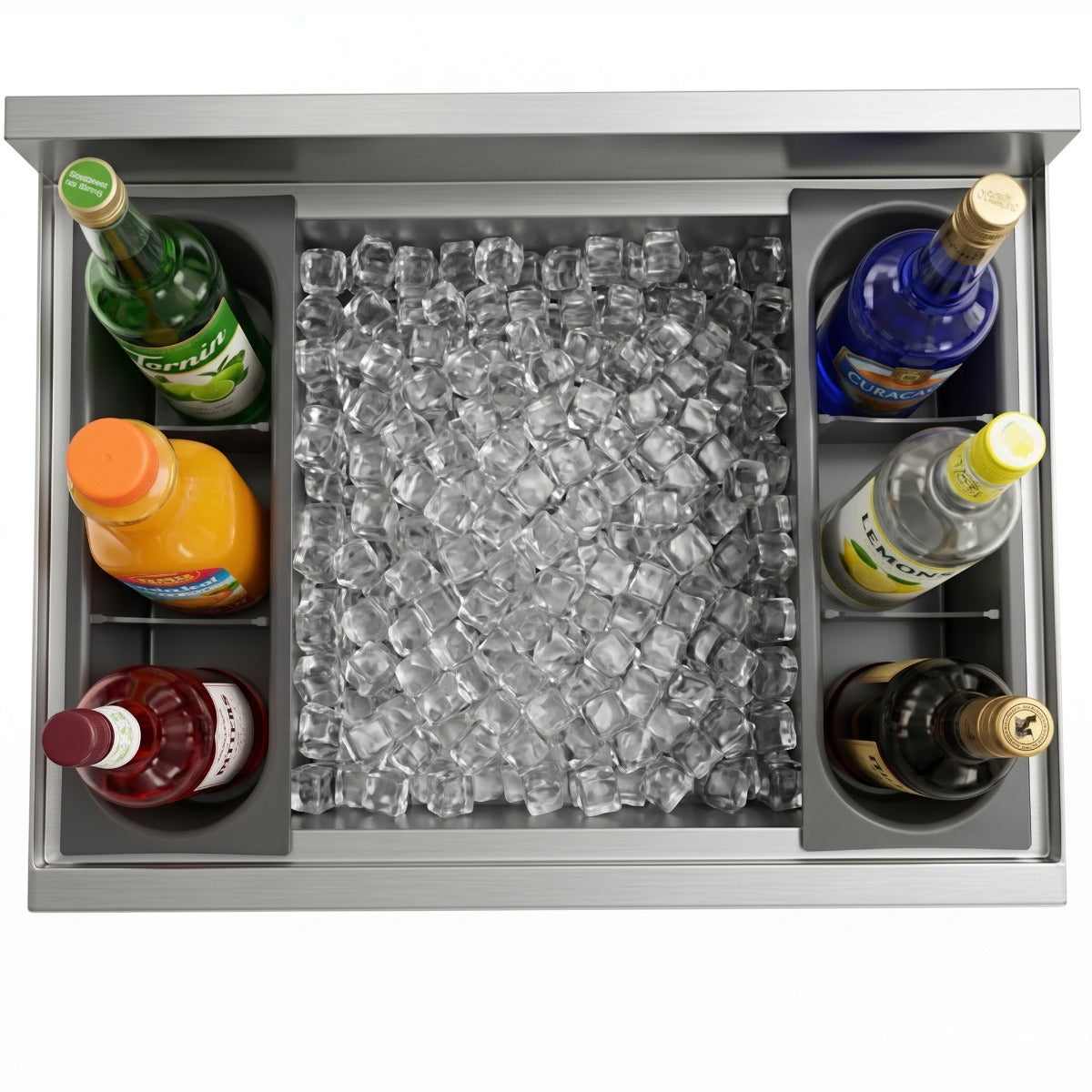

About 77 lb. in a 22" x 15 3/16" x 12" deep bowl, per the USR sheet.

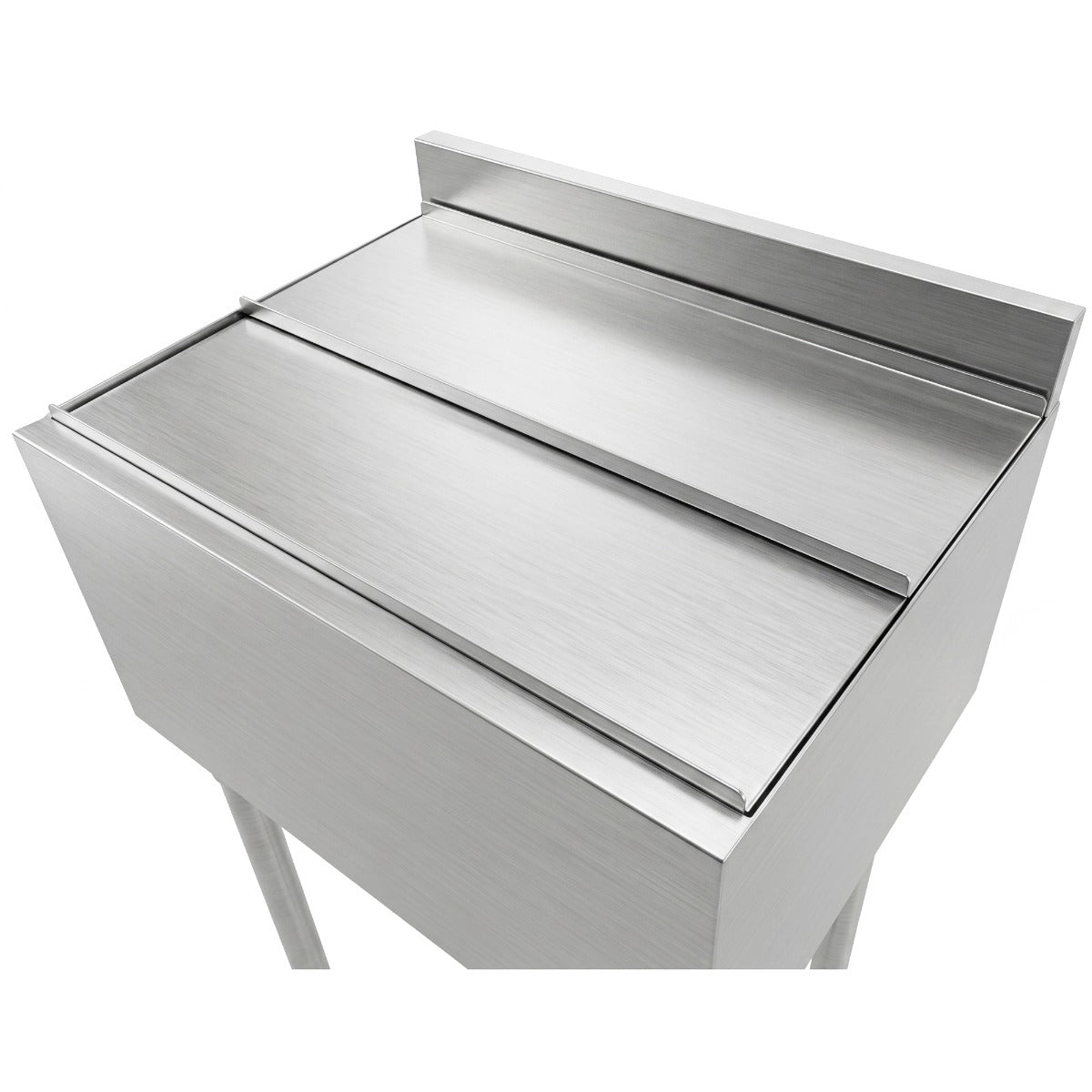

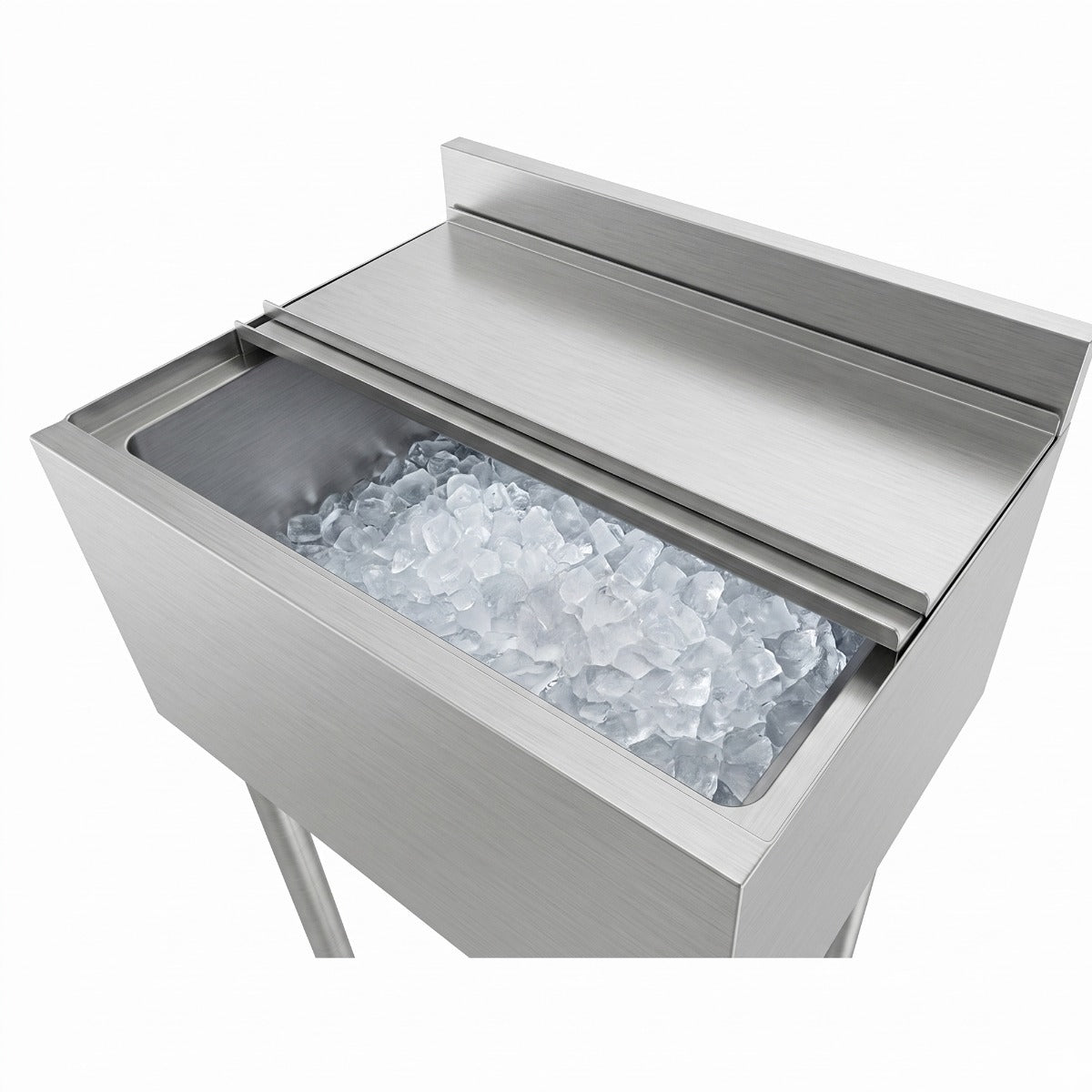

Yes, the sliding stainless steel lid is included on this L model.

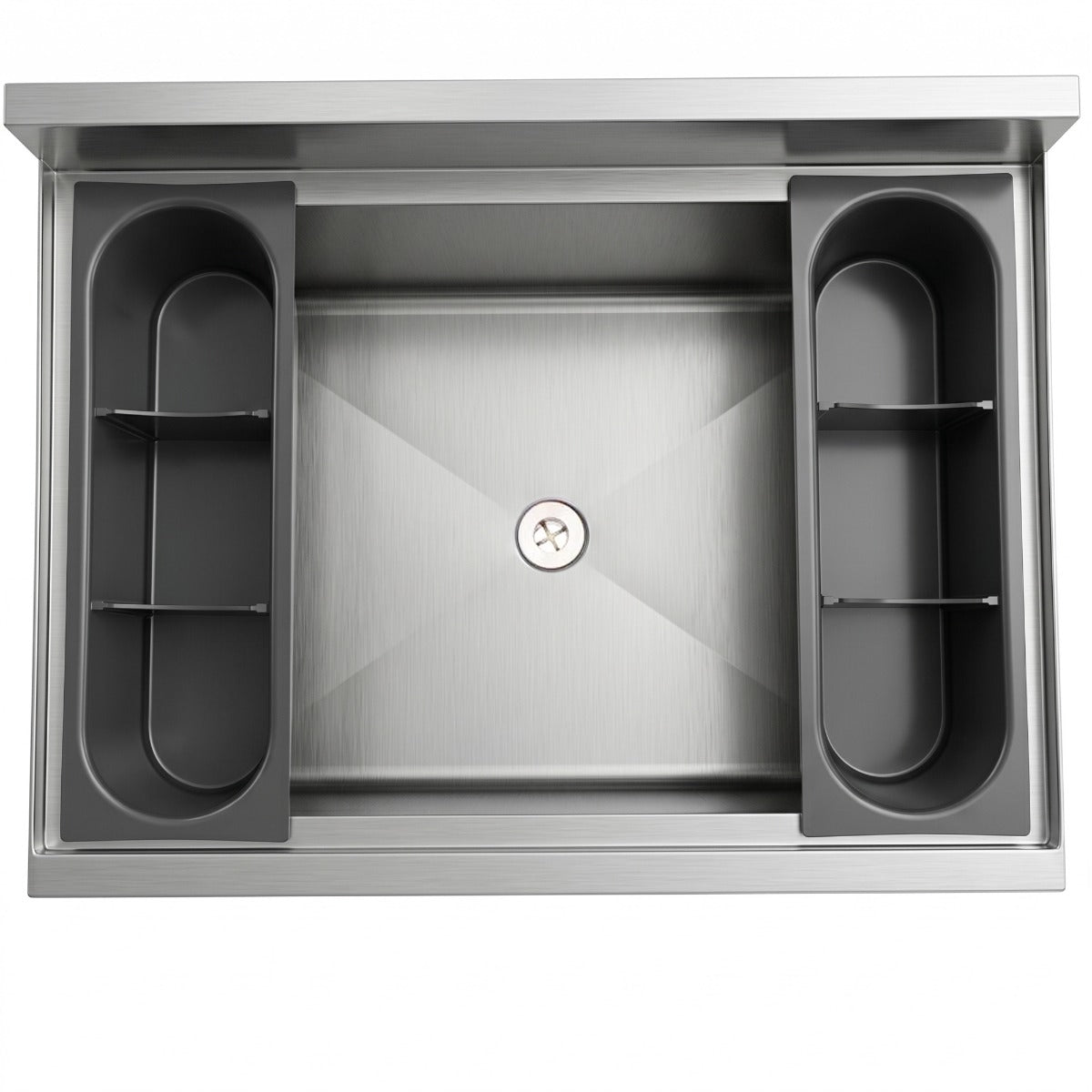

Yes. The bowl has a 1" drain opening (sheet drawing); connect it to a floor drain or indirect waste per local code.
USR's Prepline warranty statement covers PIB immersion blenders, not ice bins, and the ice bin sheet has no warranty terms, so call us to confirm the warranty before ordering.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | PIB182412L |
| Quantity | 1/Each |
| Width | 24 Inches |
| Depth | 18.125 Inches |
| Height | 33.125 Inches |
| Height to Bin Top | 30" |
| Backsplash Height | 3" |
| Bowl Dimensions | 22" L x 15 3/16" W x 12" Deep |
| Capacity | 77 lb. Ice |
| Drain | 1" |

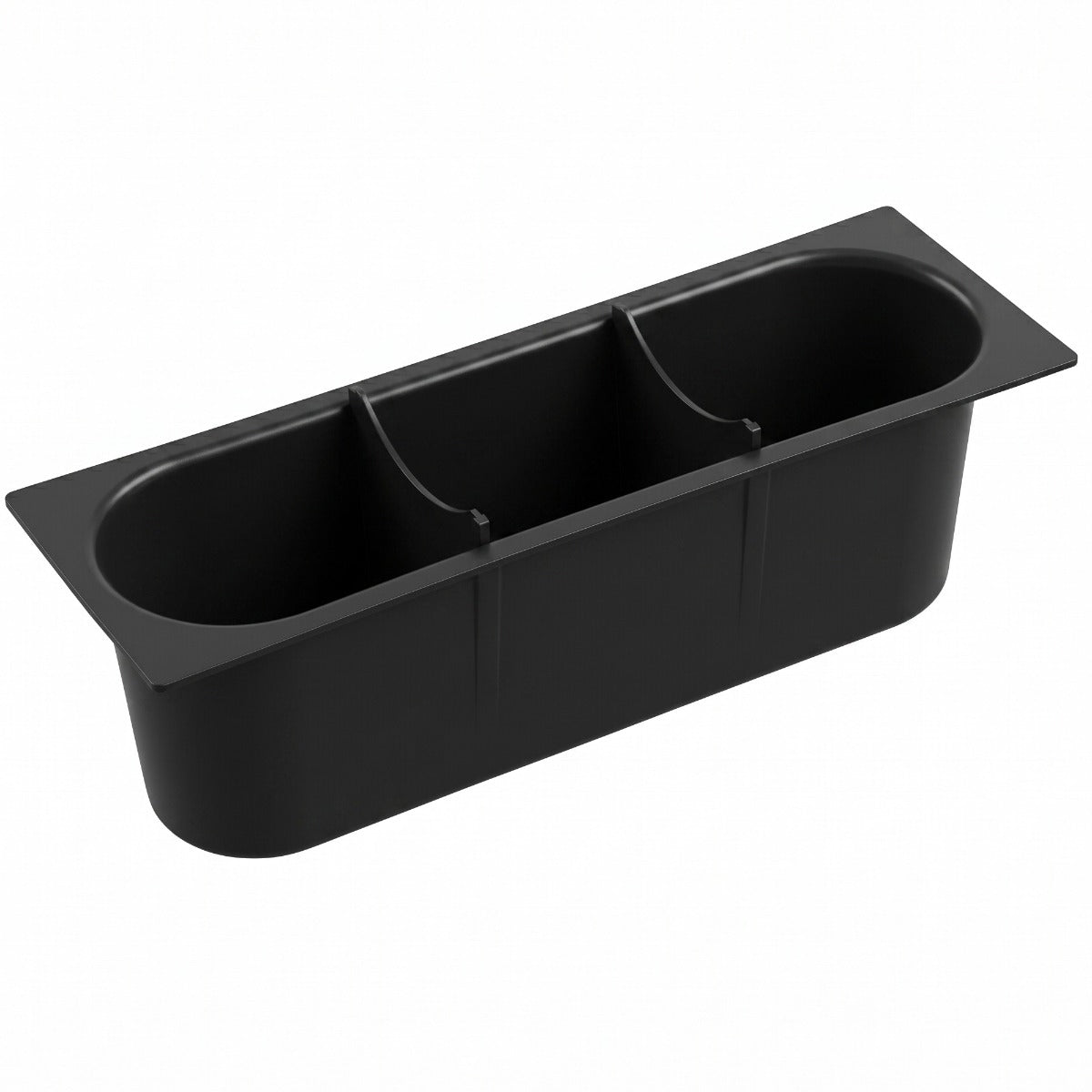

| Bottle Holders | Plastic, Included |

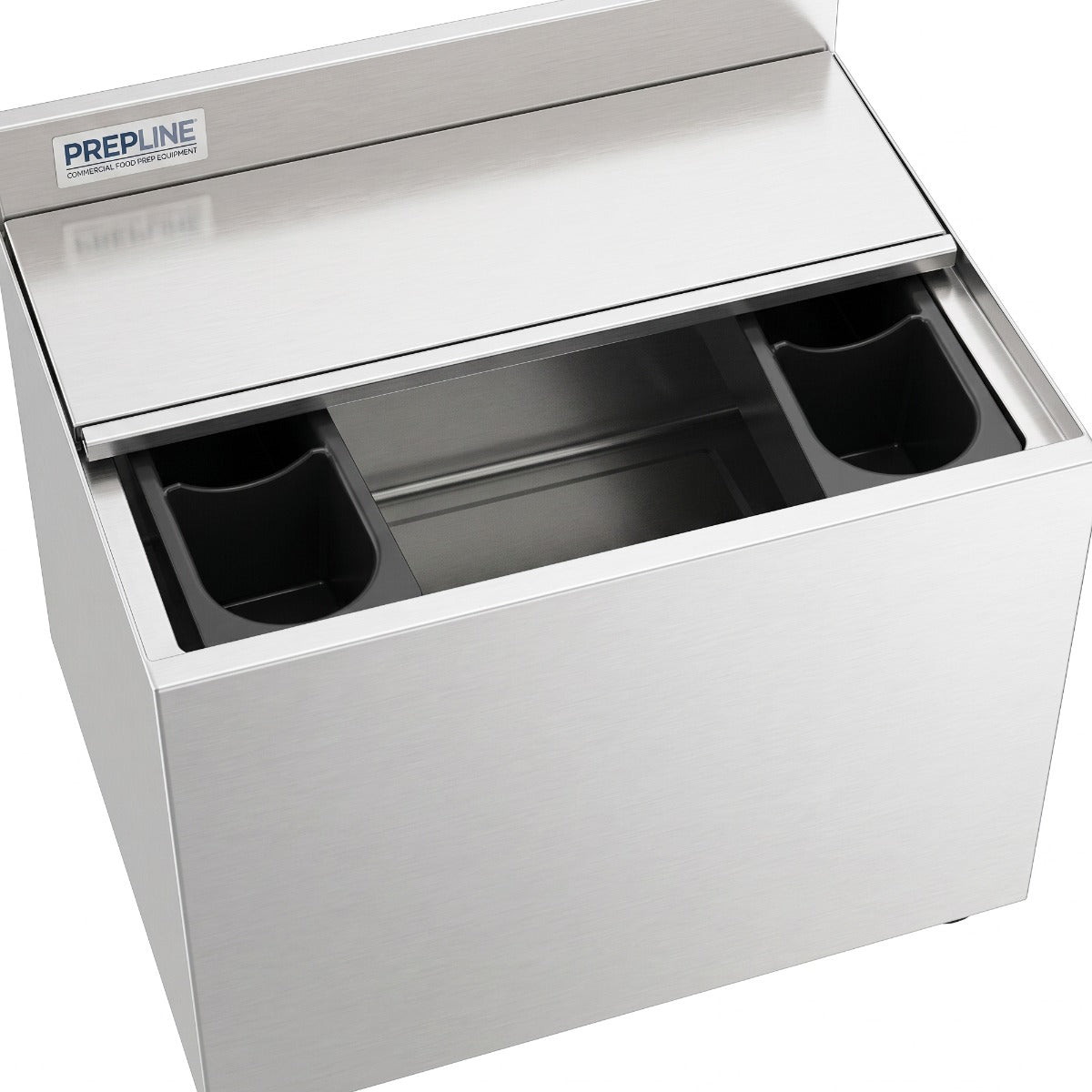

| Lid | Sliding Stainless Steel Lid Included |
| Bowl and Top | 18 Gauge 304 Stainless Steel |
| Back and Body | 20 Gauge 304 Stainless Steel |
| Insulation | Cotton Filling |
| Legs | Galvanized Legs and Sockets, H-Shape Bracing, Plastic Bullet Feet |
| Certifications | NSF |
| Installation Type | Freestanding Underbar |
| Usage | Ice Storage for Bars |
