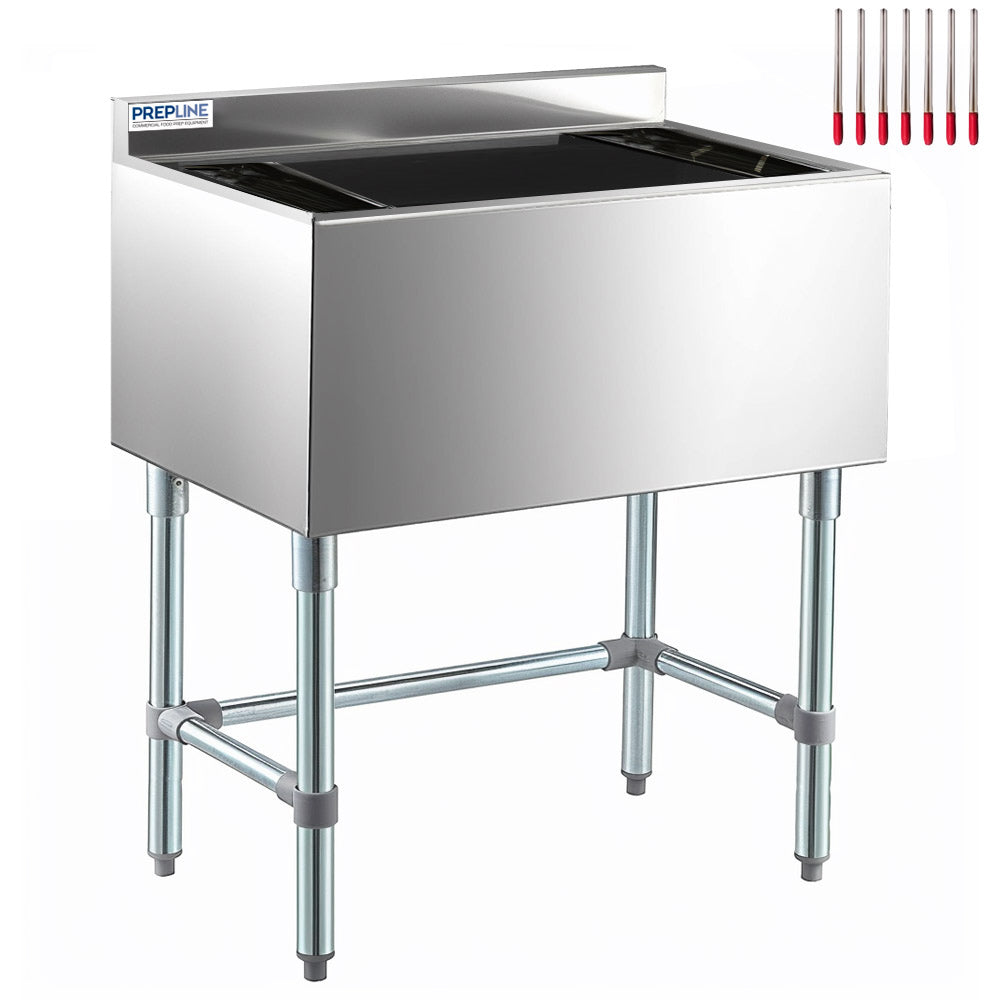

Prepline PIB183012-7CPT 18" x 30" Stainless Steel Underbar Ice Bin with 7 Circuit Cold Plate and 2 Bottle Holders, 98 lb. Ice Capacity, 12" Deep Bowl
A 30" stainless underbar ice bin that keeps ice and post-mix soda lines cold within reach behind the bar.
The Prepline PIB183012-7CPT is a freestanding 30" underbar ice bin for bars and restaurants. It holds about 98 lb. of ice in a 12" deep stainless bowl with a 7-circuit post-mix cold plate for soda lines, two bottle holders and a 3" backsplash. Polyurethane foam insulation and adjustable feet with cross bracing.
Measure the underbar space and the delivery path first.
It is 30" wide, 18" deep and 33.1" high to the top of the 3" backsplash. Measure the space under the bar top, including the backsplash.
About 98 lb. in a 28" x 15.2" x 12" deep bowl, per the USR sheet.
The 7-circuit post-mix cold plate sits in the ice and chills soda lines running through it, so up to 7 drinks dispense cold. The soda line connections are made on site.
The USR sheet does not list a lid for this model; call us if you need a sliding cover.
USR's Prepline warranty statement covers PIB immersion blenders, not ice bins, and the ice bin sheet has no warranty terms, so call us to confirm the warranty before ordering.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | PIB183012-7CPT |
| Quantity | 1/Each |
| Width | 30 Inches |
| Depth | 18 Inches |
| Height | 33.1 Inches |
| Backsplash Height | 3" |
| Bowl Dimensions | 15.2" W x 28" L x 12" Deep |
| Capacity | 98 lb. Ice |
| Cold Plate | 7 Circuit, Post-Mix |
| Bottle Holders | 2 Included |
| Construction | 304 Stainless Steel Bin |
| Insulation | Polyurethane Foam |
| Legs | Galvanized, Adjustable Feet with Cross Bracing |
| Installation Type | Freestanding Underbar |
| Usage | Ice Storage and Post-Mix Soda Cooling for Bars |
