Prepline PIB183612 18" x 36" Stainless Steel Underbar Ice Bin with Bottle Holders, 119 lb. Ice Capacity, 12" Deep Bowl, 3" Backsplash
A 36" stainless underbar ice bin that keeps ice within reach behind the bar.

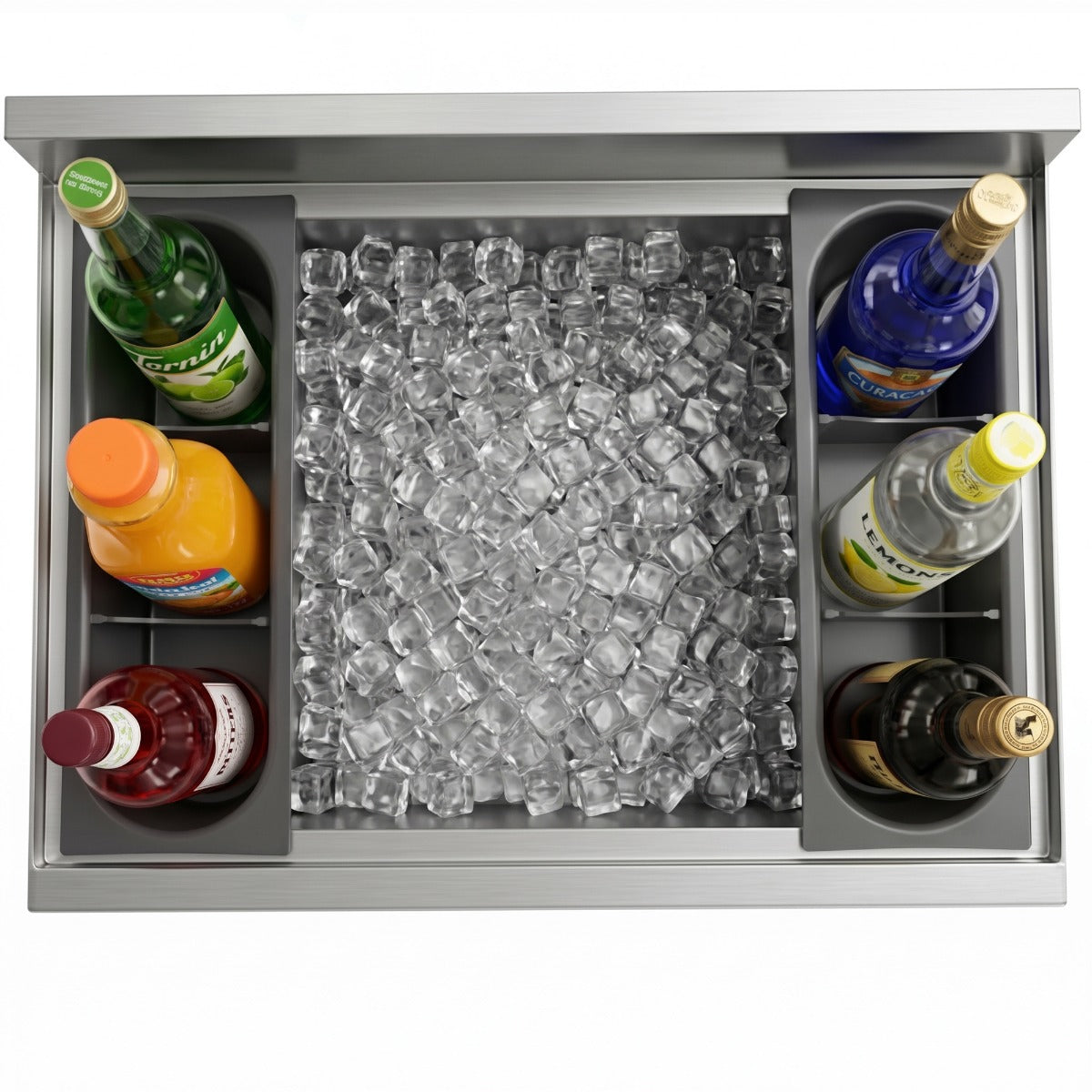

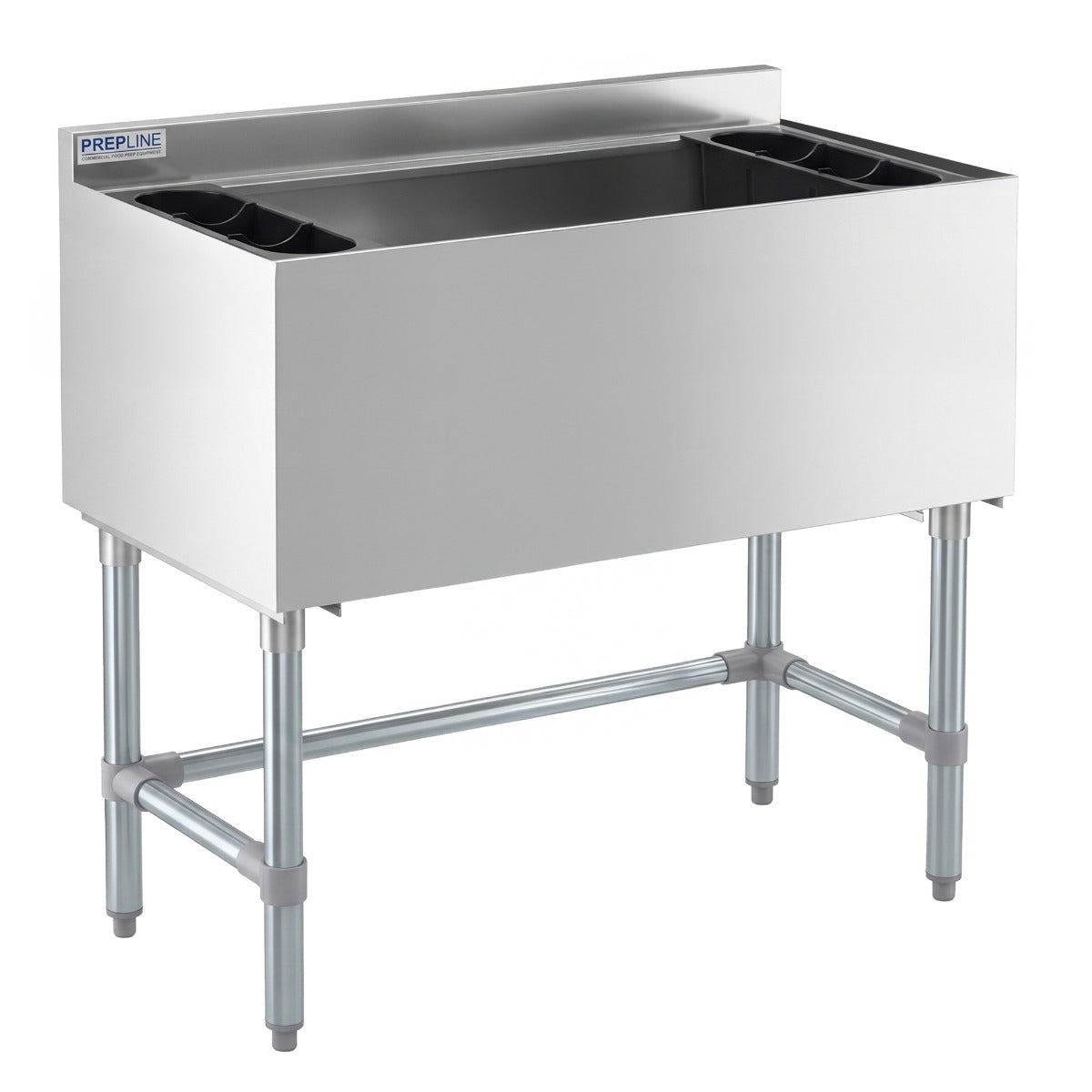

The Prepline PIB183612 is a freestanding 36" underbar ice bin for bars and restaurants. It holds about 119 lb. of ice in a 12" deep stainless bowl, with plastic bottle holders, a 3" backsplash and a 1" drain. The lid is sold separately (PSC-1836). 18 and 20 gauge 304 stainless steel, NSF listed.
Measure the underbar space and the delivery path first.
It is 36" wide, 18 1/8" deep and 33 1/8" high to the top of the 3" backsplash (30" to the top of the bin). Measure the space under the bar top, including the backsplash.
About 119 lb. in a 34" x 15 3/16" x 12" deep bowl, per the USR sheet.
No. This version ships without a lid; the PSC-1836 18 gauge stainless sliding cover is sold separately, or choose the PIB183612L with the lid included.

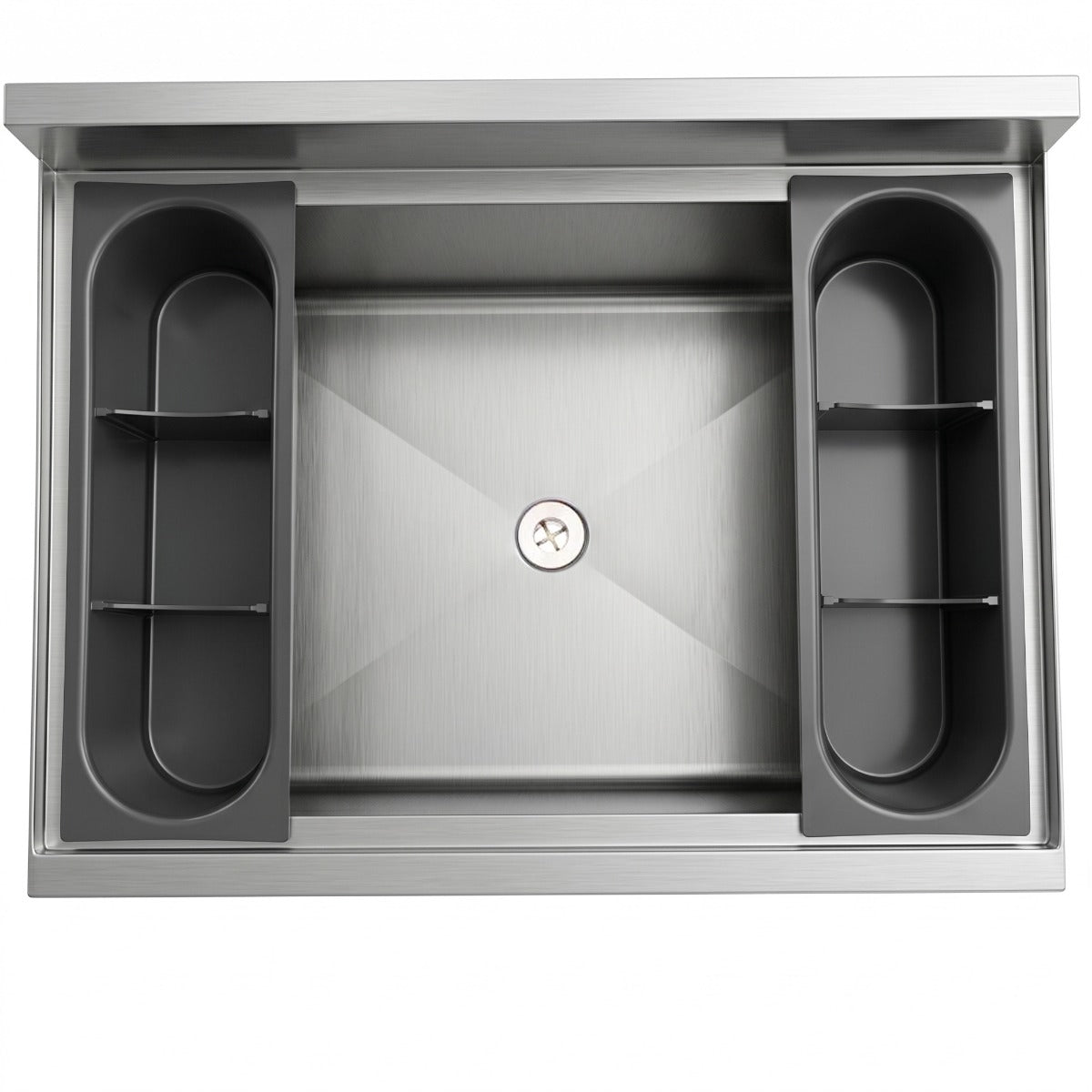

Yes. The bowl has a 1" drain opening (sheet drawing); connect it to a floor drain or indirect waste per local code.
USR's Prepline warranty statement covers PIB immersion blenders, not ice bins, and the ice bin sheet has no warranty terms, so call us to confirm the warranty before ordering.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | PIB183612 |
| Quantity | 1/Each |
| Width | 36 Inches |
| Depth | 18.125 Inches |
| Height | 33.125 Inches |
| Height to Bin Top | 30" |
| Backsplash Height | 3" |
| Bowl Dimensions | 34" L x 15 3/16" W x 12" Deep |
| Capacity | 119 lb. Ice |
| Drain | 1" |

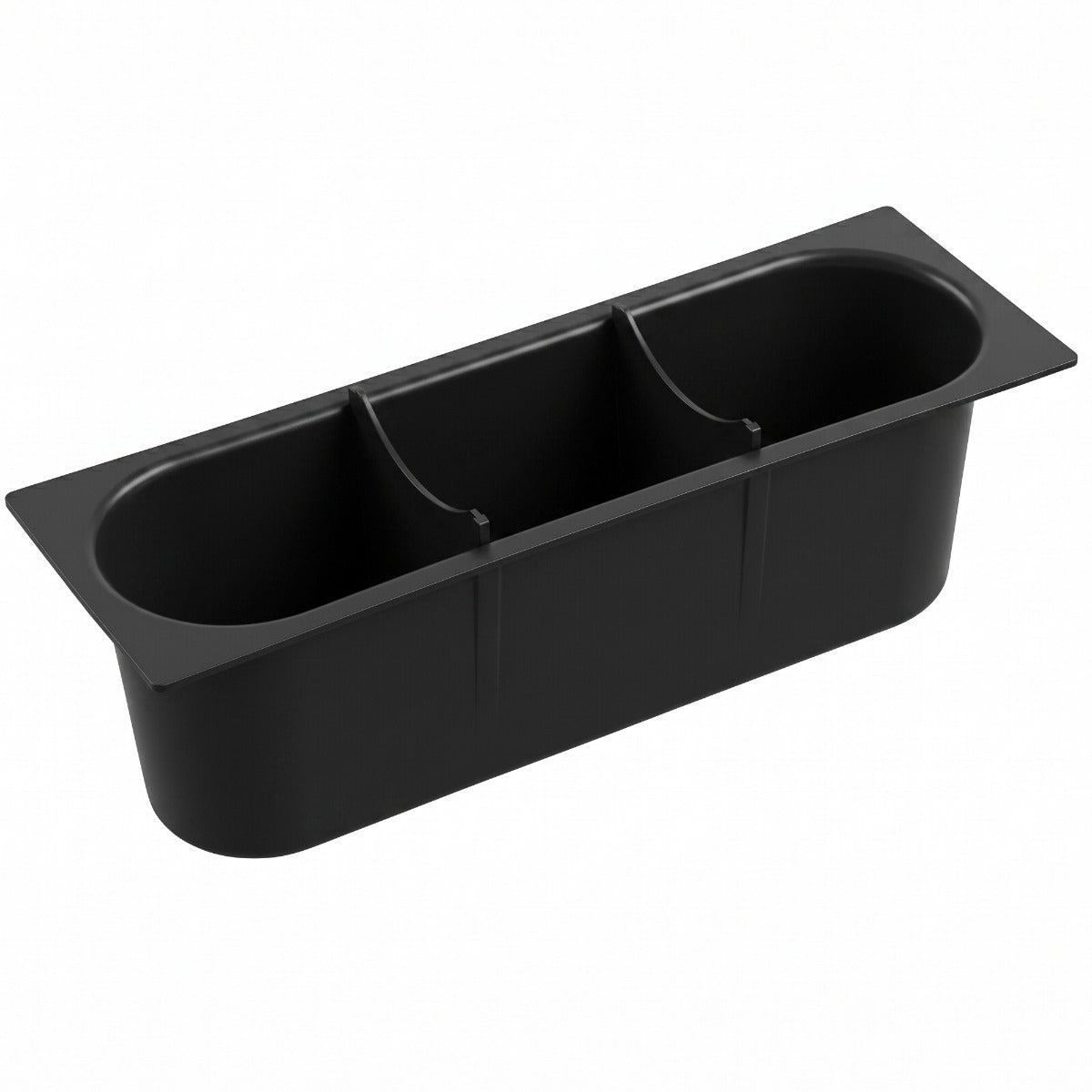

| Bottle Holders | Plastic, Included |
| Lid | Not Included (PSC-1836 Sliding Cover Sold Separately) |
| Bowl and Top | 18 Gauge 304 Stainless Steel |
| Back and Body | 20 Gauge 304 Stainless Steel |
| Insulation | Cotton Filling |
| Legs | Galvanized Legs and Sockets, H-Shape Bracing, Plastic Bullet Feet |
| Certifications | NSF |
| Installation Type | Freestanding Underbar |
| Usage | Ice Storage for Bars |
Certifications
