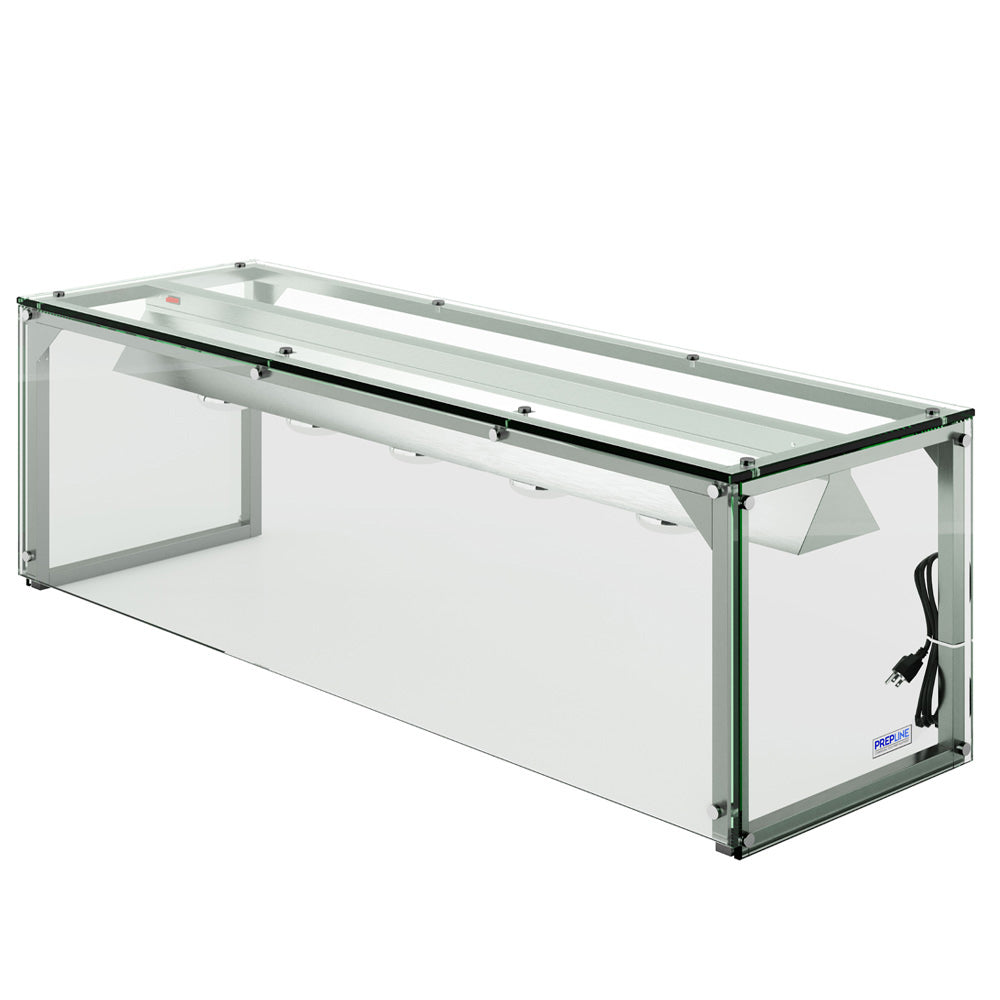

Prepline PSG-LT-74 74" Lighted Heated Glass Sneeze Guard for Steam Tables, 5 Heat Lamp Bulbs, 1,250W, 120V
A lighted glass sneeze guard that protects, lights and warms the food on a steam table.

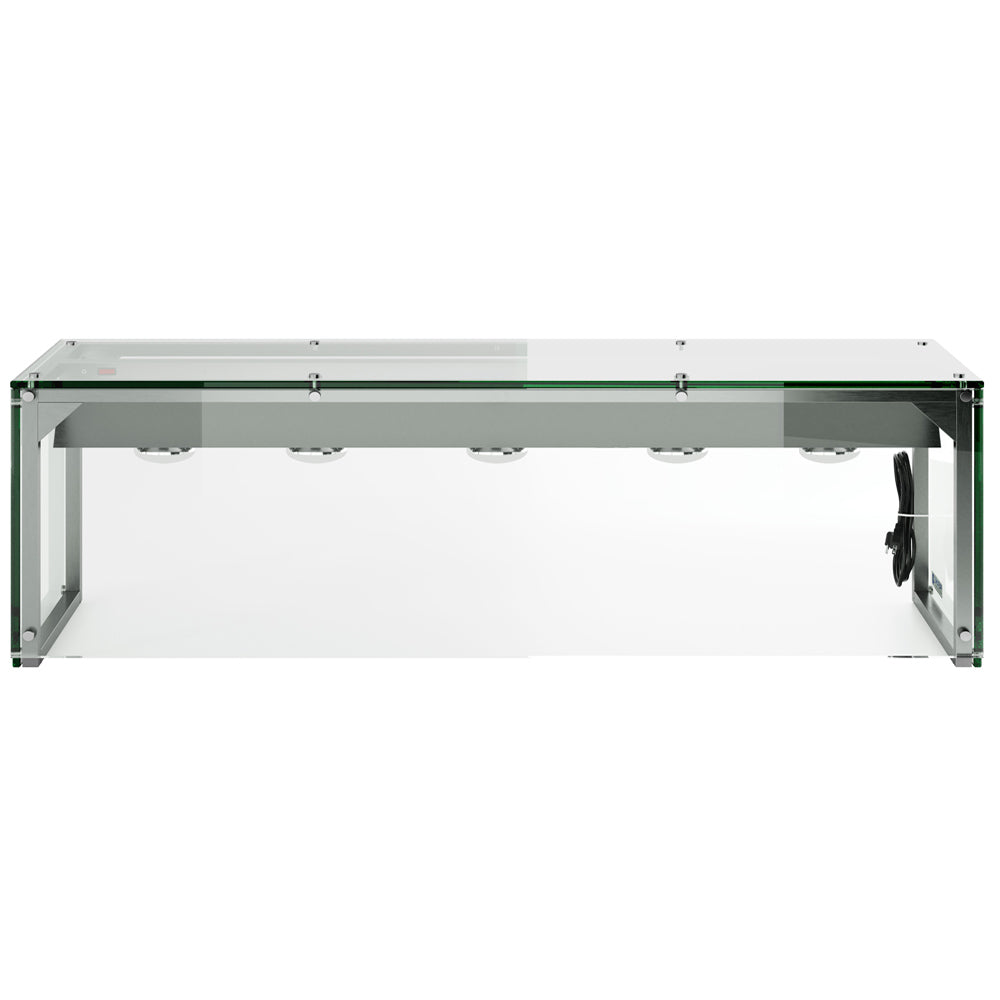

The Prepline PSG-LT-74 sits on a 74" five-well steam table or counter and encloses the food behind tempered glass on four sides, held in a heavy-duty stainless steel frame. Its 5 included heat lamp bulbs light the pans for customers and add heat from above. It measures 73.8" L × 19" D × 20" H and plugs into a standard 120V outlet (NEMA 5-15P, 1,250W).
Measure the top of your steam table or counter: the guard's 19" depth sits on the top, and the brackets screw into it.
Tempered glass panels let customers see the food from every angle.

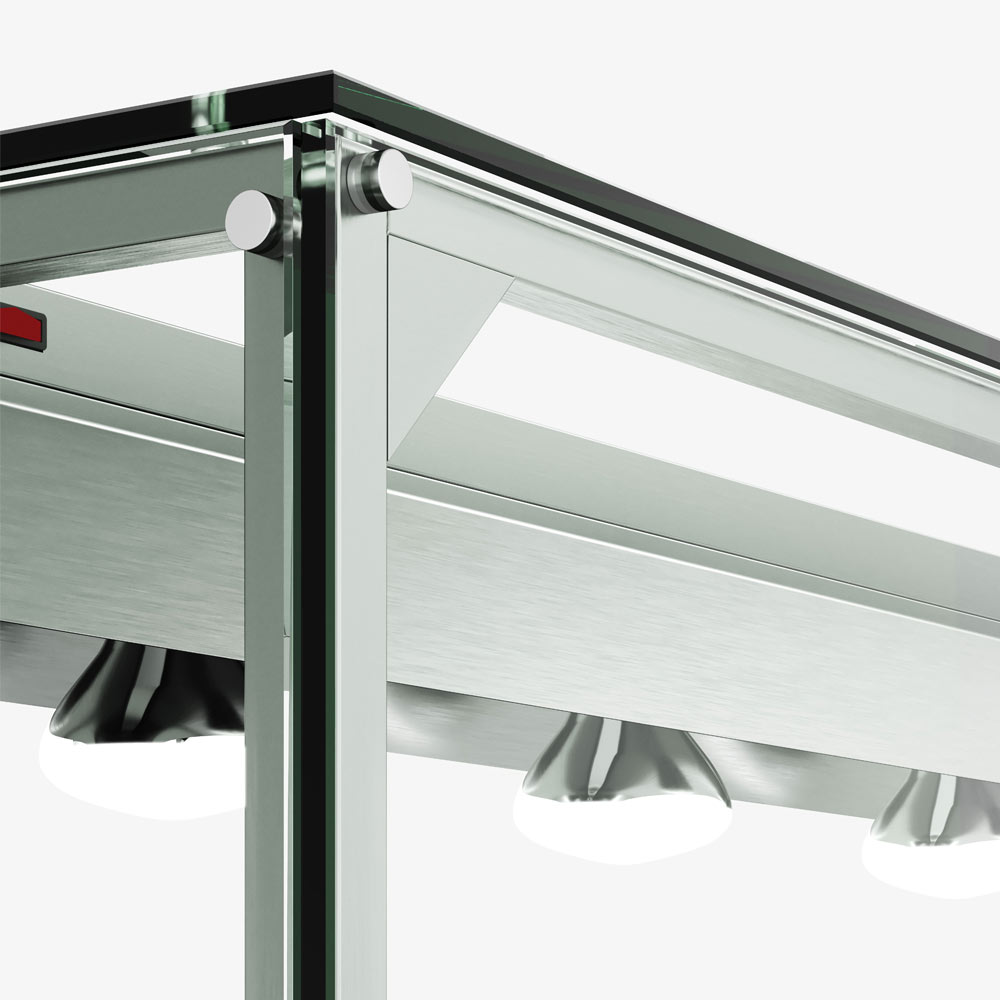

5 replaceable bulbs light and warm the pans.
Heavy-duty stainless steel tube frame.
Prepline makes it for steam tables (its installation guide also mentions refrigerated bases). At 73.8" long and 19" deep it matches Prepline's 74" five-well EST, ESTC, GST and GSTC steam tables, whose sheets show this lighted guard as their option. Check the length and depth of your own base before ordering.
Attach the 4 brackets to the bottom tube of the guard, set it on the steam table or base, and fasten the brackets with the supplied M5 × 12 screws. The installer pre-drills the screw holes in the base (the guide gives 1/7" diameter).
Yes. The heat lamps run on 120V (1,250W) with a NEMA 5-15P plug, so plan a standard grounded outlet near the table.
Yes. The 5 heat lamp bulbs light the food and add heat from above, helping it stay at serving temperature on the line.
Prepline's published warranty lists its food equipment series by name, and the PSG sneeze guards are not among them; USR warranties generally exclude glass. Call us to confirm the warranty before ordering.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | PSG-LT-74 |
| Quantity | 1/Each |
| Width | 73.8 Inches |
| Depth | 19 Inches |
| Height | 20 Inches |
| Packaging Dimensions | 79" x 23" x 24" |
| Voltage | 120 Volts |
| Wattage | 1,250W |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Heat Lamp Bulbs | 5, Included |
| Glass | Four-Side Tempered Glass |
| Frame | Heavy-Duty Stainless Steel, 30 mm x 30 mm Tube |
| Mounting | 4 Brackets with M5 x 12 Screws, Pre-Drilled Holes Required |
