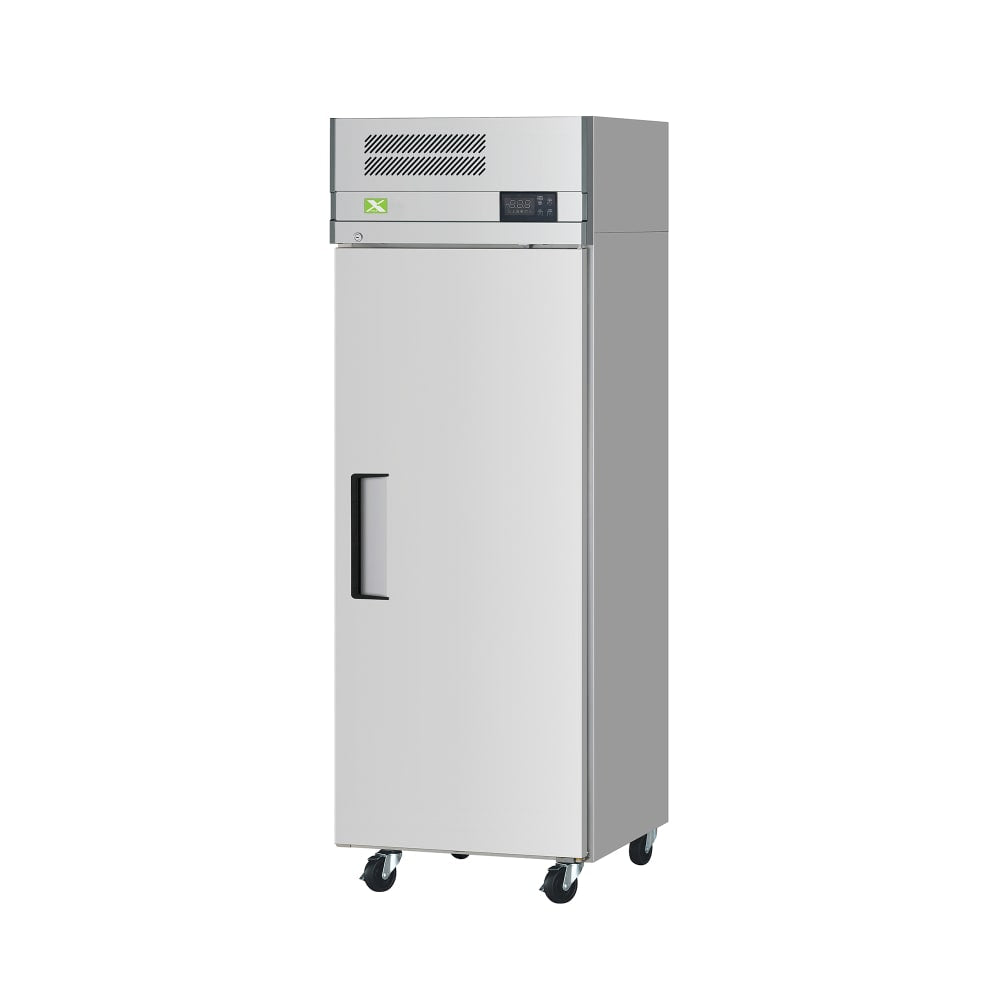

Refrigeration-X XF19-1-N One Section Commercial Reach-In Freezer, Right Hinge Solid Door
The Refrigeration-X XF19-1-N is a one-section commercial reach-in freezer with a single right-hinged solid door, 18.46 cubic feet of storage, and a 25 1/4-inch-wide footprint. Part of the RefrigerationX X-Line series, this self-contained reach-in freezer gives restaurants, cafes, bakeries, and convenience stores reliable frozen storage in a footprint that fits tight kitchens.
Temperature Control & Monitoring
A digital control holds the cabinet between -10°F and 0°F, and the display makes temperatures easy to check at a glance. Alarms alert staff when a door isn't sealed shut, and an early warning program flags refrigeration issues before they lead to a breakdown. An automatic evaporator fan delay and a self-diagnosing control program help keep the system running at its best.
Efficient, Eco-Friendly Refrigeration
The top-mount compressor runs on R-290, a natural hydrocarbon refrigerant with zero ozone depletion potential. This ENERGY STAR qualified unit is designed to meet DOE energy conservation standards, and an anti-corrosion coated evaporator comes standard.
Durable Construction
The cabinet pairs a stainless steel door with aluminum exterior sides and a galvanized steel top, bottom, and back. Inside, a stainless steel floor, aluminum walls, LED lighting, and three adjustable PE-coated wire shelves keep product visible and organized. CFC-free, high-density polyurethane insulation is foamed in place throughout the cabinet and door. Door locks and 4-inch swivel casters, with locks on the front set, round out this ETL Sanitation and cETLus listed commercial freezer, which plugs into a standard 115V outlet.
Options & Accessories
Optional accessories include 6-inch stainless steel legs (30221M0600), 5-inch casters (M726500100, M726500200), and extra PE-coated wire shelves (K1F9000103).
Key Specs
- Model: Refrigeration-X XF19-1-N (X-Line)
- Configuration: 1 section, 1 right-hinged solid door, top-mount, self-contained
- Capacity: 18.46 cu. ft.
- Shelves: 3 adjustable PE-coated wire shelves (20 3/4" x 23 7/8")
- Temperature range: -10°F to 0°F
- Cabinet dimensions (W x D x H): 25 1/4" x 31 1/2" x 72"
- Overall with casters and rear condensate housing: 25 1/4" W x 33 7/8" D x 76 3/4" H
- Interior dimensions (W x D x H): 21 5/8" x 25 5/8" x 51 3/4"
- Electrical: 115V/60Hz/1-phase, 4.9 amps, NEMA 5-15P plug, 9 ft. cord
- Compressor: 1/2 HP
- Refrigerant: R-290 (natural hydrocarbon)
- Certifications: ENERGY STAR qualified, ETL Sanitation listed, cETLus listed
- Weight: 203 lbs. net, 220 lbs. crated
- Warranty: 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only)

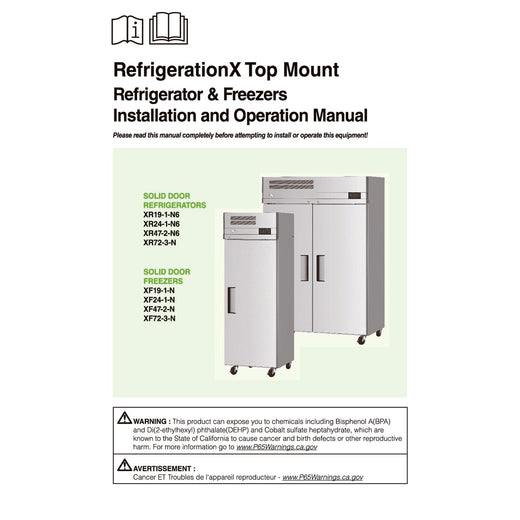

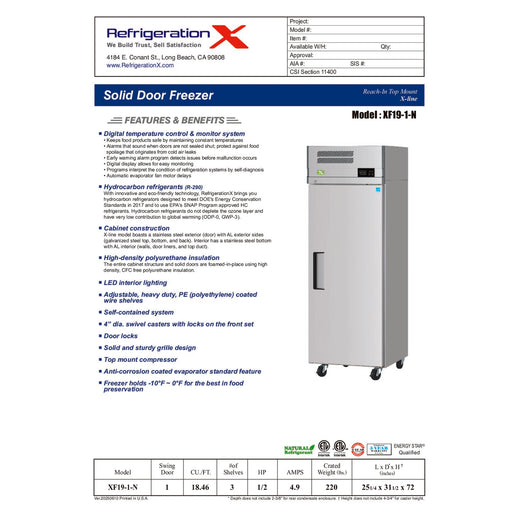

See the attached spec sheet and owner's manual for full dimensions, installation requirements, and operating instructions.
| Manufacturer | Refrigeration-X |
| Model | XF19-1-N |
| Series | X-Line |
| Configuration | 1 section, 1 right-hinged solid door, top-mount, self-contained |
| Capacity | 18.46 cu. ft. |
| Shelves | 3 adjustable PE-coated wire shelves (20 3/4 in. x 23 7/8 in.) |
| Temperature range | -10°F to 0°F |
| Cabinet dimensions (W x D x H) | 25 1/4 in. x 31 1/2 in. x 72 in. |
| Overall with casters and rear condensate housing | 25 1/4 in. W x 33 7/8 in. D x 76 3/4 in. H |
| Interior dimensions (W x D x H) | 21 5/8 in. x 25 5/8 in. x 51 3/4 in. |
| Electrical | 115V/60Hz/1-phase, 4.9 amps, NEMA 5-15P plug, 9 ft. cord |
| Compressor | 1/2 HP |
| Refrigerant | R-290 (natural hydrocarbon) |
| Certifications | ENERGY STAR qualified, ETL Sanitation listed, cETLus listed |
| Weight | 203 lbs. net, 220 lbs. crated |
| Warranty | 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only) |
| Exterior | Stainless steel door; aluminum sides; galvanized steel top, bottom and back |
| Interior | Stainless steel floor; aluminum walls, door liners and top duct |
| Lighting | LED interior |
| Insulation | High-density, CFC-free foamed-in-place polyurethane |
| Casters | 4 in. swivel, locking front set |
