Refrigeration-X XF72-3-N 77 3/4" X-Line Three Section Reach In Freezer, 3 Left/Right Hinge Solid Doors, 115v

Refrigeration-X XF72-3-N Three Section Commercial Reach-In Freezer, Left/Right Hinge Solid Doors

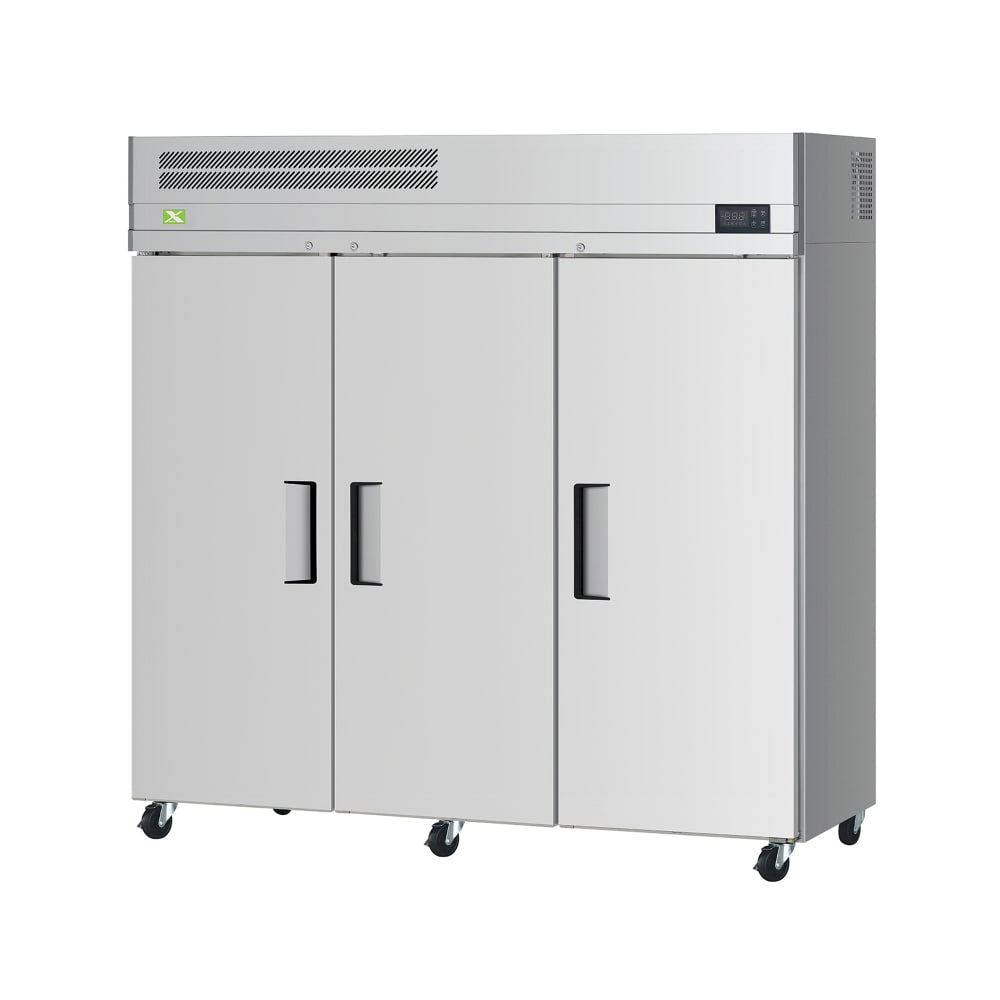

The Refrigeration-X XF72-3-N is a three-section commercial reach-in freezer with three left/right-hinged solid doors, 65.8 cubic feet of storage, and a 77 3/4-inch-wide footprint. Part of the RefrigerationX X-Line series, this self-contained reach-in freezer is built for high-volume restaurants, institutional kitchens, and supermarket back rooms that need maximum frozen storage in one cabinet.

Temperature Control & Monitoring

A digital control holds the cabinet between -10°F and 0°F, and the display makes temperatures easy to check at a glance. Alarms alert staff when a door isn't sealed shut, and an early warning program flags refrigeration issues before they lead to a breakdown. An automatic evaporator fan delay and a self-diagnosing control program help keep the system running at its best.

Efficient, Eco-Friendly Refrigeration

The top-mount compressor runs on R-290, a natural hydrocarbon refrigerant with zero ozone depletion potential. The system is designed to meet DOE energy conservation standards, and an anti-corrosion coated evaporator comes standard.

Durable Construction

The cabinet pairs stainless steel doors with aluminum exterior sides and a galvanized steel top, bottom, and back. Inside, a stainless steel floor, aluminum walls, LED lighting, and nine adjustable PE-coated wire shelves keep product visible and organized. CFC-free, high-density polyurethane insulation is foamed in place throughout the cabinet and doors. Door locks and 4-inch swivel casters, with locks on the front set, round out this ETL Sanitation and cETLus listed commercial freezer, which plugs into a standard 115V outlet.

Options & Accessories

Optional accessories include a half-door bun tray rack (RX-TSP-2224-T), a full-door bun tray rack (RX-TSP-2250-T), 6-inch stainless steel legs (30221M0600), and 5-inch casters (M726500100).

Key Specs

• Model: Refrigeration-X XF72-3-N (X-Line)
• Configuration: 3 section, 3 left/right-hinged solid doors, top-mount, self-contained
• Capacity: 65.8 cu. ft.
• Shelves: 9 adjustable PE-coated wire shelves (23" x 23 1/2")
• Temperature range: -10°F to 0°F
• Cabinet dimensions (W x D x H): 77 3/4" x 30 7/8" x 78"
• Overall with casters and rear condensate housing: 77 3/4" W x 33 1/4" D x 82 3/4" H
• Interior dimensions (W x D x H): 73 7/8" x 26 5/8" x 54 1/8"
• Electrical: 115V/60Hz/1-phase, 7.9 amps, NEMA 5-15P plug, 9 ft. cord
• Compressor: 1 HP
• Refrigerant: R-290 (natural hydrocarbon)
• Certifications: ETL Sanitation listed, cETLus listed
• Weight: 540 lbs. net, 635 lbs. crated
• Warranty: 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only)

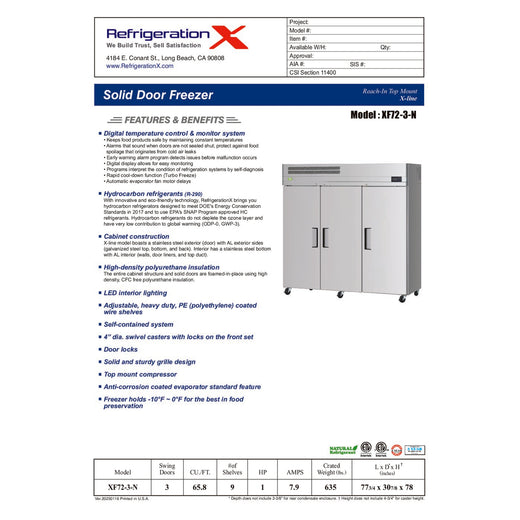

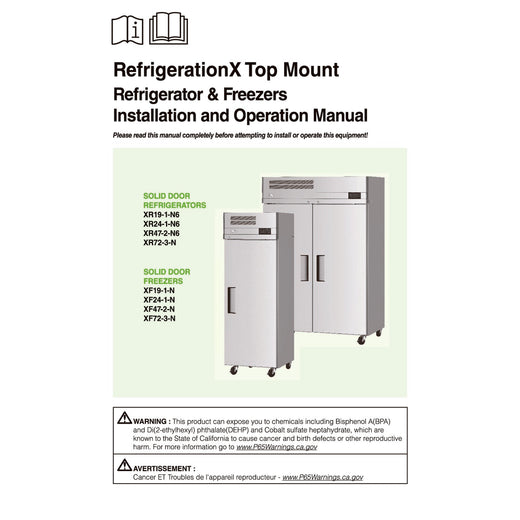

See the attached spec sheet and owner's manual for full dimensions, installation requirements, and operating instructions.
