Description

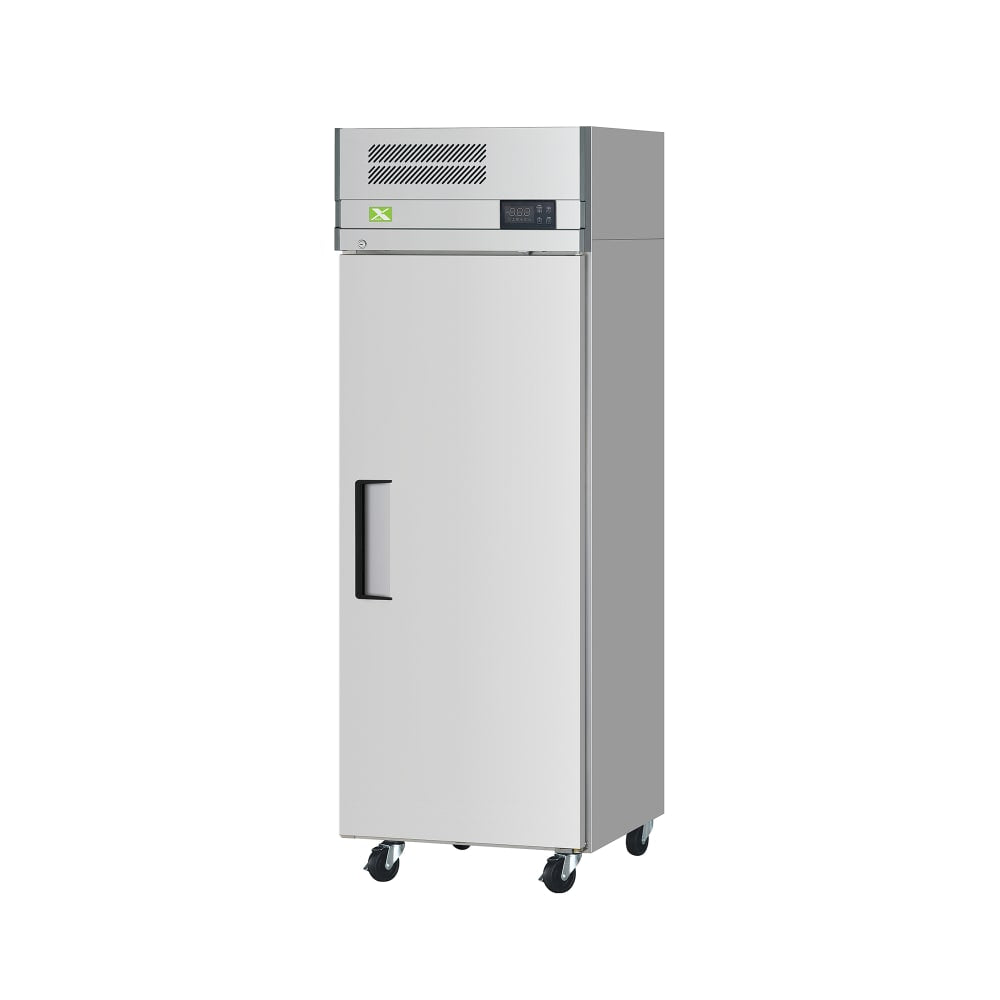

Refrigeration-X XR19-1-N6 One Section Commercial Reach-In Refrigerator, Right Hinge Solid Door
The Refrigeration-X XR19-1-N6 is a one-section commercial reach-in refrigerator with a single right-hinged solid door, 18.46 cubic feet of storage, and a 25 1/4-inch-wide footprint. Part of the RefrigerationX X-Line series, this self-contained reach-in cooler gives restaurants, delis, cafes, and convenience stores dependable cold storage without taking up much floor space.
Temperature Control & Monitoring
The digital temperature control keeps the cabinet between 33°F and 38°F and puts the reading on an easy-to-see display. If a door is left unsealed, an alarm sounds, and an early warning program catches refrigeration problems before they turn into a breakdown. Turbo cooling brings the cabinet back to temperature quickly after a rush of door openings, and an automatic evaporator fan delay is built in.
Efficient, Eco-Friendly Refrigeration
The top-mount compressor runs on R-600a, a natural hydrocarbon refrigerant with zero ozone depletion potential. This ENERGY STAR qualified unit is designed to meet DOE energy conservation standards, and an anti-corrosion coated evaporator comes standard. A corrosion-resistant hot gas condensate system prevents condensate water from overflowing.
Durable Construction
The cabinet pairs a stainless steel door with aluminum exterior sides and a galvanized steel top, bottom, and back. Inside, a stainless steel floor, aluminum walls, LED lighting, and three adjustable PE-coated wire shelves keep product visible and organized. CFC-free, high-density polyurethane insulation is foamed in place throughout the cabinet and door. Door locks and 4-inch swivel casters, with locks on the front set, round out this ETL Sanitation and cETLus listed commercial fridge, which plugs into a standard 115V outlet.
Options & Accessories
Optional accessories include 6-inch stainless steel legs (30221M0600), 5-inch casters (M726500100, M726500200), and extra PE-coated wire shelves (K1F9000103).
Key Specs
- Model: Refrigeration-X XR19-1-N6 (X-Line)
- Configuration: 1 section, 1 right-hinged solid door, top-mount, self-contained
- Capacity: 18.46 cu. ft.
- Shelves: 3 adjustable PE-coated wire shelves (20 3/4" x 23 7/8")
- Temperature range: 33°F to 38°F
- Cabinet dimensions (W x D x H): 25 1/4" x 31 1/2" x 72"
- Overall with casters and rear condensate housing: 25 1/4" W x 33 7/8" D x 76 3/4" H
- Interior dimensions (W x D x H): 21 5/8" x 25 5/8" x 51 3/4"
- Electrical: 115V/60Hz/1-phase, 1.5 amps, NEMA 5-15P plug, 9 ft. cord
- Compressor: 1/7 HP
- Refrigerant: R-600a (natural hydrocarbon)
- Certifications: ENERGY STAR qualified, ETL Sanitation listed, cETLus listed
- Weight: 194 lbs. net, 211 lbs. crated
- Warranty: 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only)

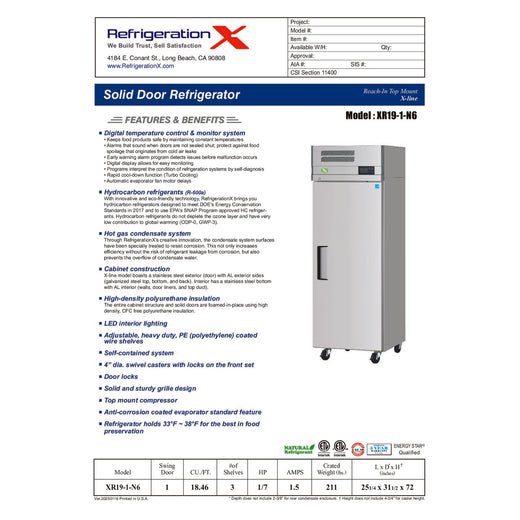

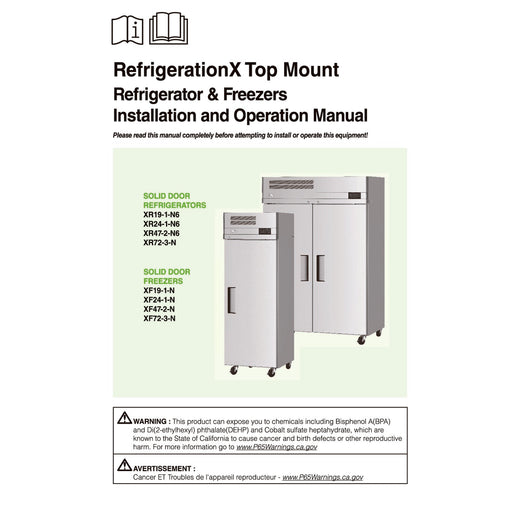

See the attached spec sheet and owner's manual for full dimensions, installation requirements, and operating instructions.
| Manufacturer | Refrigeration-X |
| Model | XR19-1-N6 |
| Series | X-Line |
| Configuration | 1 section, 1 right-hinged solid door, top-mount, self-contained |
| Capacity | 18.46 cu. ft. |
| Shelves | 3 adjustable PE-coated wire shelves (20 3/4 in. x 23 7/8 in.) |
| Temperature range | 33°F to 38°F |
| Cabinet dimensions (W x D x H) | 25 1/4 in. x 31 1/2 in. x 72 in. |
| Overall with casters and rear condensate housing | 25 1/4 in. W x 33 7/8 in. D x 76 3/4 in. H |
| Interior dimensions (W x D x H) | 21 5/8 in. x 25 5/8 in. x 51 3/4 in. |
| Electrical | 115V/60Hz/1-phase, 1.5 amps, NEMA 5-15P plug, 9 ft. cord |
| Compressor | 1/7 HP |
| Refrigerant | R-600a (natural hydrocarbon) |
| Certifications | ENERGY STAR qualified, ETL Sanitation listed, cETLus listed |
| Weight | 194 lbs. net, 211 lbs. crated |
| Warranty | 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only) |
| Exterior | Stainless steel door; aluminum sides; galvanized steel top, bottom and back |
| Interior | Stainless steel floor; aluminum walls, door liners and top duct |
| Lighting | LED interior |
| Insulation | High-density, CFC-free foamed-in-place polyurethane |
| Casters | 4 in. swivel, locking front set |
