Refrigeration-X XR24-1-N6 28 3/4" X-Line One Section Reach In Refrigerator, 115v

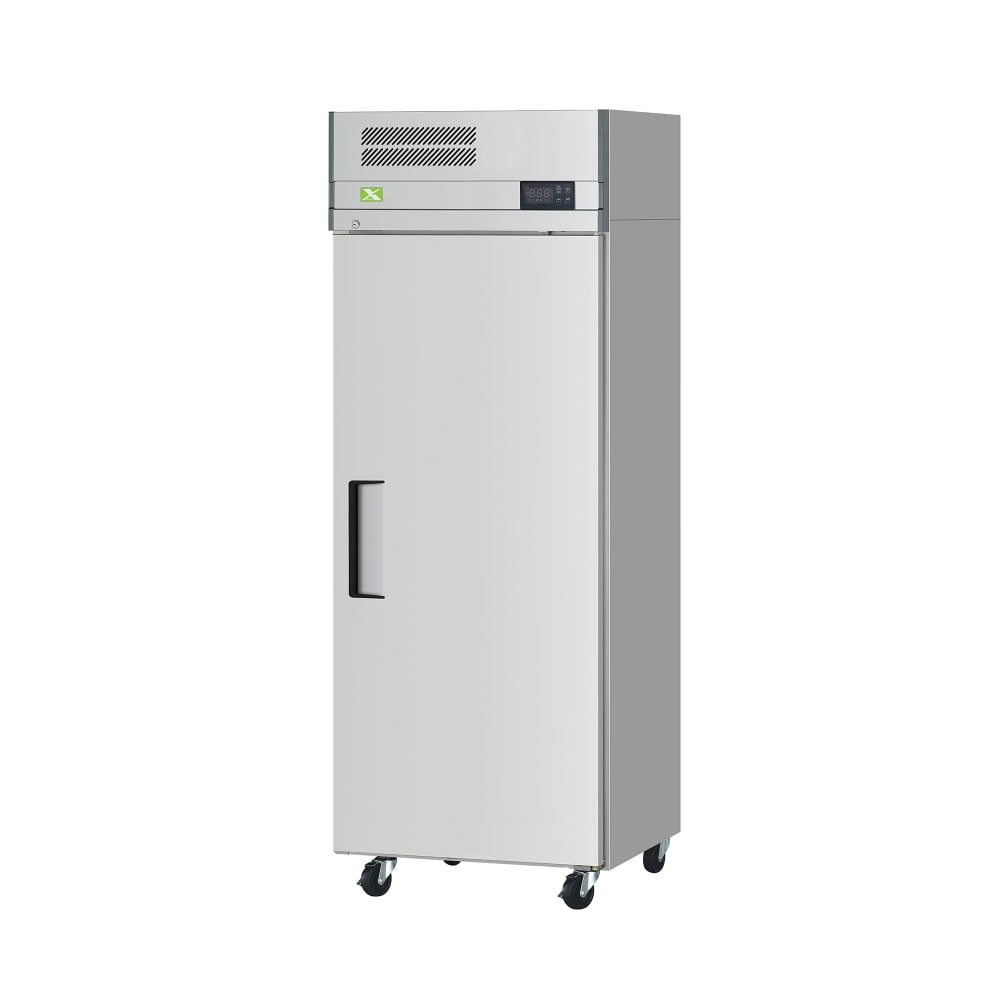

Refrigeration-X XR24-1-N6 One Section Commercial Reach-In Refrigerator, Right Hinge Solid Door

The Refrigeration-X XR24-1-N6 is a one-section commercial reach-in refrigerator with a single right-hinged solid door, 21.94 cubic feet of storage, and a 28 3/4-inch-wide footprint. Part of the RefrigerationX X-Line series, this self-contained reach-in cooler gives restaurants, delis, cafes, and convenience stores dependable cold storage without taking up much floor space.

Temperature Control & Monitoring

Temperatures stay between 33°F and 38°F under a digital control with a clear display. Door alarms warn staff when a door isn't sealed, and an early warning program spots refrigeration issues before they cause downtime. Turbo cooling brings the cabinet back to temperature quickly after a rush of door openings, and an automatic evaporator fan delay is built in.

Efficient, Eco-Friendly Refrigeration

The top-mount compressor runs on R-600a, a natural hydrocarbon refrigerant with zero ozone depletion potential. This ENERGY STAR qualified unit is designed to meet DOE energy conservation standards, and an anti-corrosion coated evaporator comes standard. A corrosion-resistant hot gas condensate system prevents condensate water from overflowing.

Durable Construction

The cabinet pairs a stainless steel door with aluminum exterior sides and a galvanized steel top, bottom, and back. Inside, a stainless steel floor, aluminum walls, LED lighting, and three adjustable PE-coated wire shelves keep product visible and organized. CFC-free, high-density polyurethane insulation is foamed in place throughout the cabinet and door. Door locks and 4-inch swivel casters, with locks on the front set, round out this ETL Sanitation and cETLus listed commercial fridge, which plugs into a standard 115V outlet.

Options & Accessories

Optional accessories include a half-door bun tray rack (RX-TSP-2224-T), a full-door bun tray rack (RX-TSP-2250-T), 6-inch stainless steel legs (30221M0600), and 5-inch casters (M726500100, M726500200).

Key Specs

• Model: Refrigeration-X XR24-1-N6 (X-Line)
• Configuration: 1 section, 1 right-hinged solid door, top-mount, self-contained
• Capacity: 21.94 cu. ft.
• Shelves: 3 adjustable PE-coated wire shelves (23 7/8" x 23 1/8")
• Temperature range: 33°F to 38°F
• Cabinet dimensions (W x D x H): 28 3/4" x 30 3/4" x 78"
• Overall with casters and rear condensate housing: 28 3/4" W x 33 1/8" D x 82 3/4" H
• Interior dimensions (W x D x H): 24 3/4" x 24 3/4" x 53 7/8"
• Electrical: 115V/60Hz/1-phase, 1.5 amps, NEMA 5-15P plug, 9 ft. cord
• Compressor: 1/8 HP
• Refrigerant: R-600a (natural hydrocarbon)
• Certifications: ENERGY STAR qualified, ETL Sanitation listed, cETLus listed
• Weight: 260 lbs. net, 278 lbs. crated
• Warranty: 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only)

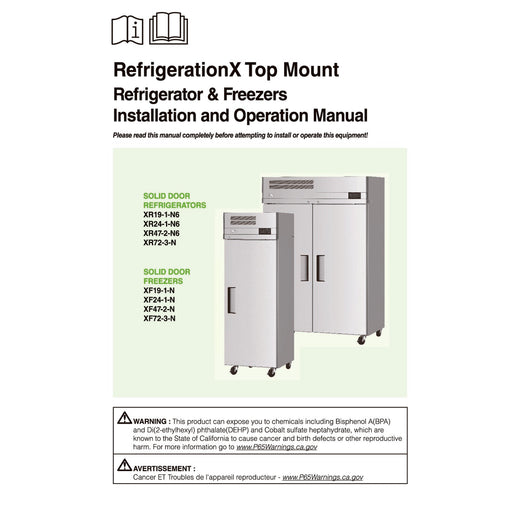

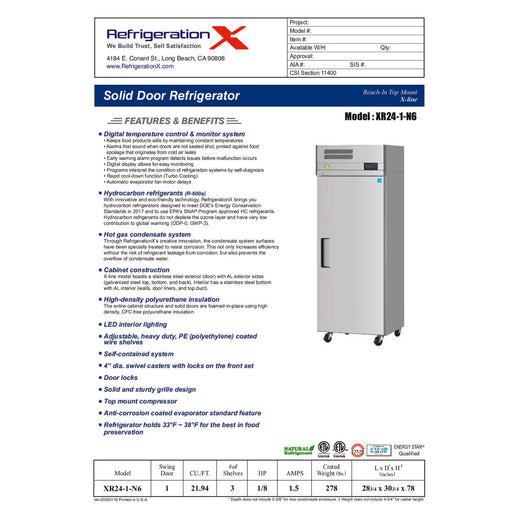

See the attached spec sheet and owner's manual for full dimensions, installation requirements, and operating instructions.
