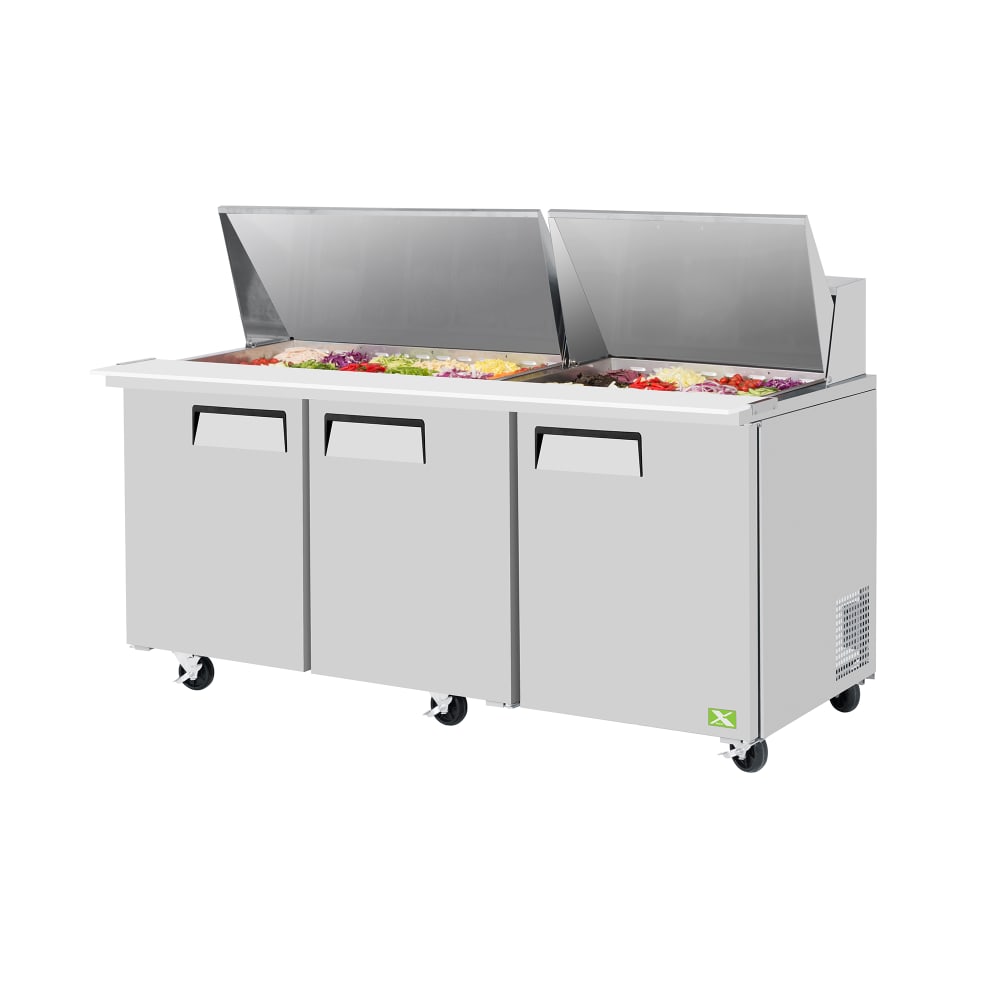

Refrigeration-X XST-72-30-N 72 3/4" X-Line Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

Refrigeration-X XST-72-30-N 72 3/4" Mega Top Commercial Sandwich/Salad Prep Table, 30 Pans, 3 Doors

The Refrigeration-X XST-72-30-N is a 72 3/4-inch commercial mega top sandwich/salad prep table with 30 pans on top and a refrigerated base behind three solid doors. Part of the RefrigerationX X-Line series, this self-contained refrigerated prep table gives you a high-volume make-line for busy sandwich shops, cafeterias, and catering kitchens. The mega top layout fits more pans in the rail than a standard top of the same width, so more toppings stay within reach.

Built for the Make-Line

Up top, 30 1/6-size, 4-inch-deep condiment pans come included, covered by 2 hoods. The cold air compartment chills each pan evenly so ingredients stay fresh longer, while isolating the pans from the reach-in base to keep spills out. A 9-1/2-inch-deep, 1/2-inch-thick cutting board with side rail gives staff a ready prep surface.

Steady, Efficient Refrigeration

The base holds 33°F to 39°F for safe ingredient storage. It runs on R-290, a natural hydrocarbon refrigerant with zero ozone depletion potential, and is designed to meet DOE energy conservation standards, all from a standard 115V outlet.

Durable Construction

Stainless steel doors are paired with aluminum exterior sides and a galvanized steel back and bottom. The interior has a stainless steel floor and back with aluminum sides, built for cleanliness and long product life. CFC-free, high-density polyurethane insulation is foamed in place throughout the cabinet and doors. Inside the base, three adjustable PE-coated wire shelves hold backup ingredients, and 4-inch swivel casters with front locks make it easy to move for cleaning. It is ETL Sanitation and cETLus listed.

Options & Accessories

Optional accessories include a single stainless steel overshelf (RX-TSOS-6S), a double stainless steel overshelf (RX-TSOS-6R-T), and a clear lid (RX-CL-72-30).

Key Specs

• Model: Refrigeration-X XST-72-30-N (X-Line)
• Type: Mega top sandwich/salad prep table, self-contained
• Pans: 30 1/6-size, 4"-deep pans included; 2 hoods
• Cutting board: 9-1/2" deep x 1/2" thick, with side rail
• Doors: 3 solid doors
• Base capacity: 23 cu. ft.
• Shelves: 3 adjustable PE-coated wire shelves (21" x 16 7/8")
• Temperature range: 33°F to 39°F
• Cabinet dimensions (W x D x H): 72 3/4" x 34" x 39 5/8"
• Overall dimensions (W x D x H): 72 3/4" x 38 3/8" x 44 3/8" (with cutting board, rear spacers, and casters)
• Electrical: 115V/60Hz/1-phase, 5.5 amps, NEMA 5-15P plug, 9 ft. cord
• Compressor: 3/8 HP
• Refrigerant: R-290 (natural hydrocarbon)
• Certifications: ETL Sanitation listed, cETLus listed
• Weight: 356 lbs. net, 396 lbs. crated
• Warranty: 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only)

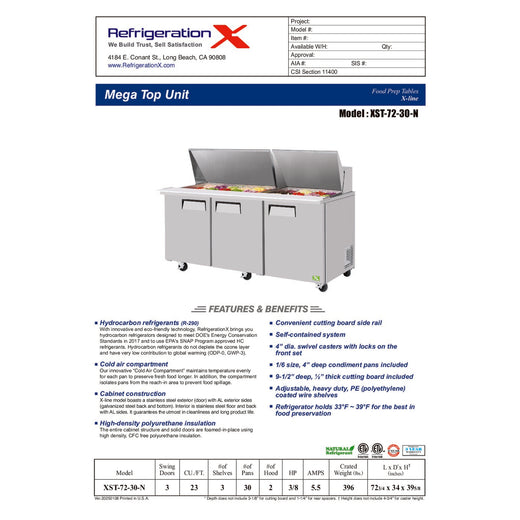

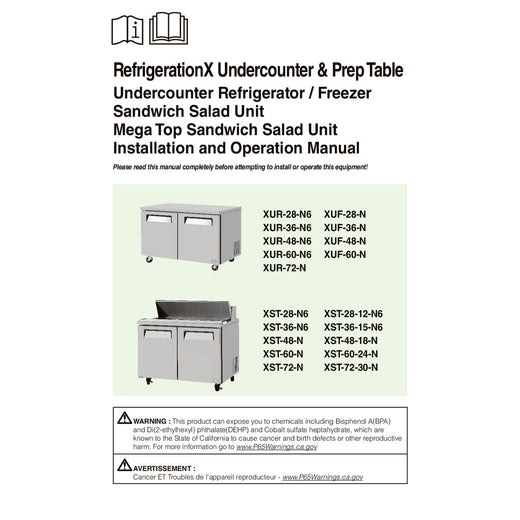

See the attached spec sheet and owner's manual for full dimensions, installation requirements, and operating instructions.
