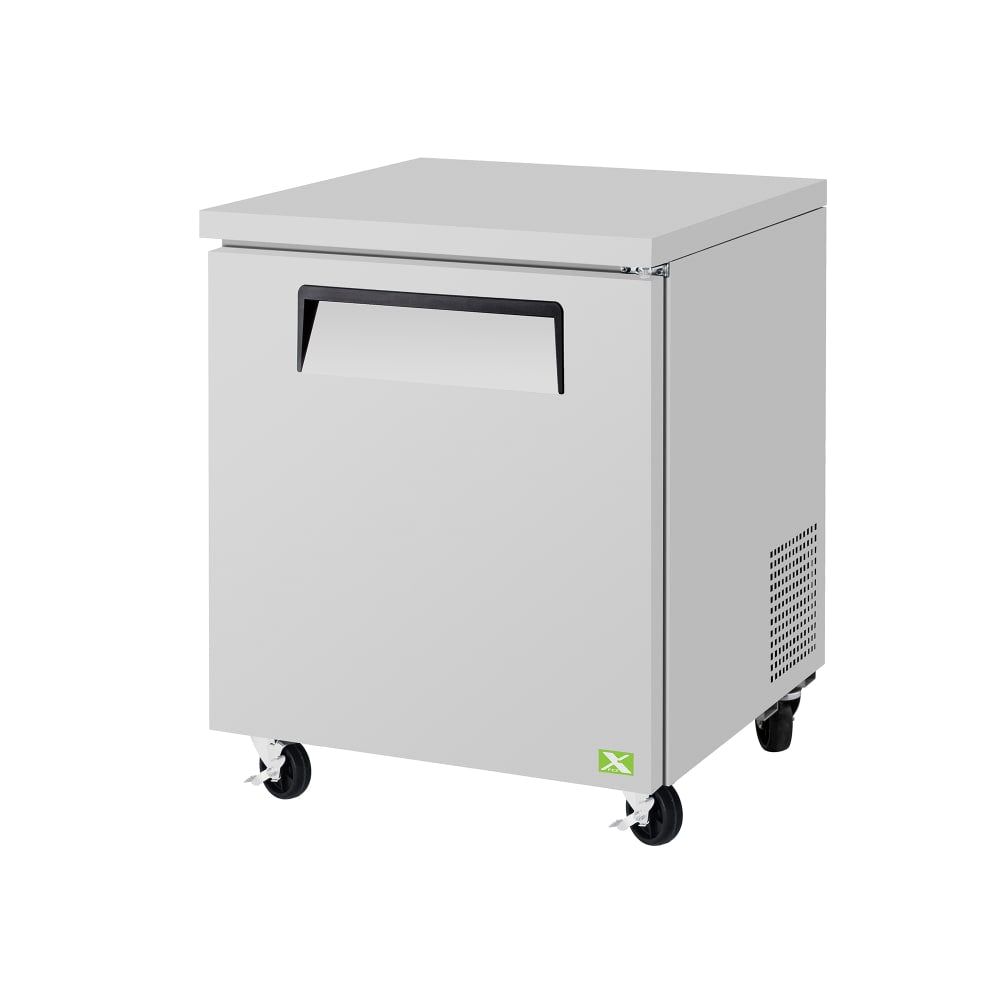

Refrigeration-X XUF-28-N 27 1/2" Commercial Undercounter Freezer, 1 Solid Door
The Refrigeration-X XUF-28-N is a 27 1/2-inch commercial undercounter freezer with a single solid door and 7.11 cubic feet of storage. Part of the RefrigerationX X-Line series, this self-contained undercounter freezer gives you a compact frozen-storage station for bars, cafes, and tight cook lines, with a 30 3/8-inch cabinet height (35 1/8 inches on its casters).
Easy Access, Steady Temperatures
The cabinet holds -10°F to 0°F for safe food storage. An easy-grip handle and self-closing door cut down on fatigue during a busy shift and help keep cold air in, while the ABS door liner resists condensation and adds thermal efficiency.
Efficient, Eco-Friendly Refrigeration
This unit runs on R-290, a natural hydrocarbon refrigerant with zero ozone depletion potential. It is designed to meet DOE energy conservation standards, with a self-contained system that only needs a standard 115V outlet.
Durable Construction
A stainless steel door is paired with aluminum exterior sides and a galvanized steel back and bottom. The interior has a stainless steel floor and back with aluminum sides for easy cleaning and long product life. CFC-free, high-density polyurethane insulation is foamed in place throughout the cabinet and door. Inside, one adjustable PE-coated wire shelf organizes product, and 4-inch swivel casters with locks on the front set make cleaning underneath simple. It is ETL Sanitation and cETLus listed for commercial foodservice use.
Options & Accessories
Optional accessories include a backsplash guard (RX-TU-28B), 6-inch stainless steel legs (30221M0600), 2.5-inch casters (30265H0100), and 5-inch casters (M726500100, M726500200).
Key Specs
- Model: Refrigeration-X XUF-28-N (X-Line)
- Configuration: 1 solid door, self-closing, self-contained
- Capacity: 7.11 cu. ft.
- Shelves: 1 adjustable PE-coated wire shelf (22 1/2" x 17")
- Temperature range: -10°F to 0°F
- Cabinet dimensions (W x D x H): 27 1/2" x 30" x 30 3/8"
- Overall with casters and rear spacers: 27 1/2" W x 31 1/4" D x 35 1/8" H
- Electrical: 115V/60Hz/1-phase, 1.7 amps, NEMA 5-15P plug, 9 ft. cord
- Compressor: 1/3 HP
- Refrigerant: R-290 (natural hydrocarbon)
- Certifications: ETL Sanitation listed, cETLus listed
- Weight: 164 lbs. net, 175 lbs. crated
- Warranty: 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only)

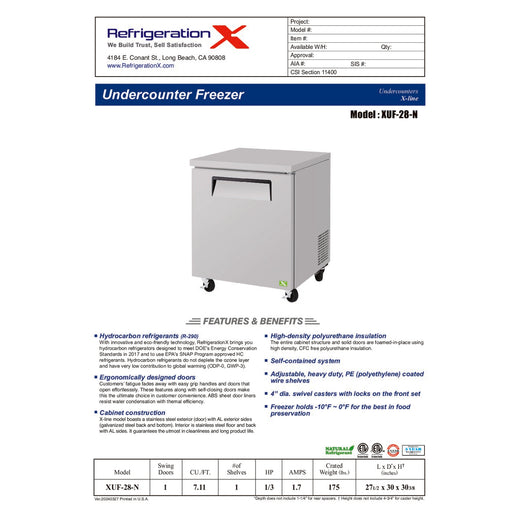

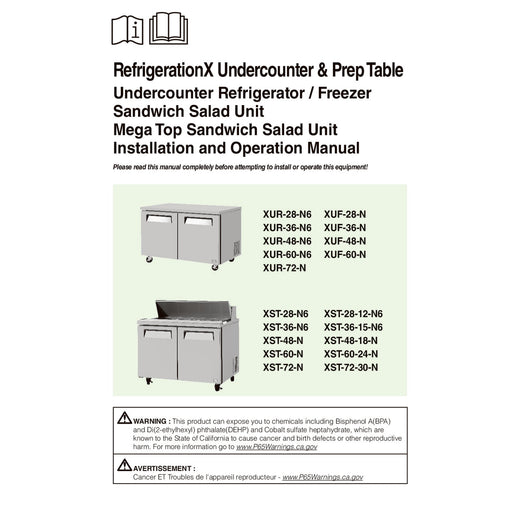

See the attached spec sheet and owner's manual for full dimensions, installation requirements, and operating instructions.
| Manufacturer | Refrigeration-X |
| Model | XUF-28-N |
| Series | X-Line |
| Configuration | 1 solid door, self-closing, self-contained |
| Capacity | 7.11 cu. ft. |
| Shelves | 1 adjustable PE-coated wire shelf (22 1/2 in. x 17 in.) |
| Temperature range | -10°F to 0°F |
| Cabinet dimensions (W x D x H) | 27 1/2 in. x 30 in. x 30 3/8 in. |
| Overall with casters and rear spacers | 27 1/2 in. W x 31 1/4 in. D x 35 1/8 in. H |
| Electrical | 115V/60Hz/1-phase, 1.7 amps, NEMA 5-15P plug, 9 ft. cord |
| Compressor | 1/3 HP |
| Refrigerant | R-290 (natural hydrocarbon) |
| Certifications | ETL Sanitation listed, cETLus listed |
| Weight | 164 lbs. net, 175 lbs. crated |
| Warranty | 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only) |
| Exterior | Stainless steel door; aluminum sides; galvanized steel back and bottom |
| Interior | Stainless steel floor and back; aluminum sides; ABS door liners |
| Insulation | High-density, CFC-free foamed-in-place polyurethane |
| Casters | 4 in. swivel, locking front set |
