Description

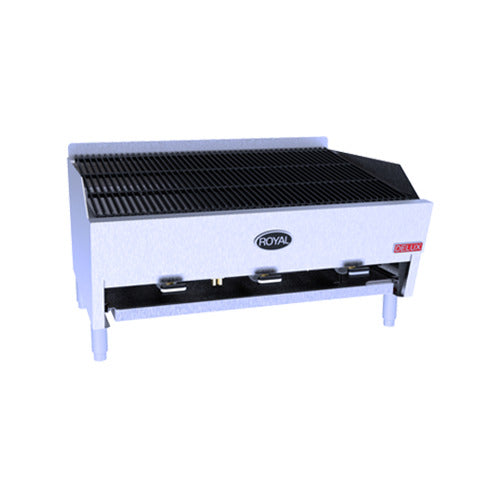

A 42" char rock broiler from Royal's Delux 23 series for flame-grilled flavor on a countertop.
The 4223 is the 42" model in the Delux 23 Series Heavy Duty Char Rock Broiler line: 4 "H" type cast iron burners rated at 30,000 BTU/hr each for 120,000 BTU/hr in total, on a 23 1/8" deep chassis. It suits restaurants, grills and bars. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 42" W x 23 1/8" D; 12 1/2" high at the front, 17 1/8" to the top of the back, on 2 1/2" legs
- Cooking area
- 21" deep cooking area (Royal catalog)
- Counter space

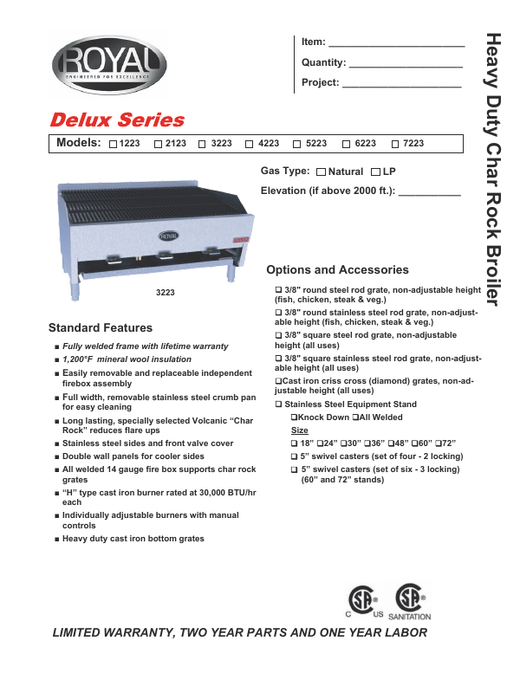

- Countertop unit for non-combustible locations only (Royal spec sheet)
- Clearances
- Non-combustible walls: 0" rear and sides. Not for installation next to combustible walls
- Gas
- Natural gas or LP, 120,000 BTU/hr total (4 burners x 30,000); Royal's sheet text says 3/4" NPT at the right rear; its drawing shows a 3/4" pipe on the 1223 and 2123 and 3/4" on larger models
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: manual gas valves
- Shipping weight
- 274 lbs.
Measure the counter depth and hood coverage first: the unit is 23 1/8" deep and the gas connection comes out at the right rear. The counter, wall and surrounding surfaces must be non-combustible.
Char rock heat
4 "H" type cast iron burners rated at 30,000 BTU/hr each heat long-lasting volcanic char rock, which Royal says reduces flare-ups.
Sloped grates
A rear grate support raises the grates 3" at the back; rod and diamond grates are available as options.
Easy to clean
A removable stainless steel crumb pan and an independent firebox assembly that lifts out and can be replaced.
Built for daily heat
Fully welded frame, 1,200°F mineral wool insulation, stainless steel sides and front valve cover, double wall side panels, all welded 14 gauge fire box.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
How many BTU is it?
120,000 BTU/hr total: 4 "H" type cast iron burners rated at 30,000 BTU/hr each (4 x 30,000 = 120,000).
What gas connection does it need?
Royal's sheet lists a 3/4" NPT connection at the right rear, but its drawing shows a 3/4" pipe on this model. Manifold pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit. Confirm the pipe size with us before your installer runs the line.
Can it go next to a wood or drywall wall?
No. Royal's spec sheet says it is for installation in non-combustible locations only, with 0" clearance to non-combustible walls. Combustible-wall installation is not listed.
Does it need an electrical outlet?
No electrical connection is listed. It runs on gas with manual valves.
What options are available?
3/8" round steel or stainless steel rod grate; 3/8" square steel or stainless steel rod grate; cast iron criss-cross (diamond) grate. Royal also makes matching stainless steel equipment stands with optional 5" swivel casters. Call us to add any of these.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture); cast iron parts are covered for 90 days. The spec sheet also lists a "fully welded frame with lifetime warranty"; Royal's warranty page does not detail that term, so ask us to confirm it with Royal.
How do I clean it?
Daily, clean the grates with warm water, a mild cleaner and a wire brush, brush debris from around the burners, and empty the crumb pan. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | 4223 |
| Series | Delux 23 Series Heavy Duty Char Rock Broiler |
| Quantity | 1 Each |
| Shipping Weight | 274 lbs. |
| Width | 42 Inches |
| Depth | 23 1/8 Inches |
| Height | 12 1/2 Inches at the front17 1/8 Inches to the top of the back |
| Legs | 2 1/2" (Royal catalog) |
| Cooking Area | 21" deep cooking area (Royal catalog) |
| Installation | Countertop, non-combustible locations only |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 120,000 BTU/H |
| Burners | 4 "H" type cast iron burners, 30,000 BTU/H each |
| Controls | Manual, individually adjustable burners |
| Gas Inlet | Right rear; sheet text 3/4" NPT, drawing shows 3/4" pipe on this model |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | Not permitted (non-combustible locations only) |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Grates | Heavy duty cast iron bottom gratesRear grate support raises the grates 3" at the rear |
| Construction | Fully welded frame1,200°F mineral wool insulationStainless steel sides and front valve coverDouble wall side panelsAll welded 14 gauge fire boxRemovable stainless steel crumb panRemovable independent firebox |
| Options | 3/8" round steel or stainless steel rod grate3/8" square steel or stainless steel rod grateCast iron criss-cross (diamond) grateStainless steel equipment stand (knock-down or all welded)5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborCast iron parts 90 daysFully welded frame with lifetime warranty (per spec sheet) |
| Usage | Commercial use only |
