Description

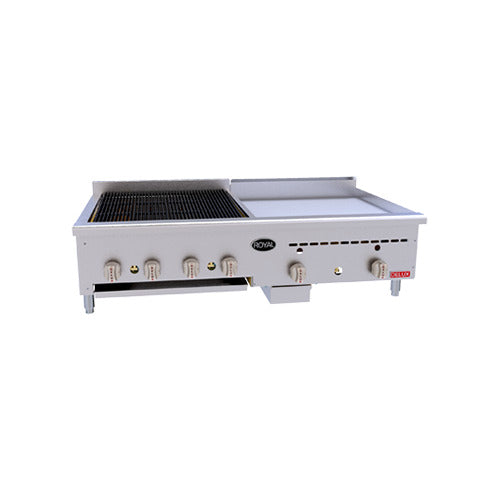

A 48" radiant broiler and a 24" thermostatic griddle in one countertop unit.
The BG-4824 pairs a 48" radiant broiler with a 24" griddle that has a 1" thick polished steel plate and a thermostat every 12". It suits restaurants and diners that grill and griddle on the same line. The total is 164,000 BTU/hr. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Sections
- 48" broiler plus 24" thermostatic griddle; Royal lists section widths, not the overall width
- Depth and height
- 28.5" deep; 14" high at the front, 16 1/8" to the top of the back, on 4" adjustable legs
- Cooking areas
- Broiler 23" deep; griddle plate 21 1/2" deep, 1" thick
- Counter space

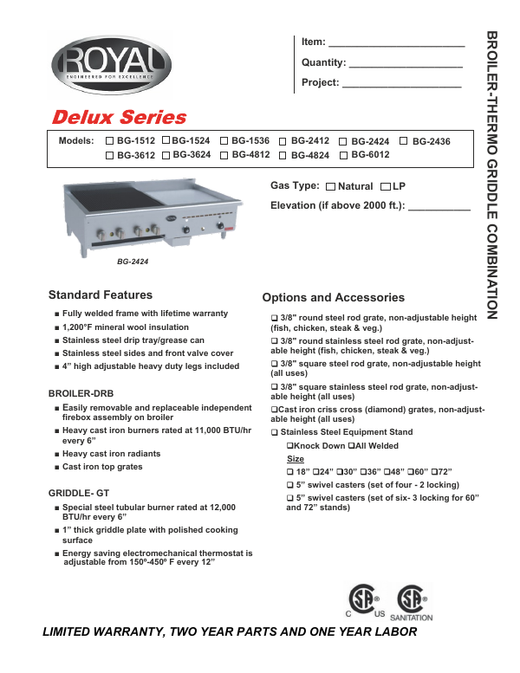

- Countertop unit for non-combustible locations only (Royal spec sheet)
- Clearances
- Non-combustible walls: 0" rear and sides. Not for installation next to combustible walls
- Gas
- Natural gas or LP, 164,000 BTU/hr total; 3/4" gas connection at the rear (the drawing shows a pipe behind each section)
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed on Royal's sheet; call us to confirm before installation
- Shipping weight
- 645 lbs.
Measure the counter depth and hood coverage first: the unit is 28.5" deep, and the counter, wall and surrounding surfaces must be non-combustible.
Broiler and griddle
A 48" radiant broiler with heavy cast iron burners and cast iron radiants beside a 24" griddle with a 1" thick polished steel plate.
Thermostat every 12"
The griddle has an electromechanical thermostat for each 12" of plate, adjustable from 150°F to 450°F.
Easy to clean
A stainless steel drip tray/grease can, and an independent broiler firebox that lifts out and can be replaced.
Built for daily heat
Fully welded frame, 1,200°F mineral wool insulation, and stainless steel sides and front valve cover.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
How many BTU is it?
164,000 BTU/hr total per Royal's table. The sheet rates the broiler burners at 11,000 BTU/hr every 6" and the griddle burners at 12,000 BTU/hr every 6", but those ratings do not add up to the table total, so call us if you need the burner-by-burner figure.
What gas connection does it need?
Royal's sheet lists a 3/4" NPT connection at the right rear; its drawing shows a 3/4" pipe behind both the broiler and the griddle section. Manifold pressure is 5" W.C. natural gas and 10" W.C. propane; the regulator ships with the unit. Confirm the connection with us before installation.
Can it go next to a wood or drywall wall?
No. Royal's spec sheet says it is for installation in non-combustible locations only, with 0" clearance to non-combustible walls. Combustible-wall installation is not listed.
How hot does the griddle get?
Each 12" of griddle has its own thermostat, adjustable from 150°F to 450°F. The plate is 1" thick polished steel, 21 1/2" deep.
What options are available?
Round or square 3/8" rod grates in steel or stainless steel and cast iron criss-cross (diamond) grates for the broiler, plus stainless steel equipment stands with optional 5" swivel casters. Call us to add any of these.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture); cast iron parts are covered for 90 days. The spec sheet also lists a "fully welded frame with lifetime warranty"; Royal's warranty page does not detail that term, so ask us to confirm it with Royal.
How do I clean it?
Daily, clean the broiler grates with warm water, a mild cleaner and a wire brush, and empty the grease can. Clean the griddle plate with warm water and a griddle brick. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | BG-4824 |
| Series | Delux BG Broiler-Thermo Griddle Combination |
| Quantity | 1 Each |
| Shipping Weight | 645 lbs. |
| Broiler Section Width | 48 Inches |
| Griddle Section Width | 24 Inches |
| Depth | 28.5 Inches |
| Height | 14 Inches at the front16 1/8 Inches to the top of the back |
| Legs | 4" high adjustable heavy duty legs |
| Broiler Cooking Depth | 23 Inches |
| Griddle Plate | 1" thick polished steel, 21 1/2" deep |
| Installation | Countertop, non-combustible locations only |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 164,000 BTU/H |
| Broiler Burners | Heavy cast iron, rated 11,000 BTU/H every 6" (per sheet) |
| Griddle Burners | Steel tubular, rated 12,000 BTU/H every 6" (per sheet) |
| Griddle Controls | Electromechanical thermostat every 12", 150°F - 450°F |
| Gas Inlet | 3/4" pipe at the rear of each section (drawing) |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | Not permitted (non-combustible locations only) |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Grates | Cast iron top grates |
| Construction | Fully welded frame1,200°F mineral wool insulationStainless steel sides and front valve coverStainless steel drip tray/grease canRemovable independent broiler firebox |
| Options | 3/8" round steel or stainless steel rod grate3/8" square steel or stainless steel rod grateCast iron criss-cross (diamond) grateStainless steel equipment stand (knock-down or all welded)5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborCast iron parts 90 daysFully welded frame with lifetime warranty (per spec sheet) |
| Usage | Commercial use only |
