Description
A 40" countertop griddle with an over-fired broiler underneath, for griddling and finishing in one footprint.

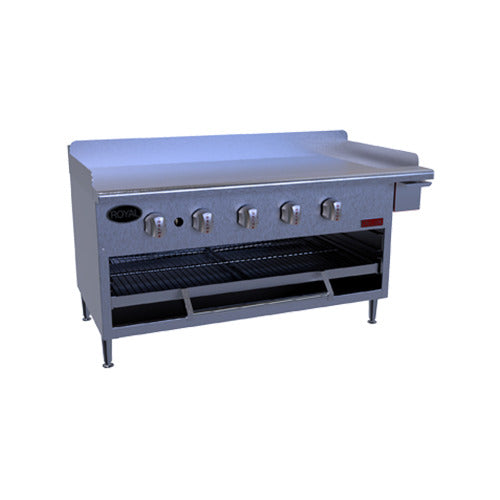

The GB-36 puts a 3/4" thick polished griddle plate on top of an over-fired broiler with a three-position pull-out rack. 5 cast burners at 10,000 BTU/hr each heat both. It suits diners, cafes and restaurants that need a griddle and a broiler in one space. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 40" W x 28.5" D; 23 1/2" high overall on 4" adjustable legs
- Cooking area
- Griddle 17" deep; broiler below on a three-position pull-out rack
- Counter space
- Countertop unit; Royal's countertop manual calls for a non-combustible counter
- Clearances
- Combustible walls: 4" rear, 4" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 50,000 BTU/hr total (5 burners x 10,000); 3/4" pipe at the right rear, 16" above the floor line
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: standing pilots and manual valves
- Shipping weight
- 280 lbs.
Measure the counter depth and hood coverage first: the unit is 28.5" deep and 23 1/2" high overall.
Griddle on top, broiler below
5 cast burners at 10,000 BTU/hr each, with heat-radiating stainless steel mesh, heat the 3/4" thick polished griddle plate above and broil food on the rack below.
Three-position rack
The pull-out broiler rack sets at three heights and rolls out on a carriage for loading and unloading.
Easy to clean
A full-width removable stainless steel crumb pan.
Built for daily heat
Fully welded frame, 1,200°F mineral wool insulation, and stainless steel front and sides.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
How many BTU is it?
50,000 BTU/hr total: 5 burners at 10,000 BTU/hr each (5 x 10,000 = 50,000).
How does the over-fired broiler work?
The burners sit between the griddle and the broiler rack: they heat the griddle plate from below and broil food on the pull-out rack underneath. The rack has three positions and rolls out on a carriage.
What gas connection does it need?
A 3/4" NPT connection at the right rear of the unit. Manifold pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit for your installer to connect.
How much clearance does it need from the wall?

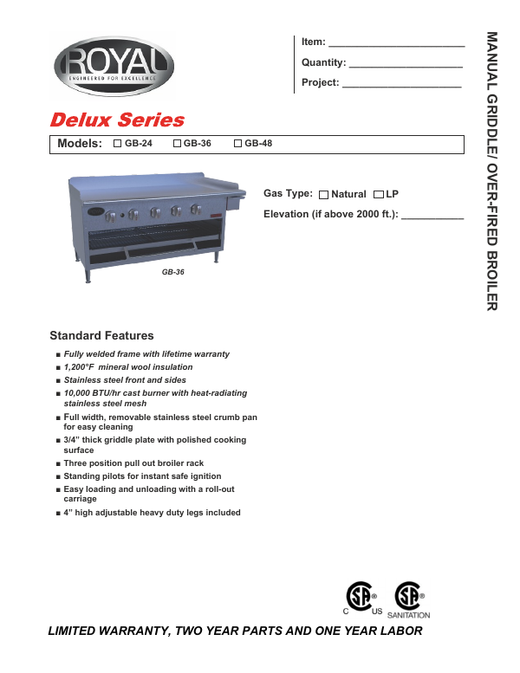

The spec sheet lists 4" at the rear and 4" at the sides from combustible walls, and 0" from non-combustible walls. Royal's countertop manual calls for a non-combustible counter, so plan a non-combustible counter and wall where you can.
Does it need an electrical outlet?
No electrical connection is listed. It lights with standing pilots and runs on manual valves.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture); cast iron parts are covered for 90 days. The spec sheet also lists a "fully welded frame with lifetime warranty"; Royal's warranty page does not detail that term, so ask us to confirm it with Royal.
How do I clean it?
Daily, clean the griddle plate with warm water and a griddle brick, clean the broiler rack with a wire brush, and empty the crumb pan. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | GB-36 |
| Series | Delux GB Manual Griddle / Over-Fired Broiler |
| Quantity | 1 Each |
| Shipping Weight | 280 lbs. |
| Width | 40 Inches |
| Depth | 28.5 Inches |
| Height | 23 1/2 Inches overall |
| Legs | 4" high adjustable heavy duty legs |
| Griddle Plate | 3/4" thick polished steel |
| Cooking Area Depth | 17 Inches |
| Broiler Rack | Three-position, pull-out, roll-out carriage |
| Installation | Countertop, non-combustible counter |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 50,000 BTU/H |
| Burners | 5 cast burners, 10,000 BTU/H each, heat-radiating stainless steel mesh |
| Ignition | Standing pilots |
| Controls | Manual |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | 4" rear4" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Construction | Fully welded frame1,200°F mineral wool insulationStainless steel front and sidesRemovable stainless steel crumb pan |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborCast iron parts 90 daysFully welded frame with lifetime warranty (per spec sheet) |
| Usage | Commercial use only |
