Description
Turn part of a Royal TB-3 or DRB broiler into a flat griddle by lifting two grates out and setting this plate in their place.

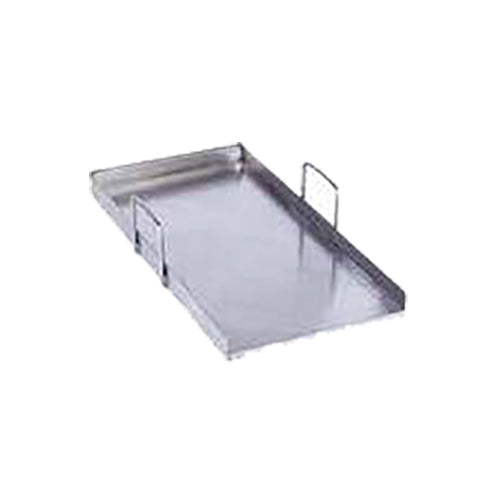

The LOG-1017 is a 10" x 17-1/2" lift-off griddle plate for Royal's TB-3 infrared and DRB radiant broilers. It is all-welded 1/2" highly polished steel with handles, and takes the place of two top grates, giving you a flat cooking surface on one section of the broiler. Royal designs it to cover only part of the broiler top so the broiler can still vent.
Will it fit · Will it plug in
- Plate size
- 10" W × 17-1/2" (Royal catalog)
- Fits
- Royal TB-3 series (TB-315 to TB-336) and DRB series (DRB-15 to DRB-36) broilers
- Replaces
- 2 top grates; the TB-3/DRB top grates are 5" × 18" cast iron
- Venting
- Does not cover the whole broiler top, by design
- Electrical / gas
- None: heated by the broiler underneath
- Shipping weight
- 29 lbs.
Check the model plate on your broiler: this size is for Royal's TB-3 and DRB series. Royal's 23 series and TB/RB-8 broilers use other LOG sizes; call us if you are unsure.
Heavy steel plate
All-welded 1/2" thick, highly polished steel holds heat across the 10" x 17-1/2" surface.
Lift-off with handles
Handles let you set the plate on the broiler or take it off when you need the grates back.
Keeps the broiler venting
Royal sizes it to replace two grates rather than the whole top, so the rest of the broiler still breathes and grills.
Delivery and setup
- Ships from Royal Range; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time and to confirm fit before you order.
- No installation: remove two top grates from the broiler and set the plate in their place by its handles, with the broiler off and cool.
- Inspect the shipment before signing and note any visible damage on the delivery receipt.
Questions buyers ask
Which broilers does the LOG-1017 fit?
Royal lists it for its TB-3 series (TB-315, TB-321, TB-325, TB-330, TB-336) and DRB series (DRB-15, DRB-21, DRB-25, DRB-30, DRB-36) broilers. It does not fit the 23 series or TB/RB-8 broilers, which use other LOG sizes.
How many grates does it replace?
Two. The TB-3 and DRB top grates are 5" x 18" cast iron, and the 10" wide plate takes the space of two of them. The 15" wide LOG-1517 replaces three.
Why doesn't it cover the whole broiler?
Royal designs the lift-off griddle to cover only part of the broiler top so the broiler can still vent.
What is it made of?
All-welded 1/2" highly polished steel plate with handles. It ships at 29 lbs.
What does the warranty cover?
Royal's standard limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture). Call us if you have a warranty question on an accessory.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | LOG-1017 |
| Quantity | 1 Each |
| Shipping Weight | 29 lbs. |
| Width | 10 Inches |
| Depth | 17.5 Inches |
| Plate Size | 10" x 17-1/2" |
| Plate Material | All welded 1/2" highly polished steel plate |
| Handles | Yes, lift-off |
| For Use With | Royal TB-3 series broilers (TB-315, TB-321, TB-325, TB-330, TB-336)Royal DRB series broilers (DRB-15, DRB-21, DRB-25, DRB-30, DRB-36) |
| Replaces | 2 top grates (5" x 18" cast iron) |
| Warranty | 2 years parts, 1 year labor (Royal limited warranty) |
| Usage | Commercial use only |
