Description
Three 30,000 BTU burners under wok rings or cast iron grates, for Asian kitchens that need wok and pot burners on a countertop.

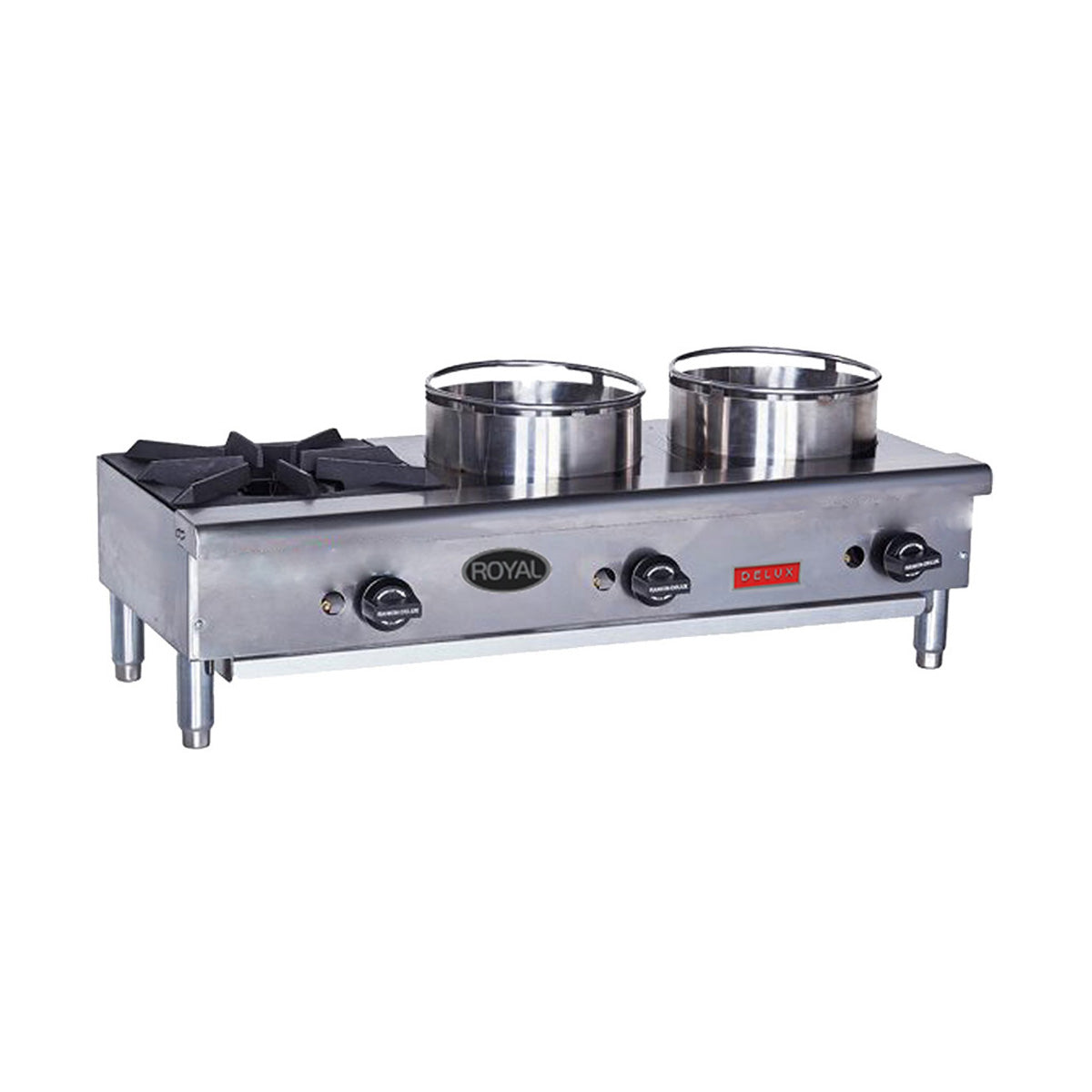

The ORHP-336 is the 36" model in Royal's Delux Original Flex System line: 3 cast iron burners at 30,000 BTU, each under a 3/8" plate with a 9-3/4" stainless steel wok ring or a 12" x 12" cast iron grate, mixed the way you need. The fully welded frame is listed with a lifetime warranty on Royal's sheet. It suits Chinese, Thai and other Asian restaurants that hold woks and stock pots on one countertop. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 36" W × 15" D body (17-1/2" on the spec table, which may include the rear gas connection); 10" high overall, on 4" adjustable legs
- Counter space
- Countertop unit; set it on a level counter or a Royal equipment stand
- Clearances
- Combustible walls: 4" rear, 15" sides. Non-combustible walls: 0" (spec sheet)
- Gas
- Natural gas or LP, 90,000 BTU/hr total (3 × 30,000); 3/4" NPT inlet at the right rear
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: standing pilots and manual valves
- Shipping
- 108 lbs.; crated 19" D × 15" H × 38-1/2" W (Royal's catalog: 19" D × 15" H × width + 2-1/2")
Leave room behind the unit for the gas line and regulator, and check that every burner sits under your hood.
Wok ring or grate
Each 12" section takes a heavy 3/8" thick plate with a 9-3/4" stainless steel wok ring or a heavy cast iron 12" x 12" bowl-design grate; Royal lets you mix and match.
3 burners at 30,000 BTU
Cast iron burners with removable, non-clog lift-off heads and flat top design, each with a protected standing pilot and its own manual control.
Fully welded frame

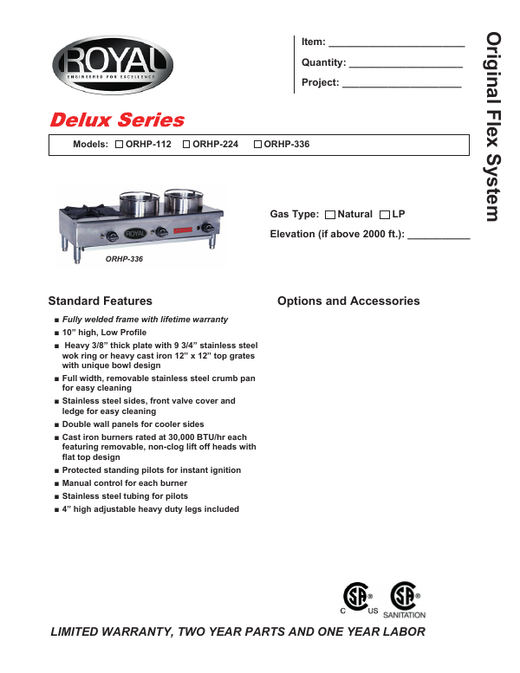

The Delux frame is fully welded; Royal's spec sheet lists it with a lifetime warranty.
Easy to clean
A full-width removable stainless steel crumb pan slides out, and the stainless sides, valve cover and front ledge wipe clean.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
Does it come with wok rings or grates?
Each section can have a 3/8" plate with a 9-3/4" stainless steel wok ring or a 12" x 12" cast iron grate. Royal's catalog lists extra grates, extra wok ring tops and swapping a grate for a wok ring as options, so tell us the mix you want when you order.
What gas connection does it need?
A 3/4" NPT connection at the right rear of the unit. Pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit for your installer to connect.
How much clearance does it need from the wall?
Royal's spec sheet lists 4" at the rear and 15" at the sides from combustible walls, and 0" from non-combustible walls.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture); the spec sheet also lists a lifetime warranty on the welded frame. Cast iron parts, such as grates and burner heads, are covered for 90 days. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Daily, clean the grates and wok rings with warm water, a mild cleaner and a wire brush, brush debris from around the burners and empty the crumb pan. Now and then remove the burners, clean them with a wire brush and check that the ports are open.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | ORHP-336 |
| Series | Delux Original Flex System |
| Quantity | 1 Each |
| Shipping Weight | 108 lbs. |
| Width | 36 Inches |
| Depth | 17.5 Inches (spec table)15" body on the drawing and in the catalog |
| Height | 10 Inches overall |
| Legs | 4" high adjustable heavy duty legs |
| Crated Size | 19" D x 15" H x 38-1/2" W |
| Installation | Countertop |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Number of Burners | 3 |
| BTU per Burner | 30,000 BTU/H |
| Total BTU | 90,000 BTU/H (3 x 30,000) |
| Burners | Cast iron, removable non-clog lift-off heads, flat top design |
| Tops | 3/8" thick plate with 9-3/4" stainless steel wok ring or heavy cast iron 12" x 12" bowl-design grate, mix and match |
| Ignition | Protected standing pilots, stainless steel pilot tubing |
| Controls | Manual control for each burner |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | 4" rear15" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Construction | Fully welded frameStainless steel sides, front valve cover and ledgeDouble wall side panelsFull-width removable stainless steel crumb pan |
| Options | Extra top gratesExtra wok ring topSubstitute top grate for wok ring top |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborWelded frame lifetime (per spec sheet)Cast iron parts 90 days |
| Usage | Commercial use only |
