Description

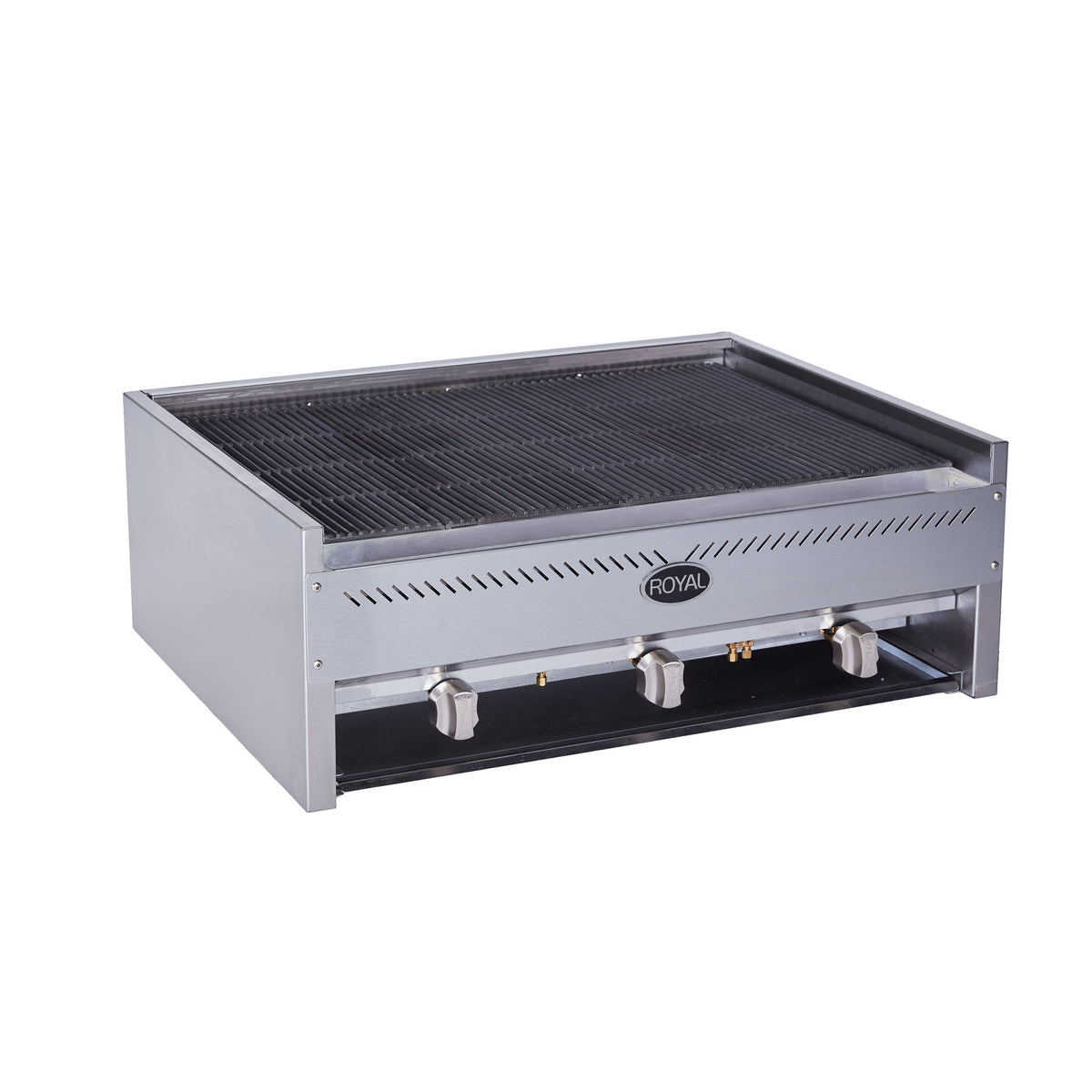

A 36" heavy duty char rock broiler for charbroiled flavor from high-output "H" burners.
The RCB-36 is the 36" model in the Royal Series RCB Heavy Duty Char Rock Broiler line: 3 "H" type cast iron burners rated at 40,000 BTU/hr each for 120,000 BTU/hr in total, on a 28" deep chassis. It suits restaurants, grills and bars. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 36" W x 28" D; 11" high at the front, 13" to the top of the back
- Counter space

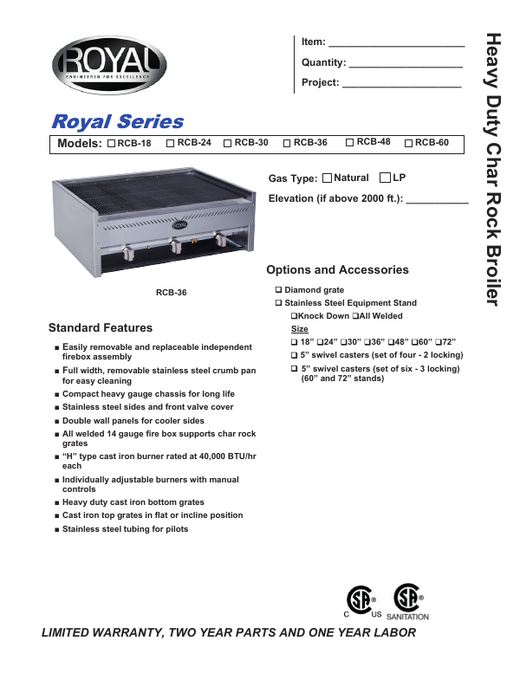

- Countertop unit for non-combustible locations only (Royal spec sheet)
- Clearances
- Non-combustible walls: 0" rear and sides. Not for installation next to combustible walls
- Gas
- Natural gas or LP, 120,000 BTU/hr total (3 burners x 40,000); 3/4" NPT inlet at the right rear
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: manual gas valves
- Shipping weight
- 383 lbs.
Measure the counter depth and hood coverage first: the unit is 28" deep and the gas connection comes out at the right rear. The counter, wall and surrounding surfaces must be non-combustible.
Char rock heat
3 "H" type cast iron burners rated at 40,000 BTU/hr each heat the char rock grates, which sit in an all welded 14 gauge fire box.
Adjustable grates
Cast iron top grates set flat or on an incline, over heavy duty cast iron bottom grates.
Easy to clean
A removable stainless steel crumb pan and an independent firebox assembly that lifts out and can be replaced.
Built for daily heat
Compact heavy gauge chassis, stainless steel sides and front valve cover, double wall side panels, all welded 14 gauge fire box, stainless steel tubing for pilots.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
How many BTU is it?
120,000 BTU/hr total: 3 "H" type cast iron burners rated at 40,000 BTU/hr each (3 x 40,000 = 120,000).
What gas connection does it need?
A 3/4" NPT connection at the right rear of the unit. Manifold pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit for your installer to connect.
Can it go next to a wood or drywall wall?
No. Royal's spec sheet says it is for installation in non-combustible locations only, with 0" clearance to non-combustible walls. Combustible-wall installation is not listed.
Does it need an electrical outlet?
No electrical connection is listed. It runs on gas with manual valves.
What options are available?
Diamond grate. Royal also makes matching stainless steel equipment stands with optional 5" swivel casters. Call us to add any of these.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture); cast iron parts are covered for 90 days. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Daily, clean the grates with warm water, a mild cleaner and a wire brush, brush debris from around the burners, and empty the crumb pan. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RCB-36 |
| Series | Royal Series RCB Heavy Duty Char Rock Broiler |
| Quantity | 1 Each |
| Shipping Weight | 383 lbs. |
| Width | 36 Inches |
| Depth | 28 Inches |
| Height | 11 Inches at the front13 Inches to the top of the back |
| Installation | Countertop, non-combustible locations only |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 120,000 BTU/H |
| Burners | 3 "H" type cast iron burners, 40,000 BTU/H each |
| Controls | Manual, individually adjustable burners |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | Not permitted (non-combustible locations only) |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Grates | Cast iron top grates (flat or incline position)Heavy duty cast iron bottom grates |
| Construction | Compact heavy gauge chassisStainless steel sides and front valve coverDouble wall side panelsAll welded 14 gauge fire boxStainless steel tubing for pilotsRemovable stainless steel crumb panRemovable independent firebox |
| Options | Diamond grateStainless steel equipment stand (knock-down or all welded)5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborCast iron parts 90 days |
| Usage | Commercial use only |
