Description
A 25 lb. countertop gas fryer for kitchens without floor space for a full fryer.

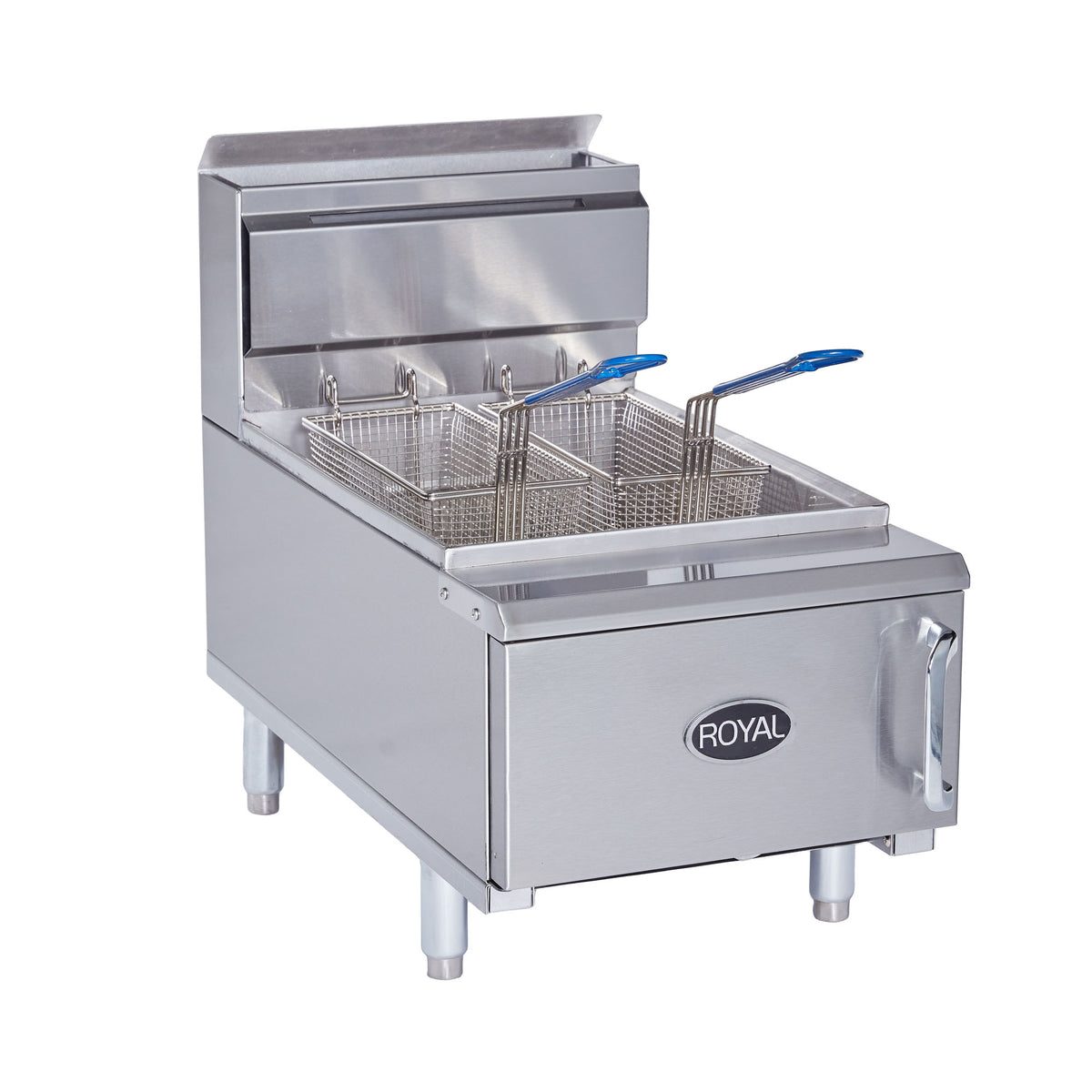

The RCF-25 is a 15.5" wide countertop gas fryer with a 25 lb. stainless steel tank and 3 in-shot burners (54,000 BTU/hr). A millivolt control system and a 200-400°F thermostat mean it needs no electrical connection. It suits restaurants, bars and food counters with steady frying volume.
Will it fit · Will it plug in
- Outside size
- 15.5" W × 29.5" D × 24 1/2" H
- Installation
- Countertop fryer on 4" adjustable legs; 14" high body
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 54,000 BTU/hr; 3/4" NPT at the left rear; no external pressure regulator required
- Gas pressure
- 4" W.C. natural gas, 11" W.C. propane
- Electrical
- None: millivolt control system
- Shipping weight
- 80 lbs.
Measure the line under the hood and the doorways on the delivery path before ordering.
Frying capacity
A stainless steel tank holding 25 lb. of oil, with 14" x 14" of frying area.
In-shot burners
3 in-shot burners at 18,000 BTU/hr each (3 x 18,000 = 54,000 BTU/hr).
Simple controls
A thermostat from 200° to 400°F and a millivolt control system with 100% safety shut-off; no power cord or outlet needed.
Easy draining
1 1/4" full port drain valve, stainless steel front and sides, and twin fry baskets with plastic coated handles.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect it with a manual shut-off valve following local codes; no external regulator is needed.
- Boil out the new tank before the first fill.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
How much oil does it hold?
The stainless steel tank holds 25 lbs. of oil; frying area is 14" x 14".
Does it need electricity?
No. It uses a millivolt control system with a standing pilot and 100% safety shut-off, so it runs on gas alone.
What gas connection does it need?
A 3/4" NPT connection at the left rear with a manual shut-off valve. Manifold pressure is 4" W.C. for natural gas and 11" W.C. for propane, and no external pressure regulator is required.
Can it sit on a counter?
Yes. The RCF-25 is a countertop fryer on 4" adjustable legs, 15.5" wide and 29.5" deep.
How much clearance does it need?
6" at the rear and sides from combustible walls and 0" from non-combustible walls.
What does the warranty cover?
Royal covers this fryer for 1 year parts and labor from installation (up to 18 months from manufacture), and the stainless steel tank for 5 years prorated. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Filter the oil at the end of each day and wash the baskets and loose parts. Once a week, drain the tank, boil out with a boil-out solution, scrub, rinse and dry before refilling.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RCF-25 |
| Quantity | 1 Each |
| Shipping Weight | 80 lbs. |
| Width | 15.5 Inches |
| Depth | 29.5 Inches |
| Height | 24.5 Inches |
| Number of Tanks | 1 |
| Oil Capacity | 25 lbs. |
| Frying Area | 14" x 14" |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 54,000 BTU/H |
| Burners | 3 in-shot burners18,000 BTU/H each |
| Gas Inlet | 3/4" NPT at the left rear |
| Gas Pressure | 4" W.C. Natural Gas11" W.C. Propane |
| Pressure Regulator | No external regulator required |
| Electrical | None required (millivolt control system) |
| Controls | Thermostatic, 200-400 Degrees FMillivolt control system with 100% safety shut-off |
| Drain Valve | 1 1/4" full port |
| Baskets | Twin fry baskets with plastic coated handles |
| Construction | Stainless steel tankStainless steel front and sides |
| Legs | 4" adjustable heavy duty legs |
| Options | Stainless steel tank coverSide splash guard |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 1 year parts and laborStainless steel tank 5 years prorated |
| Usage | Commercial use only |
Certifications
