Description
A compact countertop gas oven that takes a full size sheet pan, for kitchens that need oven space without a floor footprint.

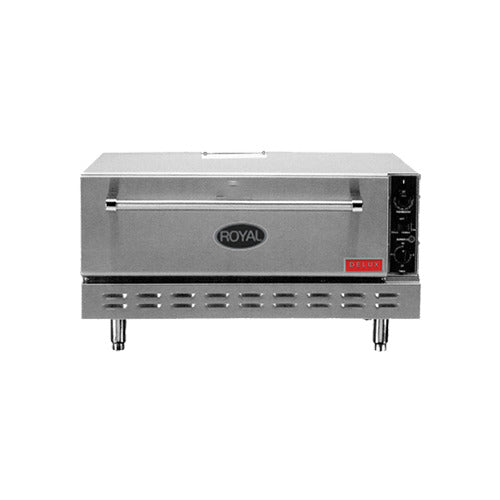

The RDCO-32 is Royal's Delux gas counter convection oven: one 15,000 BTU steel "U" burner, a 150-500°F thermostat and a 27" W x 19⅜" D x 7⅝" H stainless steel cavity that takes a full size sheet pan. It suits cafes, bars and small kitchens that bake, finish or reheat in small batches. It stands on 4" adjustable legs and plugs into a standard 120V outlet.
Will it fit · Will it plug in
- Outside size
- 32½" W × 34⅝" D × 18⅜" H (14⅜" oven body on 4" adjustable legs)
- Oven interior
- 27" W × 19⅜" D × 7⅝" H usable space; takes a full size sheet pan
- Counter space
- Countertop unit; Royal offers matching stainless steel equipment stands
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 15,000 BTU/hr; 3/4" NPT inlet at the right rear; regulator supplied
- Electrical
- 120V, 60 Hz, 1 phase, 1 amp; 6' cord with a standard 3-prong grounded plug
- Shipping weight
- 190 lbs.
Check the counter depth: the oven needs 34⅝" plus room behind it for the gas connection.
15,000 BTU burner
One steel "U" burner with a safety pilot and electronic ignition, and a burner ON indicator light.
Simple controls
A 150-500°F thermostat and a one-hour manual timer.
Delux construction
A fully welded frame with a lifetime frame warranty, 1,200°F mineral wool insulation and a stainless steel interior.
Counter or stand
Stands on 4" adjustable heavy duty legs; Royal offers stainless steel equipment stands from 12" to 72" wide.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified installer must connect it following local codes, with the supplied pressure regulator and a manual shut-off valve ahead of the unit, and plug it into a grounded 120V outlet.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
What size pan does it take?
One full size sheet pan. The usable interior is 27" wide, 19⅜" deep and 7⅝" high, with one chrome rack on 2-position guides.
What electrical does it need?
A standard 120V grounded outlet: 60 Hz, single phase, 1 amp, on a 6' cord with a 3-prong plug.
Where can it sit?
On a sturdy counter or one of Royal's stainless steel equipment stands, on its 4" adjustable legs. Keep 6" from combustible walls at the back and sides.
How hot does it get?
The thermostat adjusts from 150°F to 500°F, with a burner ON light and a one-hour manual timer.
What does the warranty cover?

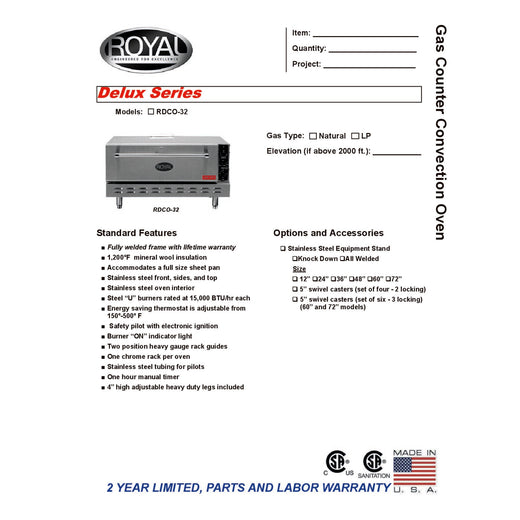

Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture), with labor by an authorized Royal service agency. Royal's sheet also lists a lifetime warranty on the fully welded frame.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RDCO-32 |
| Series | Delux Series |
| Quantity | 1 Each |
| Shipping Weight | 190 lbs. |
| Width | 32.5 Inches |
| Depth | 34.625 Inches |
| Height | 18.375 Inches (14 3/8" oven body + 4" legs) |
| Interior Dimensions | 27" W x 19 3/8" D x 7 5/8" H usable space |
| Installation | Countertop or equipment stand, 4" adjustable legs |
| Pan Capacity | 1 full size sheet pan |
| Racks | 1 chrome rack, 2-position heavy gauge rack guides |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 15,000 BTU/H |
| Burner | 1 steel "U" burner, 15,000 BTU/H |
| Thermostat | 150 - 500 Degrees F |
| Ignition | Safety pilot with electronic ignition |
| Controls | Burner "ON" light1-hour manual timer |
| Voltage | 120 Volts |
| Amps | 1 |
| Hertz | 60 |
| Phase | 1 |
| Power Cord | 6' cord with standard 3-prong grounded plug |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Construction | Stainless steel front, sides and topStainless steel oven interiorStainless steel tubing for pilots |
| Delux Frame | Fully welded, lifetime frame warranty1,200°F mineral wool insulation |
| Options | Stainless steel equipment stand (12" to 72", knock-down or all-welded)5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborWelded frame: lifetime |
| Usage | Commercial use only |
