Description
A 48" low-profile radiant charbroiler, 11" high overall, built to sit on a refrigerated base.
The RDRB-48 is the 48" model in the Delux RDRB Radiant Broiler line: 8 stainless steel tubular burners rated at 15,000 BTU/hr each for 120,000 BTU/hr in total, on a 30.5" deep chassis. It suits restaurants, grills and bars. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 48" W x 30.5" D; 11" high overall (low profile), on 4" adjustable legs
- Counter space
- Countertop unit; Royal's manual lists R(D)RB radiant broilers for non-combustible locations only
- Clearances

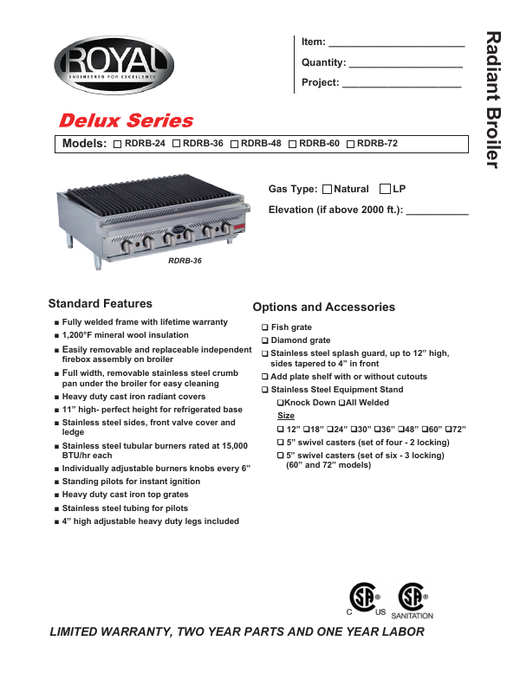

- Spec sheet: combustible walls 4" rear, 15" sides; non-combustible walls 0". Royal's manual: non-combustible locations only
- Gas
- Natural gas or LP, 120,000 BTU/hr total (8 burners x 15,000); 3/4" NPT inlet at the right rear
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: standing pilots and manual valves
- Shipping weight
- 460 lbs. on the spec sheet; Royal's 2026 catalog lists 450 lbs.
Measure the counter depth and hood coverage first: the unit is 30.5" deep and the gas connection comes out at the right rear. Plan a non-combustible counter and wall.
Radiant heat
8 stainless steel tubular burners rated at 15,000 BTU/hr each heat heavy duty cast iron radiant covers; each burner is individually adjustable.
Low-profile chassis
It stands 11" high overall on 4" adjustable heavy duty legs, which Royal calls the right height for a refrigerated base.
Easy to clean
A removable stainless steel crumb pan and an independent firebox assembly that lifts out and can be replaced.
Built for daily heat
Fully welded frame, 1,200°F mineral wool insulation, stainless steel sides, front valve cover and ledge, stainless steel tubing for pilots.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
How many BTU is it?
120,000 BTU/hr total: 8 stainless steel tubular burners rated at 15,000 BTU/hr each (8 x 15,000 = 120,000).
What gas connection does it need?
A 3/4" NPT connection at the right rear of the unit. Manifold pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit for your installer to connect.
How much clearance does it need from the wall?
The spec sheet lists 4" at the rear and 15" at the sides from combustible walls, and 0" from non-combustible walls. Royal's countertop manual lists R(D)RB radiant broilers for non-combustible locations only, so plan a non-combustible counter and wall.
Does it need an electrical outlet?
No electrical connection is listed. It lights with standing pilots and runs on manual valves.
What options are available?
Fish grate; diamond grate; stainless steel splash guard, up to 12" high, sides tapered to 4" in front; plate shelf, with or without cutouts. Royal also makes matching stainless steel equipment stands with optional 5" swivel casters. Call us to add any of these.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture); cast iron parts are covered for 90 days. The spec sheet also lists a "fully welded frame with lifetime warranty"; Royal's warranty page does not detail that term, so ask us to confirm it with Royal.
How do I clean it?
Daily, clean the grates with warm water, a mild cleaner and a wire brush, brush debris from around the burners, and empty the crumb pan. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RDRB-48 |
| Series | Delux RDRB Radiant Broiler |
| Quantity | 1 Each |
| Shipping Weight | 460 lbs. (spec sheet)450 lbs. (2026 catalog) |
| Width | 48 Inches |
| Depth | 30.5 Inches |
| Height | 11 Inches overall (low profile) |
| Legs | 4" high adjustable heavy duty legs |
| Installation | Countertop, non-combustible counter |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 120,000 BTU/H |
| Burners | 8 stainless steel tubular burners, 15,000 BTU/H each |
| Radiants | Heavy duty cast iron radiant covers |
| Ignition | Standing pilots |
| Controls | Manual, individually adjustable burner knobs every 6" |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | 4" rear15" sides (spec sheet; manual says non-combustible locations only) |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Grates | Heavy duty cast iron |
| Construction | Fully welded frame1,200°F mineral wool insulationStainless steel sides, front valve cover and ledgeStainless steel tubing for pilotsRemovable stainless steel crumb panRemovable independent firebox |
| Options | Fish grateDiamond grateStainless steel splash guard, up to 12" high, sides tapered to 4" in frontPlate shelf, with or without cutoutsStainless steel equipment stand (knock-down or all welded)5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborCast iron parts 90 daysFully welded frame with lifetime warranty (per spec sheet) |
| Usage | Commercial use only |
