Description
A 48" heavy duty snap action griddle with a 30" deep cooking surface, for lines that cook to a set plate temperature.

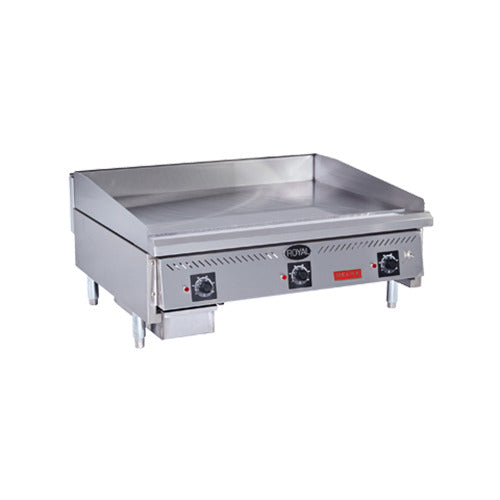

The RDSA-48-D is Royal's Delux Series snap action griddle in the 48" width: 4 U-shaped burners, one every 12", rated at 30,000 BTU/hr each (4 × 30,000 = 120,000 BTU/hr) under a 1" thick polished steel plate with a 30" cooking depth, controlled by a solid state control for each burner with a sensor embedded in the plate. It plugs into a standard grounded 120V outlet for the controls, as well as the gas line.
Will it fit · Will it plug in
- Outside size
- 48" W × 38-1/2" D
- Height
- 11" low profile: 11" to the cooking surface on 4" legs, with the rear and side splash above (drawing)
- Cooking surface
- 30" deep, 1" thick steel plate
- Clearances
- Combustible walls: 6" rear, 4" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 120,000 BTU/hr total (4 × 30,000 = 120,000); 3/4" NPT at the right rear, 7" above the counter
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- 120V, 60Hz, 1 phase, 1 amp; 6' cord with a standard 3-prong grounded plug
- Crated size
- 40" D × 15" H × 50-1/2" W (width + 2-1/2", Royal catalog)
- Shipping weight
- 605 lbs.
Measure the counter depth and hood coverage first, and plan a grounded 120V outlet within reach of the 6' cord at the back of the unit.
Burner every 12"
4 U-shaped burners, one every 12", rated at 30,000 BTU/hr each (4 × 30,000 = 120,000 BTU/hr).
Solid state snap action
Each burner has a solid state control with a sensor embedded in the plate. Each burner has a standing pilot; a piezo spark igniter is optional.
1" polished plate
A 1" thick steel griddle plate with a polished cooking surface and a 30" cooking depth.
Delux construction
A fully welded frame, 1,200°F mineral wool insulation, aeration panels between the burners and an 11" body that Royal sizes for refrigerated bases.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified installer must connect it following local codes, with the supplied pressure regulator and a manual shut-off valve ahead of the unit, and plug it into a grounded 120V receptacle.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
Does it need electricity?

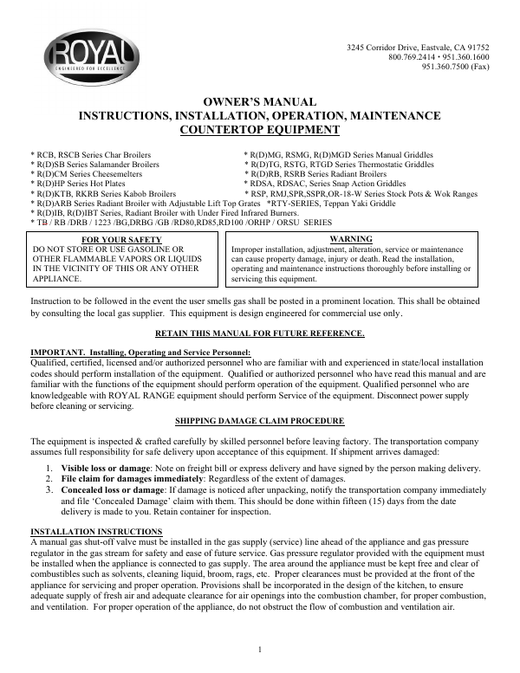

Yes. The solid state controls need 120V, 60Hz, 1 phase power at 1 amp, through a 6' cord with a standard 3-prong grounded plug. Royal's manual says not to operate it during a power failure.
What is a snap action griddle?

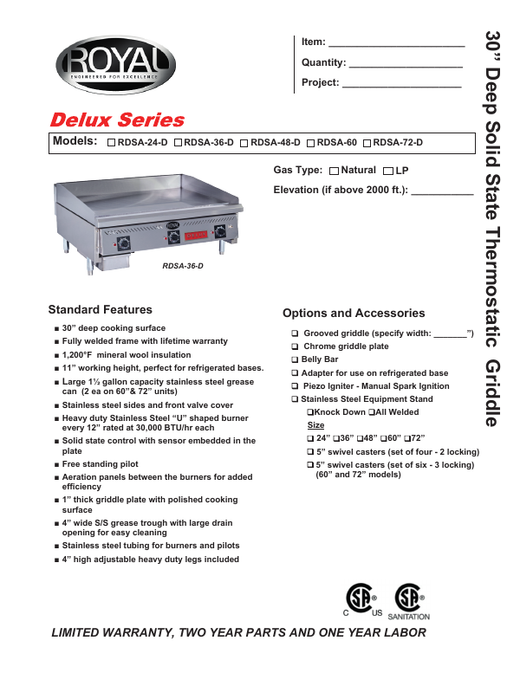

Royal's snap action griddles use a solid state control for each burner with a sensor embedded in the plate (Royal's catalog puts the probe 1/4" under the plate). Royal's spec sheet does not list a temperature range; call us if you need it confirmed.
Can it sit on a refrigerated base?
Royal designs it with an 11" working height for refrigerated bases and offers an adapter for use on a refrigerated base. Call us to add the adapter.
What is the difference between the RDSA-48-D and the RDSA-48?
The RDSA-48-D has a 30" deep cooking surface and is 38-1/2" deep overall. The RDSA-48 has a 24" cooking depth and is 32-1/2" deep overall.
What gas connection does it need?
A 3/4" NPT connection at the right rear, 7" above the counter. Manifold pressure is 5" W.C. for natural gas and 10" W.C. for propane; the regulator ships with the unit for your installer to connect.
How much clearance does it need?
6" at the rear and 4" at the sides from combustible walls, and 0" from non-combustible walls.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture), with labor done by an authorized Royal service agency. Royal lists the welded frame with a lifetime warranty.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RDSA-48-D |
| Quantity | 1 Each |
| Shipping Weight | 605 lbs. |
| Crated Dimensions | 40" D x 15" H x 50-1/2" W |
| Width | 48 Inches |
| Depth | 38-1/2 Inches |
| Height | 11" low profile (to the cooking surface on 4" legs, drawing)Splash rises above |
| Cooking Surface Depth | 30 Inches |
| Griddle Plate | 1" thick steel, polished cooking surface |
| Installation | Countertop |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 120,000 BTU/H (4 × 30,000 = 120,000) |
| Burners | 4 U-shaped burners, 30,000 BTU/H each (one every 12") |
| Controls | Solid state control with sensor embedded in the plate4 solid state controls, one per burner |
| Ignition | Standing pilot for each burner (piezo spark igniter optional) |
| Gas Inlet | 3/4" NPT, right rear, 7" above the counter |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Voltage | 120 Volts |
| Amps | 1 |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | Standard 3-prong grounded plug, 6' cord |
| Clearance (Combustible) | 6" rear4" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Grease Collection | 4" wide stainless steel grease trough with large drain opening1-1/2 gallon stainless steel grease can |
| Construction | Fully welded frame1,200°F mineral wool insulationStainless steel sides and front valve coverAeration panels between the burnersStainless steel tubing for burners and pilots4" adjustable heavy duty legs |
| Options | Grooved griddleChrome griddle plateBelly barAdapter for use on a refrigerated basePiezo igniter (manual spark ignition)Stainless steel equipment stand5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborWelded frame: lifetime (per Royal) |
| Usage | Commercial use only |
