Description
A 35-45 lb. energy efficient gas fryer that runs on gas alone, for restaurants that need dependable everyday frying.

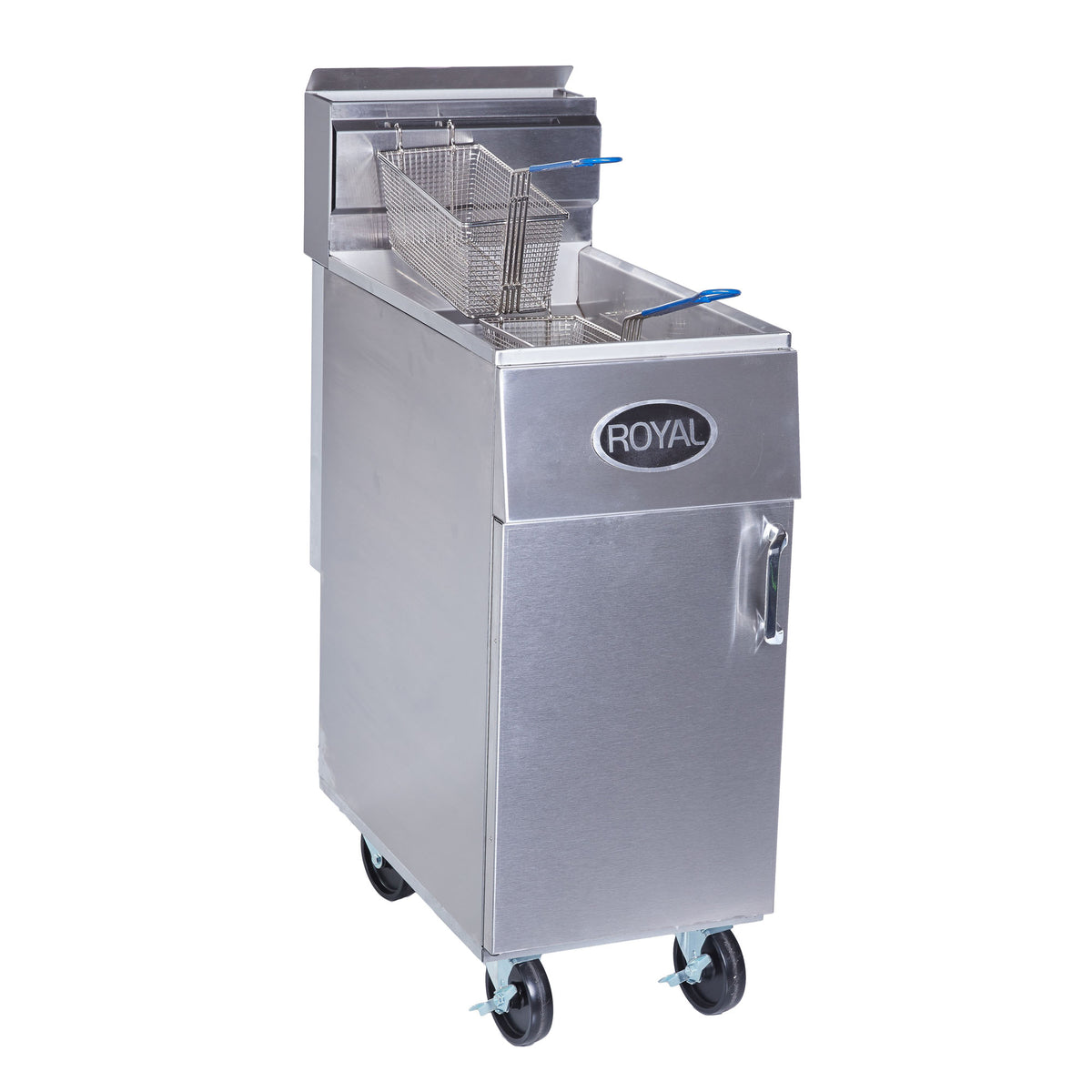

The REEF-35-2 is a 15.5" wide energy efficient gas fryer with a 35-45 lb. stainless steel tank and 3 cast iron burners (72,000 BTU/hr). A millivolt control system and a 200-400°F thermostat mean it needs no electrical connection. It suits restaurants, bars and food counters with steady frying volume.
Will it fit · Will it plug in
- Outside size
- 15.5" W × 31" D × 45 3/4" H
- Legs
- 6" high adjustable heavy duty legs; 5" swivel casters optional; 36" to the top of the fry tank
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 72,000 BTU/hr; 3/4" NPT at the left rear; no external pressure regulator required
- Gas pressure
- 4" W.C. natural gas, 11" W.C. propane
- Electrical
- None: millivolt control system
- Shipping weight
- 180 lbs.
Measure the line under the hood and the doorways on the delivery path before ordering.
Frying capacity
A stainless steel tank holding 35-45 lb. of oil, with 13 5/8" x 14" of frying area.
Cast iron burners
3 cast iron burners at 24,000 BTU/hr each (3 x 24,000 = 72,000 BTU/hr). Royal rates it 56% efficient and it is ENERGY STAR listed.
Simple controls
A thermostat from 200° to 400°F and a millivolt control system with 100% safety shut-off; no power cord or outlet needed.
Easy draining
1 1/4" full port drain valve, stainless steel front and sides, and twin fry baskets with plastic coated handles.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect it with a manual shut-off valve following local codes; no external regulator is needed. On casters, Royal calls for a quick-disconnect flexible connector and a restraining device.
- Boil out the new tank before the first fill.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
How much oil does it hold?
The stainless steel tank holds 35-45 lbs. of oil; frying area is 13 5/8" x 14".
Does it need electricity?
No. It uses a millivolt control system with a standing pilot and 100% safety shut-off, so it runs on gas alone.
What gas connection does it need?
A 3/4" NPT connection at the left rear with a manual shut-off valve. Manifold pressure is 4" W.C. for natural gas and 11" W.C. for propane, and no external pressure regulator is required.
Does it have a built-in filter?
No. Royal builds the REEF-35 with a built-in filter as the REEF-35-2 to -5 battery models with -EM, -DM2 or -CM controls.
How much clearance does it need?
6" at the rear and sides from combustible walls and 0" from non-combustible walls.
What does the warranty cover?
Royal covers this fryer for 1 year parts and labor from installation (up to 18 months from manufacture), and the stainless steel tank for 5 years prorated. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Filter the oil at the end of each day and wash the baskets and loose parts. Once a week, drain the tank, boil out with a boil-out solution, scrub, rinse and dry before refilling.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | REEF-35-2 |
| Quantity | 1 Each |
| Shipping Weight | 180 lbs. |
| Width | 15.5 Inches |
| Depth | 31 Inches |
| Height | 45.75 Inches |
| Work Height | 36 Inches |
| Number of Tanks | 1 |
| Oil Capacity | 35-45 lbs. |
| Frying Area | 13 5/8" x 14" |
| Energy Efficiency | 56% |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 72,000 BTU/H |
| Burners | 3 cast iron burners24,000 BTU/H each |
| Gas Inlet | 3/4" NPT at the left rear |
| Gas Pressure | 4" W.C. Natural Gas11" W.C. Propane |
| Pressure Regulator | No external regulator required |
| Electrical | None required (millivolt control system) |
| Controls | Thermostatic, 200-400 Degrees FMillivolt control system with 100% safety shut-off |
| Drain Valve | 1 1/4" full port |
| Baskets | Twin fry baskets with plastic coated handles |
| Construction | Stainless steel tankStainless steel front and sides |
| Legs | 6" adjustable heavy duty legs |
| Options | Stainless steel tank coverSide splash guardJoiner strip5" swivel casters48" quick disconnect and restraining cable |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Certifications | CSA C/USCSA SanitationENERGY STAR |
| Warranty | 1 year parts and laborStainless steel tank 5 years prorated |
| Usage | Commercial use only |
