Description
A 50/25 lb. split gas fryer that runs on gas alone, for restaurants that need dependable everyday frying.

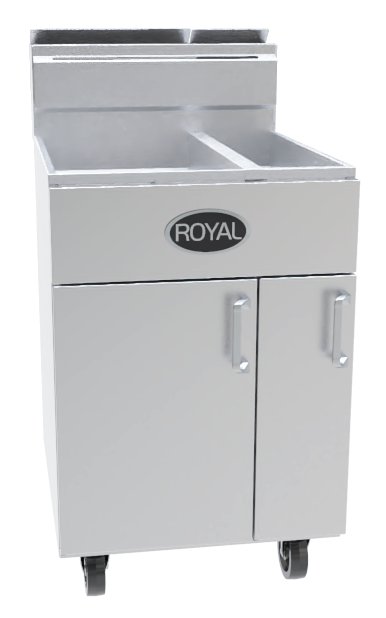

The RFT-5025 is a 23.25" wide split gas fryer with two stainless steel tanks (50/25 lb.) and 5 cast iron burners (190,000 BTU/hr). A millivolt control system and a 200-400°F thermostat mean it needs no electrical connection. It suits restaurants and bars that want two separate oils in one cabinet.
Will it fit · Will it plug in
- Outside size
- 23.25" W × 30.5" D × 45 3/4" H
- Legs
- 6" high adjustable heavy duty legs; 5" swivel casters optional; 36" to the top of the fry tank
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 190,000 BTU/hr; two 3/4" NPT connections; no external pressure regulator required
- Gas pressure
- 4" W.C. natural gas, 11" W.C. propane
- Electrical
- None: millivolt control system
- Shipping weight
- 260 lbs.
Measure the line under the hood and the doorways on the delivery path before ordering.
Frying capacity
Two stainless steel tanks holding 50/25 lb. of oil, with 14" x 14" (50 lb.) and 6 3/4" x 14" (25 lb.) of frying area.
Tube-fired burners
5 cast iron burners at 38,000 BTU/hr each (5 x 38,000 = 190,000 BTU/hr).
Simple controls
A thermostat from 200° to 400°F and a millivolt control system with 100% safety shut-off; no power cord or outlet needed.
Easy draining
1 1/4" full port drain valve on each tank, stainless steel front and sides, and two fry baskets with plastic coated handles.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect it with a manual shut-off valve following local codes; no external regulator is needed. On casters, Royal calls for a quick-disconnect flexible connector and a restraining device.
- Boil out the new tank before the first fill.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
How much oil does it hold?
Two stainless steel tanks hold 50/25 lbs. of oil; frying area is 14" x 14" (50 lb.) and 6 3/4" x 14" (25 lb.).
Does it need electricity?
No. It uses a millivolt control system with a standing pilot and 100% safety shut-off, so it runs on gas alone.
What gas connection does it need?
Two 3/4" NPT connections, one per tank, with a manual shut-off valve. Manifold pressure is 4" W.C. for natural gas and 11" W.C. for propane, and no external pressure regulator is required.
Can I run the two tanks separately?
Yes. Each tank has its own drain valve and its own oil, so you can keep different products apart (two 3/4" gas connections).
Does it have a built-in filter?
No. Filter it with Royal's RPF-50 portable filter, or look at the RFT battery models with a built-in filter.
How much clearance does it need?
6" at the rear and sides from combustible walls and 0" from non-combustible walls.
What does the warranty cover?
Royal covers this fryer for 1 year parts and labor from installation (up to 18 months from manufacture), and the stainless steel tank for 5 years prorated. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Filter the oil at the end of each day and wash the baskets and loose parts. Once a week, drain the tank, boil out with a boil-out solution, scrub, rinse and dry before refilling.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RFT-5025 |
| Quantity | 1 Each |
| Shipping Weight | 260 lbs. |
| Width | 23.25 Inches |
| Depth | 30.5 Inches |
| Height | 45.75 Inches |
| Work Height | 36 Inches |
| Number of Tanks | 2 |
| Oil Capacity | 50/25 lbs. |
| Frying Area | 14" x 14" (50 lb.) and 6 3/4" x 14" (25 lb.) |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 190,000 BTU/H |
| Burners | 5 cast iron burners38,000 BTU/H each |
| Gas Inlet | Two 3/4" NPT connections |
| Gas Pressure | 4" W.C. Natural Gas11" W.C. Propane |
| Pressure Regulator | No external regulator required |
| Electrical | None required (millivolt control system) |
| Controls | Thermostatic, 200-400 Degrees FMillivolt control system with 100% safety shut-off |
| Drain Valve | 1 1/4" full port per tank |
| Baskets | Two fry baskets with plastic coated handles |
| Construction | Stainless steel tanksStainless steel front and sides |
| Legs | 6" adjustable heavy duty legs |
| Options | Stainless steel tank coverSide splash guardJoiner strip5" swivel casters48" quick disconnect and restraining cable8" welded front plate shelf |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 1 year parts and laborStainless steel tank 5 years prorated |
| Usage | Commercial use only |
Certifications
