Description
Five 60 lb. gas fryers banked in one cabinet with a built-in filter, for kitchens running several products at once.
The RFT-60-5-DM2 banks 5 fryers, each with a 60 lb. stainless steel tank and 4 burners (152,000 BTU/hr per tank, 760,000 BTU/hr in all), in one 97.5" wide cabinet with a built-in filter system. Every tank has its own DM2 control, a two-channel solid state digital control with a melt cycle for solid shortening. It suits restaurants, chicken and fish shops and high-volume kitchens that keep different products in separate oil and filter at the end of the day.
Will it fit · Will it plug in
- Outside size
- 97.5" W × 35 3/8" D × 45 1/2" H to the top of the flue; the 2026 catalog lists 39" D
- Dump station
- Optional; adds 19 1/2" to the width
- Work height
- 36" to the top of the fry tanks
- Aisle space
- 30" in front of the fryer to pull out the filter pan
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 760,000 BTU/hr total; 1" NPT inlet at the rear; no external pressure regulator required
- Gas pressure
- 4" W.C. natural gas, 11" W.C. propane
- Electrical
- Filter: 115V, 1-phase, 50/60 Hz, 7 A + 0.5 A per tank = 9.5 A for 5 tanks; 6' cord with 3-prong grounded plug
- Shipping weight
- 1,110 lbs.
Measure the hood line and the 30" aisle in front of the fryer: the filter pan slides out the front, so that space must stay clear.
Built-in filtration

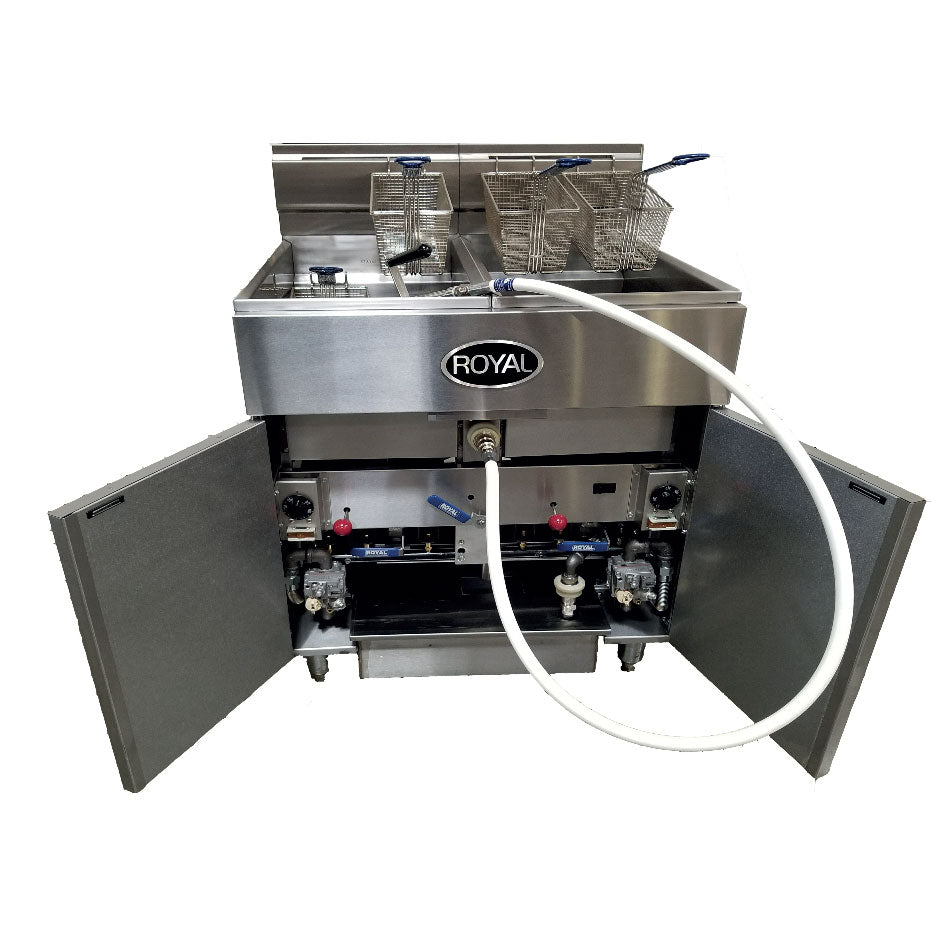

An 8 gpm filter pump returns oil through the wash-down hose; Royal says a normal filter cycle takes about 5 minutes. Royal Plus and Ultra-Plus versions return oil through the bottom of the tank.
Tube-fired burners
Each tank has 4 cast iron burners at 38,000 BTU/hr (4 burners x 38,000 = 152,000 BTU/hr per tank; 5 x 152,000 = 760,000 BTU/hr total).
DM2 controls
Each tank has a two-channel solid state digital control with a melt cycle for solid shortening.
Safe drain
A 1 1/4" full port drain valve with an interlock switch shuts the burners off whenever the drain is open.
Banked together
5 fryers of 60 lb. each share one 97.5" wide welded stainless steel cabinet on casters; Royal banks up to five fryers together.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP and the filtration type when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect it with a manual shut-off valve following local codes; no external regulator is needed. On casters, Royal calls for a quick-disconnect flexible connector and a restraining device.
- Plug the filter into a grounded 115V 3-prong receptacle; boil out each new tank before the first fill.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
How many fryers are in the RFT-60-5-DM2?
5 fryers, each with a 60 lb. stainless steel tank and a 14" x 18" cooking area, banked in one 97.5" wide cabinet with a built-in filter system.
Does it need electricity as well as gas?
Yes, for the filter pump: Royal lists 115V, 1-phase, 50/60 Hz at 7 A + 0.5 A per tank = 9.5 A for 5 tanks. It plugs into a grounded 3-prong outlet with a 6' cord.
What gas connection does it need?
A 1" NPT connection at the rear (3/4" on single-tank units, 1" on 2 or more), with a manual shut-off valve. Manifold pressure is 4" W.C. for natural gas and 11" W.C. for propane, and no external pressure regulator is required.
What is the difference between the filtration options?
Standard filtration returns the filtered oil through the wash-down hose. Royal Plus returns it through the bottom of the tank, and Royal Ultra-Plus through the bottom of the tank or the wash hose. Pick one when you order.
What does the DM2 control do?
It is a two-channel solid state digital control with a melt cycle for solid shortening. Each tank has its own control.
How much clearance does it need?
6" at the rear and sides from combustible walls and 0" from non-combustible walls, plus 30" of aisle in front to remove the filter pan.
What does the warranty cover?
Royal's warranty covers the fryer for 1 year parts and labor (up to 18 months from manufacture) and the built-in filter system for 2 years parts and labor. The stainless steel tanks have a 5-year prorated warranty. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Filter the oil at the end of each day and wash the baskets, crumb screen and filter pan. Once a week, drain the tanks and run a boil-out with a non-chlorine commercial boil-out product.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RFT-60-5-DM2 |
| Quantity | 1 Each |
| Shipping Weight | 1,110 lbs. |
| Width | 97.5 Inches |
| Depth | 35 3/8 Inches (drawing)39 Inches (2026 catalog) |
| Height | 45.5 Inches (to top of flue) |
| Work Height | 36 Inches |
| Aisle Space to Remove Filter Pan | 30 Inches |
| Dump Station (Optional) | Adds 19 1/2 Inches to width |
| Number of Tanks | 5 |
| Oil Capacity | 60 lbs. per tank |
| Cooking Area | 14" x 18" per tank |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 760,000 BTU/H (5 x 152,000) |
| Burners | 4 cast iron burners per tank38,000 BTU/H each |
| Gas Inlet | 1" NPT, rear |
| Gas Pressure | 4" W.C. Natural Gas11" W.C. Propane |
| Pressure Regulator | No external regulator required |
| Filter Voltage | 115 Volts |
| Filter Amps | 9.5 (7 A + 0.5 A per tank) |
| Hertz | 50/60 |
| Phase | 1 |
| Power Cord | 6' cord, 3-prong grounded plug (filter pump) |
| Controls | DM2 two-channel digital control with melt cycleOne control per tank |
| Filter System | Built-in8 gpm pumpShortening return through the wash-down hose (standard)Royal Plus or Ultra-Plus optional |
| Drain Valve | 1 1/4" full port with burner interlock switch |
| Baskets | Three fry baskets each tank with plastic coated handles |
| Construction | Stainless steel tanksAll welded stainless steel cabinetFully welded frame |
| Casters | Standard |
| Included | 25 sheets of filter envelope paper |
| Filter Options | Royal Plus or Ultra-Plus filtrationSDS rear oil disposal portFine mesh crumb screenTriple filtrationPermafil screenMasterfil reusable fabric filtersFilter tub cover |
| Options | Stainless steel tank coverSide splash guardDump station with heat lamp100 pack of filter paper5" swivel casters48" quick disconnect and restraining cable |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | Fryer: 1 year parts and laborBuilt-in filter system: 2 years parts and labor (Royal warranty)Stainless steel tanks 5 years proratedFrame lifetime (Royal sheet) |
| Usage | Commercial use only |
