Description
A 75 lb. gas fryer that runs on gas alone, for restaurants that need dependable everyday frying.

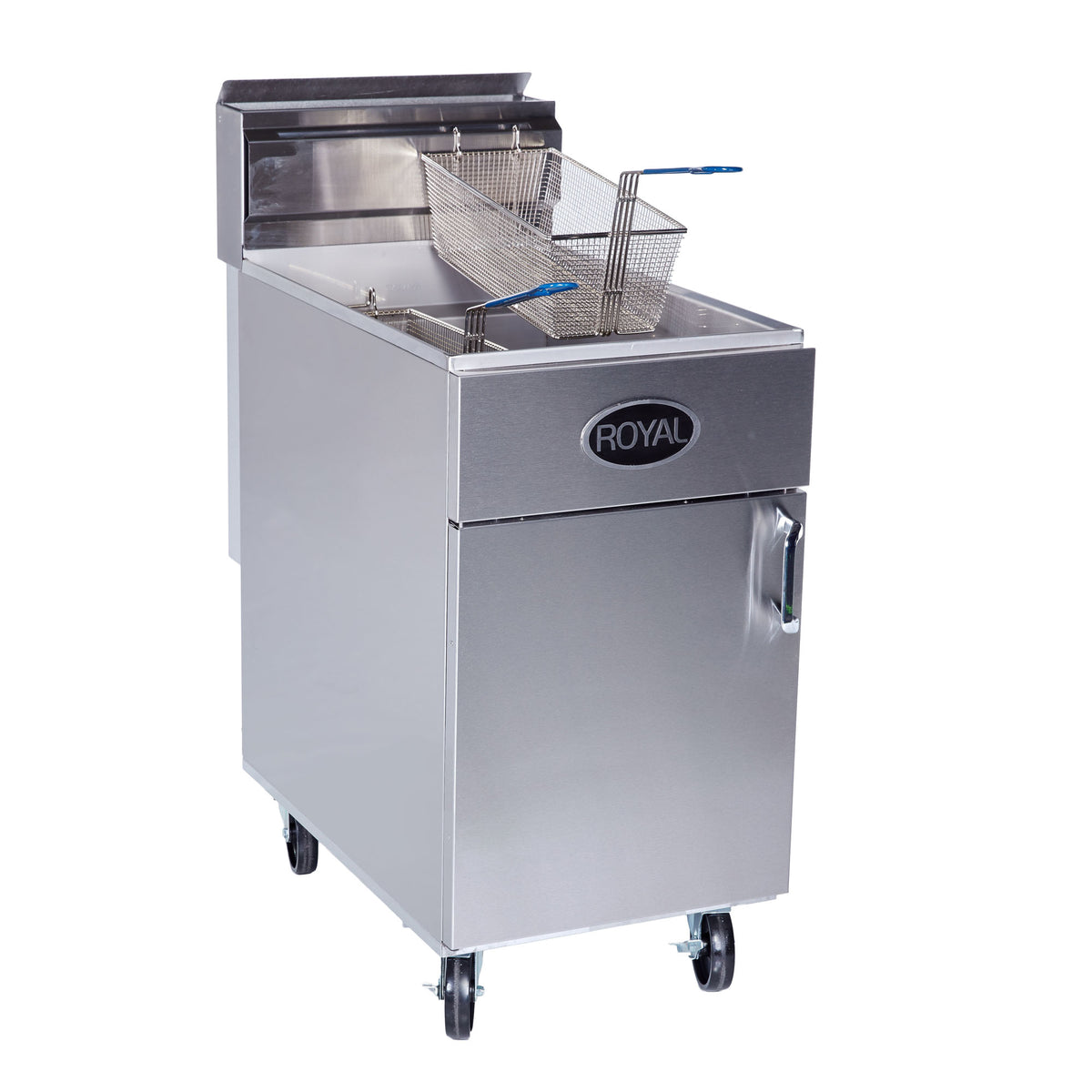

The RFT-75 is a 19.5" wide gas fryer with a 75 lb. stainless steel tank and 4 cast iron burners (152,000 BTU/hr). A millivolt control system and a 200-400°F thermostat mean it needs no electrical connection. It suits restaurants, bars and food counters with steady frying volume.
Will it fit · Will it plug in
- Outside size
- 19.5" W × 34.5" D × 45 3/4" H
- Legs
- 6" high adjustable heavy duty legs; 5" swivel casters optional; 36" to the top of the fry tank
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 152,000 BTU/hr; 3/4" NPT at the left rear; no external pressure regulator required
- Gas pressure
- 4" W.C. natural gas, 11" W.C. propane
- Electrical
- None: millivolt control system
- Shipping weight
- 210 lbs.
Measure the line under the hood and the doorways on the delivery path before ordering.
Frying capacity
A stainless steel tank holding 75 lb. of oil, with 18" x 18" of frying area.
Tube-fired burners
4 cast iron burners at 38,000 BTU/hr each (4 x 38,000 = 152,000 BTU/hr).
Simple controls
A thermostat from 200° to 400°F and a millivolt control system with 100% safety shut-off; no power cord or outlet needed.
Easy draining
1 1/4" full port drain valve, stainless steel front and sides, and two fry baskets with plastic coated handles.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect it with a manual shut-off valve following local codes; no external regulator is needed. On casters, Royal calls for a quick-disconnect flexible connector and a restraining device.
- Boil out the new tank before the first fill.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
How much oil does it hold?
The stainless steel tank holds 75 lbs. of oil; frying area is 18" x 18".
Does it need electricity?
No. It uses a millivolt control system with a standing pilot and 100% safety shut-off, so it runs on gas alone.
What gas connection does it need?
A 3/4" NPT connection at the left rear with a manual shut-off valve. Manifold pressure is 4" W.C. for natural gas and 11" W.C. for propane, and no external pressure regulator is required.
Does it have a built-in filter?
No. Filter it with Royal's RPF-50 portable filter, or look at the RFT battery models with a built-in filter.
How much clearance does it need?
6" at the rear and sides from combustible walls and 0" from non-combustible walls.
What does the warranty cover?
Royal covers this fryer for 1 year parts and labor from installation (up to 18 months from manufacture), and the stainless steel tank for 5 years prorated. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Filter the oil at the end of each day and wash the baskets and loose parts. Once a week, drain the tank, boil out with a boil-out solution, scrub, rinse and dry before refilling.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RFT-75 |
| Quantity | 1 Each |
| Shipping Weight | 210 lbs. |
| Width | 19.5 Inches |
| Depth | 34.5 Inches |
| Height | 45.75 Inches |
| Work Height | 36 Inches |
| Number of Tanks | 1 |
| Oil Capacity | 75 lbs. |
| Frying Area | 18" x 18" |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 152,000 BTU/H |
| Burners | 4 cast iron burners38,000 BTU/H each |
| Gas Inlet | 3/4" NPT at the left rear |
| Gas Pressure | 4" W.C. Natural Gas11" W.C. Propane |
| Pressure Regulator | No external regulator required |
| Electrical | None required (millivolt control system) |
| Controls | Thermostatic, 200-400 Degrees FMillivolt control system with 100% safety shut-off |
| Drain Valve | 1 1/4" full port |
| Baskets | Two fry baskets with plastic coated handles |
| Construction | Stainless steel tankStainless steel front and sides |
| Legs | 6" adjustable heavy duty legs |
| Options | Stainless steel tank coverSide splash guardJoiner strip5" swivel casters48" quick disconnect and restraining cable |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 1 year parts and laborStainless steel tank 5 years prorated |
| Usage | Commercial use only |
