Description
A single 75-80 lb. high efficiency gas fryer with its own built-in filter, for kitchens that fry all day and filter every night.

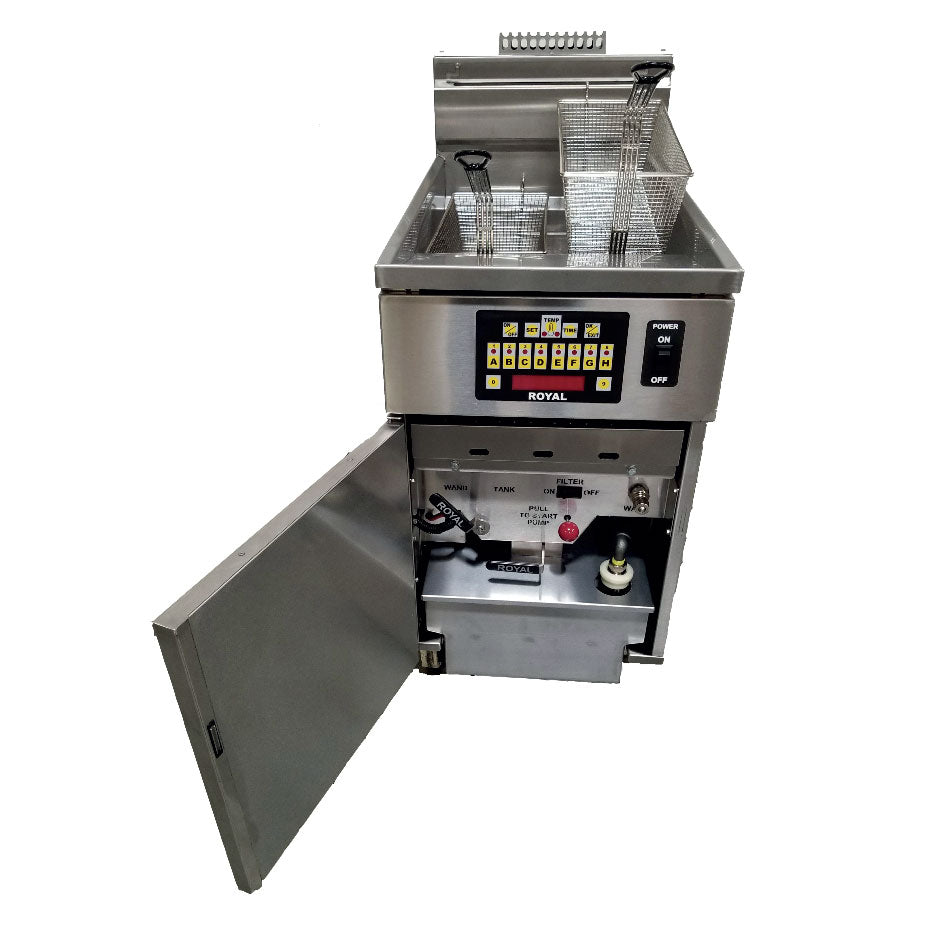

The RHEF-75-1-CM packs a 75-80 lb. stainless steel tank, 4 burners (132,000 BTU/hr) and a built-in filter into a 19.5" wide cabinet. The CM control is a computer control with individual programming for temperature and time compensation. It suits restaurants, chicken and fish shops and high-volume kitchens that want filtration without a separate filter cart.
Will it fit · Will it plug in
- Outside size
- 19.5" W × 42" D × 46" H (Royal 2026 catalog)
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 132,000 BTU/hr total (4 burners x 33,000 = 132,000 BTU/hr per tank); Royal lists no gas connection size for this model, so call us to confirm
- Electrical
- Built-in filter: 115V, 60 Hz, 1-phase with a 3-prong grounded plug (Royal filter manual); call us to confirm the amps
- Shipping weight
- 400 lbs.
Measure the hood line and leave room in front of the fryer: the filter pan slides out the front.
Built-in filtration
An 8 gpm filter pump returns oil through the wash-down hose; Royal says a normal filter cycle takes about 5 minutes. Royal Plus and Ultra-Plus versions return oil through the bottom of the tank.
High efficiency burners
The tank has 4 in-shot burners at 33,000 BTU/hr (4 burners x 33,000 = 132,000 BTU/hr per tank) heating the oil through Royal's heat exchanger.
CM controls
The fryer has a computer control with individual programming for temperature and time compensation.
Easy draining
A 1 1/4" full port drain valve; the stainless steel tank assembly sits in an all welded stainless steel cabinet.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP and the filtration type when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect it with a manual shut-off valve following local codes; call us to confirm the gas connection size before installation.
- Plug the filter into a grounded 115V 3-prong receptacle; boil out each new tank before the first fill.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
How much oil does it hold?
The stainless steel tank holds 75-80 lbs. of oil, and the cooking area is 17 1/2" x 18".
What gas and power connections does it need?
Royal's catalog does not list the gas connection size or amps for the RHEF-75 battery models. The built-in filter runs on 115V with a 3-prong grounded plug (Royal filter manual). Call us to confirm before you plan the installation.
What is the difference between the filtration options?
Standard filtration returns the filtered oil through the wash-down hose. Royal Plus returns it through the bottom of the tank, and Royal Ultra-Plus through the bottom of the tank or the wash hose. Pick one when you order.
What does the CM control do?
It is a computer control with individual programming for temperature and time compensation.
How much clearance does it need?
6" at the rear and sides from combustible walls and 0" from non-combustible walls.
What does the warranty cover?
Royal covers RHEF fryers and fryer filter systems for 2 years parts and labor from installation (up to 30 months from manufacture). The stainless steel fry tank has a 10-year prorated warranty. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Filter the oil at the end of each day and wash the baskets, crumb screen and filter pan. Once a week, drain the tank and run a boil-out with a non-chlorine commercial boil-out product.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RHEF-75-1-CM |
| Quantity | 1 Each |
| Shipping Weight | 400 lbs. |
| Width | 19.5 Inches |
| Depth | 42 Inches (2026 catalog) |
| Height | 46 Inches (2026 catalog) |
| Number of Tanks | 1 |
| Oil Capacity | 75-80 lbs. |
| Cooking Area | 17 1/2" x 18" |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 132,000 BTU/H |
| Burners | 4 in-shot burners per tank33,000 BTU/H each |
| Ignition | Automatic pilot ignition with 100% safety |
| Filter Electrical | 115V, 60 Hz, 1-phase, 3-prong grounded plug (Royal filter manual) |
| Controls | CM computer control |
| Filter System | Built-in8 gpm pumpShortening return through the wash-down hose (standard)Royal Plus or Ultra-Plus optional |
| Drain Valve | 1 1/4" full port |
| Construction | Stainless steel tanksAll welded stainless steel cabinet |
| Filter Options | Royal Plus or Ultra-Plus filtrationRear shortening disposalTriple filtrationPermafil screenFilter tub coverFine mesh screen |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Certifications | Not listed in Royal's catalog for this model; call to confirm |
| Warranty | 2 years parts and laborStainless steel tank 10 years prorated |
| Usage | Commercial use only |
