Description
Two 75-80 lb. high efficiency gas fryers banked in one cabinet with a built-in filter, for kitchens running several products at once.
The RHEF-75-2-DM2 banks 2 fryers, each with a 75-80 lb. stainless steel tank and 4 burners (132,000 BTU/hr per tank, 264,000 BTU/hr in all), in one 39" wide cabinet with a built-in filter system. Every tank has its own DM2 control, a 2-product solid state control with temperature readout. It suits restaurants, chicken and fish shops and high-volume kitchens that keep different products in separate oil and filter at the end of the day.
Will it fit · Will it plug in
- Outside size

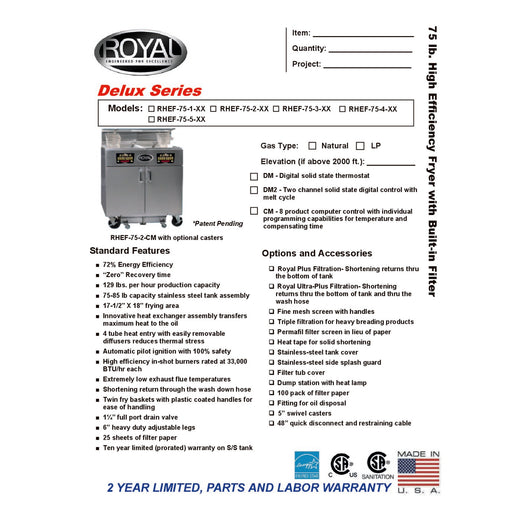

- 39" W × 42" D × 46" H (Royal 2026 catalog)
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 264,000 BTU/hr total (4 burners x 33,000 = 132,000 BTU/hr per tank; 2 x 132,000 = 264,000 BTU/hr total); Royal lists no gas connection size for the battery, so call us to confirm
- Electrical

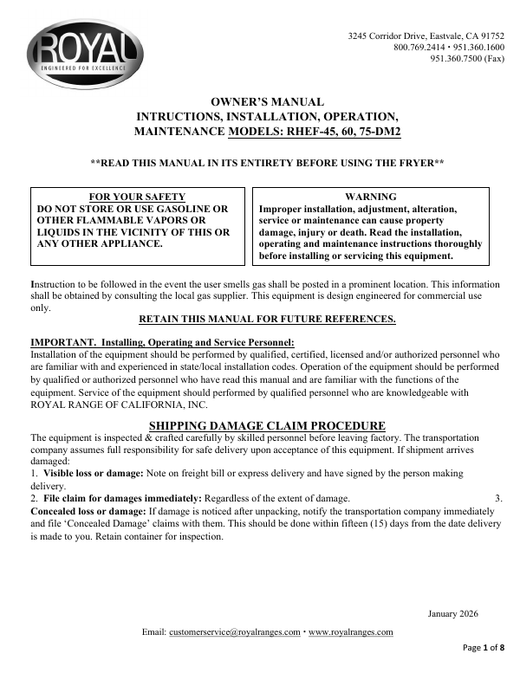

- Built-in filter: 115V, 60 Hz, 1-phase with a 3-prong grounded plug (Royal filter manual); call us to confirm the amps
- Shipping weight
- 650 lbs.
Measure the hood line and leave room in front of the fryer: the filter pan slides out the front.

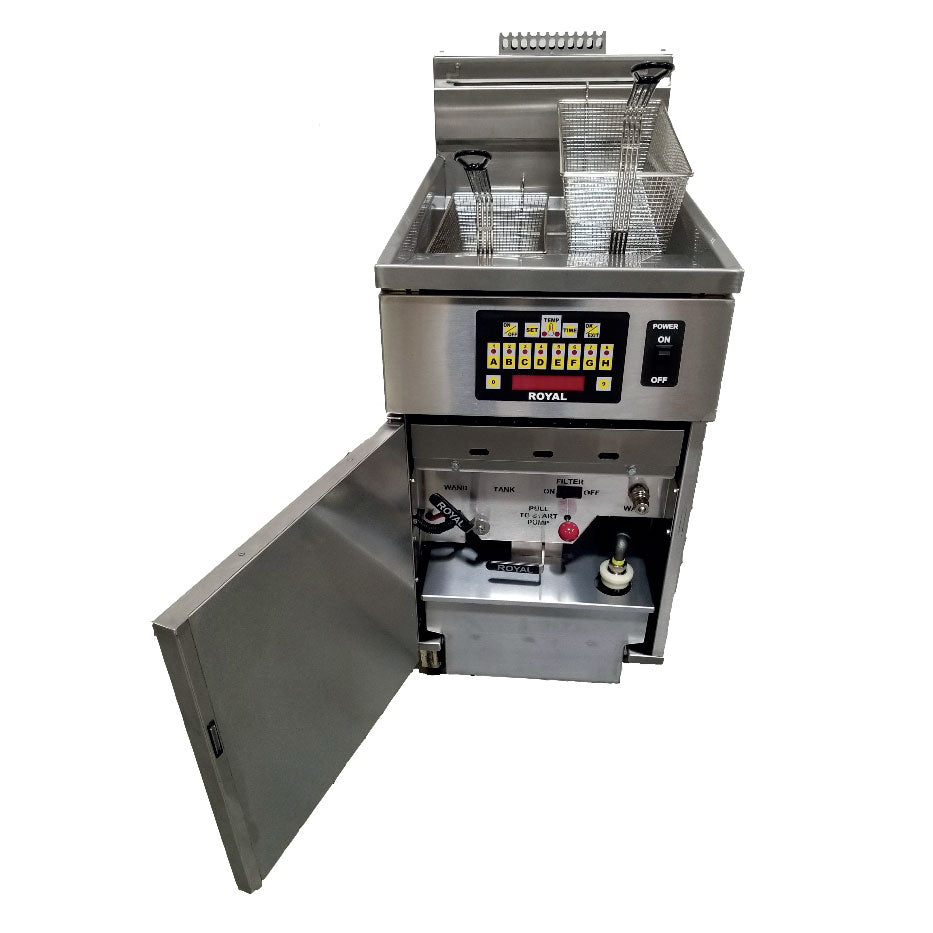

Built-in filtration
An 8 gpm filter pump returns oil through the wash-down hose; Royal says a normal filter cycle takes about 5 minutes. Royal Plus and Ultra-Plus versions return oil through the bottom of the tank.
High efficiency burners
Each tank has 4 in-shot burners at 33,000 BTU/hr (4 burners x 33,000 = 132,000 BTU/hr per tank; 2 x 132,000 = 264,000 BTU/hr total) heating the oil through Royal's heat exchanger.
DM2 controls
Each tank has a 2-product solid state control with temperature readout.
Easy draining
A 1 1/4" full port drain valve on each tank; the stainless steel tank assembly sits in an all welded stainless steel cabinet.
Banked together
2 fryers of 75-80 lb. each share one 39" wide welded stainless steel cabinet; Royal banks up to five fryers together.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP and the filtration type when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect it with a manual shut-off valve following local codes; call us to confirm the gas connection size before installation.
- Plug the filter into a grounded 115V 3-prong receptacle; boil out each new tank before the first fill.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
How many fryers are in the RHEF-75-2-DM2?
2 fryers, each with a 75-80 lb. stainless steel tank and a 17 1/2" x 18" cooking area, banked in one 39" wide cabinet with a built-in filter system.
What gas and power connections does it need?
Royal's catalog does not list the gas connection size or amps for the RHEF-75 battery models. The built-in filter runs on 115V with a 3-prong grounded plug (Royal filter manual). Call us to confirm before you plan the installation.
What is the difference between the filtration options?
Standard filtration returns the filtered oil through the wash-down hose. Royal Plus returns it through the bottom of the tank, and Royal Ultra-Plus through the bottom of the tank or the wash hose. Pick one when you order.
What does the DM2 control do?
It is a 2-product solid state control with temperature readout. Each tank has its own control.
How much clearance does it need?
6" at the rear and sides from combustible walls and 0" from non-combustible walls.
What does the warranty cover?
Royal covers RHEF fryers and fryer filter systems for 2 years parts and labor from installation (up to 30 months from manufacture). The stainless steel fry tank has a 10-year prorated warranty. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Filter the oil at the end of each day and wash the baskets, crumb screen and filter pan. Once a week, drain the tanks and run a boil-out with a non-chlorine commercial boil-out product.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RHEF-75-2-DM2 |
| Quantity | 1 Each |
| Shipping Weight | 650 lbs. |
| Width | 39 Inches |
| Depth | 42 Inches (2026 catalog) |
| Height | 46 Inches (2026 catalog) |
| Number of Tanks | 2 |
| Oil Capacity | 75-80 lbs. per tank |
| Cooking Area | 17 1/2" x 18" per tank |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 264,000 BTU/H (2 x 132,000) |
| Burners | 4 in-shot burners per tank33,000 BTU/H each |
| Ignition | Automatic pilot ignition with 100% safety |
| Filter Electrical | 115V, 60 Hz, 1-phase, 3-prong grounded plug (Royal filter manual) |
| Controls | DM2 2-product solid state control with temperature readoutOne control per tank |
| Filter System | Built-in8 gpm pumpShortening return through the wash-down hose (standard)Royal Plus or Ultra-Plus optional |
| Drain Valve | 1 1/4" full port |
| Construction | Stainless steel tanksAll welded stainless steel cabinet |
| Filter Options | Royal Plus or Ultra-Plus filtrationRear shortening disposalTriple filtrationPermafil screenFilter tub coverFine mesh screen |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Certifications | Not listed in Royal's catalog for this model; call to confirm |
| Warranty | 2 years parts and laborStainless steel tank 10 years prorated |
| Usage | Commercial use only |
