Description
A 75-80 lb. high efficiency gas fryer with a programmable computer, for busy fry stations.

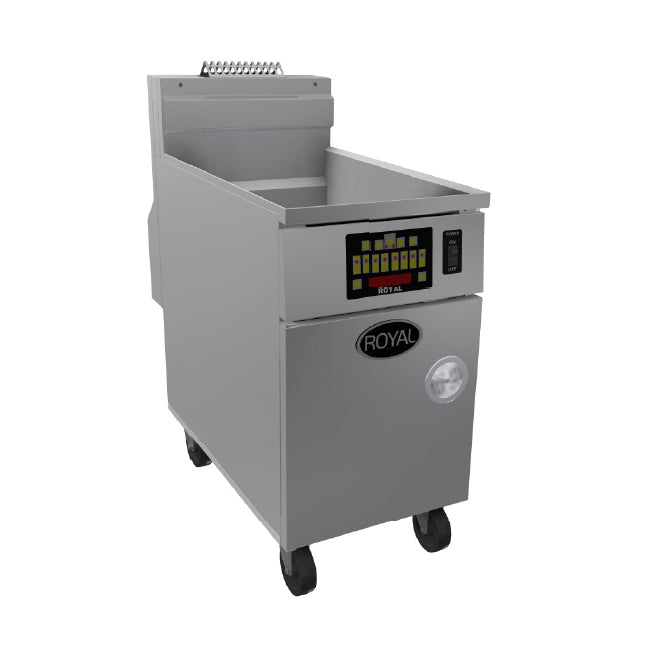

The RHEF-75-CM is a single 19" wide fryer with a 75-80 lb. stainless steel tank and 4 in-shot burners (132,000 BTU/hr) heating the oil through Royal's heat exchanger. The CM control is an 8-product computer control with individual programming for temperature and compensating time. It suits restaurants and chicken and fish shops that want high output from a narrow footprint.
Will it fit · Will it plug in
- Outside size
- 19" W × 37" D × 45" H (drawing); the 2026 catalog lists 19.5" W × 37.5" D
- Work height
- 36" to the top of the fry tank; 6" adjustable legs
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 132,000 BTU/hr (4 x 33,000 = 132,000); 3/4" NPT inlet at the right rear; no external pressure regulator required
- Gas pressure
- 3.5" W.C. natural gas, 10" W.C. propane
- Electrical
- 120V, 60 Hz, 1-phase, 2 A; 6' cord with a standard 3-prong grounded plug
- Shipping weight
- 360 lbs. (Royal sheet; the 2026 catalog lists 235 lbs.)
Measure the line under the hood and the doorways on the delivery path before ordering.
High efficiency burners
4 in-shot burners at 33,000 BTU/hr each (4 x 33,000 = 132,000 BTU/hr) heat the oil through Royal's heat exchanger, with 72% energy efficiency and "zero" recovery time.
CM controls
The CM control is an 8-product computer control with individual programming for temperature and compensating time.
Built to last
A stainless steel tank assembly in an all stainless steel cabinet, with tube heat entry and easily removable diffusers that reduce thermal stress.
Safe and simple
Automatic pilot ignition with 100% safety shut-off and a 1 1/4" full port drain valve.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect it with a manual shut-off valve following local codes; no external regulator is needed. On casters, Royal calls for a quick-disconnect flexible connector and a restraining device.
- Boil out the new tank with a non-chlorine boil-out product before the first fill.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
How much oil does it hold?
The stainless steel tank holds 75-80 lbs. of oil, and the frying area is 17 1/2" x 18".
Does it need electricity?
Yes. Royal lists 120V, 60 Hz, 1-phase at 2 A, with a 6' cord and a standard 3-prong grounded plug.
What gas connection does it need?
A 3/4" NPT connection at the right rear with a manual shut-off valve. Manifold pressure is 3.5" W.C. for natural gas and 10" W.C. for propane; no external pressure regulator is required.
Does it have a built-in filter?
No. The RHEF-75-CM is a single fryer without a filter. Royal builds the same fryer with a built-in filter as the RHEF-75-1 to -5 models, and sells the RPF-50 portable filter.
What does the CM control do?
It is an 8-product computer control with individual programming for temperature and compensating time.
How much clearance does it need?
6" at the rear and sides from combustible walls and 0" from non-combustible walls.
What does the warranty cover?
Royal covers RHEF fryers and fryer filter systems for 2 years parts and labor from installation (up to 30 months from manufacture). The stainless steel fry tank has a 10-year prorated warranty. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Filter the oil at the end of each day and wash the baskets and loose parts. Once a week, drain the tank and run a boil-out with a non-chlorine commercial boil-out product.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RHEF-75-CM |
| Quantity | 1 Each |
| Shipping Weight | 360 lbs. (sheet)235 lbs. (2026 catalog) |
| Width | 19 Inches (drawing)19.5 Inches (2026 catalog) |
| Depth | 37 Inches (drawing)37.5 Inches (2026 catalog) |
| Height | 45 Inches |
| Work Height | 36 Inches |
| Legs | 6" heavy duty adjustable |
| Oil Capacity | 75-80 lbs. |
| Frying Area | 17 1/2" x 18" |
| Production Capacity | 129 lbs. per hour |
| Energy Efficiency | 72% |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 132,000 BTU/H |
| Burners | 4 high efficiency in-shot burners33,000 BTU/H each |
| Ignition | Automatic pilot ignition with 100% safety |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 3.5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | No external regulator required |
| Voltage | 120 Volts |
| Amps | 2 |
| Hertz | 60 |
| Phase | 1 |
| Power Cord | 6' cord, standard 3-prong grounded plug |
| Controls | CM 8-product computer control |
| Filter | None built in |
| Drain Valve | 1 1/4" full port |
| Baskets | Twin fry baskets with plastic coated handles |
| Construction | Stainless steel tank assemblyAll stainless steel cabinet4 tube heat entry with removable diffusers |
| Options | Stainless steel tank coverSide splash guardJoiner strip48" quick disconnect and restraining cable5" swivel casters (set of 4, 2 locking) |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Certifications | CSA C/USCSA SanitationENERGY STAR |
| Warranty | 2 years parts and laborStainless steel tank 10 years prorated |
| Usage | Commercial use only |
