Description
Two sealed electric elements on a 24" countertop chassis, for kitchens that have power to spare but no gas line.
The RHPE-24-2 is the 24" model in Royal's RHPE electric hot plate series: 2 solid 9" sealed elements at 2 kW each, 4 kW in all, each on its own infinite switch. It suits restaurants, cafés and caterers that cook on electric power or need extra burners where a gas line can't reach. Order it for 208V or 240V, single or three phase.
Will it fit · Will it plug in
- Outside size
- 24" W; Royal gives no depth for this model, call us to confirm; 11" high overall on Royal's drawing, on 4" adjustable legs
- Counter space
- Countertop unit; Royal says to install it only in non-combustible surroundings
- Electrical
- 4 kW total (2 × 2 kW); 208V or 240V, single or three phase
- Max amps (spec sheet)
- 208V 1-phase 20 A; 240V 1-phase 17 A; 208V 3-phase 12 A; 240V 3-phase 10 A
- Power inlet
- Right rear, 2-1/2" in from the right side and 7-1/2" above the counter on Royal's drawing
- Shipping
- 135 lbs.
- Before you order
- Some voltage/phase option labels on this page list different amps than Royal's sheet; call us to confirm the amps for your option.
Have your electrician check the circuit size against the amps for your voltage and phase before delivery.
Sealed 9" elements
2 solid, sealed 9" round hot plate elements, 2 kW each, with no open coils to clean around.
Infinite heat control
Each element has its own infinite switch, so you can set any heat level from a simmer to full power.
Low-profile chassis
The compact heavy gauge body with double wall side panels is 11" high overall and stands on 4" adjustable heavy duty legs.
Easy to clean
A full-width removable stainless steel crumb pan catches spills; the stainless sides, control panel and ledge wipe clean.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose the voltage and phase when you order; they must match your building's electrical supply.
- A licensed electrician must connect it following local codes. Royal's sheet does not say whether it comes with a cord or is wired in, so call us to confirm before you plan the connection.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
What electrical service does it need?
4 kW at 208V or 240V, single or three phase. Royal's sheet lists maximum amps of 208V 1-phase 20 A; 240V 1-phase 17 A; 208V 3-phase 12 A; 240V 3-phase 10 A.
Can I order it in three phase?
Yes. Royal builds it for 208V or 240V and single or three phase; pick the option that matches your building.
Where does it go?
On a level counter or a Royal equipment stand. Royal's sheet says to install it only in non-combustible surroundings, so keep it away from wood walls and shelves.
Why do the option labels show different amps?

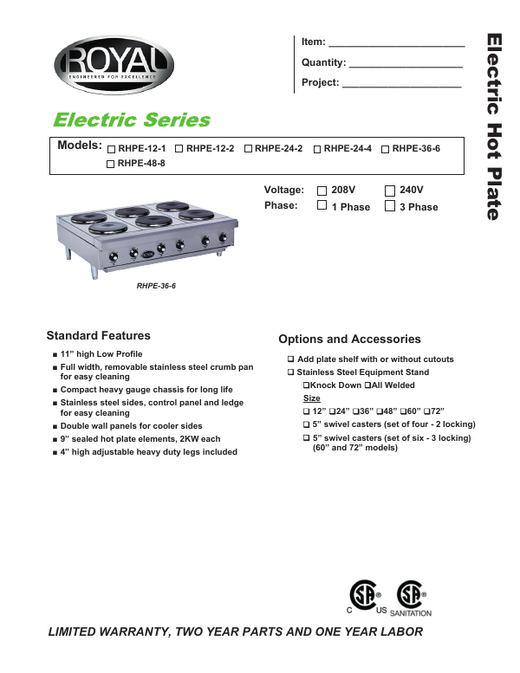

The amps in some option names on this page differ from Royal's 1-26 spec sheet (208V 3-phase option says 21 A, sheet says 12 A; 240V 3-phase option says 19 A, sheet says 10 A). The spec table uses Royal's figures; call us to confirm before your electrician sizes the circuit.
How does it compare with the gas RHP hot plate?
It has the same 24" width and 11" low-profile design, but uses 2 sealed electric elements instead of 30,000 BTU gas burners, so it needs an electrical circuit sized for its amps instead of a gas line.
Is there a matching stand?
Royal makes stainless steel equipment stands in 12" to 72" widths, knock-down or all-welded, with optional 5" swivel casters. The stand is sold separately.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture). Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Let the elements cool, wipe them with a damp cloth, and empty and wash the crumb pan daily. Wipe the stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RHPE-24-2 |
| Quantity | 1 Each |
| Shipping Weight | 135 lbs. |
| Width | 24 Inches |
| Height | 11 Inches overall (Royal drawing) |
| Legs | 4" high adjustable heavy duty legs |
| Installation | Countertop, non-combustible surroundings only |
| Elements | 2 sealed 9" round hot plate elements, 2 kW each |
| Total Power | 4 kW (2 x 2 kW) |
| Voltage | 208 Volts or 240 Volts (specify when ordering) |
| Phase | 1 Phase or 3 Phase |
| Max Amps 208V | 20 A 1-phase12 A 3-phase |
| Max Amps 240V | 17 A 1-phase10 A 3-phase |
| Controls | Infinite switch for each element |
| Power Inlet | Right rear |
| Construction | Compact heavy gauge chassisStainless steel sides, control panel and ledgeDouble wall side panelsFull-width removable stainless steel crumb pan |
| Options | Plate shelf with or without cutoutsStainless steel equipment stand5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year labor |
| Usage | Commercial use only |
