Description
An 18" heavy duty manual griddle, for breakfast, burger and sandwich lines.
The RMG-18 is Royal's Royal Series manual griddle in the 18" width: one U-shaped burner rated at 30,000 BTU/hr under a 3/4" thick polished steel plate with a 24" cooking depth, controlled by its own manual valve. It lights with a standing pilot and needs a gas line but no electrical outlet.
Will it fit · Will it plug in
- Outside size
- 18" W × 32-1/2" D
- Height
- 11" low profile: 11" to the cooking surface on 4" legs, with the rear and side splash above (drawing)
- Cooking surface
- 24" deep, 3/4" thick steel plate
- Clearances

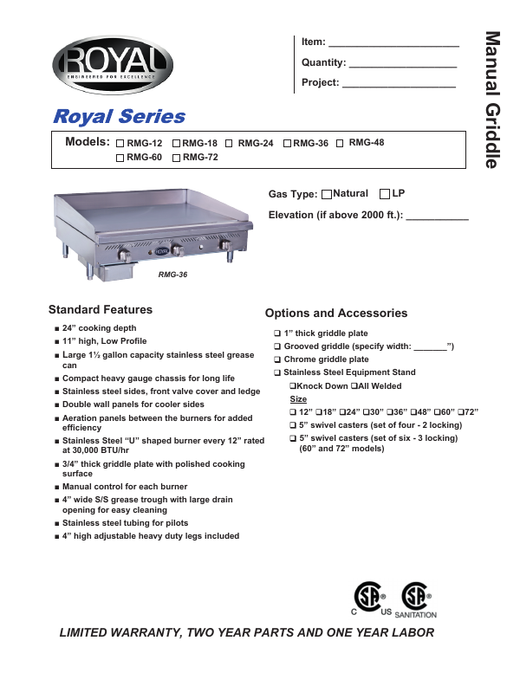

- Spec sheet, combustible walls: 4" rear, 15" sides. Royal's owner's manual lists 6" rear, 4" sides for manual griddles. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 30,000 BTU/hr total; 3/4" NPT at the right rear, 5" above the counter
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None: standing pilot and manual valve
- Crated size
- 34" D × 15" H × 20-1/2" W (width + 2-1/2", Royal catalog)
- Shipping weight
- 165 lbs.
The two clearance tables differ; plan for the larger figures (6" rear, 15" sides) from combustible walls, or install against non-combustible construction.
Heavy duty burner
One stainless steel U-shaped burner rated at 30,000 BTU/hr heats the full 18" width.
Manual control
A manual valve sets the heat; there is no thermostat.
3/4" polished plate
A 3/4" thick steel griddle plate with a polished cooking surface and a 24" cooking depth. A 1" plate is available as an option.
Grease handling
A 4" wide stainless steel grease trough with a large drain opening empties into a 1-1/2 gallon stainless steel grease can.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
Does it need electricity?
No. It lights with a standing pilot and runs on a gas valve only, so no outlet is needed.
How is the temperature controlled?
By hand: one manual valve controls the burner. There is no thermostat; Royal's RTG griddles are the thermostatic version.
What gas connection does it need?
A 3/4" NPT connection at the right rear, 5" above the counter. Manifold pressure is 5" W.C. for natural gas and 10" W.C. for propane; the regulator ships with the unit for your installer to connect.
How much clearance does it need?
The spec sheet lists 4" rear and 15" sides from combustible walls; Royal's owner's manual lists 6" rear and 4" sides. Plan for the larger figures, or 0" from non-combustible walls.
What options are available?
Royal lists these options: 1" thick griddle plate, grooved griddle, chrome griddle plate, stainless steel equipment stand, 5" swivel casters for stand. Call us to add one.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture), with labor done by an authorized Royal service agency.
How do I clean the griddle plate?
Daily, scrub the warm plate with warm water and a fine-grit griddle brick, and empty and clean the grease can. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RMG-18 |
| Quantity | 1 Each |
| Shipping Weight | 165 lbs. |
| Crated Dimensions | 34" D x 15" H x 20-1/2" W |
| Width | 18 Inches |
| Depth | 32-1/2 Inches |
| Height | 11" low profile (to the cooking surface on 4" legs, drawing)Splash rises above |
| Cooking Surface Depth | 24 Inches |
| Griddle Plate | 3/4" thick steel, polished cooking surface |
| Installation | Countertop |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 30,000 BTU/H |
| Burners | 1 U-shaped burner, 30,000 BTU/H each |
| Controls | Manual valve, one valve per burner |
| Ignition | Standing pilots |
| Gas Inlet | 3/4" NPT, right rear, 5" above the counter |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Electrical | None required |
| Clearance (Combustible) | Spec sheet 4" rear, 15" sidesOwner's manual 6" rear, 4" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Grease Collection | 4" wide stainless steel grease trough with large drain opening1-1/2 gallon stainless steel grease can |
| Construction | Compact heavy gauge chassisStainless steel sides, front valve cover and ledgeDouble wall side panelsAeration panels between the burnersStainless steel tubing for pilots4" adjustable heavy duty legs |
| Options | 1" thick griddle plateGrooved griddleChrome griddle plateStainless steel equipment stand5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year labor |
| Usage | Commercial use only |
