Description
A 48" manual griddle and 4 open burners on one 72" countertop chassis, for short lines that need a flat top and pot burners.
The RMG-48OB4 puts a 48" griddle with a 3/4" thick polished steel plate and a 24" cooking depth on the left and 4 cast iron lift-off open burners on the right, all on a 72" wide, 32-1/2" deep chassis. Every burner is rated at 30,000 BTU/hr (8 × 30,000 = 240,000 BTU/hr). It lights with standing pilots and runs on manual valves, so it needs a gas line but no electrical outlet.
Will it fit · Will it plug in
- Outside size
- 72" W × 32-1/2" D
- Height
- 11" low profile: 11" to the cooking surface on 4" legs, with the griddle splash above (drawing)
- Cooking surface
- 48" W × 24" D griddle, 3/4" thick plate; 4 open burners in a 24" section
- Clearances

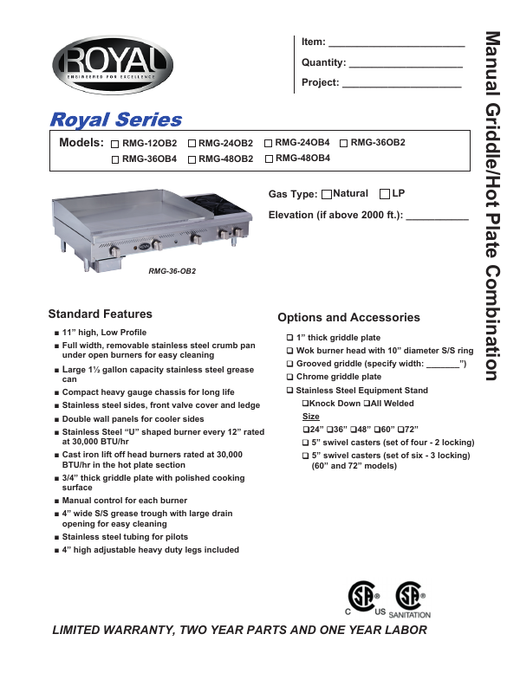

- Spec sheet, combustible walls: 4" rear, 15" sides. Royal's owner's manual lists 6" rear, 4" sides for manual griddles. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 240,000 BTU/hr total (8 × 30,000 = 240,000); 3/4" NPT at the right rear, 5" above the counter
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None: standing pilots and manual valves
- Crated size
- 34" D × 15" H × 74-1/2" W (width + 2-1/2", Royal catalog)
- Shipping weight
- 545 lbs.
The two clearance tables differ; plan for the larger figures (6" rear, 15" sides) from combustible walls, or install against non-combustible construction.
Griddle and burners together
A 48" griddle with 4 U-shaped burners on the left and 4 cast iron lift-off open burners on the right, each rated at 30,000 BTU/hr (8 × 30,000 = 240,000 BTU/hr).
3/4" polished plate
A 3/4" thick steel griddle plate with a polished cooking surface and a 24" cooking depth. A 1" plate is available as an option.
Easy cleanup
A 4" wide grease trough drains the griddle into a 1-1/2 gallon stainless steel grease can, and a full-width removable crumb pan sits under the open burners.
Low-profile chassis
Compact heavy gauge chassis with stainless steel sides, front valve cover and ledge, double wall side panels and 4" adjustable legs.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
Does it need electricity?
No. It lights with standing pilots and runs on gas valves only, so no outlet is needed.
Which side is the griddle on?
The 48" griddle is on the left and the 4 open burners are on the right, per Royal's drawing. Each burner has its own manual valve.
What gas connection does it need?
A 3/4" NPT connection at the right rear, 5" above the counter. Manifold pressure is 5" W.C. for natural gas and 10" W.C. for propane; the regulator ships with the unit for your installer to connect.
How much clearance does it need?
The spec sheet lists 4" rear and 15" sides from combustible walls; Royal's owner's manual lists 6" rear and 4" sides. Plan for the larger figures, or 0" from non-combustible walls.
What options are available?
Royal lists these options: 1" thick griddle plate, wok burner head with 10" diameter stainless steel ring, grooved griddle, chrome griddle plate, stainless steel equipment stand, 5" swivel casters for stand. Call us to add one.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture), with labor done by an authorized Royal service agency. Cast iron parts are covered for 90 days.
How do I clean the griddle plate?
Daily, scrub the warm plate with warm water and a fine-grit griddle brick, and empty and clean the grease can. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RMG-48OB4 |
| Quantity | 1 Each |
| Shipping Weight | 545 lbs. |
| Crated Dimensions | 34" D x 15" H x 74-1/2" W |
| Width | 72 Inches |
| Depth | 32-1/2 Inches |
| Height | 11" low profile (to the cooking surface on 4" legs, drawing)Splash rises above |
| Griddle Section | 48" wide, 24" cooking depth, on the left |
| Open Burner Section | 4 open burners, 24" wide, on the right |
| Griddle Plate | 3/4" thick steel, polished cooking surface |
| Installation | Countertop |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 240,000 BTU/H (8 × 30,000 = 240,000) |
| Burners | 4 stainless steel U-shaped griddle burners, 30,000 BTU/H each4 cast iron lift-off open burners, 30,000 BTU/H each |
| Controls | Manual valve, one valve per burner |
| Ignition | Standing pilots |
| Gas Inlet | 3/4" NPT, right rear, 5" above the counter |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Electrical | None required |
| Clearance (Combustible) | Spec sheet 4" rear, 15" sidesOwner's manual 6" rear, 4" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Grease Collection | Griddle: 4" wide stainless steel grease trough and 1-1/2 gallon grease canOpen burners: full-width removable stainless steel crumb pan |
| Construction | Compact heavy gauge chassisStainless steel sides, front valve cover and ledgeDouble wall side panelsStainless steel tubing for pilots4" adjustable heavy duty legs |
| Options | 1" thick griddle plateWok burner head with 10" diameter stainless steel ringGrooved griddleChrome griddle plateStainless steel equipment stand5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborCast iron parts 90 days |
| Usage | Commercial use only |
