Description

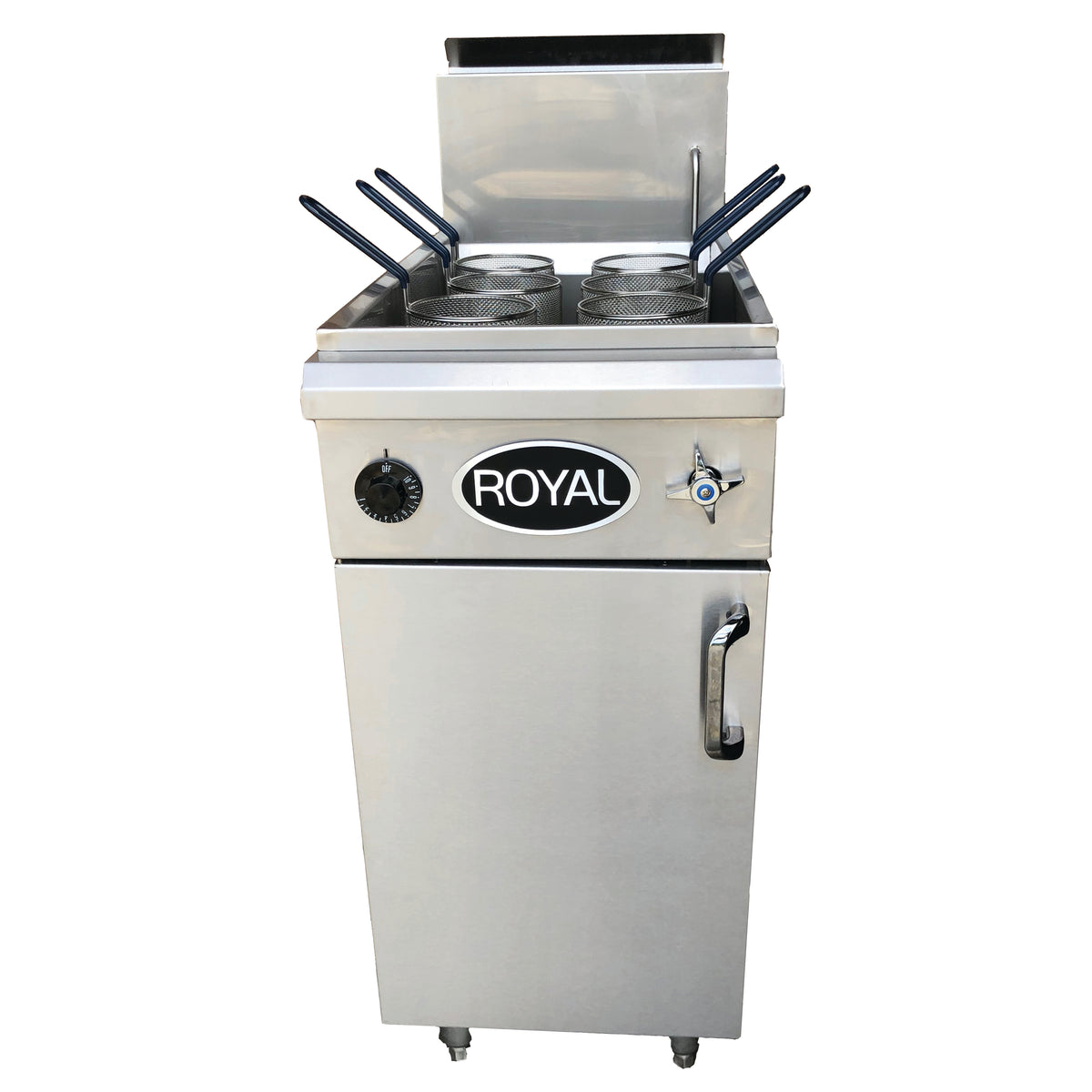

A 12 gallon gas pasta cooker with six baskets, for restaurants that cook pasta to order all night.
The RPC-14 holds 12 gallons of water in a 316 stainless steel tank and comes with six individual stainless steel baskets. Three cast iron burners give 78,000 BTU/hr, a 150-250°F thermostat adjusts in 10° steps, and a front overflow keeps the water clean and starch free. It needs gas, a 1/2" water line and a drain, but no electrical connection.
Will it fit · Will it plug in
- Outside size
- 15 1/2" W × 33 1/4" D; 36" work height on 6" adjustable legs (Royal drawing)
- Clearances
- Combustible walls: 6" rear, 6" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 78,000 BTU/hr; 3/4" NPT inlet at the rear; no external pressure regulator required
- Gas pressure
- 4" W.C. natural gas, 11" W.C. propane
- Water and drain
- 1/2" NPT water inlet at the rear; 1 1/4" NPT drain
- Electrical
- None: millivolt control system
- Shipping weight
- 210 lbs.
Plan the water line and a floor drain at the fry line before delivery; the cooker needs both as well as gas.
Six baskets
6 individual stainless steel baskets in a 14" x 18" cooking area; a full-pot basket for bulk cooking is optional.
Clean water
An easy front-mounted water control valve and a front overflow keep the water clean and starch free.
Steady heat
3 cast iron burners (78,000 BTU/hr total) and a 150-250°F thermostat adjustable in 10° increments, with a millivolt control system and 100% safety shut-off.
Built to last
All 316 stainless steel tank assembly, heavy gauge stainless steel base and stainless steel front and sides.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified installer must connect gas (with a manual shut-off valve), water and drain following local codes; no external gas regulator is needed.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
How much water does it hold?
12 gallons in a 316 stainless steel tank, with a 14" x 18" cooking area and 6 individual baskets.
What connections does it need?
A 3/4" NPT gas inlet and a 1/2" NPT water inlet at the rear, and a 1 1/4" NPT drain. No electrical connection is needed.
What BTU is it?
Royal's table lists 3 burners and 78,000 BTU/hr total.
What temperature range does the thermostat have?
150-250°F, adjustable in 10° increments.
How much clearance does it need?
6" at the rear and sides from combustible walls and 0" from non-combustible walls.
What does the warranty cover?
Royal covers fryer filter systems and RPC pasta cookers for 2 years parts and labor from installation (up to 30 months from manufacture). Labor is covered when an authorized Royal service agency does the work. The stainless steel tank has a 5-year prorated warranty (Royal sheet).
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RPC-14 |
| Quantity | 1 Each |
| Shipping Weight | 210 lbs. |
| Width | 15.5 Inches |
| Depth | 33.25 Inches |
| Work Height | 36 Inches |
| Capacity | 12 Gallons |
| Cooking Area | 14" x 18" |
| Baskets | 6 individual stainless steel baskets |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 78,000 BTU/H |
| Burners | 3 cast iron burners |
| Gas Inlet | 3/4" NPT, rear |
| Gas Pressure | 4" W.C. Natural Gas11" W.C. Propane |
| Pressure Regulator | No external regulator required |
| Water Inlet | 1/2" NPT, rear |
| Drain | 1 1/4" full port drain valve1 1/4" NPT connection |
| Electrical | None required (millivolt control system) |
| Controls | Thermostatic, 150-250 Degrees F in 10 degree incrementsMillivolt control system with 100% safety shut-off |
| Construction | All 316 stainless steel tankHeavy gauge stainless steel baseStainless steel front and sides |
| Legs | 6" adjustable heavy duty legs |
| Options | Stainless steel tank coverSide splash guardJoiner stripFull pot basket48" quick disconnect and restraining cable5" swivel casters |
| Clearance (Combustible) | 6" rear6" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts and laborStainless steel tank 5 years prorated |
| Usage | Commercial use only |
