Description
A 36" stand-alone restaurant oven on 6" legs, for kitchens that need oven capacity without a range top.

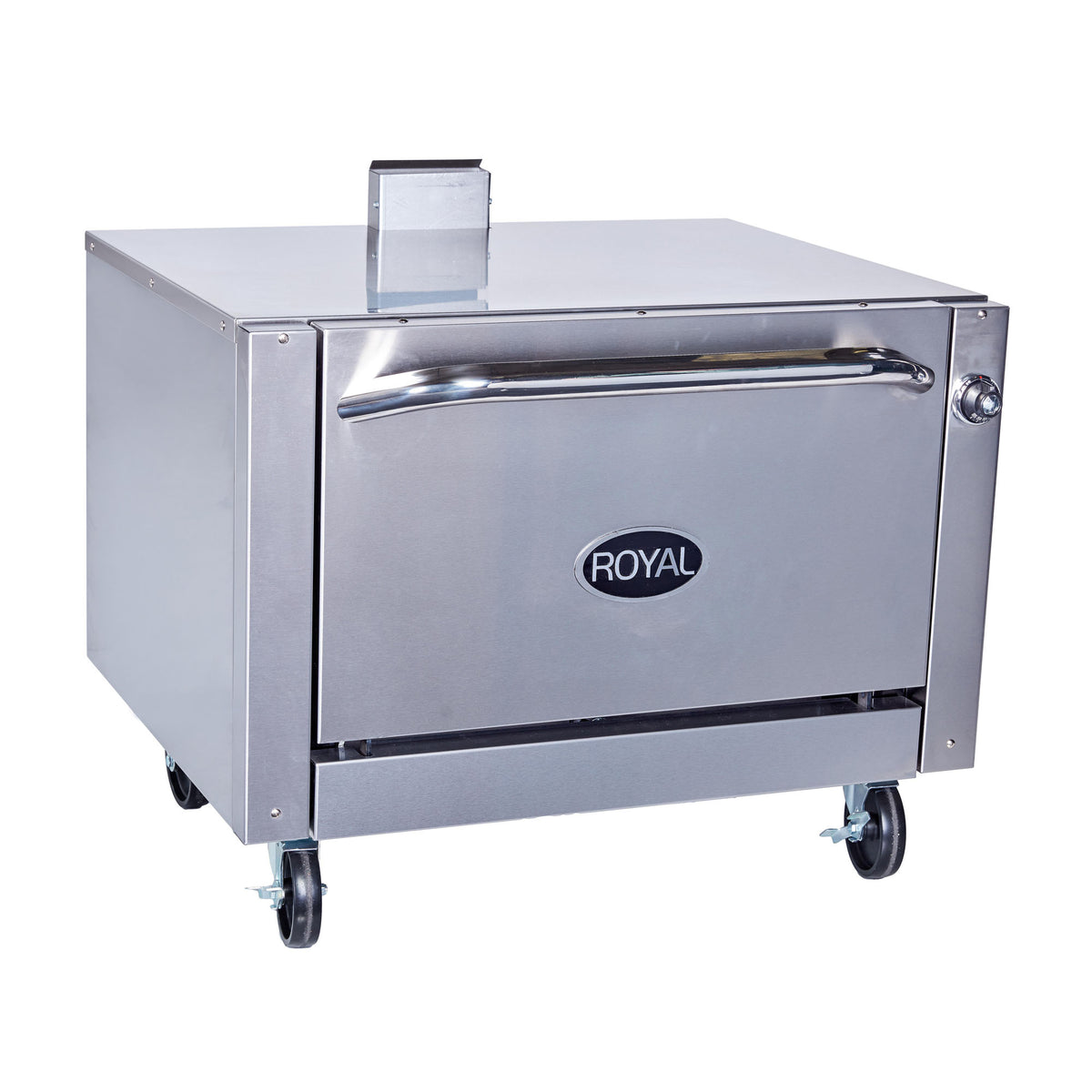

The RR-36-LB-C is Royal's 36" wide restaurant-type gas oven with one convection oven, 30,000 BTU/hr in all, 29" high on 6" legs. It suits restaurants, bakeries and caterers that need range-style ovens under a hood or beside a cooking line. The convection fan needs a standard 120V grounded outlet.
Will it fit · Will it plug in
- Outside size
- 36" W × 35.75" D × 29" H on 6" legs; depth includes the 7" convection motor housing
- Clearances
- Combustible walls: 4" rear, 15" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 30,000 BTU/hr total; 3/4" NPT inlet at the right rear
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- 120V grounded 3-prong outlet for the convection fan: 8 A per convection oven; 6' cord
- Shipping weight
- 205 lbs.
Measure doorways and the space under the hood first; Royal gives no crated size for these ovens.
Convection oven
A 30,000 BTU "U" burner with automatic ignition, 150-500°F thermostat, two-speed fan, Cook and Cool switch, one-hour manual timer and 3 chrome plated racks.
Built for daily use
A solidly welded heavy gauge frame with stainless steel front, sides, top and kick plate, and porcelain oven contact surfaces.
Fits beside the line
36" wide on 6" legs; add 5" swivel casters or seismic flanged feet as options.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified installer must connect it following local codes, with the supplied pressure regulator and a manual shut-off valve ahead of the unit, and the convection oven to a grounded 120V outlet.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
Does it need an electrical outlet?

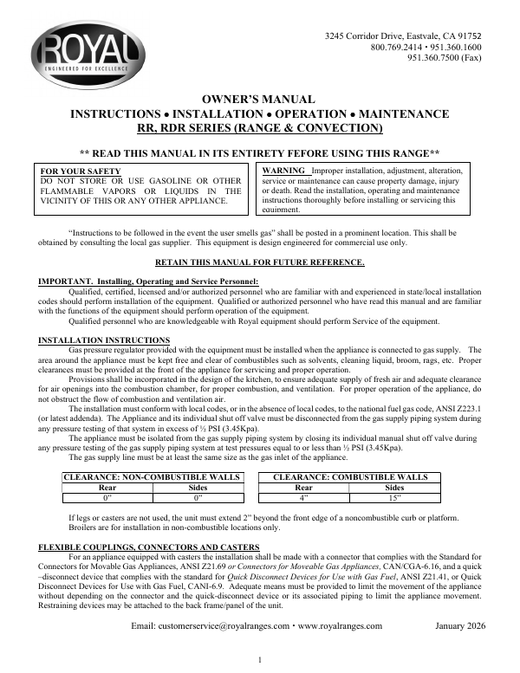

Yes, for the convection oven: 120V, 8 amps per convection oven, on a 6' cord with a standard 3-prong grounded plug. Royal's manual says convection ovens cannot run during a power failure.
How is the BTU total figured?
1 convection oven × 30,000 = 30,000 BTU/hr.
How much clearance does it need?
Royal lists 4" at the rear and 15" at the sides from combustible walls, and 0" from non-combustible walls.
How many racks come with it?
Each convection oven comes with 3 chrome plated racks with 5-position adjustment. Additional racks are an option.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture), with labor by an authorized Royal service agency.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RR-36-LB-C |
| Series | Royal Series |
| Quantity | 1 Each |
| Shipping Weight | 205 lbs. |
| Width | 36 Inches |
| Depth | 35.75 Inches (28.75" + 7" convection motor housing) |
| Height | 29 Inches |
| Legs | 6" |
| Decks | 1 |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 30,000 BTU/H |
| BTU Math | 1 convection oven × 30,000 = 30,000 BTU/hr |
| Convection Oven | Stainless steel "U" burner, 30,000 BTU/H, automatic ignition |
| Convection Controls | Thermostat 150 - 500 Degrees FCook and Cool switch2-speed (HI/LO) fan switch1-hour manual timer |
| Convection Fan | 2-speed (1725/1140 RPM) 1/2 HP motor |
| Convection Racks | 3 chrome plated racks, 5-position adjustment |
| Voltage | 120 Volts |
| Amps | 8 per convection oven |
| Hertz | 50/60 |
| Phase | 1 |
| Power Cord | 6' cord with standard 3-prong grounded plug |
| Oven Interior | Porcelain contact surfaces |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | 4" rear15" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Construction | Solid welded heavy gauge metal frameStainless steel front, sides, top and kick plate |
| Options | Additional oven rack5" swivel casters (set of 4, 2 locking)Seismic flanged feet |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year labor |
| Usage | Commercial use only |
