Description
A 48" infrared salamander that mounts over your range or on the wall, for finishing, browning and broiling to order.

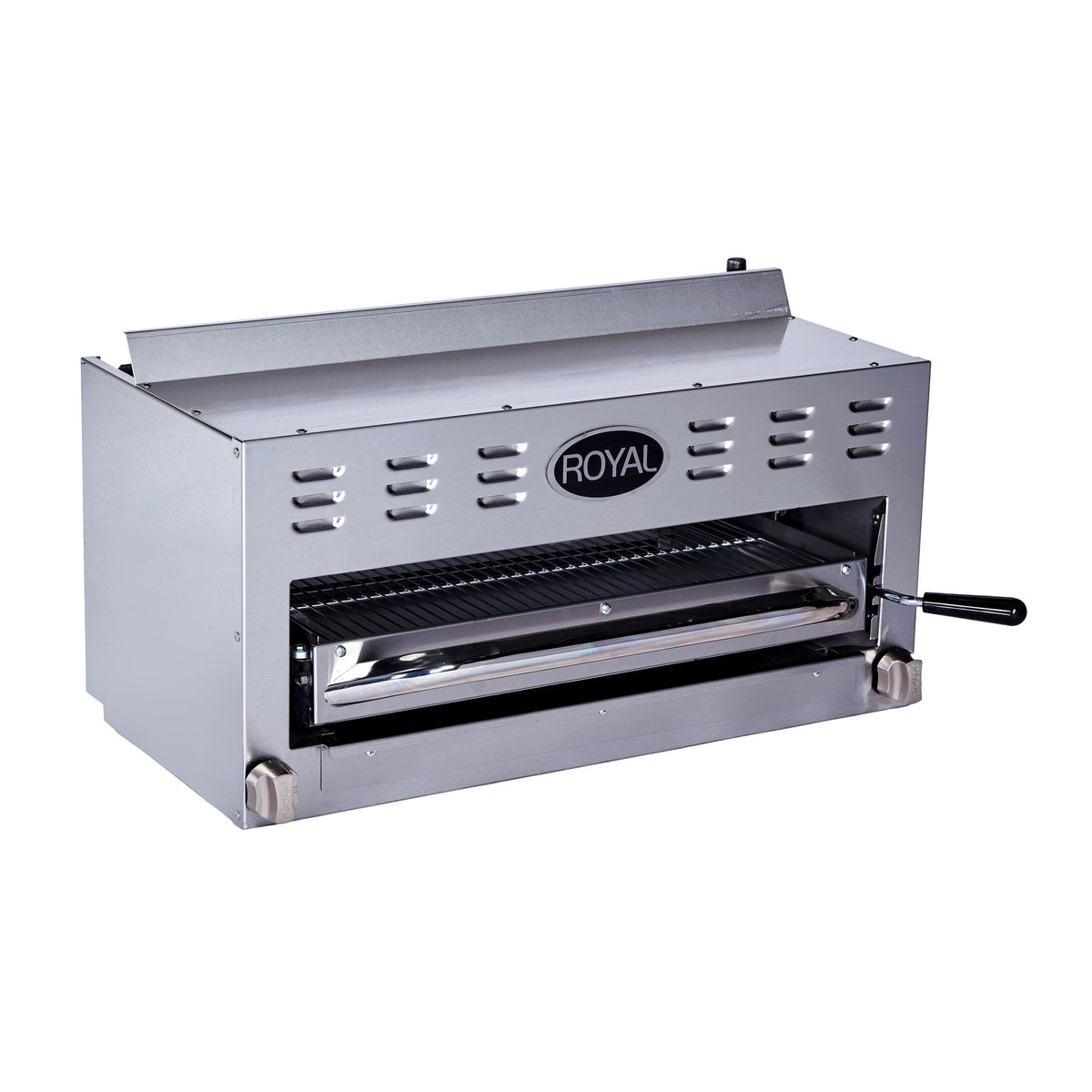

The RSB-48 is a 48" wide, 17.75" deep Royal Series salamander broiler with 40,000 BTU/H total (2 × 20,000 BTU/H infrared burners). Its spring balanced broiler grid locks at three heights, and a roll-out carriage makes loading easy. It suits restaurants that finish steaks, gratins and melts on the line. Order it for natural gas or propane, range mount or wall mount; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 48" W × 17.75" D; 19.5" high at the front; Royal's drawing shows 20.5" to the bottom of the broiler carriage
- Crated size
- 25" D × 24" H × 50.5" W (width + 2.5")
- Mounting
- Range mount or wall mount, specified when ordering. For range mounting, the salamander broiler cannot be wider than the range; Royal needs the range width to pick the bracket.
- Clearances
- Combustible walls: 4" rear, 4" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 40,000 BTU/hr; 3/4" NPT at the right rear
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: standing pilots and manual burner valves
- Shipping weight
- 252 lbs.
Measure the space above your range or on the wall first. Royal's manual lists this series for installation on a non-combustible counter/floor only, so plan non-combustible surroundings.
Three-position broiler grid
The spring balanced grid moves up and down and locks in three positions; a roll-out carriage makes loading and unloading easier.
Infrared burners
40,000 BTU/H total (2 × 20,000 BTU/H infrared burners). Each burner is individually adjustable and lit by a standing pilot.
Stainless steel body
Stainless steel front and sides, with stainless steel tubing for the pilots.
Easy to clean
A full-width, removable stainless steel crumb pan slides out for emptying.
Range or wall mount
Royal offers a range mount kit and a wall mount kit, plus a 3/4" gas connection from the range, as options.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- Tell us whether you need range mounting (and your range width) or wall mounting, so the right mounting kit is quoted with the unit.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Can it mount on top of my range?
Yes. Royal builds it for range mounting or wall mounting; choose one when ordering. For range mounting the salamander broiler cannot be wider than the range, and Royal needs your range width to choose the bracket. The range mount kit and wall mount kit are listed as options; call us to add the one you need.
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
What gas connection does it need?
A 3/4" NPT connection at the right rear of the unit. Pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit for your installer to connect. Royal also offers a 3/4" gas connection from the range as an option.
How much clearance does it need?
4" at the rear and 4" at the sides from combustible walls, 0" from non-combustible walls. Royal's manual lists this series for non-combustible counter/floor installation only.
Does it need an electrical outlet?
No electrical connection is listed. It lights with standing pilots and runs on manual burner valves.
Can I adjust the distance to the burners?
Yes. The spring balanced broiler grid moves up and down and locks in three positions, and the carriage rolls out for loading.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture). Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Daily, empty and clean the crumb pan and brush debris from around the burner area. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.

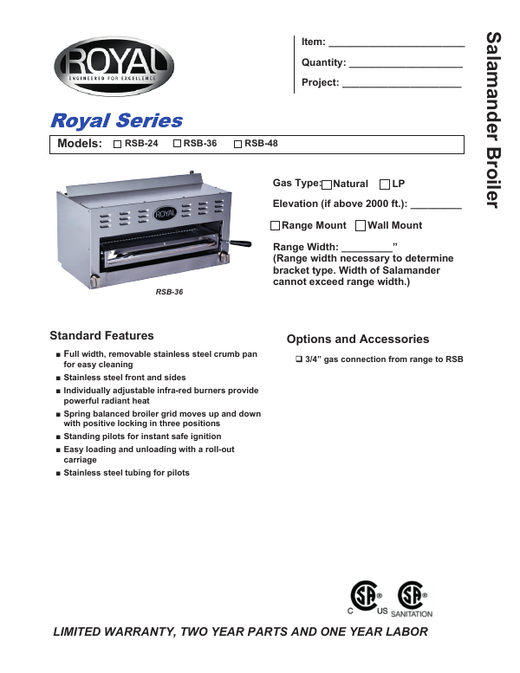

Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RSB-48 |
| Series | Royal Series |
| Quantity | 1 Each |
| Shipping Weight | 252 lbs. |
| Width | 48 Inches |
| Depth | 17.75 Inches |
| Height | 19.5 Inches20.5" to the bottom of the broiler carriage (drawing) |
| Crated Size | 25" D x 24" H x 50.5" W |
| Mounting | Range mount or wall mount (specify when ordering)Unit cannot be wider than the range when range mounted |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 40,000 BTU/H |
| Burners | 2 infrared burners, 20,000 BTU/H each |
| Heat Type | Infrared |
| Ignition | Standing pilots |
| Controls | Manual, individually adjustable burners |
| Gas Inlet | 3/4" NPT at the right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Electrical | None listed |
| Clearance (Combustible) | 4" rear4" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Broiler Grid | Spring balanced, locks in 3 positionsRoll-out carriage |
| Construction | Stainless steel front and sidesRemovable full-width stainless steel crumb panStainless steel tubing for pilots |
| Options | Range mount kitWall mount kit3/4" gas connection from range to RSB |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year labor |
| Usage | Commercial use only |
