Description
A 90,000 BTU three-ring stock pot burner with a tempura wok top, for wok frying on a 24" high stock pot base.

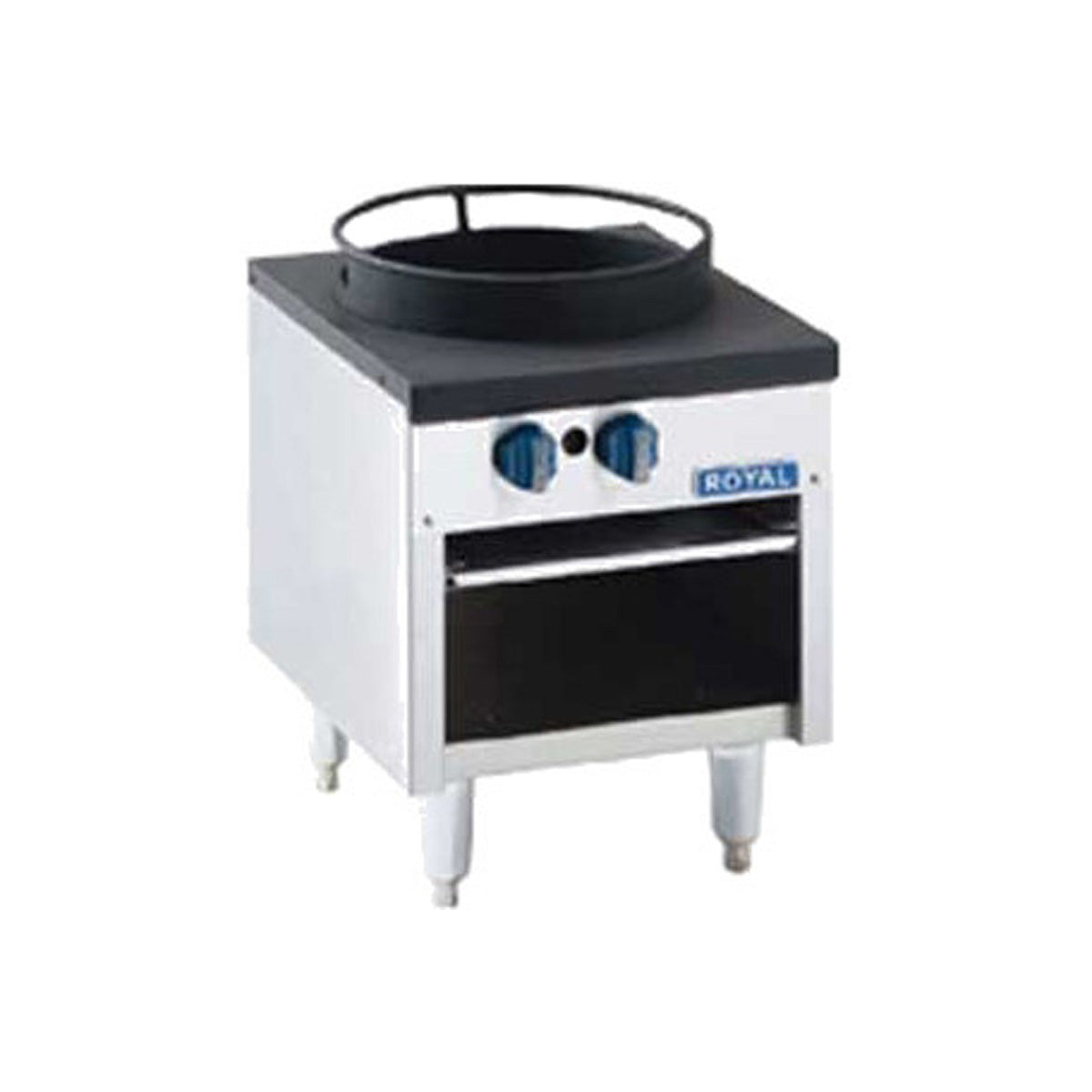

The RSP-18T is Royal's 18" wide, 21" deep, 24" high stock pot range. One heavy cast iron three-ring burner puts out 90,000 BTU/hr in two sections of 45,000 BTU/hr, each with its own control and continuous pilot, so you can run just the inner ring to simmer or both rings to boil. A tempura wok top replaces the flat stock pot grate. It suits restaurants, commissaries, caterers and noodle and soup shops that cook in large pots. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 18" W × 21" D × 24" H (floor-standing on legs)
- Gas
- Natural gas or LP, 90,000 BTU/hr total (2 sections × 45,000); 3/4" NPT inlet at the right rear
- Clearances

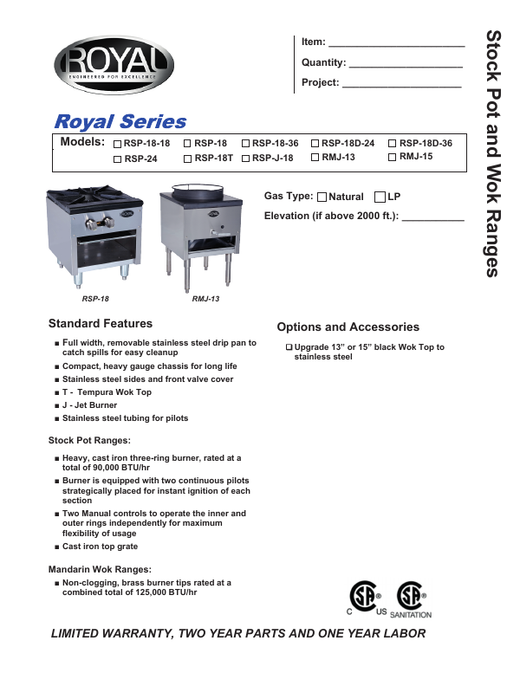

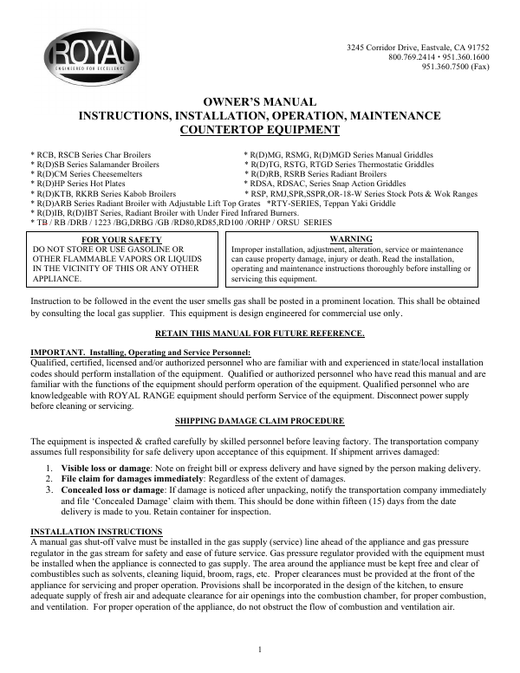

- Combustible walls: 17" rear, 15" sides. Non-combustible walls: 4" rear, 0" sides (spec sheet and owner's manual agree)
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: pilots and manual valves
- Shipping
- 135 lbs.; crated about 24" D × 28" H × 20-1/2" W (Royal's stock pot table crate rule: depth + 3", height + 4", width + 2-1/2")
Keep the floor around it clear and level, and check that the hood covers the burner.
Three-ring burner
A heavy cast iron three-ring burner is rated at 90,000 BTU/hr, split into two 45,000 BTU/hr sections.
Two controls per burner
Two manual valves run the inner and outer rings separately, and two continuous pilots light each section instantly.
Tempura wok top
The "T" model carries Royal's tempura wok top over the three-ring burner, for frying in a wok on a stock pot base.
Easy to clean
A full-width removable stainless steel drip pan catches spills; the stainless sides and front valve cover wipe clean.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
How does the three-ring burner work?
Each cast iron burner has two sections rated at 45,000 BTU/hr, 90,000 BTU/hr together. Two manual controls run the inner and outer rings independently, each lit by its own continuous pilot.
How much clearance does it need?
From combustible walls, 17" at the rear and 15" at the sides. From non-combustible walls, 4" at the rear and 0" at the sides. The spec sheet and the owner's manual give the same figures.
What is the tempura wok top?
It is Royal's "T" top for the RSP-18 base: same 18" x 21" x 24" frame and 90,000 BTU three-ring burner, with a wok top in place of the flat stock pot grate. Royal does not publish its ring size; call us if you need it.
What gas connection does it need?
A 3/4" NPT connection at the right rear of the unit. Pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit for your installer to connect.
Can I add casters?
Royal's 2026 catalog lists casters as an option for its stock pot and wok ranges (set of 4 with 2 locking, or set of 6 with 3 locking). A caster-mounted gas appliance needs a flexible connector and a restraint.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture). Cast iron parts, such as the burner and grate, are covered for 90 days. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Daily, clean the wok top with warm water, a mild cleaner and a wire brush, brush debris from around the burner and empty the drip pan. Now and then remove the burner, clean it with a wire brush and check that the ports are open.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RSP-18T |
| Quantity | 1 Each |
| Shipping Weight | 135 lbs. |
| Width | 18 Inches |
| Depth | 21 Inches |
| Height | 24 Inches |
| Crated Size | About 24" D x 28" H x 20-1/2" W |
| Installation | Floor-standing on legs |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Number of Burners | 1 three-ring burner |
| BTU per Burner | 90,000 BTU/H (2 sections x 45,000) |
| Total BTU | 90,000 BTU/H |
| Burner | Heavy cast iron three-ring burner |
| Top | Tempura wok top |
| Ignition | Two continuous pilots per burner, stainless steel pilot tubing |
| Controls | Two manual controls per burner (inner and outer rings) |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | 17" rear15" sides |
| Clearance (Non-Combustible) | 4" rear0" sides |
| Construction | Compact heavy gauge chassisStainless steel sides and front valve coverFull-width removable stainless steel drip pan |
| Options | Casters, set of 4 (2 locking) or set of 6 (3 locking) |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborCast iron parts 90 days |
| Usage | Commercial use only |
