Description
A narrow 12-1/2" stainless steel stand that lifts a countertop unit to working height and adds a shelf underneath.
The RSS-12HD is the smallest stand in Royal's heavy duty line: a 12-1/2" wide, 30" deep stainless steel top on four round legs, 25" high, with a stainless steel undershelf. Use it to set a narrow countertop hot plate, broiler or griddle on the line where there is no counter. It ships knocked down and bolts together on site; 5" swivel casters are an option.
Will it fit · Will it plug in
- Outside size
- 12-1/2" W × 30" D × 25" H (on feet, without casters)
- Equipment it holds
- Countertop equipment up to the 12-1/2" × 30" top. Royal publishes no load rating; call us to confirm for a specific unit.
- Depth choice
- 30" deep heavy duty line; Royal's snack-line RSS-12SN is 24" deep
- Casters
- Optional 5" swivel casters, set of four (2 locking)
- Assembly
- Ships knocked down; legs slide through the undershelf corners and lock with set screws
- Electrical / gas
- None: a stand only
- Shipping weight
- 40 lbs.
Measure your countertop unit's width and depth, including its legs, before you order: the stand top is 12-1/2" wide and 30" deep.
Stainless steel throughout
Heavy duty stainless steel top, legs and undershelf, so it wipes clean next to cooking equipment.
Storage underneath
The stainless steel undershelf holds pans, sheet trays or supplies below the unit.
Knock-down design
It ships flat and goes together in the field, which makes it easier to carry into a tight kitchen. An all-welded version is available as an option.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.

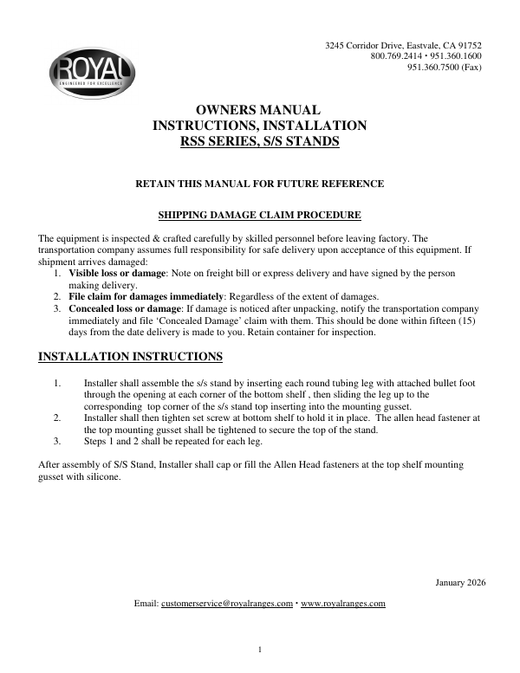

- The stand ships knocked down. Slide each leg with its bullet foot through the undershelf corner up into the top gusset, tighten the set screw and the Allen head fastener, then cap the top fasteners with silicone, as Royal's manual describes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
What equipment does the RSS-12HD fit?
It has a 12-1/2" wide by 30" deep top, sized for a narrow countertop unit such as a 12" hot plate, broiler or griddle. Check that your unit's legs sit fully on the top; Royal does not publish a weight rating, so call us to confirm for a specific unit.
How tall is it?
Royal's drawing shows 25" from the floor to the top, on bullet feet. Optional 5" casters add height; Royal does not list the height with casters.
Can I put it on casters?
Yes. Royal offers a set of four 5" swivel casters (2 locking) for the 12" to 48" stands. Call us to add them to your order.
Does it come assembled?
No. The standard stand is knock-down and goes together with set screws and Allen head fasteners. Royal also builds an all-welded version as an option.
What does the warranty cover?

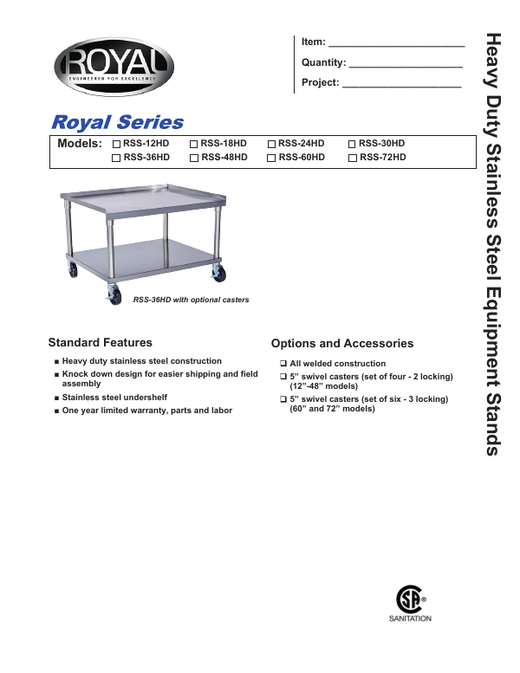

Royal's spec sheet lists a one year limited warranty on parts and labor for the RSS heavy duty stands.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RSS-12HD |
| Quantity | 1 Each |
| Shipping Weight | 40 lbs. |
| Width | 12.5 Inches |
| Depth | 30 Inches |
| Height | 25 Inches |
| Series | RSS heavy duty line (30" deep) |
| Construction | Heavy duty stainless steelStainless steel undershelfRound tubing legs with bullet feet |
| Assembly | Knock-down, field assembled |
| Options | All welded construction5" swivel casters, set of 4 (2 locking) |
| Certifications | CSA Sanitation |
| Warranty | 1 year limited, parts and labor |
| Usage | Commercial use only |
