Description

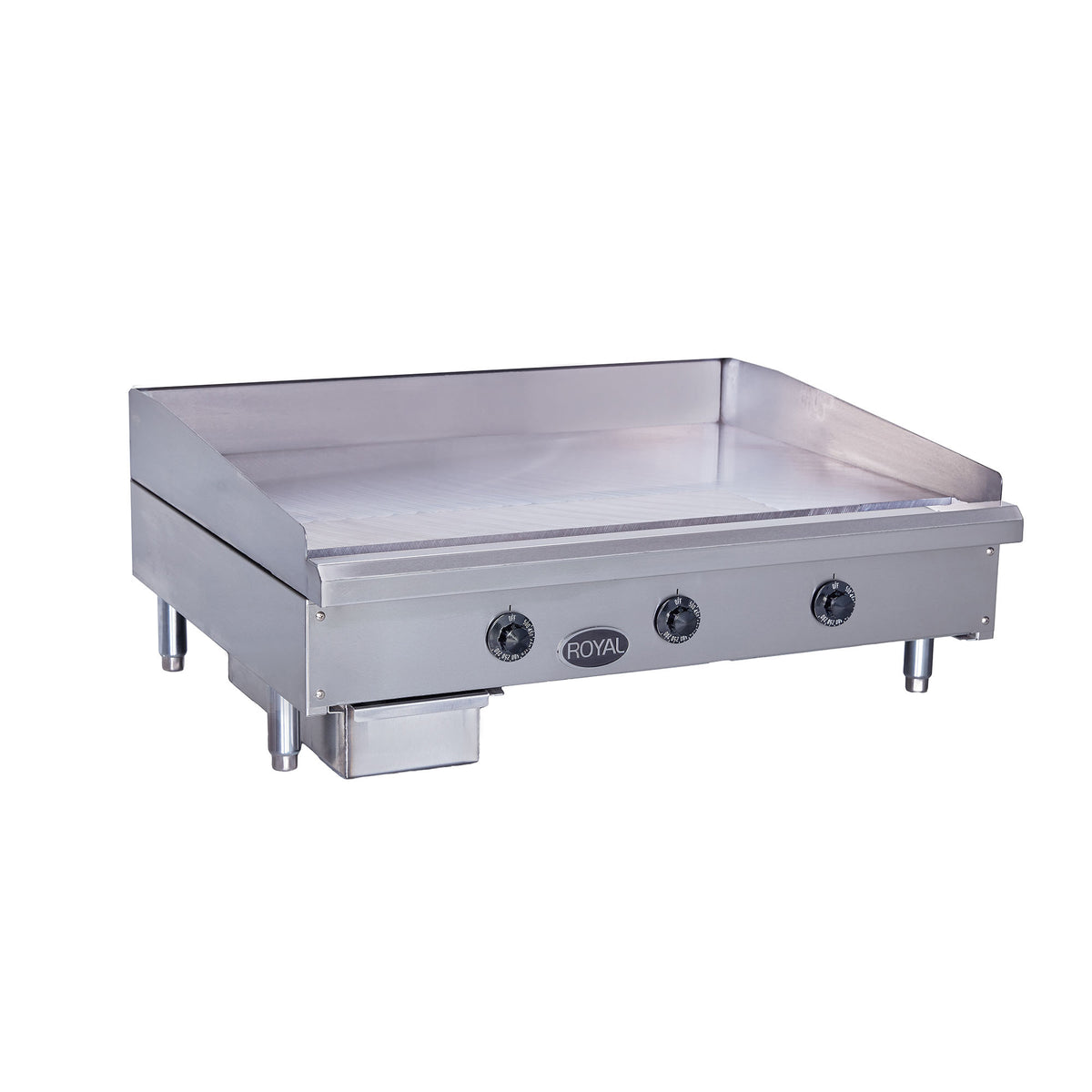

A 36" electric griddle with a thermostat every 12", for kitchens without a gas line.
The RTGE-36 heats a 3/4" thick polished steel plate with 3 heating elements, one every 12", 3.4 kW each (3 × 3.4 = 10.2 kW), each zone on its own thermostat adjustable from 200°F to 500°F. The 21" cooking depth and 11" low-profile body suit counters and equipment stands. It runs on 208V or 240V and must be installed in noncombustible surroundings.
Will it fit · Will it plug in
- Outside size

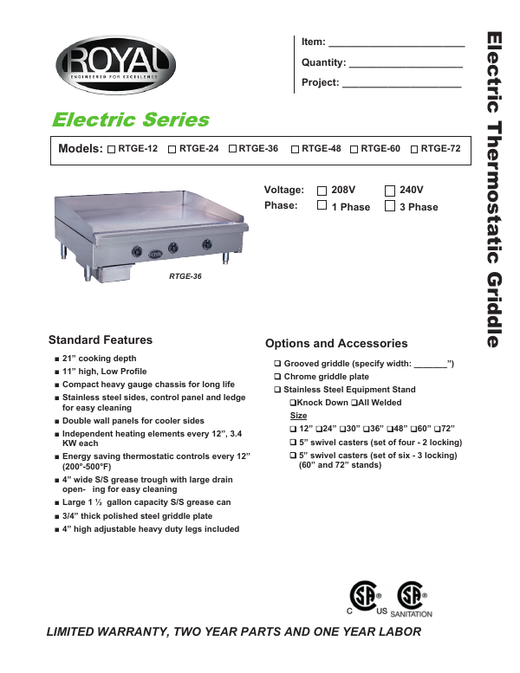

- 36" W × 29" D per the spec sheet drawing (Royal's 2026 catalog lists 27-1/2")
- Height
- 11" low profile: 11" to the cooking surface on 4" legs, with the rear and side splash above (drawing)
- Cooking surface
- 21" deep, 3/4" thick steel plate
- Clearances
- Install in noncombustible surroundings only (spec sheet)
- Electrical
- 10.2 kW; max amps 208V 1 ph: 50 A; 240V 1 ph: 43 A; 208V 3 ph: 29 A; 240V 3 ph: 26 A
- Power inlet
- At the rear, 7" above the counter and 2-1/2" in from the right side (drawing)
- Crated size
- 31" D × 15" H × 38-1/2" W (width + 2-1/2", Royal catalog)
- Shipping weight
- 290 lbs.
Have an electrician confirm voltage, phase and breaker size before ordering; the variant you pick must match your building supply.
Element every 12"
3 independent heating elements, 3.4 kW each (3 × 3.4 = 10.2 kW), each with its own thermostat adjustable from 200°F to 500°F.
3/4" polished plate
A 3/4" thick polished steel griddle plate with a 21" cooking depth.
Grease handling
A 4" wide stainless steel grease trough with a large drain opening empties into a 1-1/2 gallon stainless steel grease can.
Low-profile chassis
Compact heavy gauge chassis with stainless steel sides, control panel and ledge, double wall side panels and 4" adjustable legs.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose the voltage and phase when you order; they must match your building supply.
- A qualified electrician must connect it at the rear power inlet following local codes, in noncombustible surroundings.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
What electrical service does it need?
It draws 10.2 kW at 208V or 240V, single or three phase. Royal's maximum amps: 208V 1 ph: 50 A; 240V 1 ph: 43 A; 208V 3 ph: 29 A; 240V 3 ph: 26 A. Your electrician sizes the circuit; there is no plug listed on the sheet.
Can it go next to a wall or on a wood counter?
Royal's spec sheet says to install it only in noncombustible surroundings, so plan a non-combustible counter or stand and wall.
How hot does it get?
Each 12" zone has its own thermostat adjustable from 200°F to 500°F.
What options are available?
Royal lists these options: grooved griddle, chrome griddle plate, stainless steel equipment stand, 5" swivel casters for stand. Call us to add one.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture), with labor done by an authorized Royal service agency.
How do I clean the griddle plate?
Daily, scrub the warm plate with warm water and a fine-grit griddle brick, and empty and clean the grease can. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RTGE-36 |
| Quantity | 1 Each |
| Shipping Weight | 290 lbs. |
| Crated Dimensions | 31" D x 15" H x 38-1/2" W |
| Width | 36 Inches |
| Depth | 29 Inches (spec sheet drawing)27-1/2 Inches (2026 catalog) |
| Height | 11" low profile (to the cooking surface on 4" legs, drawing)Splash rises above |
| Cooking Surface Depth | 21 Inches |
| Griddle Plate | 3/4" thick steel, polished cooking surface |
| Installation | Countertop, noncombustible surroundings only |
| Total Power | 10.2 kW (3 x 3.4 kW) |
| Heating Elements | 3, 3.4 kW each, one every 12" |
| Controls | Thermostat, 200°F to 500°F3 thermostats, one every 12" |
| Voltage | 208 or 240 Volts |
| Phase | 1 or 3 |
| Max Amps | 208V 1 phase: 50240V 1 phase: 43208V 3 phase: 29240V 3 phase: 26 |
| Power Inlet | Rear, 7" above the counter |
| Clearance | Noncombustible surroundings only |
| Grease Collection | 4" wide stainless steel grease trough with large drain opening1-1/2 gallon stainless steel grease can |
| Construction | Compact heavy gauge chassisStainless steel sides, control panel and ledgeDouble wall side panels4" adjustable heavy duty legs |
| Options | Grooved griddleChrome griddle plateStainless steel equipment stand5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year labor |
| Usage | Commercial use only |
