Description
A 25" high stock pot burner on a fully welded frame, with a gentle inner ring for long simmers.

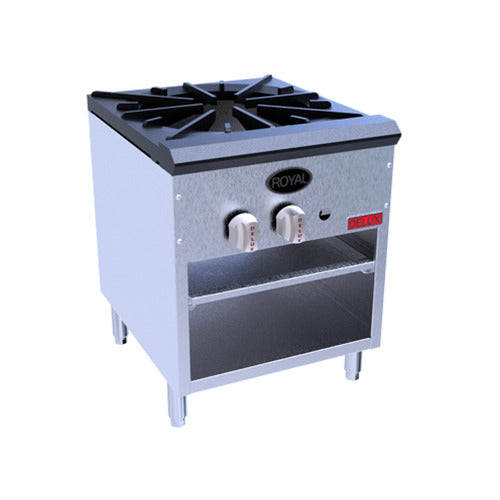

The SPR-180 is Royal's 18" Delux stock pot range: one heavy cast iron burner, with a 35,000 BTU/hr outer ring and a 15,000 BTU/hr inner ring on separate controls, for 50,000 BTU/hr in all. The fully welded chassis stands 25" high on 6" legs. It suits restaurants, commissaries and caterers that simmer stocks, sauces and soups for hours. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 18" W × 21" D × 25" H on the spec table (22" deep overall on the drawing), floor-standing on 6" legs
- Clearances
- Combustible walls: 17" rear, 15" sides. Non-combustible walls: 4" rear, 0" sides (spec sheet)
- Gas
- Natural gas or LP, 50,000 BTU/hr total (each burner 35,000 outer + 15,000 inner ring); 3/4" NPT inlet at the right rear
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: pilots and manual valves
- Shipping
- 110 lbs.; crated 24" D × 27" H × 20-1/2" W (Royal's catalog: 24" D × 27" H × width + 2-1/2")
Keep the floor around it clear and level, and check that the hood covers the burner.
Two-ring burner control
Each heavy cast iron burner has a 35,000 BTU/hr outer ring and a 15,000 BTU/hr inner ring for slow simmering, run by two manual controls.
Fully welded chassis
A fully welded, compact heavy gauge chassis with stainless steel sides and front valve cover, on 6" legs.
Cast iron top grate
Heavy cast iron grate holds large stock pots and braising pans.
Easy to clean
A stainless steel drip pan catches spills under the burner.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
How do the burner rings work?
Each burner has an outer ring rated at 35,000 BTU/hr and an inner ring rated at 15,000 BTU/hr (50,000 BTU/hr together). Two manual controls run them independently, so you can hold a slow simmer on the inner ring alone.
How much clearance does it need?

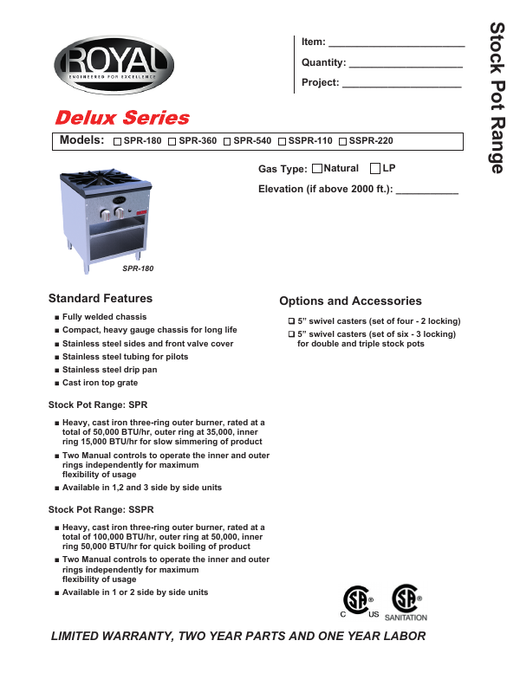

Royal's spec sheet lists 17" at the rear and 15" at the sides from combustible walls, and 4" at the rear and 0" at the sides from non-combustible walls.
How does the SPR compare with the SSPR?
The SPR has 50,000 BTU/hr per burner (35,000 outer + 15,000 inner) with a gentle inner ring for simmering. The SSPR on the same frame has 100,000 BTU/hr per burner (50,000 + 50,000) for quick boiling.
What gas connection does it need?
A 3/4" NPT connection at the right rear of the unit. Pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit for your installer to connect.
Can I add casters?
Yes, Royal offers 5" swivel casters: a set of four with 2 locking, or a set of six with 3 locking for the double and triple models. A caster-mounted gas appliance needs a flexible connector and a restraint.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture). Cast iron parts, such as the burner and grate, are covered for 90 days. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Daily, clean the grate with warm water, a mild cleaner and a wire brush, brush debris from around the burner and empty the drip pan. Now and then remove the burner, clean it with a wire brush and check that the ports are open.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | SPR-180 |
| Series | Delux |
| Quantity | 1 Each |
| Shipping Weight | 110 lbs. |
| Width | 18 Inches |
| Depth | 21 Inches (spec table)22" overall (drawing) |
| Height | 25 Inches |
| Legs | 6" |
| Crated Size | 24" D x 27" H x 20-1/2" W |
| Installation | Floor-standing on legs |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Number of Burners | 1 |
| BTU per Burner | 50,000 BTU/H (35,000 outer ring + 15,000 inner ring) |
| Total BTU | 50,000 BTU/H |
| Burner | Heavy cast iron, outer and inner rings |
| Top Grate | Cast iron |
| Controls | Two manual controls per burner (inner and outer rings) |
| Pilot | Stainless steel pilot tubing |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | 17" rear15" sides |
| Clearance (Non-Combustible) | 4" rear0" sides |
| Construction | Fully welded, compact heavy gauge chassisStainless steel sides and front valve coverStainless steel drip pan |
| Options | 5" swivel casters, set of 4 (2 locking)Set of 6 (3 locking) for double and triple models |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborCast iron parts 90 days |
| Usage | Commercial use only |
