Description

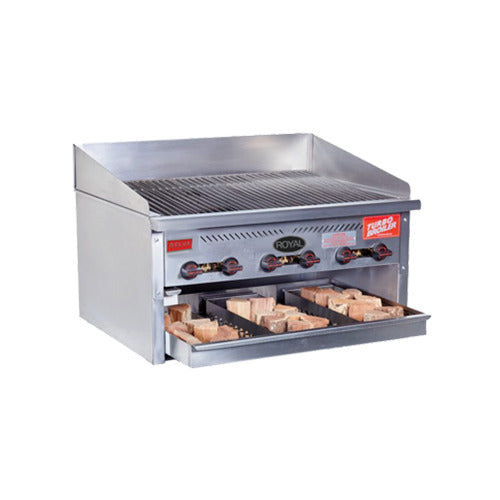

A 84" infrared radiant charbroiler with a built-in smoker drawer for wood-fired flavor.
The TB-884-SM is the 84" model in Royal's Delux TB-8-SM infrared broiler with smoker line: 15 heavy cast iron burners at 14,500 BTU/hr each heat stainless steel radiants under a 23" x 81" broiling area, and a removable water pan below holds wood chips or soaked logs. It suits barbecue restaurants, steakhouses and grills. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 84" W x 28.5" D; 17 1/2" high at the front plus a 6" rise at the back (23 1/2" total); furnished without legs
- Cooking area
- 23" x 81" broiling area (23" deep)
- Smoker
- 2 water pans and 8 chip pans for wood chips or soaked logs
- Counter space
- Countertop unit; Royal's countertop manual calls for a non-combustible counter
- Clearances
- Combustible walls: 8" rear, 12" sides. Non-combustible walls: 0"
- Gas
- Natural gas or LP, 217,500 BTU/hr total (15 burners x 14,500); 3/4" NPT inlet at the right rear, 10" above the base
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: standing pilots and manual valves
- Shipping weight

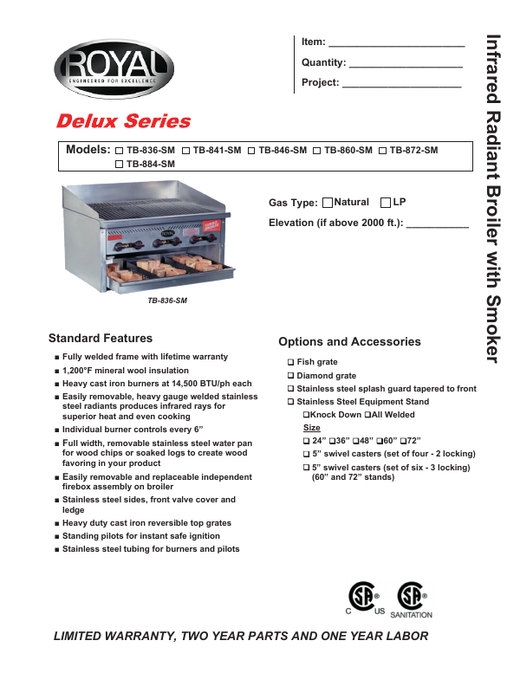

- 565 lbs. on the spec sheet; Royal's 2026 catalog lists 852 lbs.
Measure the counter depth and hood coverage first: the unit is 28.5" deep and ships without legs, so plan its stand or counter.
Smoke and broil
A full-width removable stainless steel water pan holds wood chips or soaked logs for wood flavor; this size has 2 water pans and 8 chip pans.
Infrared radiant heat
15 heavy cast iron burners at 14,500 BTU/hr each heat heavy gauge welded stainless steel radiants that give off infrared heat.
Control every 6"
Each burner has its own manual valve, so you can run one side hot and the other lower.
Built for daily heat
Fully welded frame, 1,200°F mineral wool insulation, stainless steel sides, front valve cover and ledge, and heavy duty cast iron reversible top grates.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
How many BTU is it?
217,500 BTU/hr total: 15 cast iron burners at 14,500 BTU/hr each (15 x 14,500 = 217,500).
How does the smoker work?
Royal puts a full-width removable stainless steel water pan under the broiler for wood chips or soaked logs, to add wood flavor to what is on the grates. This size has 2 water pans and 8 chip pans.
Does it come with legs?
No. Royal's drawing marks the smoker models "furnished w/o legs"; the body is 17 1/2" high at the front. Plan a stand or counter for it, or ask us about Royal's stainless steel equipment stands.
What gas connection does it need?
A 3/4" NPT connection at the right rear of the unit. Manifold pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit for your installer to connect.
How much clearance does it need from the wall?
The spec sheet lists 8" at the rear and 12" at the sides from combustible walls, and 0" from non-combustible walls. Royal's countertop manual calls for a non-combustible counter, so plan a non-combustible counter and wall where you can.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture); cast iron parts are covered for 90 days. The spec sheet also lists a "fully welded frame with lifetime warranty"; Royal's warranty page does not detail that term, so ask us to confirm it with Royal.
How do I clean it?
Daily, clean the grates with warm water, a mild cleaner and a wire brush, brush debris from around the burners, and empty and clean the water and chip pans. Wipe stainless steel with hot soapy water; don't use steel wool or abrasive powders.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | TB-884-SM |
| Series | Delux TB-8-SM Infrared Radiant Broiler with Smoker |
| Quantity | 1 Each |
| Shipping Weight | 565 lbs. (spec sheet)852 lbs. (2026 catalog) |
| Width | 84 Inches |
| Depth | 28.5 Inches |
| Height | 17 1/2 Inches at the front23 1/2 Inches to the top of the back (6" rise) |
| Legs | Furnished without legs |
| Broiling Area | 23" x 81" |
| Smoker | 2 water pans8 chip pans |
| Installation | Countertop, non-combustible counter |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Total BTU | 217,500 BTU/H |
| Burners | 15 heavy cast iron burners, 14,500 BTU/H each |
| Radiants | Heavy gauge welded stainless steel, removable |
| Ignition | Standing pilots |
| Controls | Manual, one burner control every 6" |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | 8" rear12" sides |
| Clearance (Non-Combustible) | 0" rear0" sides |
| Grates | Heavy duty cast iron, reversible |
| Construction | Fully welded frame1,200°F mineral wool insulationStainless steel sides, front valve cover and ledgeStainless steel tubing for burners and pilotsRemovable stainless steel water panRemovable independent firebox |
| Options | Fish grateDiamond grateStainless steel splash guard tapered to frontStainless steel equipment stand (knock-down or all welded)5" swivel casters for stand |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year laborCast iron parts 90 daysFully welded frame with lifetime warranty (per spec sheet) |
| Usage | Commercial use only |
