Description
A compact underbar sink for washing and rinsing glassware and bar tools.

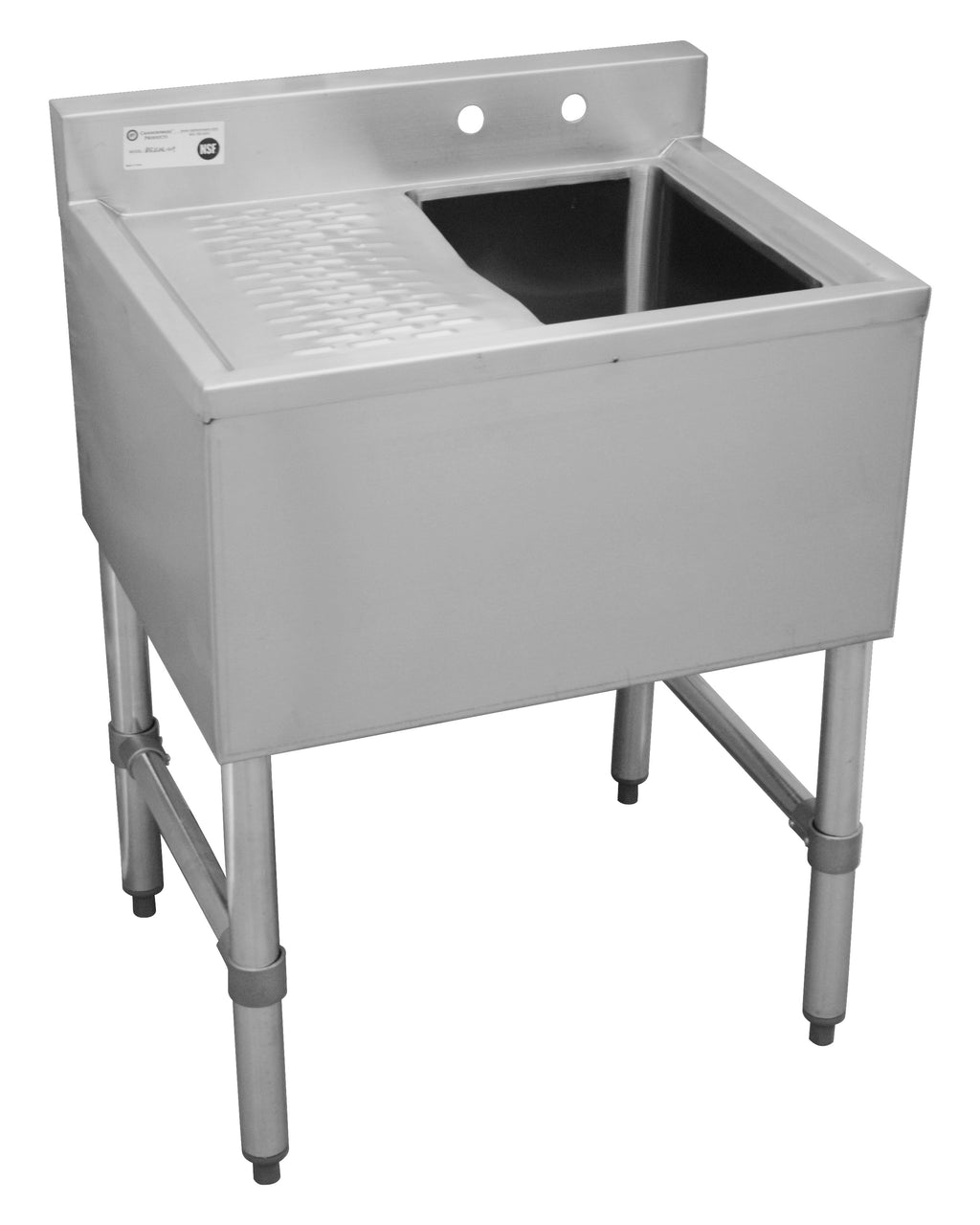

The Serv-Ware BAR1B24-L-CWP-V is a 24" wide underbar sink for bars, cafes and beverage stations. It has one 10" × 14" bowl, 10" deep, and a 11.75" drainboard on the left. The top, bowl and backsplash are 18 gauge 304 stainless steel, the front and side apron is 20 gauge 304 stainless, and the sink is NSF listed.
Will it fit
- Outside size
- 24" W × 18.75" D × 33" H
- Bowl
- 10" W × 14" front to back × 10" deep
- Drainboard
- 11.75" drainboard on the left
- Backsplash
- 3" high, with 1 set of 2 faucet holes on 4" centers
- Drain
- 1.5" drain opening
- Shipping weight
- 31 lbs
At 33" high and 18.75" deep it is sized for underbar use. Measure the opening under your bar (width, depth and height) before ordering.
10" deep bowl
10" × 14" bowl, 10" deep, sized for glassware, bar tools and garnish containers.
Stainless construction
18 gauge 304 stainless steel top, bowl and backsplash with a 20 gauge 304 stainless apron on the front and sides.
Adjustable legs
Galvanized steel legs and side cross bracing with adjustable bullet feet for leveling.
Faucet ready
1 set of 2 faucet holes on 4" centers in the 3" backsplash; faucet sold separately.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Faucet not included. Plumbing and connection to your drain are done on site by a plumber.
- Inspect the shipment when it arrives and note any damage with the carrier before signing.
Questions buyers ask
Does it come with a faucet?
No. The 3" backsplash has 1 set of 2 faucet holes on 4" centers for a splash-mount faucet, sold separately.
Will it fit under my bar?
The sink is 24" wide, 18.75" deep and 33" high. Measure the space under your bar top before ordering.
What size is the drain?
The bowl has a 1.5" drain opening.
Is it NSF listed?

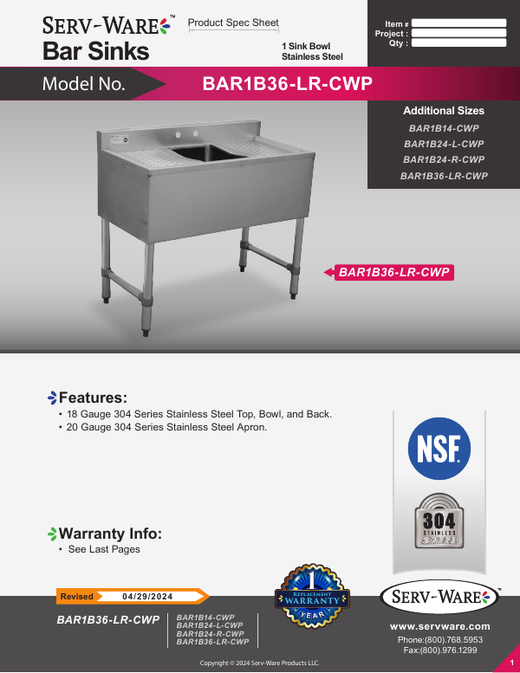

Yes. The spec sheet carries the NSF mark, and Serv-Ware lists the bar sinks as NSF.
What does the warranty cover?

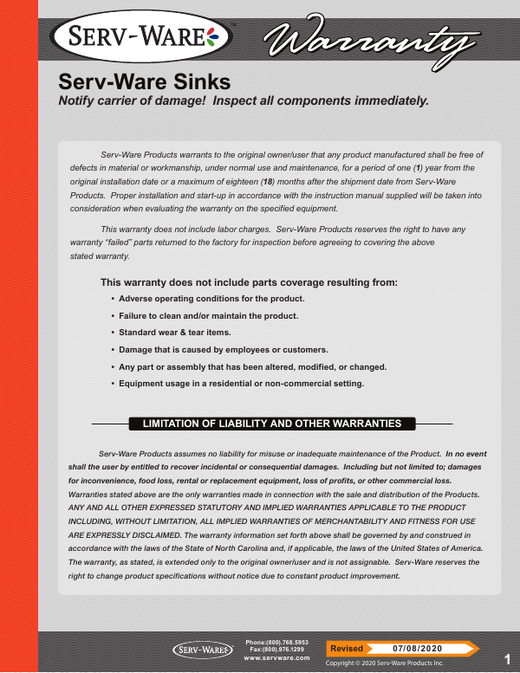

Serv-Ware warrants the sink against defects in material and workmanship for 1 year from installation, up to 18 months from shipment from Serv-Ware. Labor is not included, and residential use is excluded.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | BAR1B24-L-CWP-V |
| Quantity | 1/Each |
| Shipping Weight | 31 lb. |
| Width | 24 Inches |
| Depth | 18.75 Inches |
| Height | 33 Inches |
| Number of Compartments | 1 |
| Bowl Size | 10" W x 14" Front-to-Back x 10" Deep |
| Drainboard | 11.75" Left |
| Backsplash Height | 3 Inches |
| Faucet Holes | 1 Set4" On Center1" Diameter |
| Drain Opening | 1.5 Inches |
| Material | 18 Gauge 304 Stainless Steel Top, Bowl and Back20 Gauge 304 Stainless Steel Apron |
| Legs | Galvanized SteelSide Cross BracingAdjustable Bullet Feet |
| Faucet | Not Included |
| Certifications | NSF |
| Warranty | 1 Year Parts (No Labor)Up to 18 Months from Shipment |
| Usage | Commercial Use Only |
