Description
A landing and pre-rinse station for dirty dishes on their way into the dish machine.
The Serv-Ware DDT48R-CWP-V is a 48" soiled dish table for restaurants, cafeterias and catering kitchens. It is built for right-to-left operation: it sits on the right side of the dish machine, so dirty ware moves right to left into the machine. A 20" × 20" × 6" deep pre-rinse sink sits at the machine end, and the 16 gauge 304 stainless steel top has a 7.5" backsplash. The table is NSF listed.
Will it fit
- Outside size
- 48" W × 30" D × 41.5" H
- Top
- 30" deep for 42" of the length, narrowing at a 45° corner to 20.5" at the machine end
- Pre-rinse sink
- 20" W × 20" front to back × 6" deep, 3.5" drain opening
- Backsplash
- 7.5" high, with 2 faucet holes on 8" centers
- Operation
- Right-to-Left: sits on the right side of the dish machine
- Legs
- One pair at the outer (right) end, 18.88" apart front to back
- Shipping weight
- 60 lbs
Check your dish machine's side, height and connection before ordering, and measure the space beside the machine and the doorways on the delivery path.
Pre-rinse sink
A 20" × 20" × 6" deep sink at the machine end for scraping and spraying ware before it goes into the rack.
Right-to-Left flow
Sits on the right side of the machine so dirty ware moves right to left. Serv-Ware also makes a left-side version.
16 gauge 304 stainless
The top is 16 gauge 304 series stainless steel with a 7.5" backsplash, and the table is NSF listed.
Faucet ready
Two faucet holes on 8" centers in the backsplash for a pre-rinse faucet, sold separately.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Pre-rinse faucet not included. Installation, plumbing and connection to the dish machine are done on site by a qualified installer.
- Inspect the shipment when it arrives and note any damage with the carrier before signing.
Questions buyers ask
Left or right: which one do I need?
Stand facing the dish machine. If dirty dishes come in from your right, you need this right-to-left table. Serv-Ware also makes a left-side version.
Does it stand on its own?
No. The drawing shows one pair of legs at the outer end; the machine end is meant to rest on or connect to your dish machine.
Does it come with a pre-rinse faucet?
No. The backsplash has 2 faucet holes on 8" centers for a pre-rinse faucet, sold separately.
How big is it?
48" wide, 30" deep and 41.5" high. The top narrows to 20.5" deep at the machine end.
Is it NSF listed?

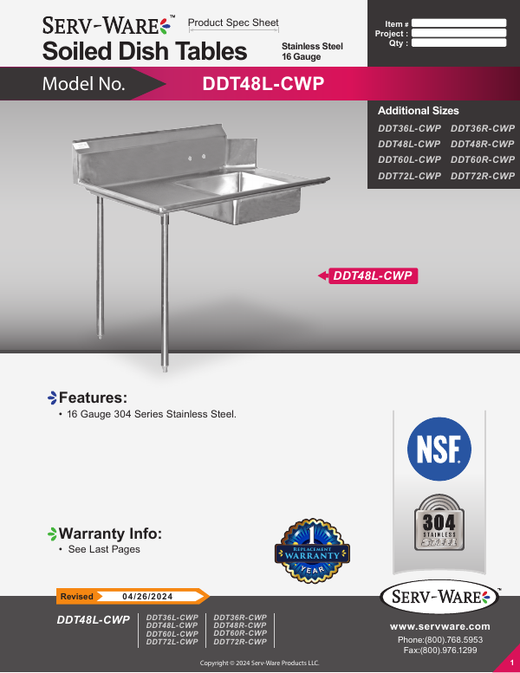

Yes. The spec sheet carries the NSF mark, and Serv-Ware lists the soiled dish tables as NSF.
What does the warranty cover?

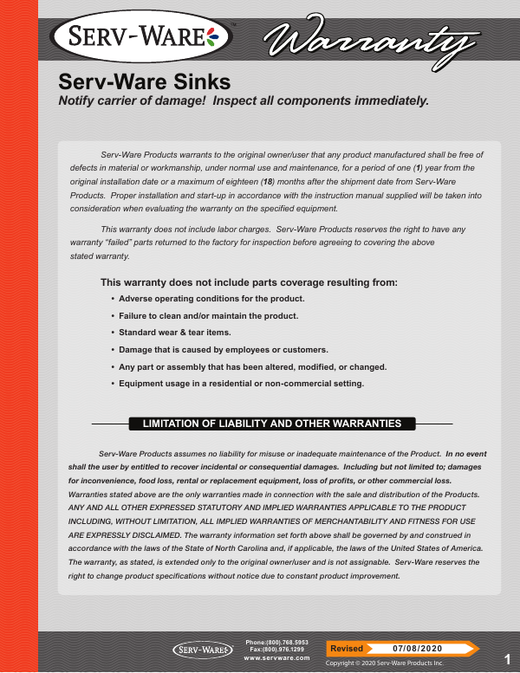

Serv-Ware warrants it against defects in material and workmanship for 1 year from installation, up to 18 months from shipment from Serv-Ware. Labor is not included, and residential use is excluded.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | DDT48R-CWP-V |
| Quantity | 1/Each |
| Shipping Weight | 60 lb. |
| Width | 48 Inches |
| Depth | 30 Inches |
| Height | 41.5 Inches |
| Depth at Machine End | 20.5 Inches |
| Sink Bowl | 20" W x 20" Front-to-Back x 6" Deep |
| Drain Opening | 3.5 Inches |
| Backsplash Height | 7.5 Inches |
| Faucet Holes | 28" On Center1.13" Diameter |
| Leg Spacing (Front to Back) | 18.88 Inches |
| Configuration | Right-to-Left Operation (Table Right of Machine) |
| Material | 16 Gauge 304 Series Stainless Steel |
| Legs | 2 Galvanized Legs at Outer EndAdjustable Plastic Bullet Feet |
| Faucet | Not Included |
| Certifications | NSF |
| Warranty | 1 Year Parts (No Labor)Up to 18 Months from Shipment |
| Usage | Commercial Use Only |
