Description
An economy 3-compartment sink for the wash, rinse and sanitize routine.

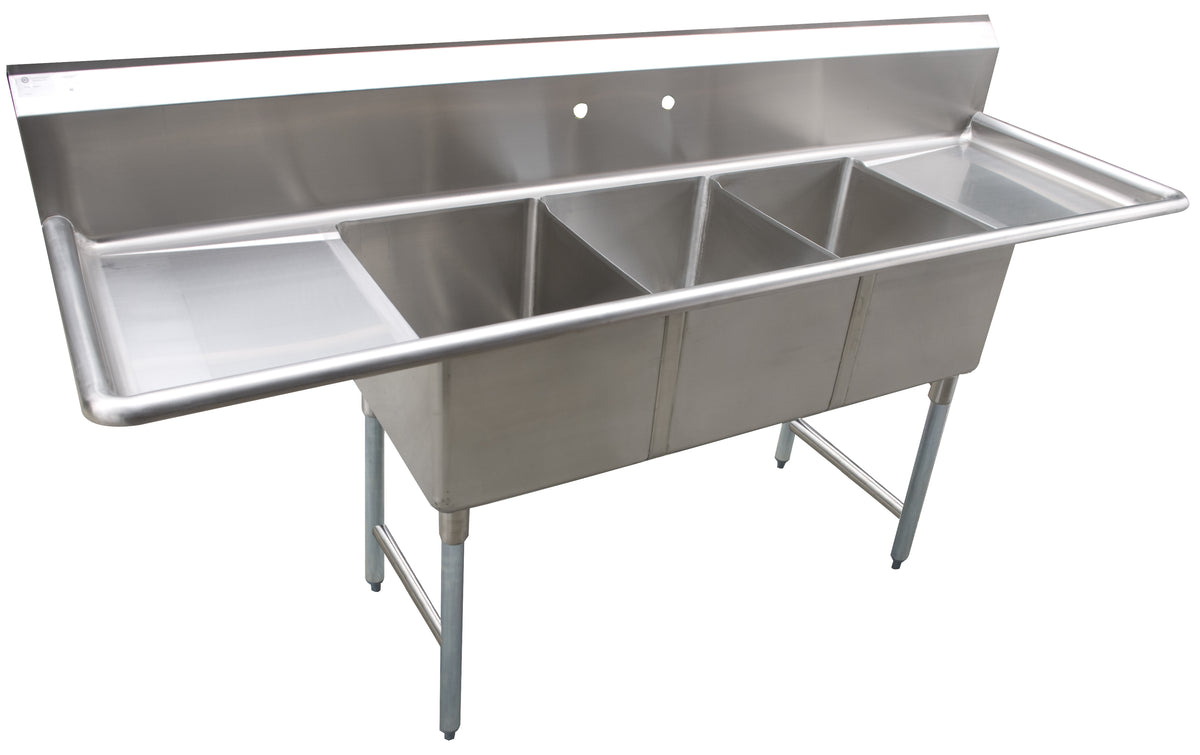

The Serv-Ware D3CWP16202-18-V is a 12" deep economy series 3-compartment sink for restaurants, delis, cafes and prep kitchens. Its three bowls are each 16" wide, 20" front to back and 12" deep, with a two 18" drainboards, left and right. It is 18 gauge 304 stainless steel with raised rolled edges on the front and sides, and it is NSF listed.
Will it fit
- Outside size
- 84" W × 45.5" H (depth: see note)
- Bowls
- 3 bowls, each 16" W × 20" front to back × 12" deep
- Drainboards
- Two 18" drainboards, left and right
- Backsplash
- 11.75" high, with 2 faucet holes on 8" centers
- Drains
- 3.5" basket drains with 1.5" outlets
Serv-Ware lists this sink at 23.5" deep, but its 20" front-to-back bowls are 25.5" deep overall on the same-bowl D3CWP1620. Call us to confirm the depth before ordering, and measure the wall and every doorway on the delivery path for the 84" length.
12" deep bowls
Three 16" × 20" bowls, 12" deep, for washing, soaking and thawing.
Drainboards
A 18" drainboard on each end for soiled and clean ware.
304 stainless top
18 gauge 304 stainless steel with raised rolled edges on the front and sides to help keep water in the sink.
Faucet ready
11.75" backsplash with 2 faucet holes on 8" centers; faucet sold separately.
Adjustable legs
Galvanized legs with adjustable plastic bullet feet and stainless steel gussets.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Faucet not included. Plumbing and connection to your drain are done on site by a plumber.
- Inspect the shipment when it arrives and note any damage with the carrier before signing.
Questions buyers ask
Does it come with a faucet?
No. The 11.75" backsplash has 2 faucet holes on 8" centers for a splash-mount faucet, sold separately.
Will it fit my space?
The sink is 84" wide and 45.5" high; call us to confirm the depth. Measure the wall and the delivery path before ordering.
What drains does it have?
Each bowl has a 3.5" basket drain with a 1.5" outlet.
Is it NSF listed?
Yes. Serv-Ware lists its 12" deep economy series sinks as NSF.
Can I use it as a hand sink?
This is a compartment sink for washing, rinsing and sanitizing. Most health codes require a separate, dedicated hand sink; check with your local inspector.
What does the warranty cover?

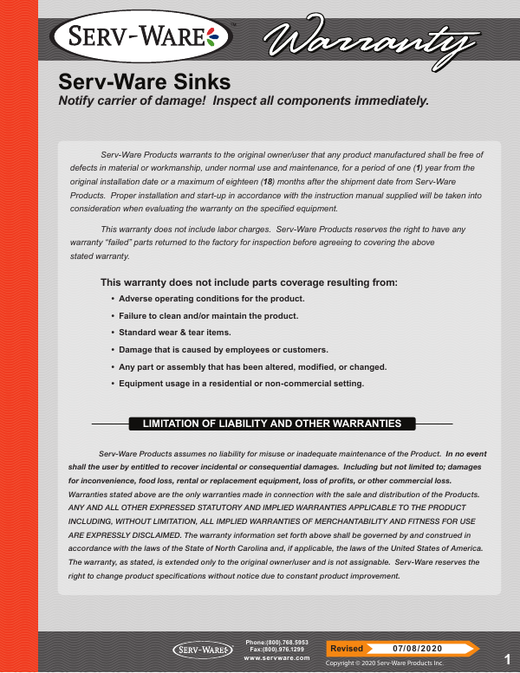

Serv-Ware warrants the sink against defects in material and workmanship for 1 year from installation, up to 18 months from shipment from Serv-Ware. Labor is not included, and residential use is excluded.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | D3CWP16202-18-V |
| Quantity | 1/Each |
| Width | 84 Inches |
| Height | 45.5 Inches |
| Number of Compartments | 3 |
| Bowl Size | 16" W x 20" Front-to-Back x 12" Deep |
| Drainboards | 2 x 18" (Left and Right) |
| Backsplash Height | 11.75 Inches |
| Faucet Holes | 1 Set8" On Center |
| Drains | 3.5" Basket Drains1.5" Outlets |
| Material | 18 Gauge 304 Series Stainless Steel |
| Edges | Raised Rolled Edges on Front and Sides |
| Legs | GalvanizedAdjustable Plastic Bullet Feet |
| Gussets | Stainless Steel |
| Faucet | Not Included |
| Certifications | NSF |
| Warranty | 1 Year Parts (No Labor)Up to 18 Months from Shipment |
| Usage | Commercial Use Only |
