Southwood RE4 Electric 4-Spit Commercial Chicken Rotisserie Oven, 16-20 Chickens, 7.5 kW, 240V 3-Phase, Hardwired, on Legs
A 4-spit electric rotisserie that roasts up to 20 chickens at a time behind lighted glass doors.
The Southwood RE4 is an electric chicken rotisserie for delis, supermarkets and restaurants that sell rotisserie chicken. Four spits with independent motors hold 16 to 20 chickens, three 2.5 kW elements supply 7.5 kW of heat, and the lighted tempered glass front shows the product to customers. It is hardwired to 240V 3-phase power on a dedicated 30 amp circuit and stands on 6" legs; a stand is optional.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 22" depth. Confirm you have 3-phase power before ordering.
Each spit has its own motor, so you can cook full or partial loads of 16-20 chickens.
Three 2.5 kW elements with an infinite switch for continuous cooking.
A lit cabinet behind tempered glass doors shows the chickens as they turn.
Collects fat drippings and can hold water for added humidity.
The RE4 runs on 240V, 3-phase, 60 Hz and draws 18.4 A. It is hardwired: Southwood requires a dedicated 30 amp circuit connected by a licensed electrician. Attaching a plug or cord cap voids the warranty.
The cabinet is 45 5/8" wide (50 5/8" with the 5" spit handles) and 22" deep. It stands 58" high: 52" plus 6" legs. It ships at 350 lb. in a 49" x 27" x 52" crate, so measure doorways and turns first.

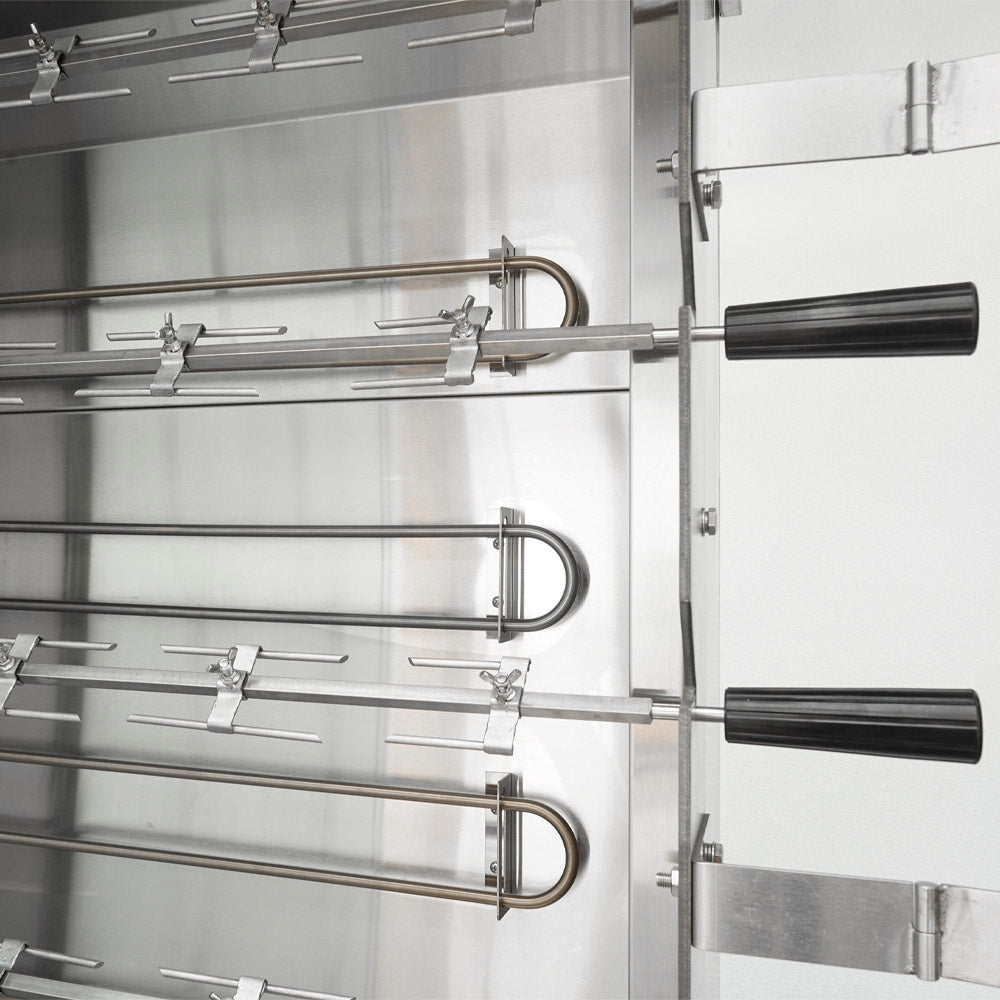

Southwood rates it for 16 to 20 chickens on 4 spits. Each spit comes with 2 single and 3 double skewers, and additional spits and skewers are available.
Yes. Each spit has its own motor, and the elements and motors have individual controls, so you can run a partial load.

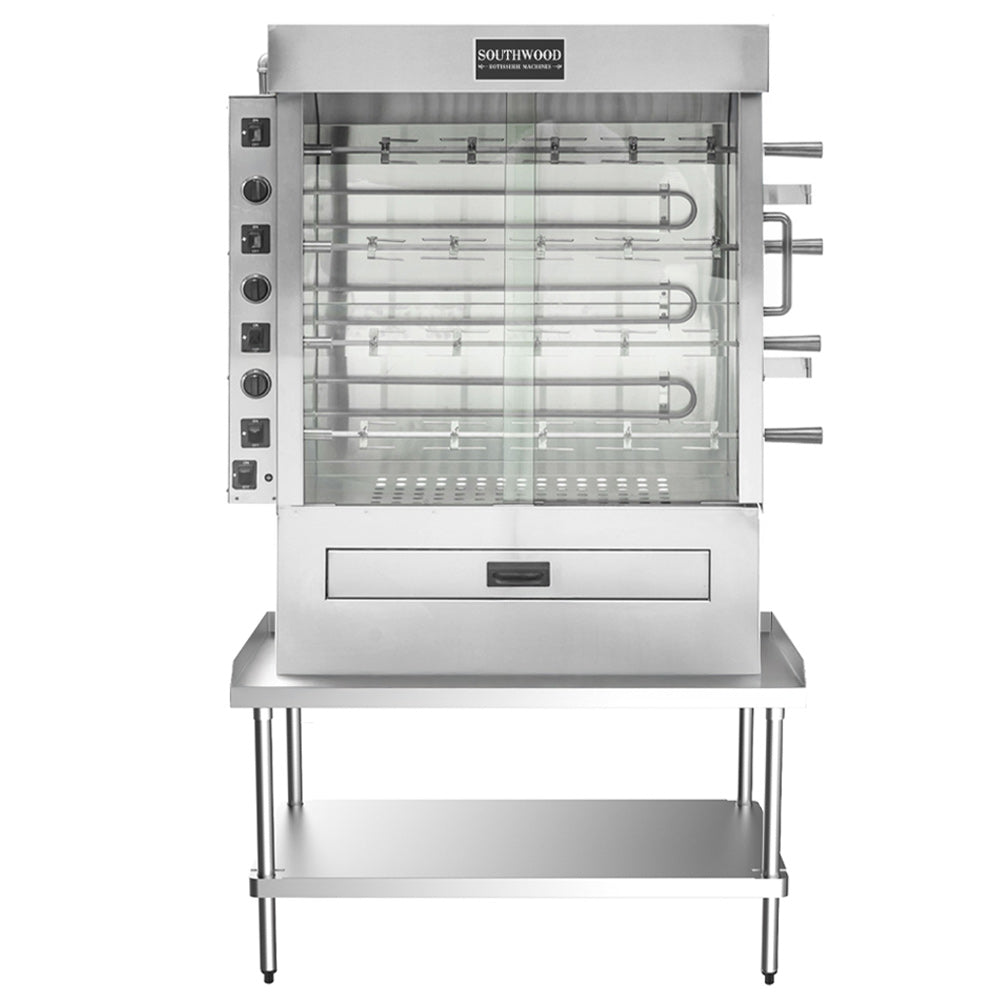

Southwood lists an equipment stand as optional for the RE4; it is not included. One of our photos shows it on a stand.

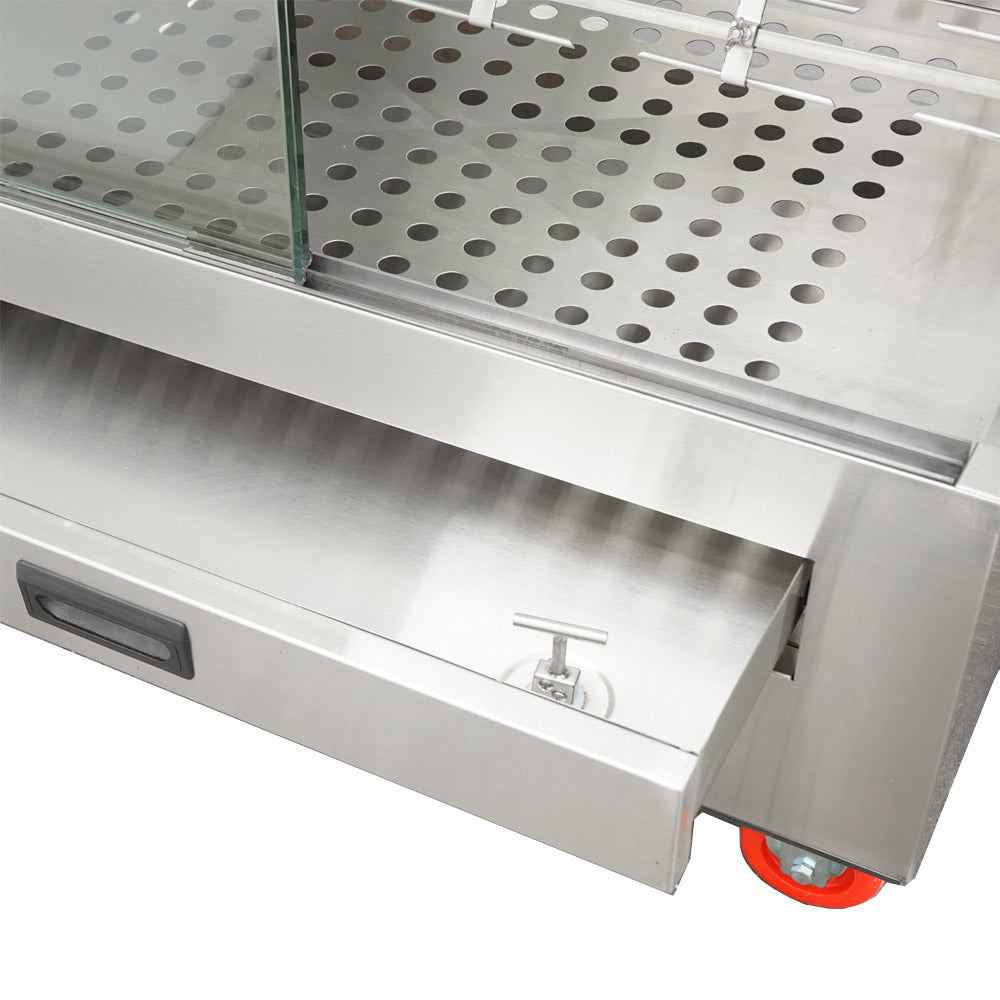

A drip drawer under the spits collects fat drippings. You can also fill it with water to add humidity while cooking.
USR Brands covers Southwood rotisserie ovens for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, and glass is not covered.
The Southwood warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Southwood (USR Brands) |
|---|---|
| Model Number | RE4 |
| Quantity | 1/Each |
| Shipping Weight | 350 lb. |
| Net Weight | 284 lb. |
| Width | 45 5/8 Inches |
| Depth | 22 Inches |
| Height | 58 Inches |
| Width with Spit Handles | 50 5/8 Inches (45 5/8" + 5" Handles) |
| Height Breakdown | 52" Cabinet + 6" Legs |
| Shipping Dimensions | 49" L x 27" W x 52" H |
| Voltage | 240 Volts |
| Phase | 3 |
| Hertz | 60 |
| Amps | 18.4 Amps |
| Wattage | 7.5 kW |
| Plug Type | Hardwired |
| Power Cord | Not Included |
| Circuit | Dedicated 30 AmpLicensed Electrician |
| Capacity | 16-20 Chickens |
| Spits | 4Independent Motor Each |
| Skewers per Spit | 2 Single3 Double |
| Heating Elements | 3 x 2.5 kW |

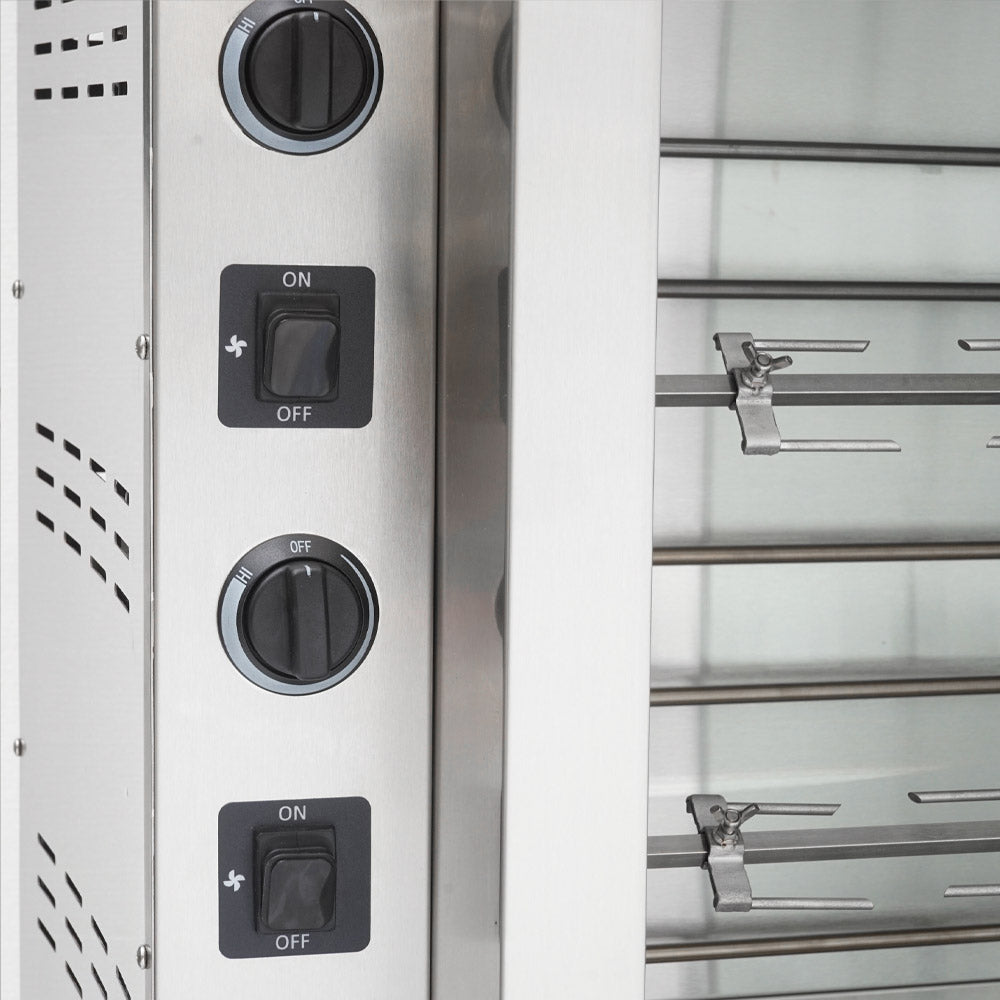

| Controls | Individual Element and Motor ControlsInfinite SwitchWaterproof On/Off Switch |

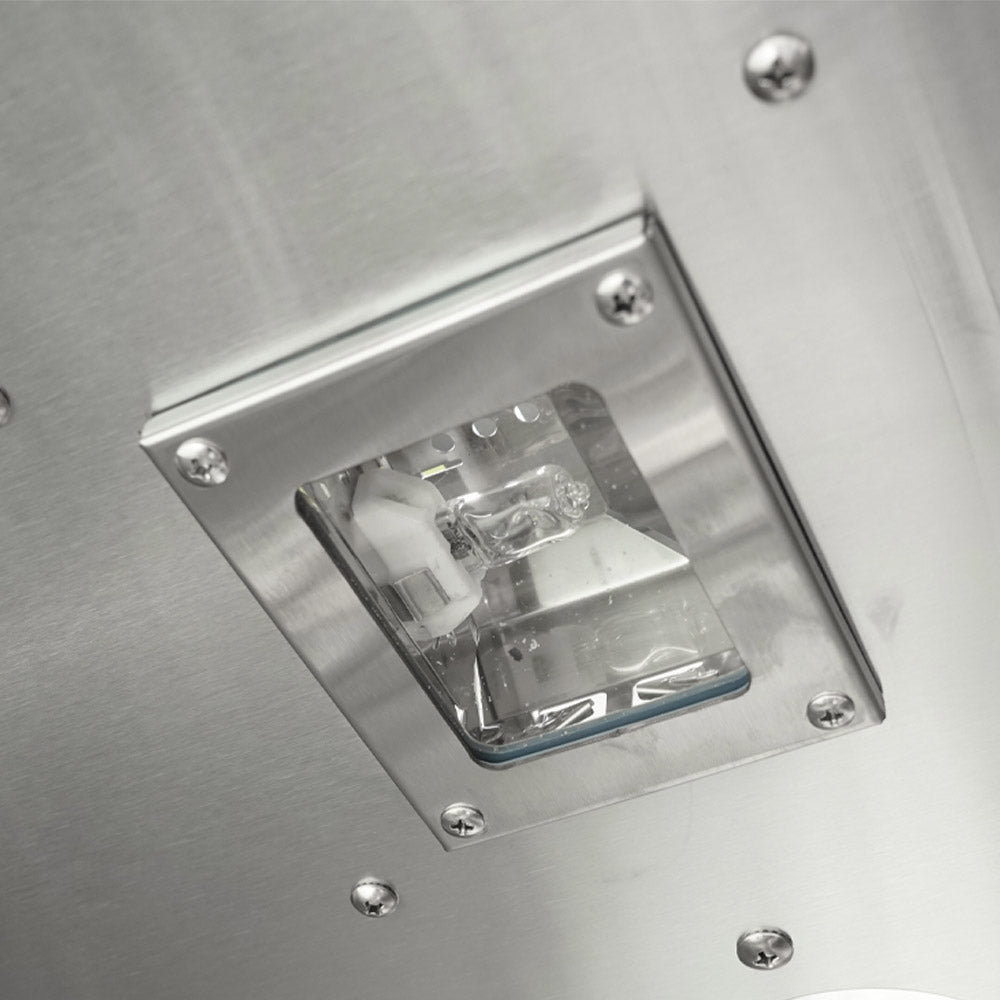

| Lighting | 1 x 25 W |
| Doors | Tempered Glass |
| Spit Handles | Bakelite |
| Drip Drawer | YesCan Hold Water for Humidity |
| Exterior | #430 Stainless Steel |
| Legs | 6 Inches |
| Equipment Stand | Optional (Sold Separately) |
| Warranty | 1 Year Parts & Labor |
