Southwood RE7 Electric 7-Spit Commercial Chicken Rotisserie Oven, 28-35 Chickens, 15 kW, 240V 3-Phase, Hardwired, on Casters
A 7-spit electric rotisserie that roasts up to 35 chickens at a time behind lighted glass doors.
The Southwood RE7 is an electric chicken rotisserie for supermarkets, delis and restaurants that sell rotisserie chicken. Seven spits with independent motors hold 28 to 35 chickens, six 2.5 kW elements supply 15 kW of heat, and the lighted tempered glass front shows the product to customers. It is hardwired to 240V 3-phase power on a dedicated 50 amp circuit and rolls on 6" casters, with no stand needed.
Measure every doorway, ceiling and turn on the delivery path; its smallest outside dimension is the 22" depth. Confirm you have 3-phase power before ordering.
Each spit has its own motor, so you can cook full or partial loads of 28-35 chickens.

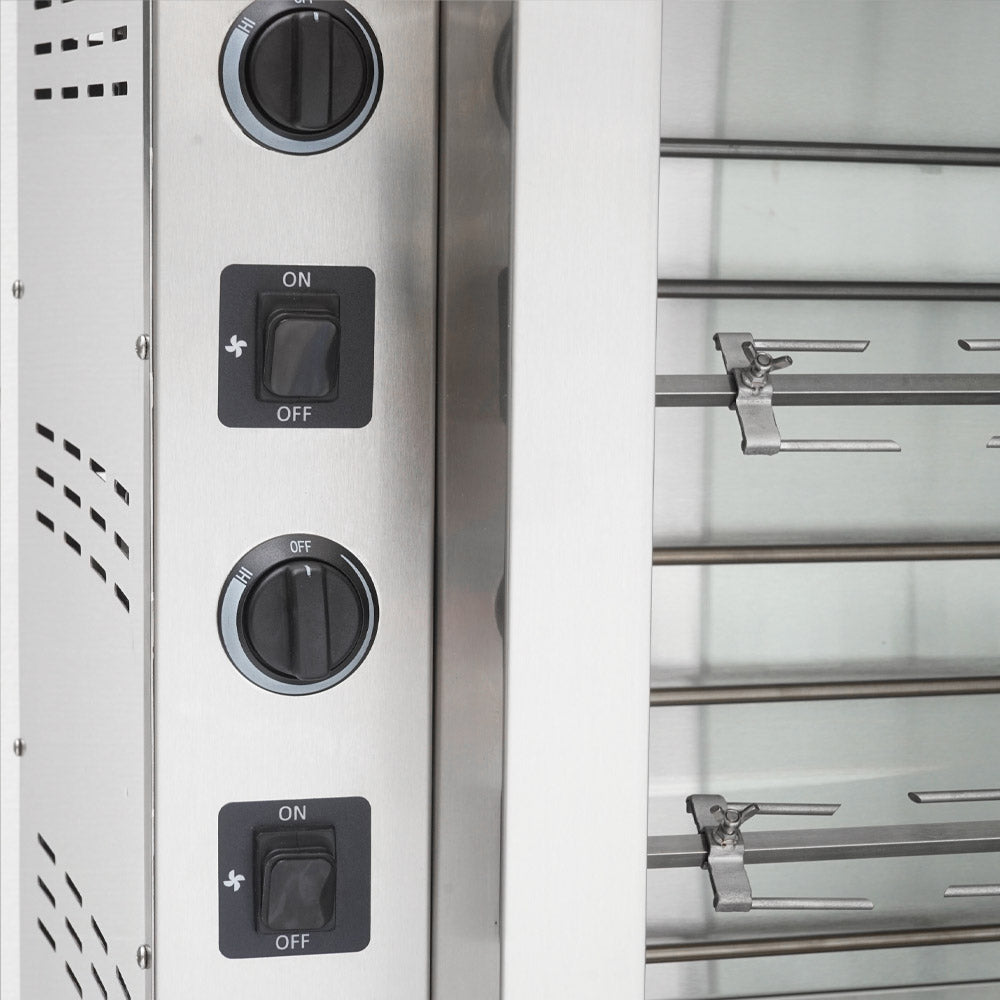

Six 2.5 kW elements with an infinite switch for continuous cooking.

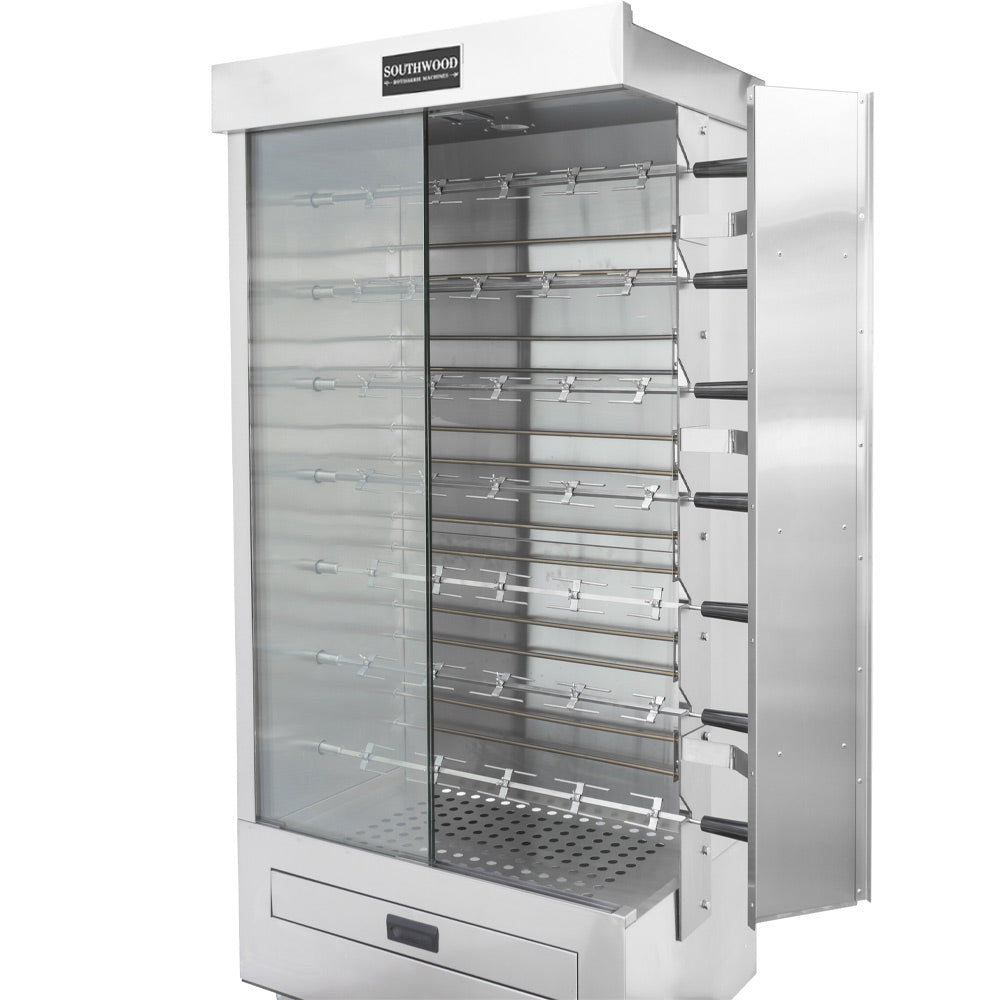

A lit cabinet behind tempered glass doors shows the chickens as they turn.
Collects fat drippings and can hold water for added humidity.
The RE7 runs on 240V, 3-phase, 60 Hz and draws 36.75 A. It is hardwired: Southwood requires a dedicated 50 amp circuit connected by a licensed electrician. Attaching a plug or cord cap voids the warranty.
The cabinet is 45 5/8" wide (50 5/8" with the 5" spit handles) and 22" deep. It stands 83 5/8" high: 77 5/8" plus 6" casters. It ships at 549 lb. in a 49" x 27" x 80" crate, so measure doorways, ceilings and turns first.

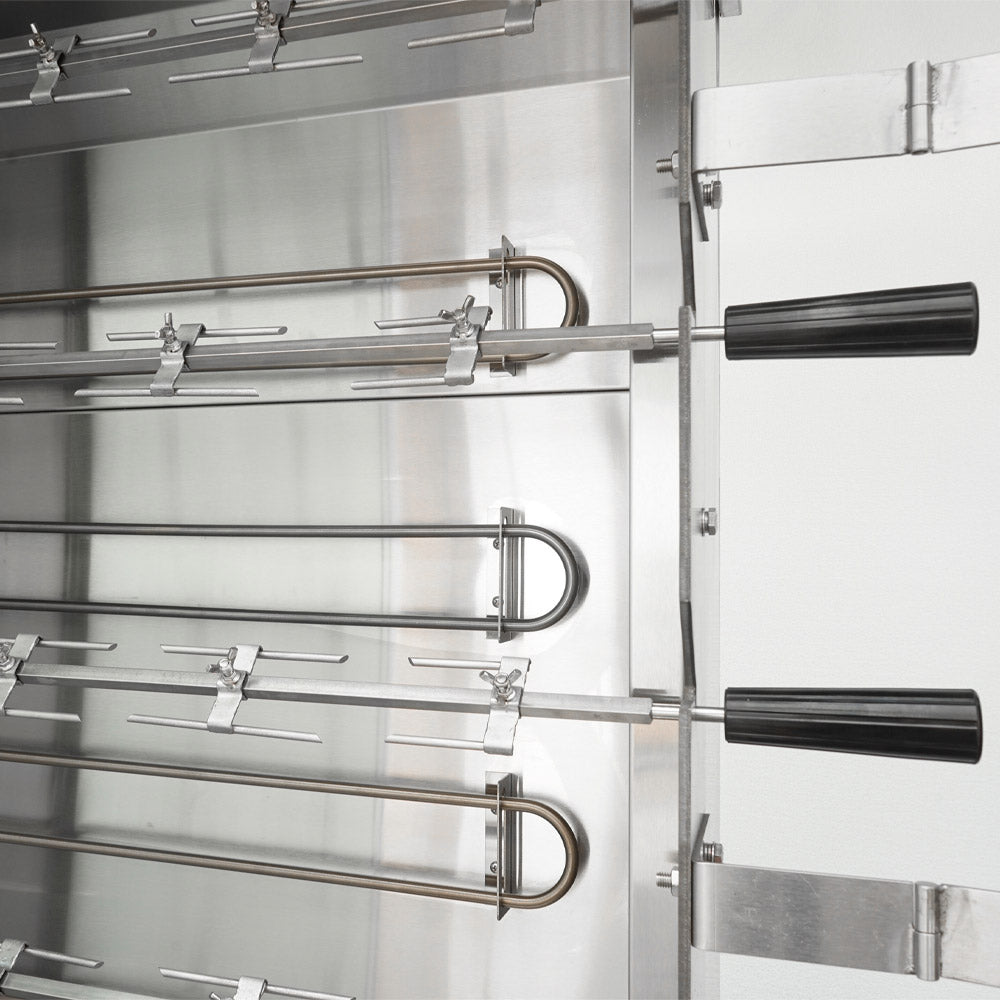

Southwood rates it for 28 to 35 chickens on 7 spits. Each spit comes with 2 single and 3 double skewers, and additional spits and skewers are available.
Yes. Each spit has its own motor, and the elements and motors have individual controls, so you can run a partial load.

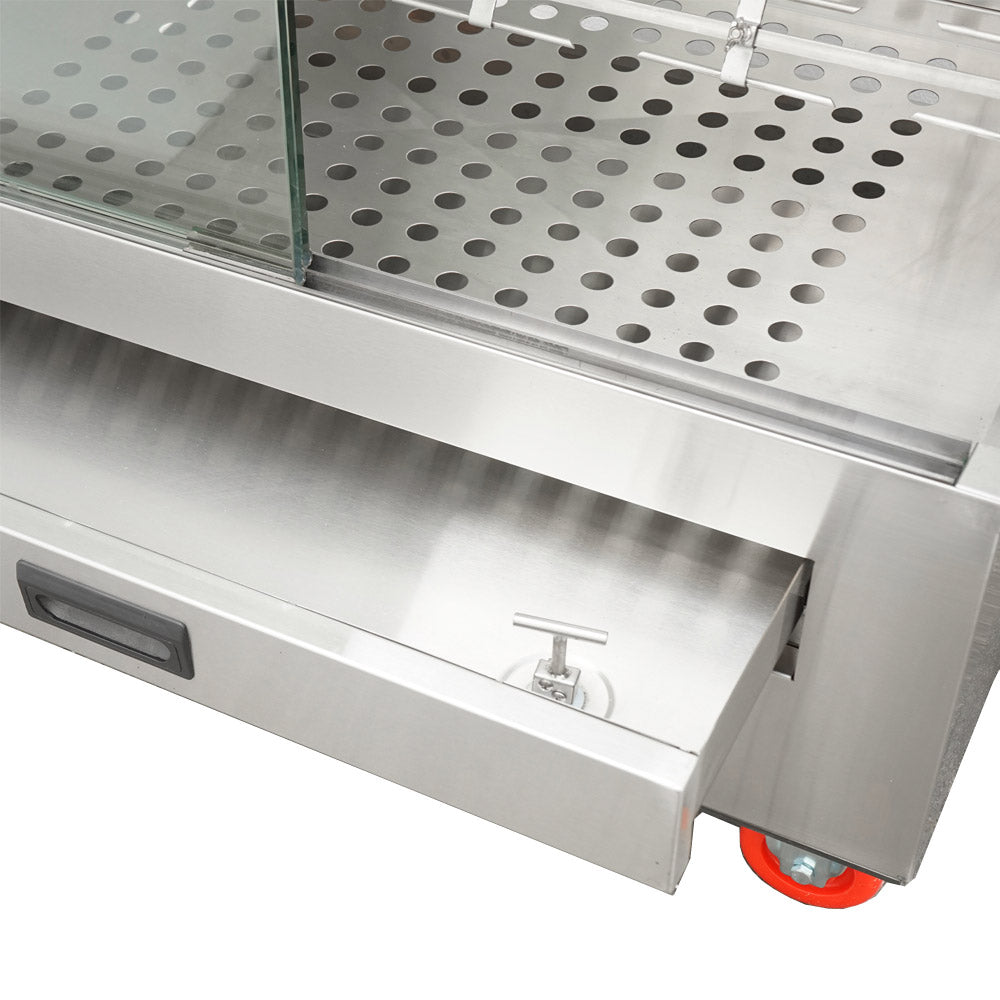

A drip drawer under the spits collects fat drippings. You can also fill it with water to add humidity while cooking.
No. The RE7 stands on 6" casters; Southwood lists the equipment stand as not needed for this model.
USR Brands covers Southwood rotisserie ovens for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, and glass is not covered.
The Southwood warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Southwood (USR Brands) |
|---|---|
| Model Number | RE7 |
| Quantity | 1/Each |
| Shipping Weight | 549 lb. |
| Net Weight | 460 lb. |
| Width | 45 5/8 Inches |
| Depth | 22 Inches |
| Height | 83 5/8 Inches |
| Width with Spit Handles | 50 5/8 Inches (45 5/8" + 5" Handles) |
| Height Breakdown | 77 5/8" Cabinet + 6" Casters |
| Shipping Dimensions | 49" L x 27" W x 80" H |
| Voltage | 240 Volts |
| Phase | 3 |
| Hertz | 60 |
| Amps | 36.75 Amps |
| Wattage | 15 kW Elements25 W Light |
| Plug Type | Hardwired |
| Circuit | Dedicated 50 AmpLicensed Electrician |
| Capacity | 28-35 Chickens |
| Spits | 7Independent Motor Each |
| Skewers per Spit | 2 Single3 Double |
| Heating Elements | 6 x 2.5 kW |
| Controls | Individual Element and Motor ControlsInfinite SwitchWaterproof On/Off Switch |
| Lighting | 1 x 25 W |
| Doors | Tempered Glass |
| Spit Handles | Bakelite |
| Drip Drawer | YesCan Hold Water for Humidity |
| Exterior | #430 Stainless Steel |
| Casters | 6 Inches |
| Equipment Stand | Not Needed |
| Warranty | 1 Year Parts & Labor |
