Southwood RG4-NG Gas 4-Spit Commercial Chicken Rotisserie Oven, 16-20 Chickens, 38,000 BTU, Natural Gas, 120V, on Legs
A 4-spit gas rotisserie that roasts up to 20 chickens at a time behind lighted glass doors.
The Southwood RG4-NG is a gas chicken rotisserie for supermarkets, delis and restaurants that sell rotisserie chicken. 4 spits with independent motors hold 16-20 chickens, 38,000 BTU of burners behind iron grates cook a 3.5 lb. chicken in about 50 minutes, and the lighted tempered glass front shows the product to customers. It runs on natural gas through the included regulator. A 120V outlet powers the motors and light.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 22.2" depth.
Each spit has its own motor for full or partial loads of 16-20 chickens.
38,000 BTU behind 7 iron grates for even, continuous cooking.
Tempered glass doors and a 20 W light show the chickens as they turn.
Collects fat drippings and can hold water for added humidity.

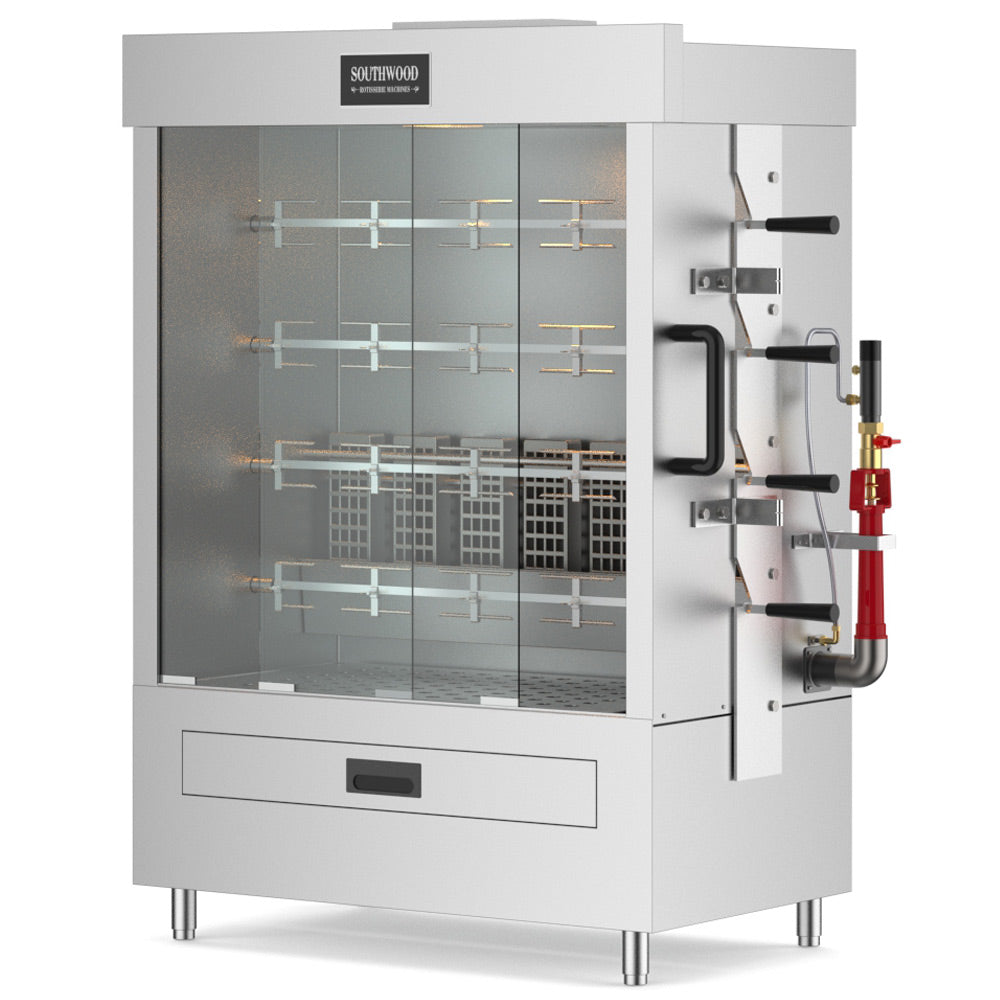

A 3/4" NPT gas line through the included regulator. Ships set up for natural gas; the regulator is factory set to 4" W.C. The regulator takes at most 1/2 PSI (14" W.C.); higher line pressure needs a step-down regulator first. Rated input is 38,000 BTU/H.
Yes, a grounded 120V, 60 Hz outlet for the spit motors and the light; the unit has a three-prong grounding plug.
Yes. Southwood says to run it under an exhaust hood that extends at least 6" past its sides, with at least 4 feet from the top of the unit to the filters, and to use licensed gas, electrical and HVAC installers.
44.5" wide (49.5" with the 5" spit handles), 22.2" deep and 60" high (54" plus 6" Legs). Install it next to non-combustible surfaces only, 6" from other equipment.
16-20 chickens on 4 spits, each spit with 2 single and 3 double skewers; Southwood quotes about 50 minutes for a 3.5 lb. chicken.

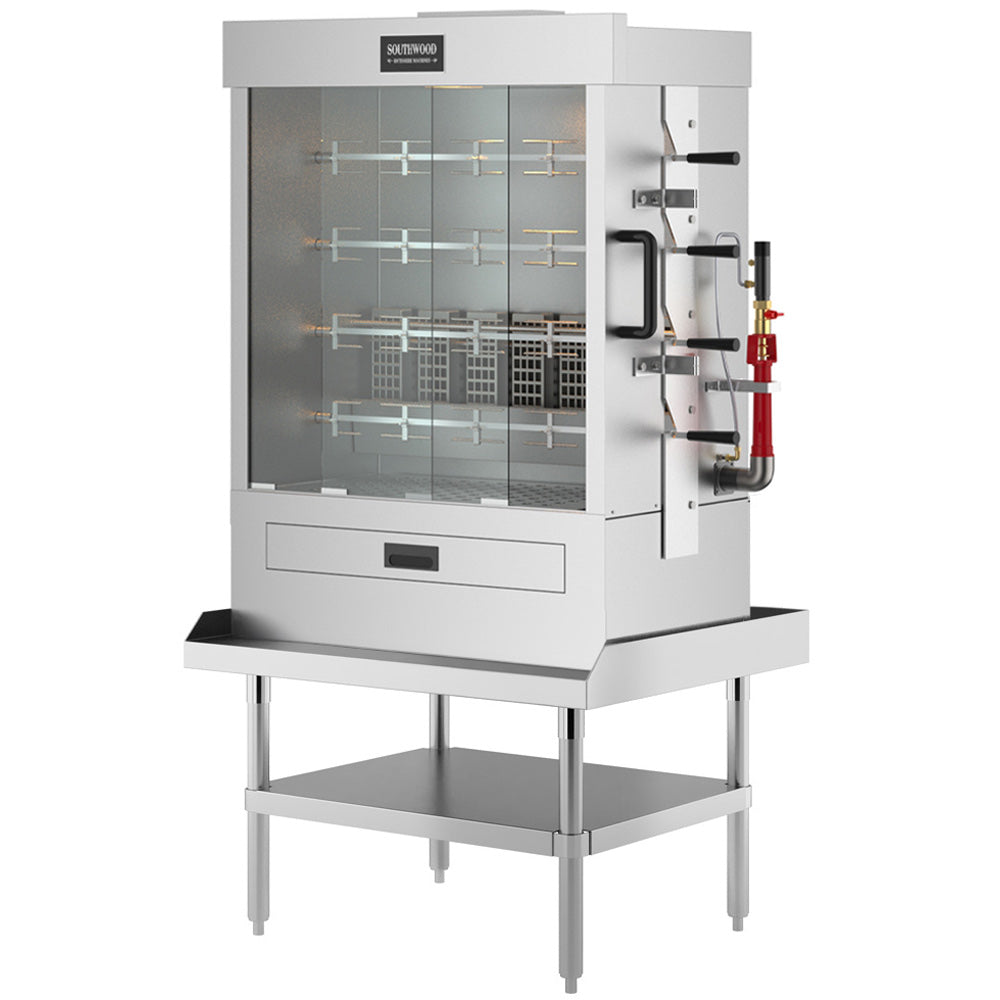

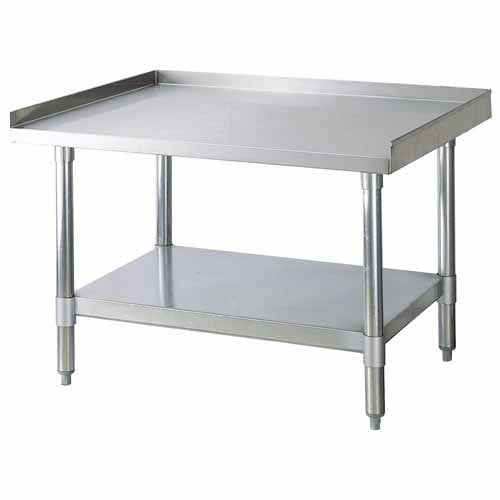

Southwood lists the equipment stand as optional (sold separately) for the RG4. Our photos show it on a stand.
USR Brands covers Southwood rotisserie ovens for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, glass is not covered, and gas connections must be made by a qualified installer.
The Southwood warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Southwood (USR Brands) |
|---|---|
| Model Number | RG4 |
| Quantity | 1/Each |
| Shipping Weight | 331 lb. |
| Net Weight | 280 lb. |
| Width | 44.5 Inches |
| Depth | 22.2 Inches |
| Height | 60 Inches |
| Width with Spit Handles | 49.5 Inches (44.5" + 5" Handles) |
| Height Breakdown | 54" Cabinet + 6" Legs |
| Shipping Dimensions | 48.5" L x 26.5" W x 52.5" H |
| Gas Type | Natural Gas (Field Convertible to LP) |
| Total BTU | 38,000 BTU/H |
| Burners | 1 |
| Gas Inlet | 3/4" NPT |
| Gas Regulator | Included3/4" NPT4" W.C. Natural Gas, 10" W.C. PropaneMax. Inlet 1/2 PSI |
| Voltage | 120 Volts |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | 3-Prong Grounding Plug (120V) |
| Capacity | 16-20 Chickens |
| Spits | 4Independent Motor Each |
| Skewers per Spit | 2 Single3 Double |
| Iron Grates | 7 |
| Controls | Individual Gas and Motor Controls |
| Lighting | 20 W Bulb (Included) |
| Doors | Tempered Glass |
| Drip Drawer | YesCan Hold Water for Humidity |
| Venting | Top Vent 3.3" x 15" |
| Exterior | #430 Stainless Steel |
| Legs | 6 Inches |
| Equipment Stand | Optional (Sold Separately) |
| Clearance | 0" to Non-Combustible Surfaces Only6" from Other Equipment |
| Ventilation | Under Exhaust Hood Extending 6" Beyond Sides4 ft. to Filters |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
