Standard Range SR-EG60 60" Electric Countertop Griddle, 1" Steel Plate, 5 Thermostats, 208/240V Hardwired
A 60" electric griddle with a 1" steel plate for eggs, pancakes, burgers and sandwiches where gas is not available.
The Standard Range SR-EG60 is a 60"-wide countertop griddle for diners, cafes, delis and breakfast lines. A 1" thick steel plate gives a 60" W x 20.7" D cooking area, heated by 5 heating elements and controlled by 5 thermostats from 150°F to 450°F. Welded back and side splashes, a 4" grease trough and 2 removable grease drawers keep the line clean. It runs on 208V or 240V single or 3 phase and is hardwired by a licensed electrician.
Have a licensed electrician confirm the circuit before delivery; the griddle cannot be plugged into an outlet.
A thick plate holds heat when you load it with cold product and recovers quickly between orders.

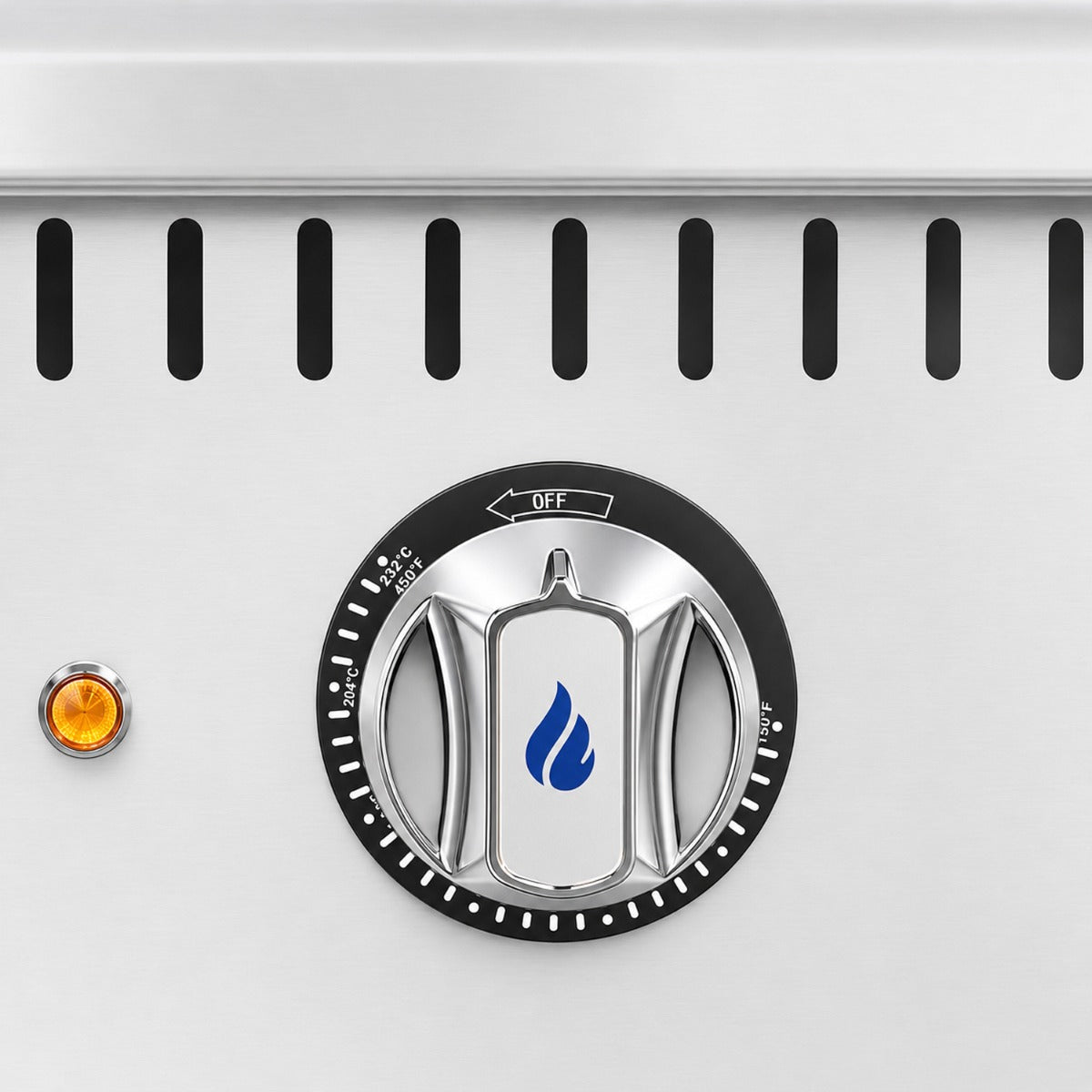

5 thermostats, one per 12" section, so you can run eggs and burgers at different temperatures.
Fully welded back and side splashes, a 4" spatula-width trough and 2 removable grease drawers.
All stainless steel cabinet with a "cool-to-the-touch" front edge on 6 adjustable feet.
It runs on 208V or 240V, wired for single or 3 phase at installation. It needs two separate power supply connections, each hardwired to its own dedicated circuit by a licensed electrician. Each 12" element is 3 kW at 208V or 4 kW at 240V, so the 5 elements total 15 kW or 20 kW. The sheet lists no amperage; your electrician sizes the circuits from the data plate, or call us before ordering.
No. The cordset is not included, and USR Brands warns that adding a plug, cord cap or any cord-and-plug connection voids the warranty.
The 1" steel plate gives a 60" W x 20.7" D cooking area, with 5 thermostats, one for each 12" section, from 150°F to 450°F.
It is 60" W × 29" D × 15.4" H on 6 adjustable feet (Standard Range sheet). Check that your counter or equipment stand is deep and strong enough for 484 lb.
The manual says to clean the plate, set it to 350°F, wipe on a thin film of cooking oil with a cloth and leave it for half an hour, wipe off the excess, and repeat once before cooking.
USR Brands covers Standard Range gas and electric cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Gas and hardwired electrical connections not completed by a qualified installer, and wrong voltage, phase or fuel hookups, are not covered. Food truck and farm installs are parts only, and residential use is not covered.
USR Brands, which backs the Standard Range warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Standard Range (USR Brands) |
|---|---|
| Model Number | SR-EG60 |
| Quantity | 1/Each |
| Shipping Weight | 567 lb. |
| Net Weight | 484 lb. |
| Width | 60 Inches |
| Depth | 29 Inches |
| Height | 15.4 Inches |
| Front Height | 12.7 Inches |
| Cooking Surface | 60" W x 20.7" D |
| Packaging Dimensions | 63" W x 33.5" D x 19.25" H |
| Voltage | 208 / 240 Volts |
| Heating Power | 15 kW at 208V (5 x 3 kW)20 kW at 240V (5 x 4 kW) |
| Hertz | 50 / 60 |
| Phase | 1 or 3 (Wired at Installation) |
| Plug Type | Hardwired |
| Power Cord | Not Included |
| Electrical Connection | 2 Separate Power Supply Connections, Each Hardwired to Its Own Dedicated Circuit by a Licensed Electrician |
| Griddle Plate | 1" Thick Steel |
| Heating Elements | 5 x 3,000 W (208V) / 4,000 W (240V), One Every 12" |
| Temperature Range | 150 - 450 Degrees F |
| Controls | 5 Thermostats with Heating Light |
| Splash Guards | Back and Sides, Fully Welded |
| Grease Trough | 4" Spatula Width |
| Grease Drawer | 2 Removable, 4" |
| Exterior | Stainless Steel Cabinet |
| Frame | Welded |
| Feet | 6 Adjustable Stainless Steel Legs with Non-Skid Feet |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
