Standard Range SR-PC11-NG 15" Natural Gas Pasta Cooker, 11 Gallon Tank, 6 Baskets, 122,000 BTU, Millivolt Controls
A 15" natural gas pasta cooker that boils, holds and drains portions in six baskets, with no electrical hookup.
The Standard Range SR-PC11-NG is a 15"-wide floor pasta cooker for Italian restaurants, pizzerias, cafes and catering kitchens. 122,000 BTU of natural gas burners heat an 11 gallon open-pot tank, and a manual millivolt thermostat holds the water between 86°F and 257°F, with a 260°F high limit. Six stainless steel mesh baskets, a water faucet on a 1/2" inlet and a 1" waste water drain make refilling and emptying simple. This model runs on natural gas only.
Plan a water line and a floor drain or drain line next to the gas connection, and confirm your gas type before ordering.

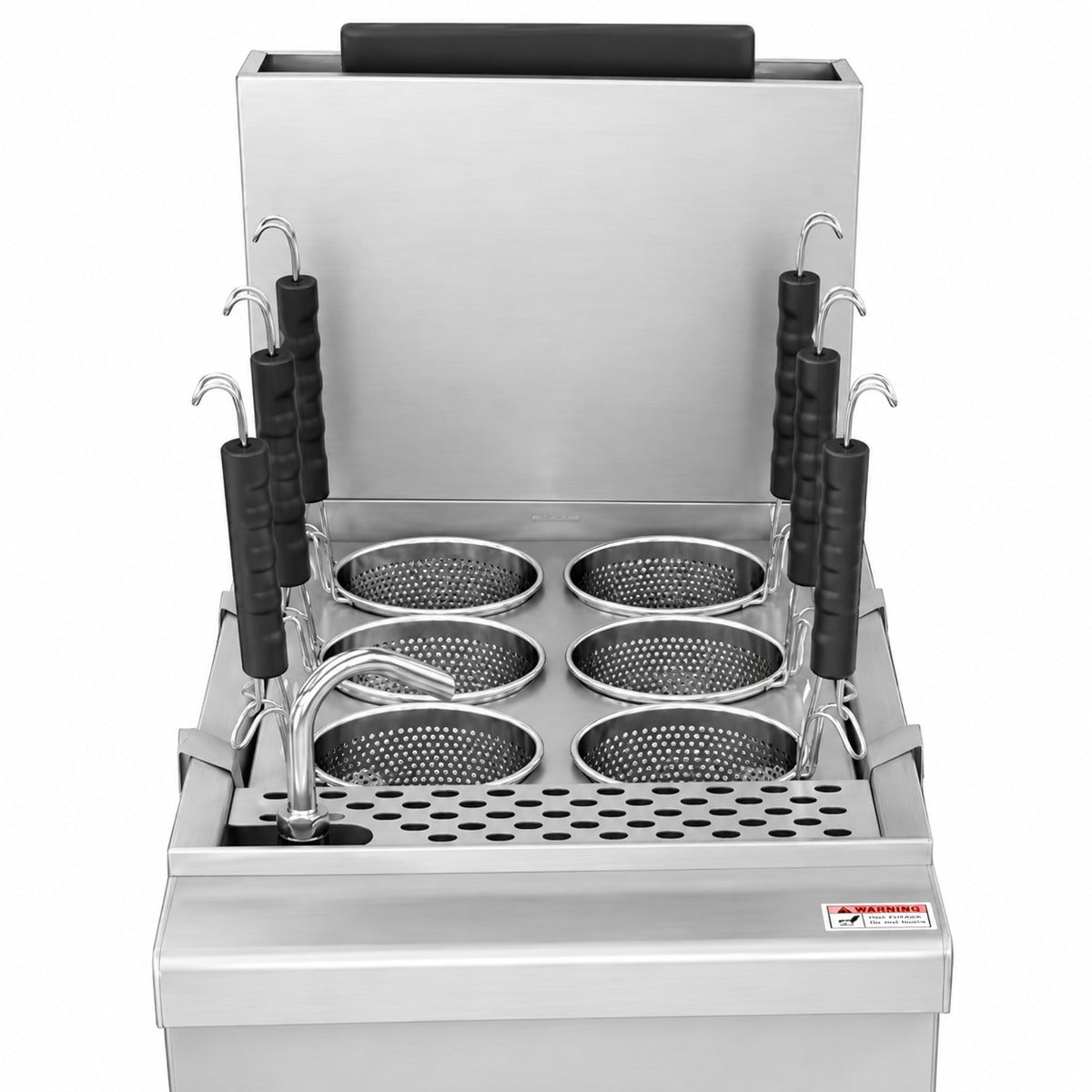

Six stainless steel mesh baskets let you cook single portions side by side in the 11 gallon tank.
A 1/2" water inlet with faucet fills the tank and a 1" waste water drain empties it, so nobody carries hot water.
Millivolt thermostat and control valve from 86°F to 257°F, with a 260°F high limit and no cord or outlet.
Open pot design, stainless steel construction, rear backsplash and overflow protection.
No. The SR-PC11-NG is set up for natural gas, and the manual says the cooker should be connected only to the gas type shown on its serial plate. For propane, choose the SR-PC11-LP.

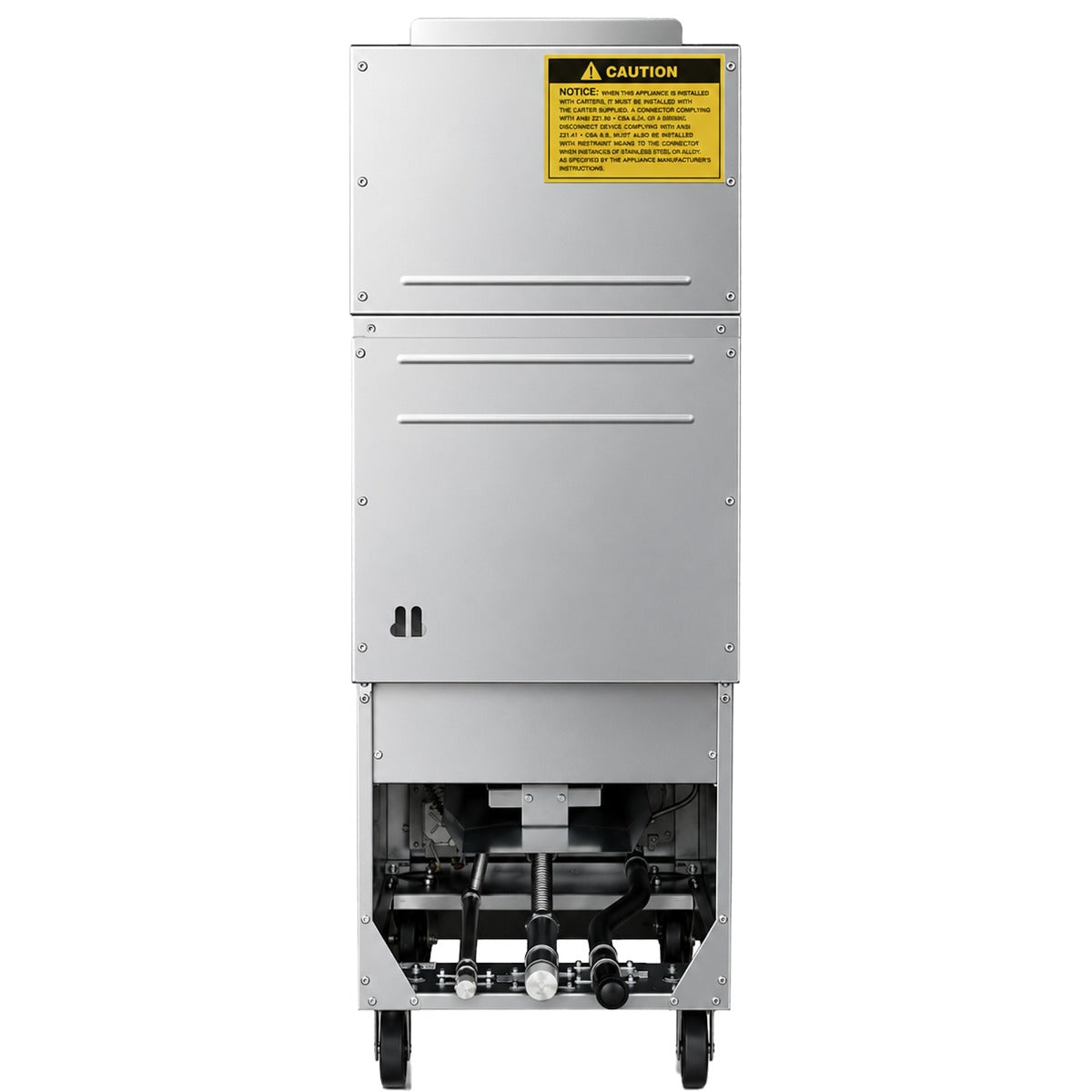

Gas through the 3/4" NPT male connector on a 1/2" pipe (minimum 4" W.C. supply pressure), cold water to the 1/2" male NPT inlet, and a drain line on the 1" male NPT waste water outlet. A qualified installer must make the gas connection.
No. It uses a millivolt thermostat and gas valve with a standing pilot, so there is nothing to plug in.
Six stainless steel mesh baskets come with the cooker; the drawing shows them two across and three deep in the tank.
Yes. The manual says it must be installed under a ventilation hood, 6" from combustible walls at the sides and rear, and at least 16" from open flames on neighboring equipment unless your code allows a flame guard.
The sheet lists 4 casters (2 with brakes) as standard, with legs optional. On casters, the manual requires a flexible gas connector, a quick-disconnect and a restraint (not included); the cooker must be restrained against tipping.
USR Brands covers Standard Range gas and electric cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Gas and hardwired electrical connections not completed by a qualified installer, and wrong voltage, phase or fuel hookups, are not covered. Food truck and farm installs are parts only, and residential use is not covered.
USR Brands, which backs the Standard Range warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Standard Range (USR Brands) |
|---|---|
| Model Number | SR-PC11-NG |
| Quantity | 1/Each |
| Shipping Weight | 168 lb. |
| Net Weight | 149 lb. |
| Width | 15.2 Inches |
| Depth | 30.2 Inches |
| Height | 45.3 Inches |
| Working Height | 34.2 Inches |
| Cooking Area | 13.9" W x 17.4" D |
| Packaging Dimensions | 17" W x 33" D x 34" H |
| Gas Type | Natural Gas |
| Total BTU | 122,000 BTU/H |
| Gas Inlet | 3/4" NPT Male Connector on 1/2" Pipe |
| Gas Inlet Height | 6.7 Inches |
| Supply Pressure | Minimum 4" W.C. |
| Capacity | 11 Gallons Water |
| Baskets | 6 Stainless Steel Mesh Baskets |
| Temperature Range | 86 - 257 Degrees F |
| High Limit | 260 Degrees F |
| Controls | Manual Millivolt Thermostat and Control Valve, Standing Pilot |
| Water Inlet | 1/2" Male NPT |
| Waste Water Drain | 1" Male NPT |
| Exterior | Stainless Steel |
| Frame | Welded |
| Backsplash | Rear, with Overflow Protection |
| Casters | 4 (2 with Brakes, 2 without)Legs Optional |
| Clearances | 6" Sides and Rear from Combustible Construction16" from Open Flames of Adjacent Equipment |
| Ventilation | Install under a Ventilation Hood |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
